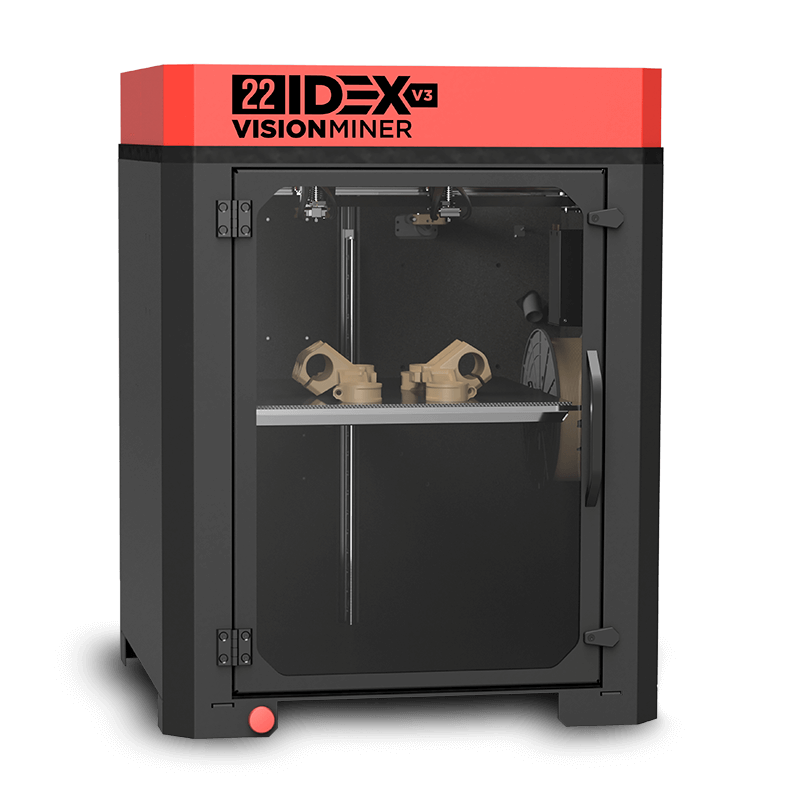

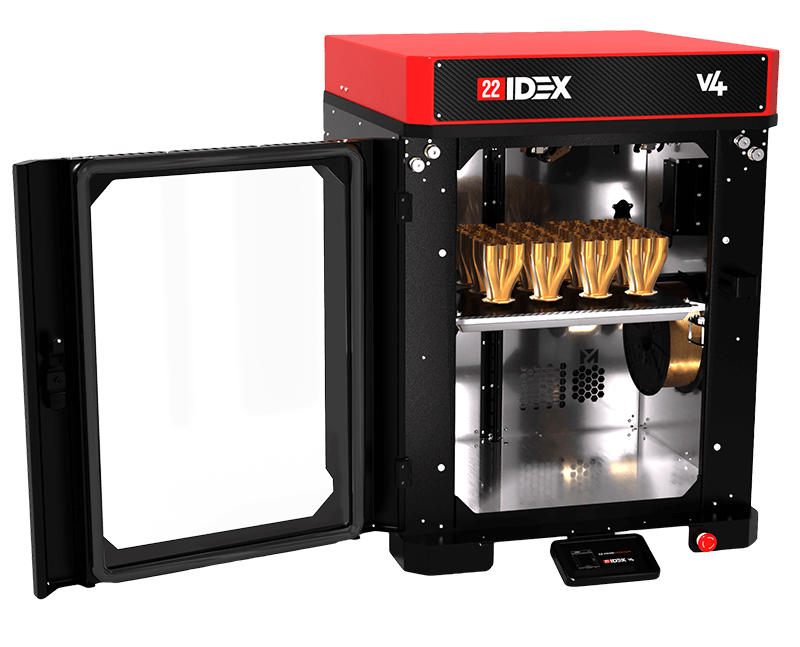

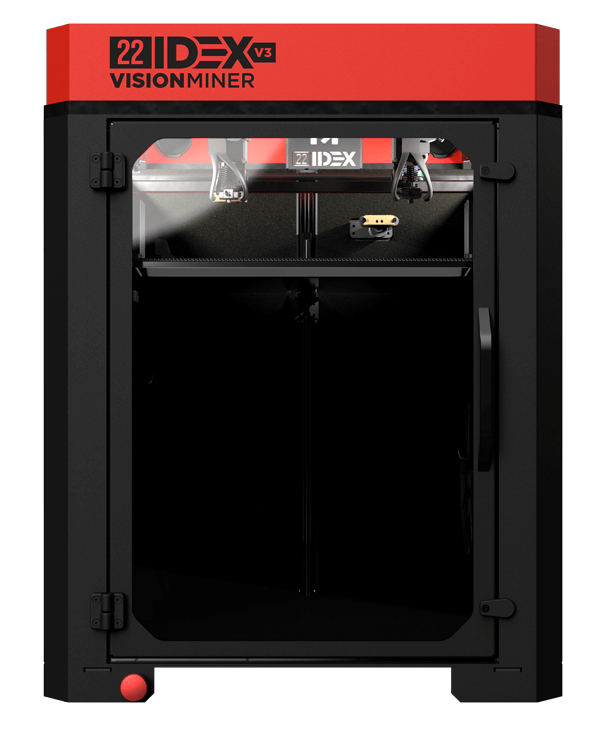

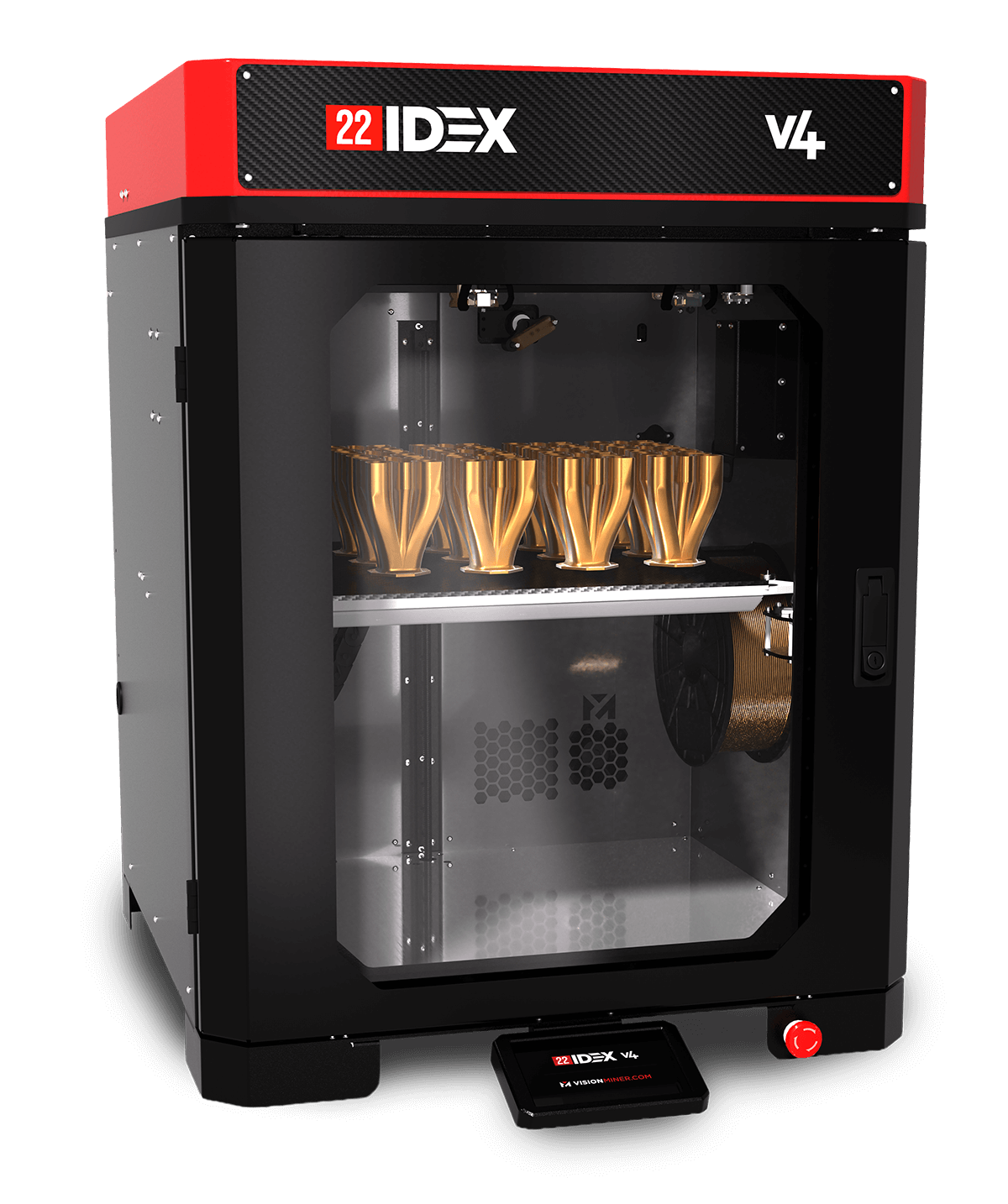

INDUSTRIAL 3D PRINTER:  UNLIMITED POLYMER OPTIONS

With dual independent extruders capable of 500ºC, an actively-heated chamber reaching 90ºC, and a triple-motor, true-self-leveling 200ºC bed, coupled with the fully open material system, the 22 IDEX v2 is unlocking the potential of in-house additive manufacturing.

$14,900.00

High-Performance Materials,
straight out of the box


STRONG parts. Functional Polymers.

Parts you can sell, materials you can print jigs and fixtures from, vacuum molds, press brake tooling - if it can be 3D printed, there's a good chance you can do all that and more, on the 22 IDEX v2.

  • Aerospace-grade replacement parts, tooling, fixtures

  • Autoclavable, sterilizable tools for medical applications

  • Rigid, chemical & radiation resistant polymer composites

  • High-temp, metal-replacement thermoplastics

Under-the-hood in race cars, to satellites in space - whether you're a one-man operation, or a 20,000+ employee aerospace company, this machine can get your job done.

AUTOMATED CALIBRATION


SELF-LEVELING BUILD PLATFORM

DYNAMIC MESH LEVELING

AUTOMATIC X/Y ALIGNMENT

HARDWARE FOR ADVANCED USERS


500ºC Nozzles

Independent Dual-Extruder Hotends

Maximum temperatures give you the ability to print any Performance Thermoplastic on the market, from PLA to PEEK, PEKK, ULTEM™ , PPSU, and more.


Unlike other machines, BOTH hotends reach the full 500ºC, enabling multi-material, copy mode, mirror mode, and full use of supports - soluble and otherwise.

200ºC Build Platform

True Self-Leveling Build Platform

Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface.


On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.

90ºC Chamber

Actively Heated Chamber

Performance thermoplastics are next to impossible without a heated build environment - the 22 IDEX heats up to 90ºC+, enabling functional high-temp materials with solid mechanical properties. Dual chamber thermistors monitor the temperature, with auxiliary convection fans ensuring an evenly-heated build volume.

Unlimited Materials

1.75mm Open-Filament FFF/FDM System

Not locked into proprietary materials, limited nozzle temperatures, or overly-expensive branded filaments... we carry the best materials we can find, at Vision Miner, from several sources -- but you're ALWAYS welcome to use your own. FAR 25.853, UL94 V0 rated materials, and more.

Unlocked Firmware

Up-to-date RepRap firmware

The latest and greatest firmware comes installed on your 22 IDEX, and there are always up-to-date links to the latest versions available in our documentation.

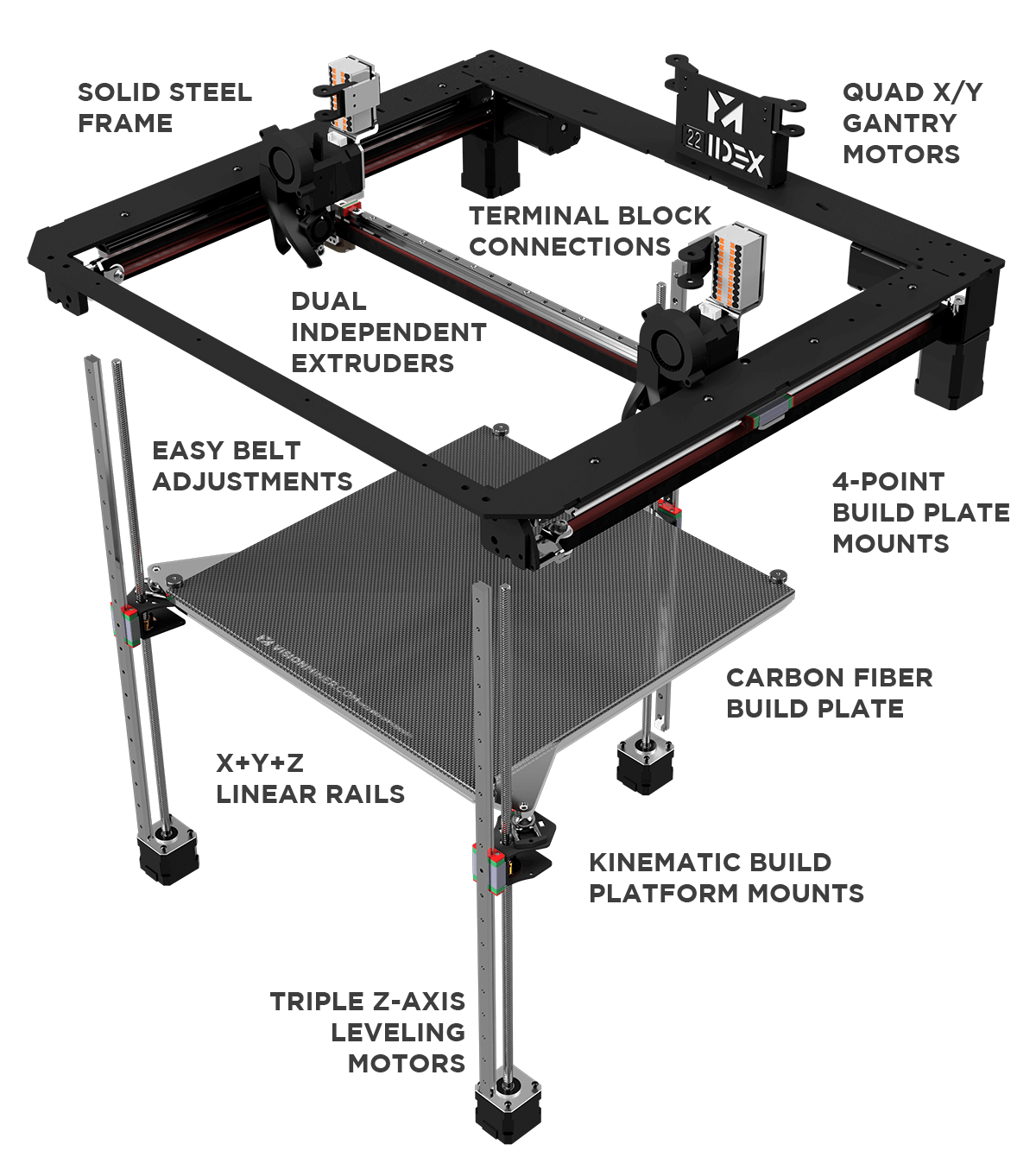

CUTTING-EDGE MOTION SYSTEM

A TOTALLY UNIQUE, QUAD-MOTOR X/Y-AXIS, TRIPLE-MOTOR Z-AXIS


Solid Steel Frame

Stable and dependable, it won't shift as it soaks heat -- critical at high temperatures

Terminal Block Connections

No need to hunt down specialized connectors -- easily swap, replace, or modify componentse

4-Point Build Plate Mounts

No matter which build plate material you're using, rest assured that it's not going to warp up with your ultra-performance parts.

Kinematic Z-Axis Mounts

Self-centering, kinematically-coupled build platform -- always true, always solid, automatically self-leveling

Easy-Access Belt Adjustment

The belt adjustment pulleys are easily accessed at the front, making it quick work to adjust them as-needed. Did we mention the ultra-stable 12mm Kevlar belts?
$14,900.00

MADE FOR
ENGINEERING Materials

USE THE WIDEST RANGE OF PERFORMANCE THERMOPLASTICS


WHAT FILAMENTS CAN YOU PRINT
ON THE 22 IDEX?

Basically all of them. We're talking about functional polymers -- whether you're focused on Carbon Fiber Nylons, ULTEM™ 9085, or Glass fiber PEEK, the 22 IDEX v2 has you covered, with virtually unlimited material options:

POLYMER CLASS

AMORPHOUS

SEMI-CRYSTALLINE

ULTRA-PERFORMANCE POLYMERS

400ºC+

  • PEKK-A
  • PEI (ULTEM™) 1010 & 9085
  • TPI

  • PEEK
  • PEKK-C
  • PAEK (AM200)

HIGH-PERFORMANCE POLYMERS

330ºC+

  • PEI
  • PES
  • PSU
  • PESU

  • PVDF
  • PPS
  • PA9T
  • PVDF

ENGINEERING-GRADE POLYMERS

220ºC+

  • PC (Polycarbonate)
  • TPU
  • PPE/PS
  • PC/ABS

  • Nylons
  • PA12
  • PA6
  • POM

COMMODITY-GRADE POLYMERS

180ºC+

  • ABS
  • ASA
  • HIPS
  • PETG

  • OBC
  • PP
  • PLA
  • PCTG

INDUSTRY-LEADING FEATURES


FUME EXTRACTION - CLEAN AIR

Many 3D printers include air filters, which are usually HEPA filters and a thin sheet of activated carbon. This simply isn't enough for a production environment, barely passing as filtration at all -- the 22 IDEX comes standard with hookups for 2" hoses, for connecting to industrial fume extraction systems

XY TOOLHEAD - AUTO ALIGNMENT

Our automated XY toolhead alignment eliminates the older style of having to do multiple alignment prints. Pulling from proven, precision practices of the CNC Industry, our Auto Alignment probe takes the guesswork out of the picture with one easy, automated process.

Built-in Automatic Filament Drying System

The filament on the 22 IDEX is stored inside the chamber while printing -- this means that when using the heated chamber with hygroscopic filaments (read: most filaments), the filament is kept dry, eliminating much of the oozing, blobbing, and poor surface finishes due to moisture.

Auto Shutoff and Safety Systems

Safety is paramount, in the workplace and workshop - the printer will automatically shut down if it senses overheating, thermal runaways, or electrical errors. Solid State Relays and quality wires are just a fraction of the safety features designed into the machine, from the ground up.

AMERICAN SERVICE & SUPPORT

We're here to help you -- that's our promise, if you succeed,we succeed.


We cross-train our team to use everything we sell -- there's a good chance that whoever answers your phone call, can also solve your technical problems, should any occur. In the rare event you need an expert, we staff passionate additive manufacturing techs to help you.

No more total-lack-of-communication-for-months-at-a-time only to be sent to a new rep in another country. Nope, none of that. You'll be speaking with a real person, someone who knows the industry and can help solve real-world problems.
The guys working in the shop are the ones taking your call, to help you figure out your challenge. Not some trainee with step-by-step FAQ's you could find online (did we mention our extensive documentation and video tutorials? Most situations are easily resolved with a quick search, before you even pick up the phone)

No scripted auto-attendant generic answers, just real people with real problem-solving skills. We work via phone, email, and video conferencing to ensure whatever your problem is, we get you back up and into production time as quickly as possible. We don't spoon-feed basic fundamentals (that's what our video training and docs are for), but we are always here to help.

BUILT FROM STEEL

MADE USING TOP-OF-THE-LINE COMPONENTS


LINEAR RAILS

Linear-Rail Motion System

When building the 22 IDEX, we wanted to use only the highest quality components, giving you the precision of an industrial machine on your desk.

Robust high-temp stepper motors, linear rails, quality wiring and industry-leading electronics means you get consistent print quality and accuracy, while minimizing overall system maintenance. Using extra-wide 12mm  Kevlar belts, the 22 IDEX stays in-spec with ease.

TRIPLE MOTOR Z-AXIS

True Self-Leveling Build Platform

Most printers require manual leveling, in addition to planar-offset or mesh-leveling.


Not so, with the 22 IDEX - we've integrated three Z-Axis motors to physically level the build platform before each print, combined with a customizable mesh leveling process to eliminate all guesswork.


This means that your prints will start at the perfect height, every single time. It's a game-changer.

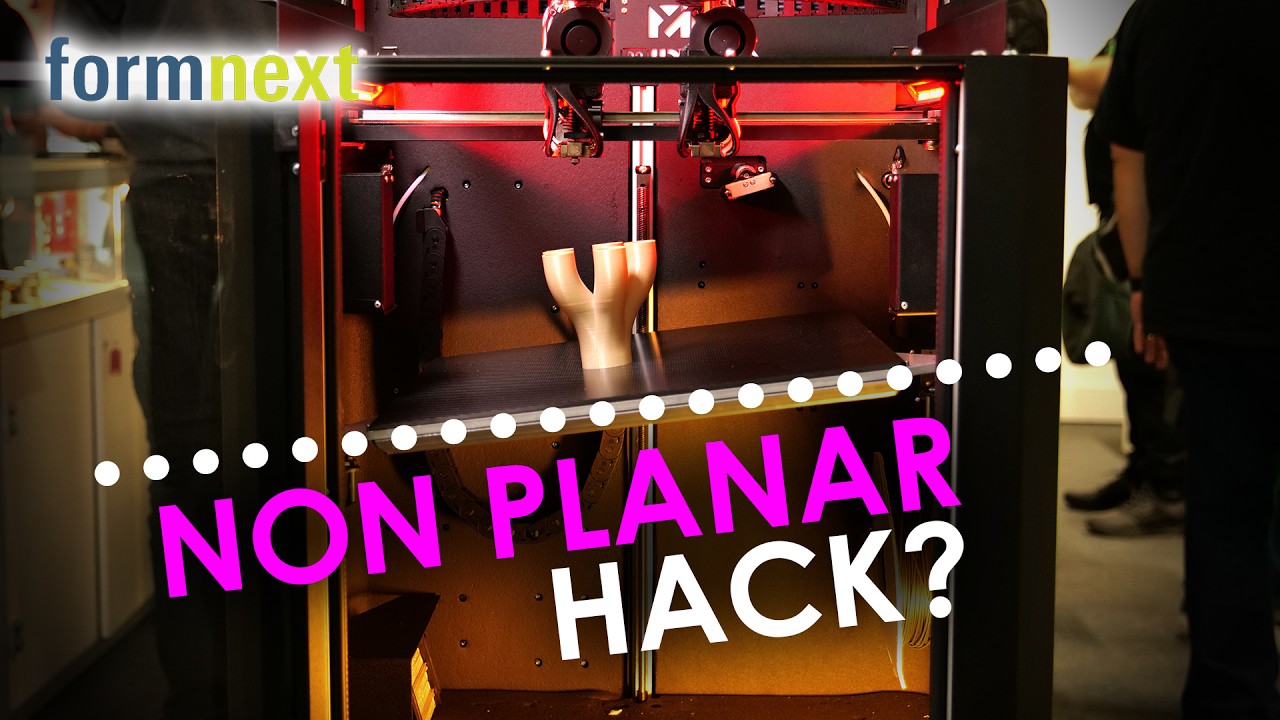

NON-PLANAR READY

6 Independent Axis and 5 Degrees of Freedom

The self-leveling bed and auto-squaring XY gantry not only makes great prints, but enables non-planar printing to an entirely new level -- you're not just buying any other 3D Printer, the 22 IDEX is prepared to take on a whole new world of multi-axis 3D Printing.


All 6 axis are independent, giving you a full 5 degrees of freedom, meaning your machine is already prepared for the next generation of non-planar printing and slicing software, once it becomes available.

INDUSTRY-PROVEN TECH

MADE USING CUTTING-EDGE PARTS


SLICE ENGINEERING COPPERHEAD

Thermally Consistent Heat Blocks and Bimetallic Heat Breaks

Crank out more parts in less time, with one of the most consistently-flowing hotend designs available. We absolutely love the quality -- incredible fine, beautiful CNC finish, and made right here in the USA.

BONDTECH LGX PRO EXTRUDER

Industry proven, tested, and loved -- Bondtech is at the top for a reason

When it comes to order of importance, it doesn't get much more important than your extruder -- the crux of the filament being printed on your machine. The LGX Pro from Bondtech now has all-metal gears and internals, making it a great choice for driving the high-performance thermoplastics you'll be extruding non-stop, without worrying about nearly as many jams, clogs, or inconsistent extrusions.

OPEN-SOURCE FIRMWARE

Duet 2 RepRap Firmware, Silent Trinamic Stepper Drivers

Unlimited extensibility with industry-standard electronics -- add a Raspberry Pi, more motors, other features -- plus, you can use any slicer you want, on any system - Windows PC, Mac, or Linux. Modify to your heart's content.

PRE-CONFIGURED SLICER, OR USE YOUR OWN

Superslicer, along with the Duet 2 web interface means: your computer will work, as-is.

The Integrated WiFi (or ethernet, for our DOD customers) web interface and standard RepRap firmware makes the machine easy to control, from anywhere in the shop. Use your workstation, laptop, tablet or phone to control the printer -- using macros, or custom configurations you develop for your own needs. Plus, we offer pre-configured profiles for SuperSlicer, including materials like PEEK, CF-Nylon, PCTG, etc, and you're always able to use whichever slicer you prefer.

Dual-Geared Bondtech LGX Pro Extruders on both Hotends

Want to print Flexible materials? Go for it! Carbon Fiber and Glass Fiber filaments? No problem! These powerful extruders can handle not only the toughest filaments, but the softest ones too. On top of that, the 22 IDEX v2 comes with hardened steel nozzles, standard. This means you can produce parts in CF Nylon, CFPEEK, or any other abrasive composites, straight out of the box.

PARTNERED WITH THE BEST IN THE INDUSTRY

$14,900.00

QUICK SPECS:


500ºC
NOZZLE
200ºC
BUILD PLATE
90ºC
HEATED CHAMBER
TRIPLE Z-MOTOR
TRUE SELF-LEVELING
DRYS FILAMENT INSIDE
AUTOMATIC X/Y ALIGNMENT
350 x 350 x 450mm
BUILD VOLUME
ALL MATERIALS
PEEK, ULTEM, CF NYLON, +MORE
AMERICAN SUPPORT
FROM VISION MINER
DUAL INDEPENDENT EXTRUDER
+ BONDTECH LGX EXTRUDERS
+ SLICE ENGINEERING HOTENDS
LINEAR RAILS

DETAILED SPECIFICATIONS


Printing Technology

Fused Filament Fabrication, or Fused Deposition Modeling (FFF, FDM)

Build Volume

• Convection Heating
• 350 x 350 x 450 mm
• 13.7 x 13.7 x 17.7 in
• 55,000 cm^3
• 3,356 in^3
• RGB Lighting

Build Platform Material

• High-Temperature Carbon Fiber Build Plate (Included)
•  Borosilicate Glass
• Optional PEEK+CF Composite

Motion System

• Linear Rails
• Ultra Wide 12mm Belts
• High-Temp Stepper Motors
• 6 Independent Axis and 5 DoF
• Silent Trinamic Stepper Drivers
• Quad X/Y-Axis Motors
• Triple Z-Axis Motors
• Self-Squaring X/Y Gantry

Build Platform Leveling

• True Automatic Mechanical Bed Leveling with 3 Z-axis Motors
• Adaptive Multi-Point Mesh Leveling - Customizable to hundreds of points

• Servo-docked leveling sensor

Tool Heads
• LGX Pro High-Temp Dual-Gear Extruders
• Slice Engineering Copperhead Hotends
• Hardened Steel Nozzles, standard
• Filament Runout Sensors

Layer Resolution

• 0.005” (125 micron, all Axis, real-world application - remember, you are using a round nozzle orifice - higher accuracy is achievable)
• 40-500 Micron Standard Layers

Speeds

• Maximum Travel Speed: 500mm/s


Printing speeds depend on material.

High Temp: 30-200mm/s

Filament Diameter

Standard 1.75mm Filament

Fully Open Material System

Nozzles

Standard E3Dv6 style M6x1 threaded nozzles (Copperhead)

Included:

• Hardened Steel 0.4mm

Available Options:

Vision Miner Nozzles

Position Accuracy

Hardware Maximums:

• X/Y: 10 μm
• Z: 7 μm

Safety

• Auto Shutoff Option
• Overheat & Thermal Runaway Protection
• German-manufactured Wiring
• High-Quality Components

Warranty

• Standard 1-year Limited Warranty
• Premium and Extended Warranties Available

Operating Temperatures

• Operating: +64 - 86ºF (+18 - 30ºC)
• Storage: +50 - 113ºC (+10 - 45ºC)

Fume Extraction / Filtration

• Optional Integrated 2" inlet/outlet for external fume extraction  (purchased separately)

• Optional HEPA + Active Carbon Filter System (sold separately)

Extruder Temperature

500°C Maximum

Build Plate Temperature

200°C Maxiumum

Chamber Temperature

90°C

Active Convection Heating

Input File Type

Standard G-code, RepRap based

Compatible Slicers

Any RepRap-Compatible  slicer:
SuperSlicer
Simplify3D
Slic3r
Cura (Not Compatible with High Tem

Operator Interface

• Complete Web Interface
(Duet Web Control)

• Integrated Wifi (Standard)
• Ethernet-only (optional)
• USB Terminal Connection

Internal Storage

16GB (expandable, micro SD card)

Supported Computer OS

Windows, MacOS, Linux, Android,  iOS - Control Panel uses standard internet browsers

Power Consumption

• 110V AC, 50/60Hz,

• Standard USA Plug


For converting to 240V AC, heaters must be swapped for 240V versions, and power supplies can be switched to 240V AC.

Machine Dimensions

Machine Dimensions:

580 x 560 x 740 mm

23" x 22" x 29"


Recommended Footprint:

1000 x 600 x 1000 mm

40"x 24" x 40"


Machine Weight:

200 lbs

90.7 kg

Shipping Weight & Dimensions

Export-Compliant Crate

220lbs / 100kg


32"x32"x36" on Pallet

25"x25"x31" Wood Crate

Materials

Any 1.75mm Filament:

PEEK, PEKK, CFPEEK, AM200 PAEK, PEI, ULTEM™ 9085, ULTEM™ 1010, PEI Blends, PPSU, PA/CF, Nylon (PA66, PA6, PA12, etc), PC, PC Alloys, PA, ABS, ASA, Carbon Fiber-Filled, Metal-Filled, Glass-Filled, Nylon, PETG, ESD Materials, HIPS, TPU, PLA, PVA, and more

Carbon fiber and glass-filled variants of the above + Various soluble and break-away support materials, 100% Open Material System

Materials / Filament Storage

Integrated Heated Storage
Filament rests inside the heated chamber while printing, preventing moisture uptake, enabling ultra-long print times with hygroscopic polymers.

Filament can be fed from outside machines, for larger spools
$14,900.00
LEXAN™ and ULTEM™ are registered trademarks of SABIC Innovative Plastics
