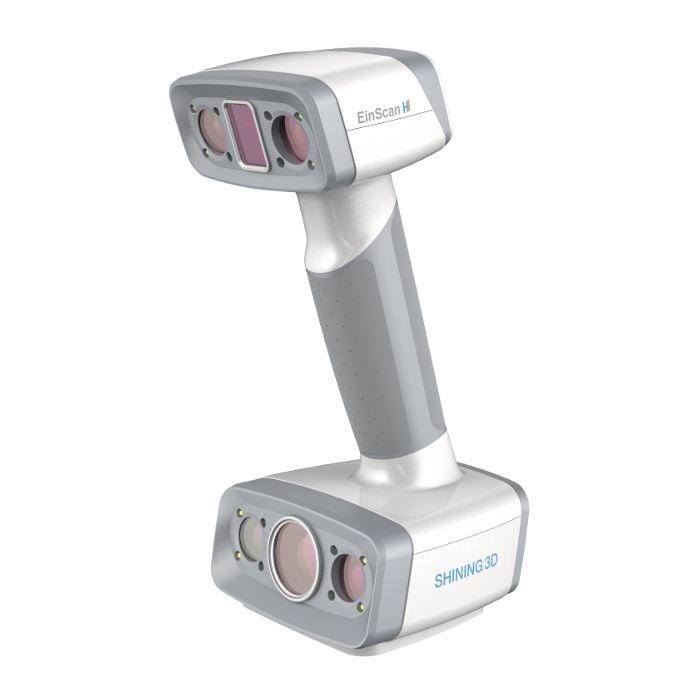

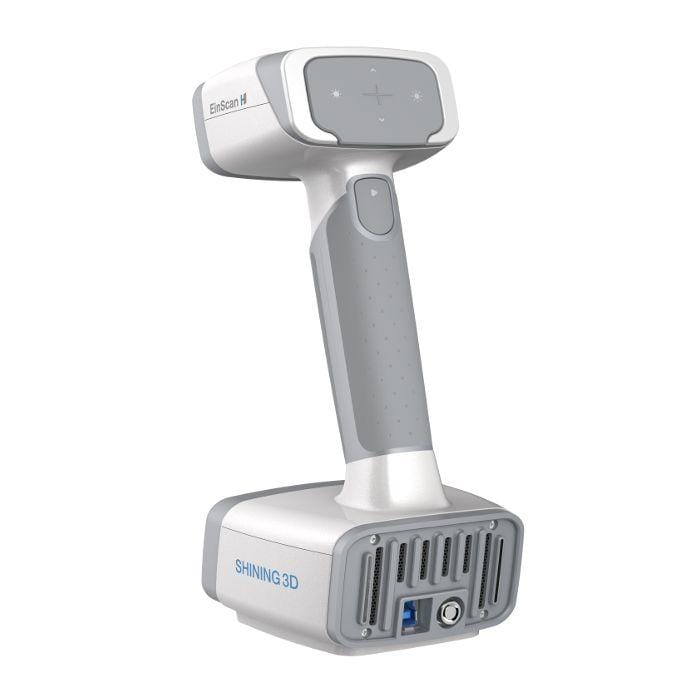

EinScan H

The EinScan H is a Hybrid LED & Infrared Light Full-Color 3D Scanner

Key Features:

  • Handheld Hybrid LED / Infrared 3D Scanner
  • Designed for Body, Limb, and Face Scanning
  • Easy to Scan Large Objects and Organic Shapes
  • Full color texture capturing included
  • 0.25mm Maximum Resolution

Best for Organic, Moving and Soft shapes

With algorithms designed to handle organic objects -- like people or faces -- the EinScan H excels at picking up moving, smooth objects, and uses infrared light to gather its data. Natively supporting a full-color mode, the EinScan H is the best option for full-body scanning, and medical scanning, for applications like prosthetics or castings.


  • Multiple Scan Options

    Handheld Rapid Scan for portable, rapid full-color scanning

    Designed for Body, Face, OR Object scanning

  • Powerful Software Included

    Includes EXSCAN H scanning software, which features a new and improved user interface and workflow, and Solid Edge SHINING 3D Edition CAD software, a design tool from SIEMENS PLM Software that allows reverse engineering and design from scan data with the ability to export to Solidworks or other CAD programs.

  • High Accuracy & Resolution

    The Einscan H has an accuracy advertised up to 0.05mm, with a resolution (point distance) of down to 0.25mm -- that's four points per millimeter, more than enough for most projects!

  • Scan Small to Large Parts and People, Quickly

    Designed to scan faces, body parts, but also entire bodies, you have a lot of options -- plus, it's full-color! In handheld rapid scan mode, scan speed is 20 FPS with 1,200,000 points per second, in standard scan and body scan modes, and 20 FPS with 720,000 points per second in face scan mode.

  • Portable and Easy to Use

    At only 703 grams, the EinScan H is easy to hold in your hand and scan almost any object, and can be transported in the optional protective travel case

  • Many Applications

    The EinScan H captures the full geometry of objects, to 0.25mm -- artwork or furniture can be scanned with great detail, in full color. The high accuracy of scanned data up to 0.05 mm and volumetric accuracy 0.1mm/meter improves the precision of 3D modeling in very dense point clouda or polygon meshes.

BUILT WITH MEDICAL AND HEALTHCARE APPLICATIONS IN MIND

Scan patients and parts for prosthetics, surgical guides, and more

VIDEOS

Scanning an Arm

Scanning a Hand

Scanning a Leg

Scanning Demo

EXAMPLE SCAN FILES

Download these files to check out the resolutions possible on the Scanner!

Import them into your Mesh software, or CAD software, like Fusion 360 or Solidworks, and take a look!

Some files contain just an STL, others contain the full ASC data and other files.

ARM

(717mb)

OIL PAINTING

(279mb)

ARM 2

(23mb)

HAN CLOTHING

(100mb)

HAND

(16mb)

LEG

(26mb)

SCULPTURE

(200mb)

SOFA

(57mb)

PORTRAIT

(170mb)

MORE EXAMPLES COMING SOON!

Detailed Specifications (EinScan H)

Scan Mode

Standard Scan

Body Scan

Face Scan

Scan Accuracy

Up to 0.05 mm

Up to 0.05 mm

Up to 0.6 mm

Volumetric Accuracy*

0.05+0.1mm/m

0.05+0.1mm/m

/

Safety

LED light (eye-safe)

LED light (eye-safe)

CLASS I (eye-safe)

Light Source

White Light, visible

White Light, visible

Infrared Light, invisible

Scan & Align Speed

1,200,000points/s, 20FPS

1,200,000points/s, 20FPS

720,000points/s, 20FPS


Align Modes

Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment

 Feature Alignment

Feature Alignment


Depth of Field

200 - 700 mm

200 - 700 mm

200-1500mm


Maximum FOV

420 mm * 440 mm

420 mm * 440 mm

780 mm * 90 mm

Point Distance

0.25 mm - 3 mm

0.5 mm - 3 mm

0.5 mm - 3 mm

Camera Frame Rate

55 FPS

Working Distance

470 mm

Built-in Color Camera

Yes

Connection Standard

USB 3.0

Dimensions

108 mm * 110 mm * 237mm

Color Scanning

Support

Output Formats

OBJ; STL; ASC; PLY; P3 ; 3MF

Scanner Body Weight

703g

Operating Temperature Range

0-40℃

Operating Humidity Range

10-90%

Supported OS

Win10,(64bit)

Recommended Configuration

Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB

Certification

CE,FCC,ROHS,WEEE,KC


Warranty

1 Year Manufacter Warranty

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.

Einscan H

Includes Scanner
and Solid Edge CAD Software
