Freescan Trak Nova

The FreeScan UE Nova is a fully wireless, high-performance 3D scanning system built for industrial environments where precision and speed matter. With two modular components—the TE Nova for high-detail scans and the UE Nova for large-scale tracking—it delivers unmatched versatility whether you're capturing tiny part features or full-sized assemblies. Designed for aerospace, automotive, energy, and heavy equipment applications, this system brings power and flexibility to the shop floor or field.



What sets it apart?

No markers.

No cables.



Just fast, reliable data capture thanks to integrated Video Photogrammetry (VPG) that tracks everything in real time—without the hassle. Swappable batteries keep you scanning nonstop, and everything exports cleanly into your favorite CAD or inspection software, from Geomagic to Verisurf.



Whether you're reverse engineering, validating tolerances, or inspecting complex assemblies, the FreeScan UE Nova keeps your workflow sharp, fast, and production-ready.

REQUEST A QUOTE

Extreme Accuracy For Large Objects

The FreeScan Trak Nova is built to handle big parts without sacrificing precision. Thanks to built-in Video Photogrammetry, you get rock-solid accuracy—down to 0.046 + 0.012 mm/m—across full-scale components, frames, tooling, and more. No markers, no drift, no nonsense. Whether you're scanning aerospace assemblies or heavy equipment, the Trak Nova locks onto your part and delivers clean, accurate data you can count on. It's high-end metrology made simple—and seriously effective.



Key Features:

• Wireless Operation: Complete freedom from cables

• Dual Scanner System: TE Nova (high-resolution handheld scanner) and UE Nova (large-scale scanner and tracking system)

• Video Photogrammetry (VPG): Marker-free scanning for efficient setup and accuracy

• Intelligent Mesh Resolution: Adaptive resolution based on object curvature

• Real-time AI Feature Recognition: Accurately captures features such as holes and boundaries

• Swappable Batteries: Continuous operation and ease of use

• Wide Field of View: Large scanning range of up to 2600 × 2200 mm

• High Volumetric Accuracy: Standard accuracy of 0.062 mm, enhanced accuracy with VPG up to 0.046 + 0.012 mm/m

• Compatibility: Supports inspection software including Geomagic Control X and Verisurf



Freescan Trak Nova Videos
Poster
Poster
Poster

Quick Links:

Product Brochure

Warranty Options

Scan File Download

Multi Scanner Flexibility

The FreeScan Trak Nova gives you two scanners in one—UE Nova for large-scale tracking and TE Nova for high-detail precision. Together, they let you tackle everything from full assemblies to intricate components without switching systems.

Powerful Software

The Trak Nova runs on SHINING 3D’s industrial-grade software, built for real-time tracking, clean mesh generation, and seamless data export. Whether you're running inspections, reverse engineering, or full-scale metrology, it integrates easily with platforms like Geomagic Control X and Verisurf to keep your workflow fast, accurate, and production-ready.

High Accuracy & Resolution

The FreeScan Trak Nova delivers serious precision with volumetric accuracy up to 0.046 + 0.012 mm/m and point spacing as fine as 0.05 mm. Whether you're scanning small features or full assemblies, you get crisp, reliable data that holds up in real-world inspection and engineering workflows.

High Speed

Up to 6.14 million points/second

Endless Applications

Automotive Industry: Inspection of body panels, engine components, and interior parts.​

Aerospace Sector: Measurement of turbine blades, fuselage sections, and other critical components.​

Manufacturing: Reverse engineering of tools, molds, and mechanical parts.​

Electronics: Inspection of connectors, housings, and intricate assemblies.​

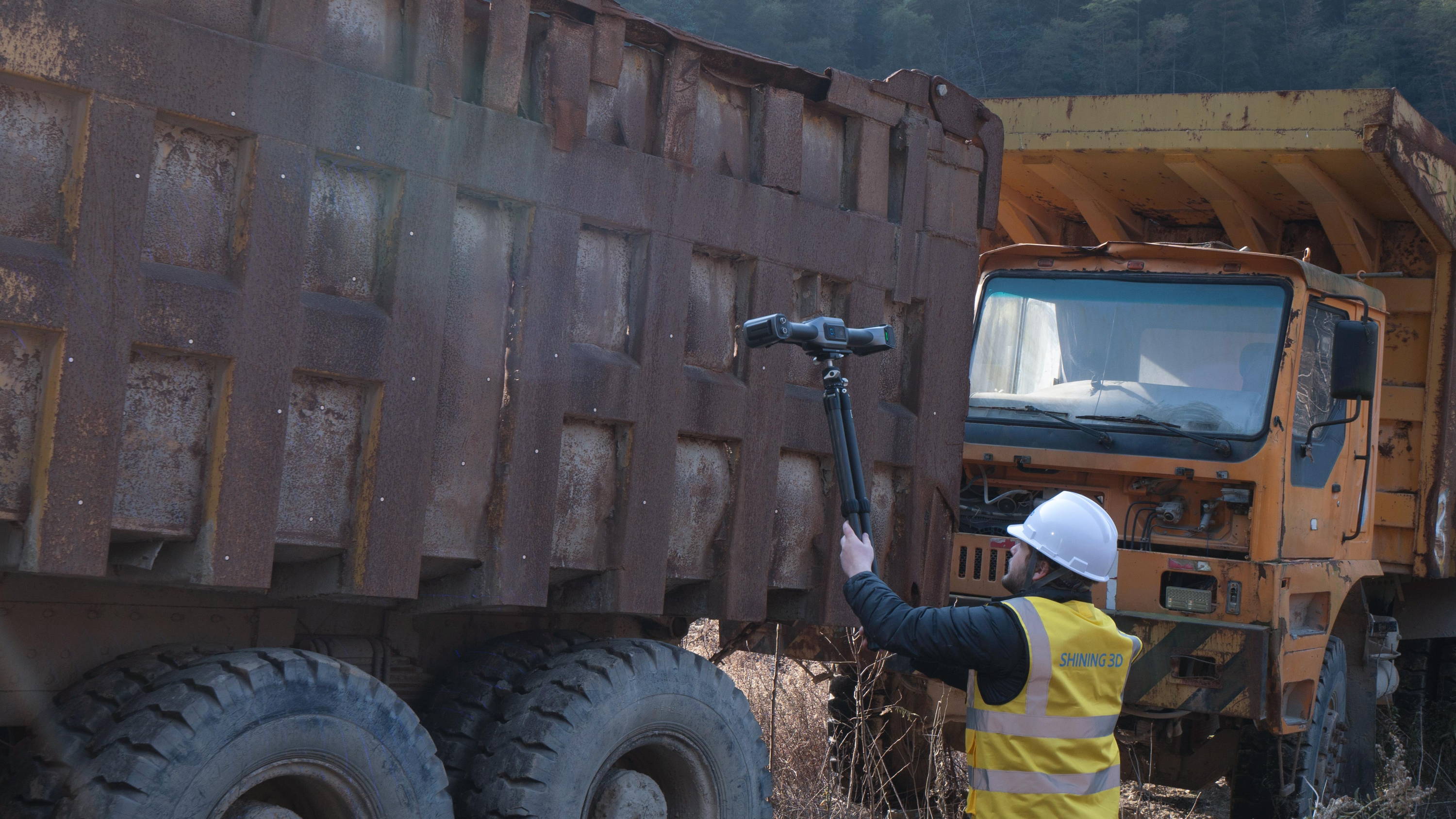

Energy & Heavy Industry: Assessment of large-scale equipment and infrastructure components.

EXAMPLE SCAN FILES

Download these files to check out the resolutions possible on the Scanner!

Import them into your Mesh software, or CAD software, like Fusion 360 or Solidworks, and take a look!

Some files contain just an STL, others contain the full ASC data and other files.

SEE MORE SCAN FILES (Google Drive)

Drone

Download Files

Chevrolet Silverado

Download Files

Fork Lift

Download Files

Rolls Royce

Download Files

Airplane

Download Files

Steel Mold

Download Files

Freescan Trak Nova

REQUEST A QUOTE

Detailed Specifications (Freescan Trak Nova)

High-speed scan

50 laser lines

Detailed scan

7 parallel laser lines

Deep pockets scan

1 laser line

Safety

Class II (eye-safe)

Volumetric Accuracy*

0.062 mm (12 m³)

Accuracy

0.02 mm

Volumetric accuracy with VPG

0.046 + 0.012 mm/m

Flexible FOV

Up to 2600 x 2200 mm

Resolution

0.01 ~ 10 mm

Scan Speed

6,140,000 points/s

VPG

Included (no coded markers required)

Detailed scan

Included (support near mode)

Depth of field

TE Nova 380 mm (170 ~ 550 mm); UE Nova 2700 mm (800 ~ 3500 mm)

Connection

Wireless & Wired mode (fiber optic)

Net weight

TE Nova 1.2 kg; UE Nova 1.6 kg

Certifications

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX

Acceptance test

VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
