Shining 3D · Wireless optical tracking system

FreeScan Trak Pro W

A wireless tracking system for whole vehicles and big machinery. The tracker follows the scanner in real time, so you scan without markers, and the Pro W+ reaches 8.6m and 156 m³ from one station. 0.023mm accuracy, VPG for extended volumes, and an onboard screen.

0.023mm, VDI/VDE 2634 & ISO 10360

No markers on most parts

Up to 8.6m tracking, 156 m³ (Pro W+)

Wireless or fiber optic

Pick your system

FreeScan Trak Pro W+

93 laser lines · 7.6M pts/s · 8.6m tracking · 156 m³ single station.

Custom quote

Configured to your parts

Get a quote

Book a demo

FreeScan Trak Pro W

50 laser lines · 5.5M pts/s · rated to 100 m³.

Custom quote

Configured to your parts

Get a quote

Book a demo

US support from people who scan · 833-774-6863  ·  Quotes usually within one business day  ·  POs, financing and leasing  ·  Pro W or Pro W+?

Not ready to buy yet?

Book a live demo ›

Compare Pro W vs. Pro W+ ›

Sample scan files ›

Send this page to your team ›

0.023mm

Accuracy

VDI/VDE 2634 + ISO 10360 certified

8.6m

Tracking distance

Pro W+ · fewer leapfrogs

156 m³

Single station

Pro W+ · 100 m³ on Pro W

7.6M

Points / second

Pro W+ · 5.5M on Pro W

Why Trak Pro W

Scan the whole vehicle from one spot.

Markers on a whole car, a frame or a machine take hours to place and pull. Trak Pro W tracks the scanner instead, from up to 8.6m away, so you skip the markers and move the tracker far less often.

Dynamic tracking

No markers on the part.

The tracker follows targets on the scanner in real time, so you don't stick markers on the object. Setup takes minutes, and painted and finished surfaces stay clean.

8.6m · 156 m³

Fewer leapfrogs on big jobs.

Pro W+ tracks out to 8.6m and covers up to 156 m³ from a single station, so you relocate the tracker (leapfrog) far less often on vehicles, molds and machinery.

Wireless · onboard screen

Cable-free on the floor.

Integrated computing and wireless modules stream data in real time, with power bank support and a built-in display for instant feedback. Fiber optic is there when you want a wire.

Video photogrammetry (VPG)

Extend the volume, keep the accuracy.

VPG verifies markers with video and a calibration rod, with no coded targets, extending accuracy to 0.044 + 0.012 mm/m.

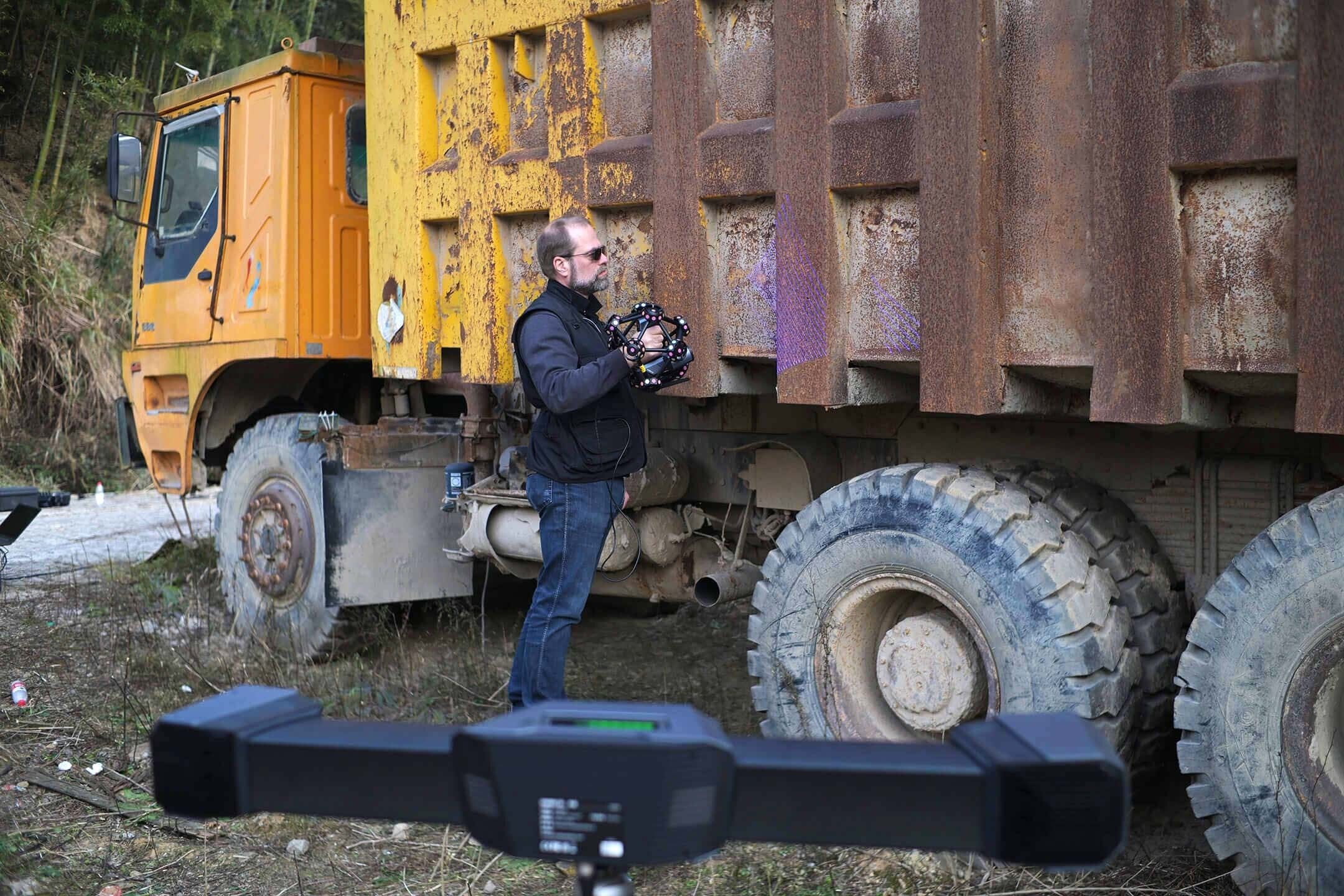

Whole vehicles

Classic cars, no markers

Track the scanner around a full car without sticking a single marker on the paint.

Optional

FreeProbe

Probe hidden features the scanner can't see, with no mesh needed.

Metrology Pro Kit

Leapfrog markers

Marker options for large, complex objects.

Included

FreeScan Trak software.

Trak Pro W comes with Shining 3D's FreeScan Trak software and a PTB-certified inspection module, with no subscription.

Included · FreeScan Trak

Full-size inspection, built in.

Check marker quality during VPG and data completeness while you scan, then inspect against CAD.

Real-time quality view

See marker quality and data coverage as you scan.

Intelligent resolution

Mesh density follows curvature, so features stay sharp.

AI feature recognition

Finds and measures holes and slots automatically.

PTB-certified inspection

Reliable full-size inspection inside the scanning software.

WORKS WITH:  SHINING3D Inspect · Geomagic Control X · PolyWorks · Geomagic Design X · EXModel · Verisurf

Need inspection reports or editable CAD?

See software options ›

See it scan

Watch it work

Our first look at the Trak family, plus our Geomagic software guide.

Alt image

Massive 3D scans, no wires: Trak Nova, UE Nova and Trak ProW first look

Alt image

The Geomagic software suite, explained

Spin a real scan

Download sample scan files ›

Large casting, scanned with the Trak ProW
Lost foam casting, scanned with the Trak ProW

More scanner reviews and workflows on

Vision Miner 3D Scanning ›

Which one?

Trak Pro W vs. Pro W+

Same 0.023mm accuracy, tracking and VPG. Pro W+ adds laser lines, speed and a bigger single-station volume for the biggest jobs.



Pro W+

More range

Pro W

Proven workhorse

High-speed laser lines

93

50

Detailed scan

25 lines

7 lines

Deep pocket scan

1 line

1 line

Scan speed

7.6M pts/s

5.5M pts/s

Accuracy

0.023mm

0.023mm

Max. single-station volume

156 m³ (0.156mm)

100 m³ (0.125mm)

Tracking distance

Up to 8.6m

—

VPG

0.044 + 0.012 mm/m

0.044 + 0.012 mm/m



Get a quote

Get a quote

Shining 3D publishes the 8.6m tracking distance for the Pro W+ only.

Full specifications · FreeScan Trak Pro W / Pro W+

Spec

Pro W+

Pro W

Accuracy

0.023 mm

Resolution

0.01 – 10 mm

Volumetric accuracy

0.046 mm (12 m³) · 0.063 (36 m³) · 0.088 (60 m³) · 0.125 (100 m³) · 0.156 (156 m³)

0.046 mm (12 m³) · 0.063 (36 m³) · 0.088 (60 m³) · 0.125 (100 m³)

Volumetric accuracy with VPG

0.044 + 0.012 mm/m

Scan speed

7,600,000 points/s

5,500,000 points/s

High-speed scan

93 laser lines

50 laser lines

Detailed scan

25 laser lines

7 laser lines

Deep pocket scan

1 laser line

Connection

Wireless and wired (fiber optic)

Certifications

CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX

Acceptance test

VDI/VDE 2634 Part 3 & ISO 10360, in an ISO/IEC 17025 accredited lab

Software download

Sample scan files

Warranty options

Open it, scan it

What shows up at your door

What's in the box

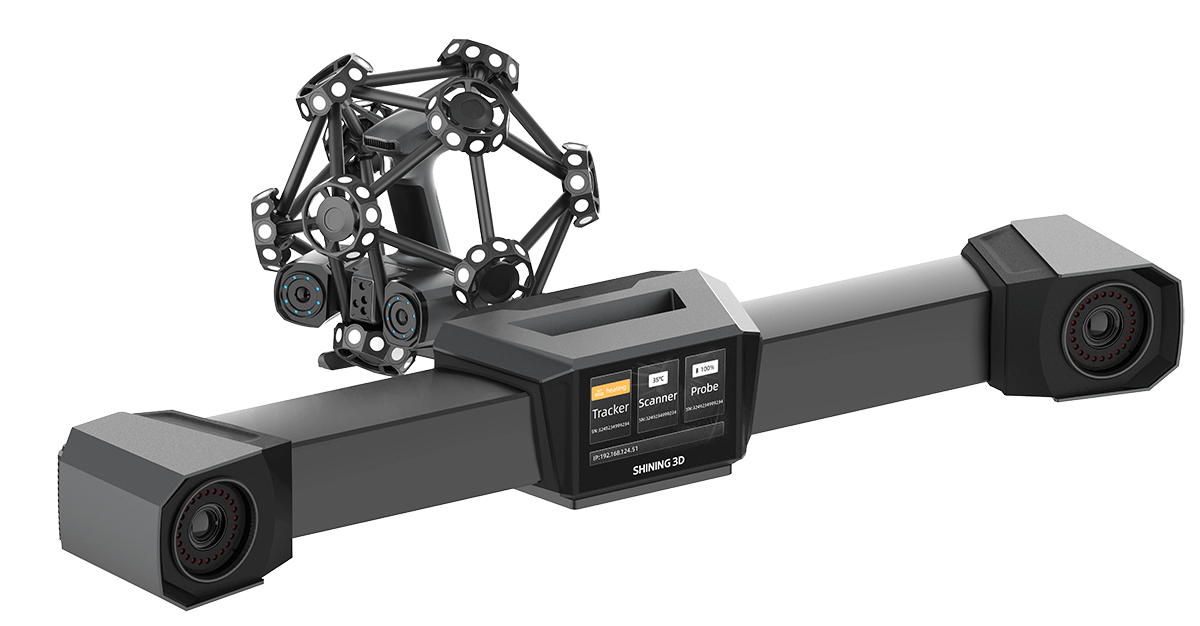

FreeScan Trak Pro W system

FreeTrak W optical tracker (8.2 kg)

✓

Handheld laser scanner

✓

Calibration rod for VPG

✓

Fiber optic cable (wired mode)

✓

Power bank support (wireless)

✓

Pelican-style cases

✓

Calibration certificate

✓

FreeScan Trak software + inspection

No subscription

Configured for your parts

Quoted, set up and trained

Trak Pro W is quoted to your parts, your space and the PC that runs it. We'll scan your part in a demo first, then install, calibrate and train your team.

Quotes usually go out within one business day, on letterhead for POs.

Magnetic scanning pyramids + a can of AESUB Blue, on us

Every scanner we ship includes a set of our magnetic scanning pyramids (stick markers on them and set them around the part for tracking, no stickers on the part itself) and a can of AESUB Blue, the spray that disappears on its own. It's our little bundle, and you only get it here.

Pyramids ›

AESUB Blue ›

Frequently asked questions

Before you buy

Buy it from people who scan

We've sold and supported Shining 3D scanners since 2019. When you call, the person who picks up has scanned with one.

01

Shining 3D partner since 2019

We sell, set up and support the whole FreeScan and OptimScan line, not just the handhelds.

02

Real people, here in America

No scripted AI auto-attendant. 833-774-6863 · contact@visionminer.com

03

Setup, training, POs

Install, calibration and Geomagic training from our team. Formal quotes for POs, plus financing and leasing.

Quick answers

Does it need markers?

Not for most parts. The tracker follows the scanner. Markers may still help on very large surfaces.

Pro W or Pro W+?

Pro W+ for the biggest jobs: more laser lines, 7.6M pts/s and up to 156 m³ from one station. Pro W covers up to 100 m³ for less.

What's volumetric accuracy?

Accuracy across the whole measured volume, not single points. It's the number that matters on big parts. The full table by volume is in the specs.

Does wireless hurt accuracy?

No. Wi-Fi only carries the data. The measuring happens in the scanner, so you get the same accuracy wireless or plugged in.

Is wireless slower than wired?

No. Wired (fiber optic) and wireless have the same bandwidth under full load, so scan speed is the same.

Can it probe features the scanner can't see?

Yes, with the optional FreeProbe. It measures hidden features with pinpoint accuracy and no mesh.

Is the accuracy certified and traceable?

Yes. Every unit is calibrated in Shining 3D's ISO/IEC 17025 accredited accuracy lab and verified to VDI/VDE 2634 and ISO 10360, with an inspection report and calibration certificate traceable to those standards.

Can I finance it or buy on a PO?

Yes. We quote on company letterhead for POs, and we can set up financing or leasing. Request a quote and tell us how you want to buy.

Whole vehicles, no markers

Let's quote it on your parts.

Trak Pro W and Pro W+ are configured to your space and parts. We'll demo on yours first.
