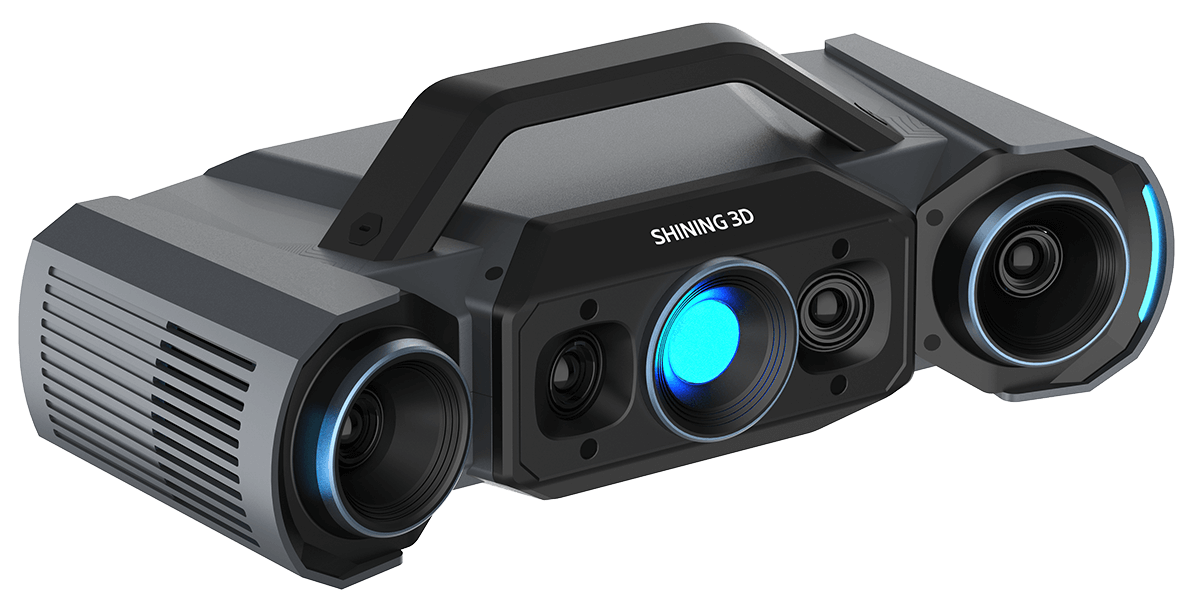

Shining 3D · High-precision inspection scanner

OptimScan Q12

A blue-light inspection scanner for small and medium precision parts. Four 12MP cameras, two scan ranges you switch with one click, under a second per shot and accuracy down to 0.005mm. It ships on a tripod; add a turntable, or step up to the RobotScan Q12 robot cell for automated inspection.

Up to 0.005mm accuracy (small range)

Two scan ranges, one click

Under 1 second per shot

Tripod included, robot-ready

Get it configured

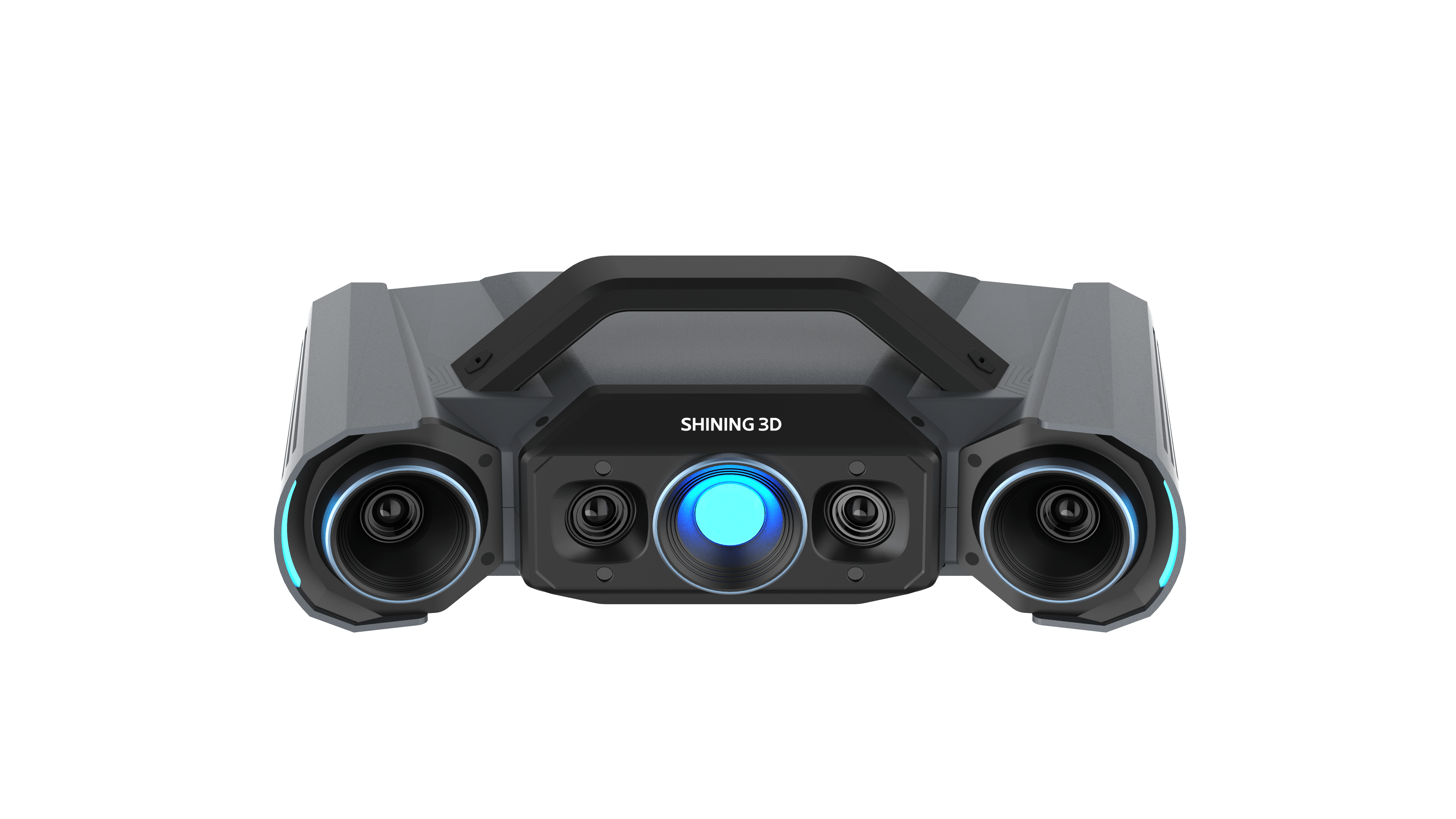

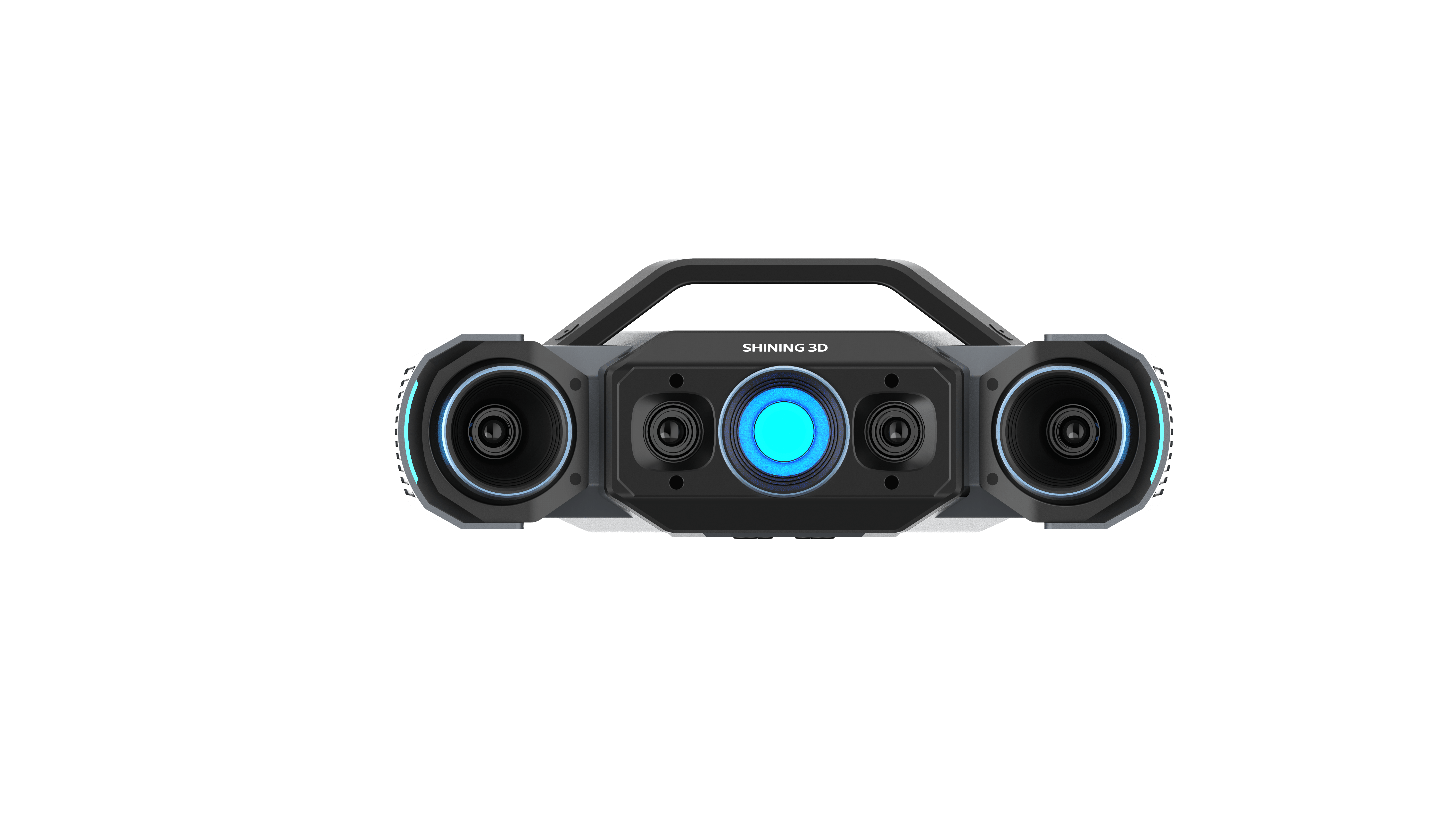

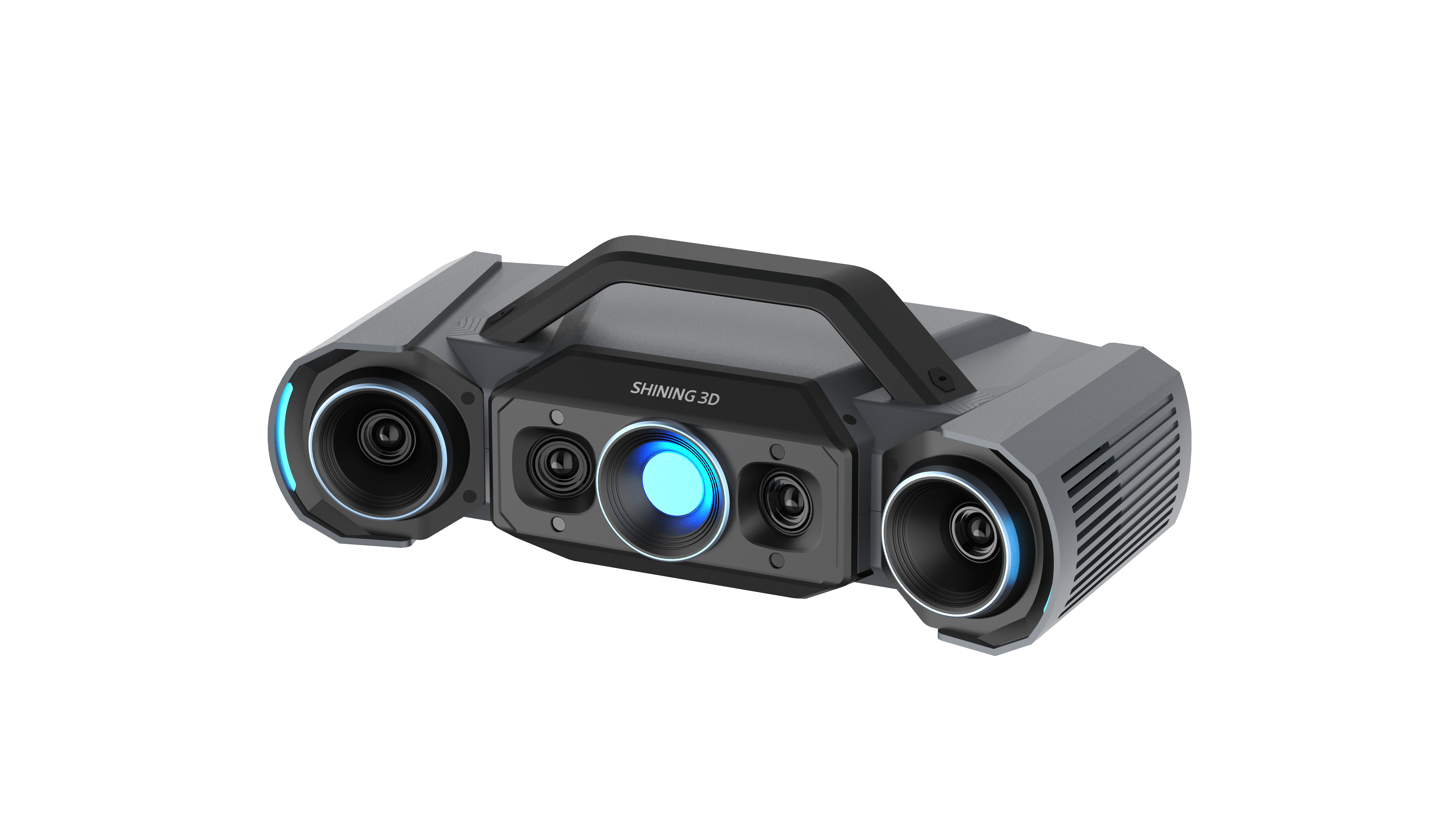

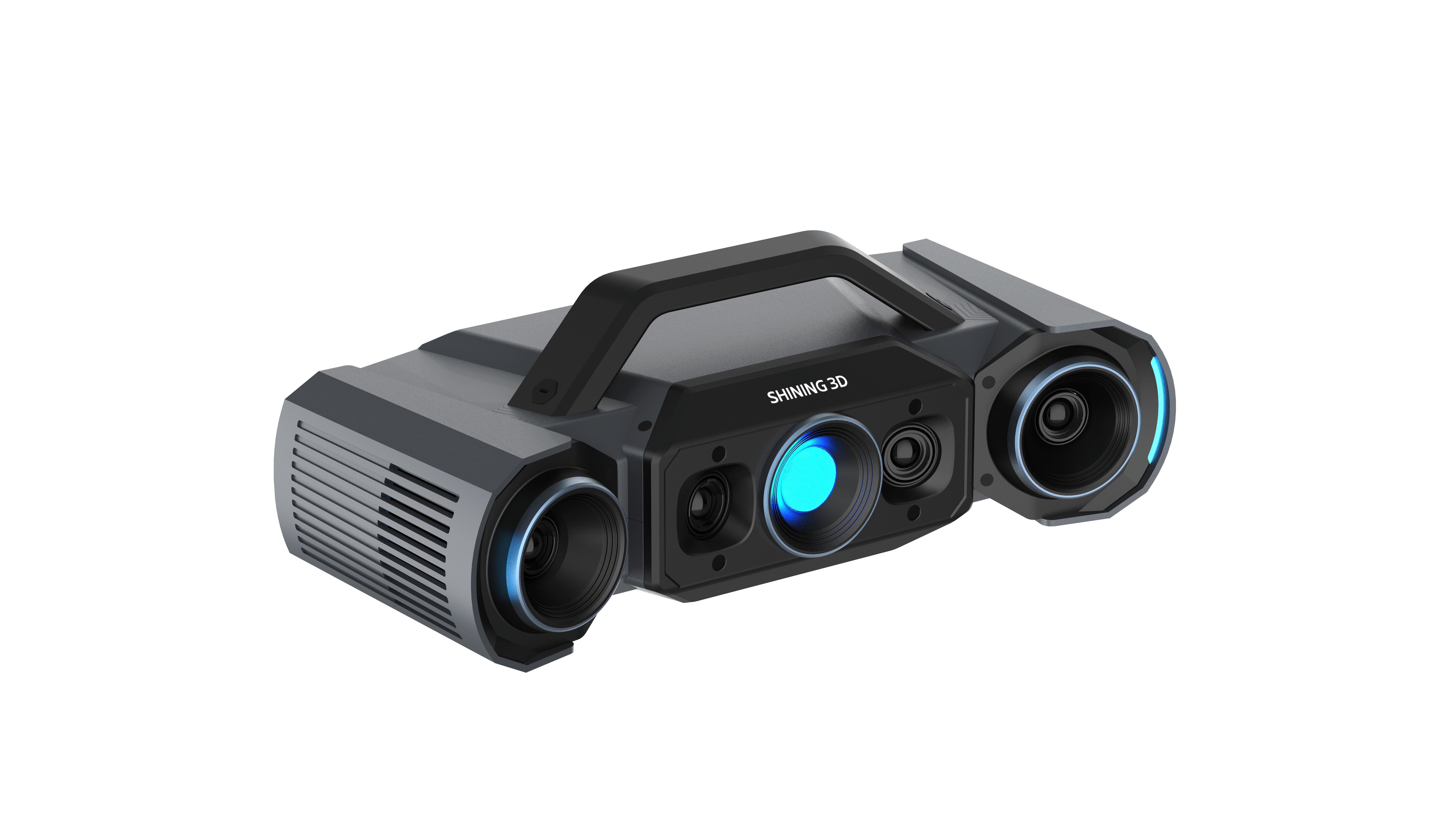

OptimScan Q12

4 × 12.3MP cameras · blue LED · 430 × 300 / 160 × 110mm ranges.

Custom quote

Configured to your parts

Get a quote

Book a demo

US support from people who scan · 833-774-6863  ·  Quotes usually within one business day  ·  POs, financing and leasing

Not ready to buy yet?

Book a live demo ›

Q12 brochure ›

Send this page to your team ›

0.005mm

Accuracy

Small range · 0.015mm large range

< 1 s

Per shot

Dual-chip computing on board

4 × 12.3MP

Cameras

Monocular-stereo fusion

2

Scan ranges

430 × 300mm and 160 × 110mm, one click

Why Q12

Small-part inspection at production speed.

Handheld scanners are great for big parts. For precision machined parts, connectors, molds and stampings, you want a fixed blue-light scanner that captures a dense, accurate shot in under a second, and the Q12 can do it on its own or on a robot.

0.005mm · VDI/VDE 2634 Part 2

Accuracy for precision parts.

Four high-resolution cameras and Shining 3D's reconstruction algorithms reach 0.005mm, verified against VDI/VDE 2634 Part 2 and ISO 10360. Every system is tested in an ISO 17025 accredited lab.

Two scan ranges

Switch ranges with one click.

Large range (430 × 300mm) for the whole part, small range (160 × 110mm) for fine features. No aperture or focus to adjust, and the data from both fuses in the software.

Large: 430 × 300mm, 0.015mm

Small: 160 × 110mm, 0.005mm

One-click switch

Fused in software

Monocular-stereo fusion

More data in corners and joints.

MSF increases coverage on the spots structured light usually misses, like inside corners, turned edges and joints, so there's less rescanning.

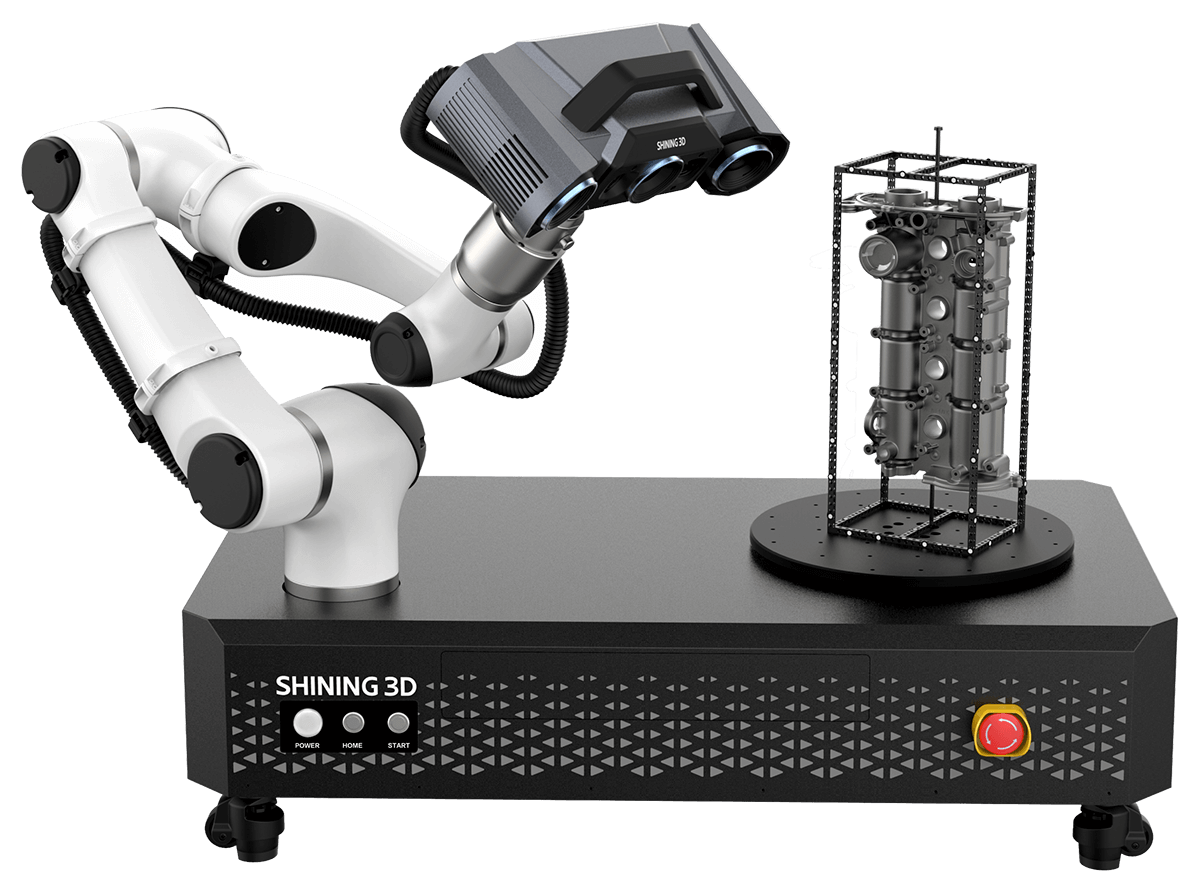

Automation

Teach the path once. Inspect every part.

On a robot, the Q12 runs the whole loop: path teaching, automated measurement, automated inspection and automated reports, with trend tracking and early deviation warnings.

Path teaching

Automated measurement

Automated inspection

Automated reports

Multiple exposure

Under a second a shot

Auto exposure and multi-exposure modes handle mixed materials fast.

Versatile

Tripod, turntable, robot

Start by hand and add automation when you're ready.

Accessory

Dual-axis turntable

Automatic turntable for unattended scanning of small parts.

Inspection-ready

From scan to report.

The Q12's scanning software pairs with SHINING3D Inspect for compare, cross-sections, GD&T, gauges and reports, or exports to the inspection software you already use.

OptimScan software + SHINING3D Inspect

Full-field inspection, not spot checks.

Compare the whole surface to CAD, not just a few CMM points.

Compare to CAD

Color deviation maps across the full surface.

GD&T

Flatness, roundness, position and more.

Cross-sections + gauges

Section the part and measure features.

Automated reports

Reports generated as each part is scanned.

WORKS WITH:  SHINING3D Inspect · Geomagic Control X · PolyWorks · Geomagic Design X · EXModel

Need inspection reports or editable CAD?

See software options ›

See it scan

Watch it work

Our OptimScan review, plus our Geomagic software guide.

Alt image

Shining 3D OptimScan review: structured light at the next level

Alt image

The Geomagic software suite, explained

Spin a real scan

Motor gear, scanned with the OptimScan Q12
Switch panel, scanned with the OptimScan Q12

More scanner reviews and workflows on

Vision Miner 3D Scanning ›

Specifications

The numbers

Shining 3D's published specs for the OptimScan Q12.

OptimScan software runs on a Windows workstation with an NVIDIA GPU. We'll spec the PC with your quote.

Full specifications · OptimScan Q12

Spec

Large range

Small range

Field of view

430 × 300 mm

160 × 110 mm

Accuracy

0.015 mm

0.005 mm

Point distance

0.1 mm

0.04 mm

Working distance

590 mm

210 mm

Depth of field

300 mm

60 mm

Cameras

4 × 12.3MP

Light source

Blue LED

Time per shot

Under 1 second

Markers

Markerless, or 1 / 2 / 4 mm non-reflective markers for higher accuracy

Color texture

None

Weight

3.5 kg

Dimensions

366 × 162 × 132 mm

Data cable

5 m

Certifications

CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX

Acceptance test

VDI/VDE 2634 Part 2 & ISO 10360, in an ISO/IEC 17025 accredited lab

Q12 brochure (PDF)

Software download

Warranty options

Open it, scan it

What shows up at your door

What's in the box

OptimScan Q12 system

OptimScan Q12 scan head

✓

Data cable

5 m

Calibration board

✓

Carrying case

✓

Calibration certificate

✓

OptimScan software

✓

Tripod

✓

Turntable or robot (RobotScan Q12)

Separate, quoted

Configured for your line

Quoted, set up and trained

Q12 is quoted to your parts and how you'll run it: by hand, on a turntable or on a robot. We'll scan your part in a demo first, then set it up and train your team.

Quotes usually go out within one business day, on letterhead for POs.

Magnetic scanning pyramids + a can of AESUB Blue, on us

Every scanner we ship includes a set of our magnetic scanning pyramids (stick markers on them and set them around the part for tracking, no stickers on the part itself) and a can of AESUB Blue, the spray that disappears on its own. It's our little bundle, and you only get it here.

Pyramids ›

AESUB Blue ›

Frequently asked questions

Before you buy

Buy it from people who scan

We've sold and supported Shining 3D scanners since 2019. When you call, the person who picks up has scanned with one.

01

Shining 3D partner since 2019

We sell, set up and support the whole FreeScan and OptimScan line, not just the handhelds.

02

Real people, here in America

No scripted AI auto-attendant. 833-774-6863 · contact@visionminer.com

03

Setup, training, POs

Install, calibration and Geomagic training from our team. Formal quotes for POs, plus financing and leasing.

Quick answers

What size parts is it for?

Small to medium high-precision parts: machined components, connectors, molds, stampings and electronics. For big parts, look at a handheld like the Combo or a tracking system.

Does it need markers?

No, it scans markerless. For higher accuracy it can use 1mm, 2mm or 4mm non-reflective markers.

Does it capture color?

No. The Q12 has no color camera. It's built for geometry and inspection.

Handheld or fixed: which do I need?

Handhelds are flexible and portable for big or hard-to-reach parts. A fixed scanner like the Q12 is better for repeatable, high-precision scanning of smaller parts in a controlled setup.

Can it run on a robot?

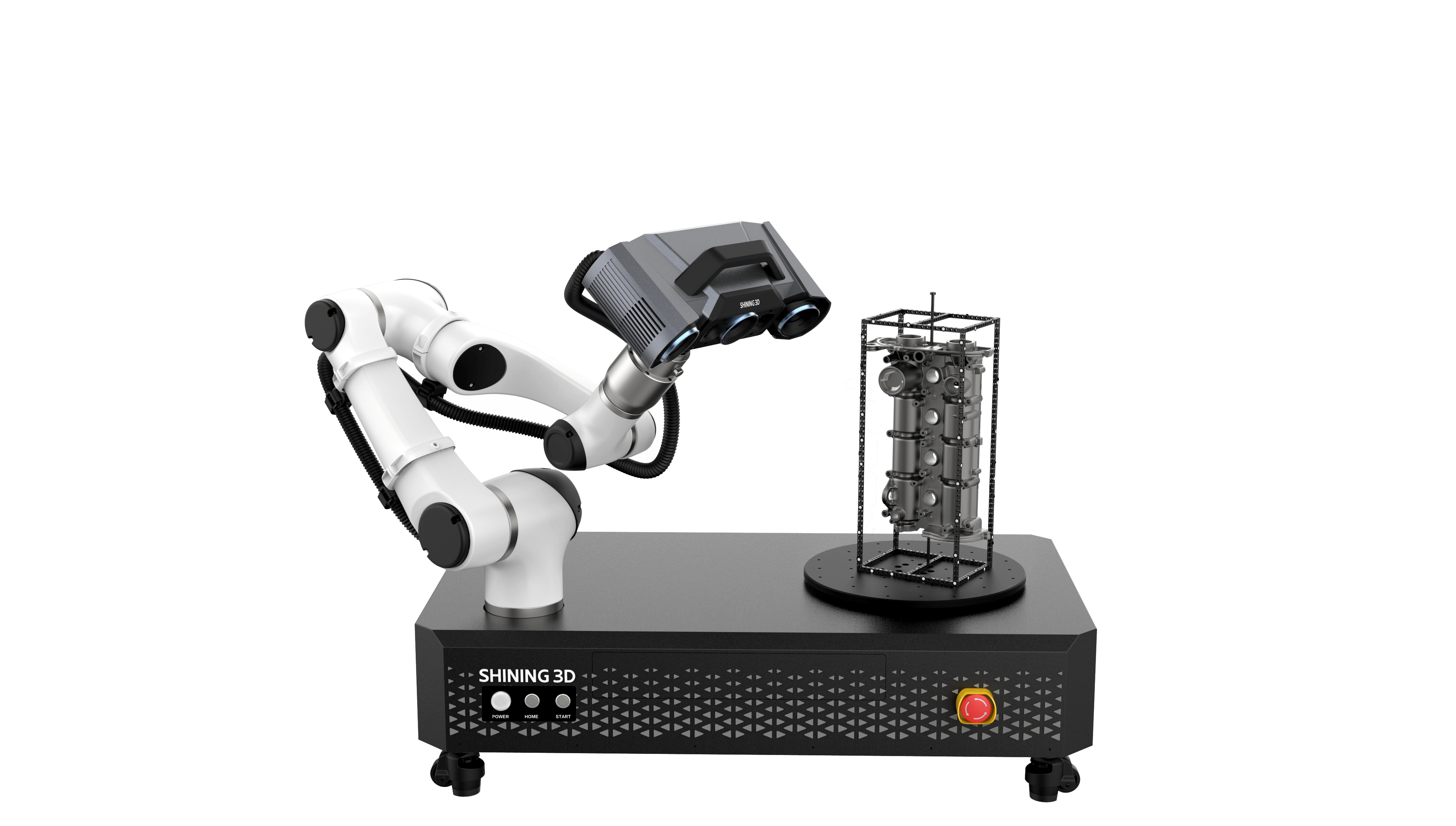

Yes, as the RobotScan Q12: a separate system Shining 3D configures with the robot arm, turntable, fixtures and software for your line. The standard Q12 ships with a tripod. We quote the robot setup on its own.

How do I run inspections?

Pair it with SHINING3D Inspect (compare, cross-section, features, dimensions, gauges, reports) or export to Geomagic Control X or PolyWorks.

Is the accuracy certified and traceable?

Yes. Every unit is calibrated in Shining 3D's ISO/IEC 17025 accredited accuracy lab and verified to VDI/VDE 2634 and ISO 10360, with an inspection report and calibration certificate traceable to those standards.

Can I finance it or buy on a PO?

Yes. We quote on company letterhead for POs, and we can set up financing or leasing. Request a quote and tell us how you want to buy.

Precision inspection

Let's quote it on your parts.

OptimScan Q12 is configured to your parts and your line. We'll demo it on yours first.

Get a quote

Book a demo

Call 833-774-6863

Round out your setup

Software, training and supplies

Not needed to start scanning. Add them when the job calls for it.

Geomagic software

Turn scans into CAD and inspection reports.

The scanner gives you a mesh. Geomagic turns it into a parametric model you can edit, or a color map and report QA can sign. We sell it, set it up and train your team on it.

Control X Essentials

Compare scan to CAD: color maps, GD&T and reports.

$2,390/yr or $7,249 ›

Geomagic Design X Go

Scan to editable CAD for SOLIDWORKS, Fusion or Inventor.

$1,900/yr or $3,992 ›

Geomagic for SOLIDWORKS

Reverse engineer right inside SOLIDWORKS.

$2,739/yr or $8,301 ›

Inspection

Scan to report

Geomagic Control X (full)

$16,727

All 3D software

›

Reverse engineering

Scan to CAD

Geomagic Design X Plus

$12,710

EXModel

from $1,900

Training

Learn it on your parts

Shining 3D scanner training

$1,500

Geomagic training

from $1,750

Supplies

Markers & spray

Markers & accessories

from $29

AESUB scanning sprays

from $39.50

Not sure what you need? Call 833-774-6863 and we'll tell you what's worth it for your parts, and what isn't.
