Shining 3D · Wireless tracking 3D scanner

EinScan Trak

A wireless tracker and a detachable handheld laser scanner in one system. Scan a whole car body without sticking a single marker on it, then pop the handheld off for the tight stuff. Black, shiny and metal parts, indoors or out in the sun.

15m³ marker-free tracking: a whole vehicle, nothing stuck on the part

Detachable handheld down to 0.05mm for the fine detail

Up to 0.1mm volumetric accuracy, 2.63M points a second

Calibrates in 5–10 minutes, scans in direct sunlight

1-year ExMeasure included

Measurement, alignment and GD&T software, in the box with every Trak.

EinScan Trak

Tracker, handheld and 1 year of ExMeasure.

$6,999.00

Request a quote

Financing available ›

Buying on a PO? Most of our customers are. Request a quote and we'll send a formal one for your purchasing team. Real people, in America: 833-774-6863.

●  Requires an NVIDIA GPU · see PC specs ›

15m³

Tracking volume

No markers on the part

0.1mm

Volumetric accuracy

Up to · ISO 10360-13

2.63M

Points / second

19+19 crossed lasers

110K lux

Direct sunlight

Scans outdoors in full sun

Not ready to buy yet?

See why Trak ›

Trak vs. Rigil ›

Send this page to your team ›

Why Trak

Two scanners. Zero stickers.

Placing markers, pulling them off and cleaning up the data after can take longer than the scan. Trak puts the markers on the scanner instead of your part.

Marker-free tracking

The markers live on the scanner, not your part

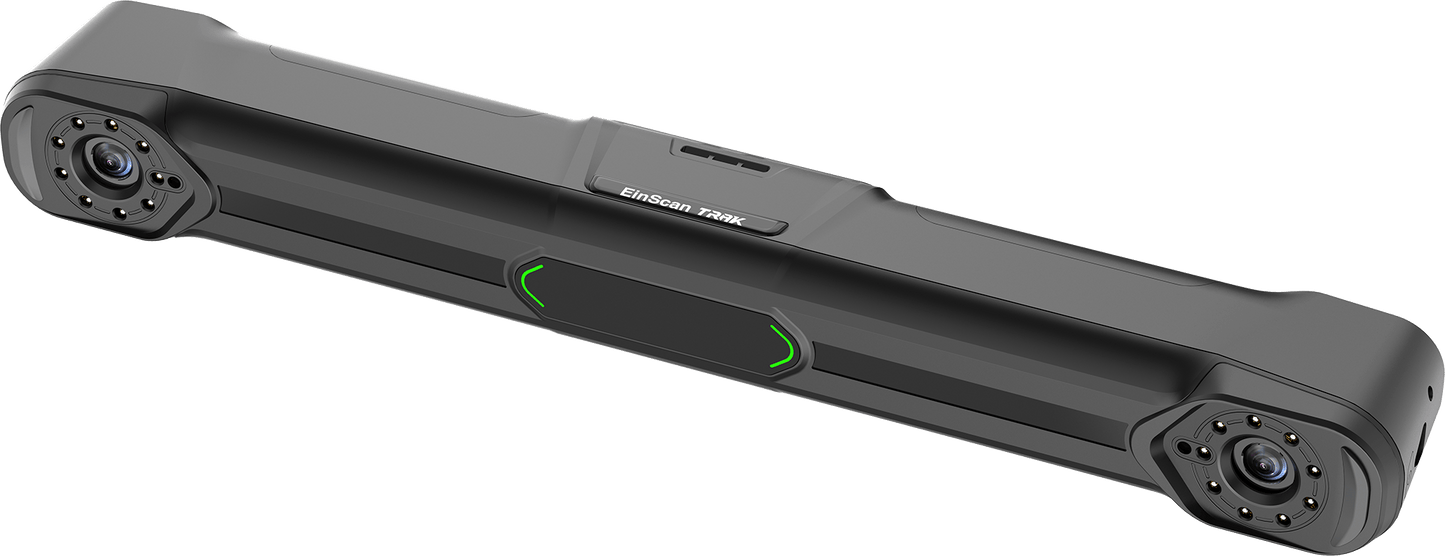

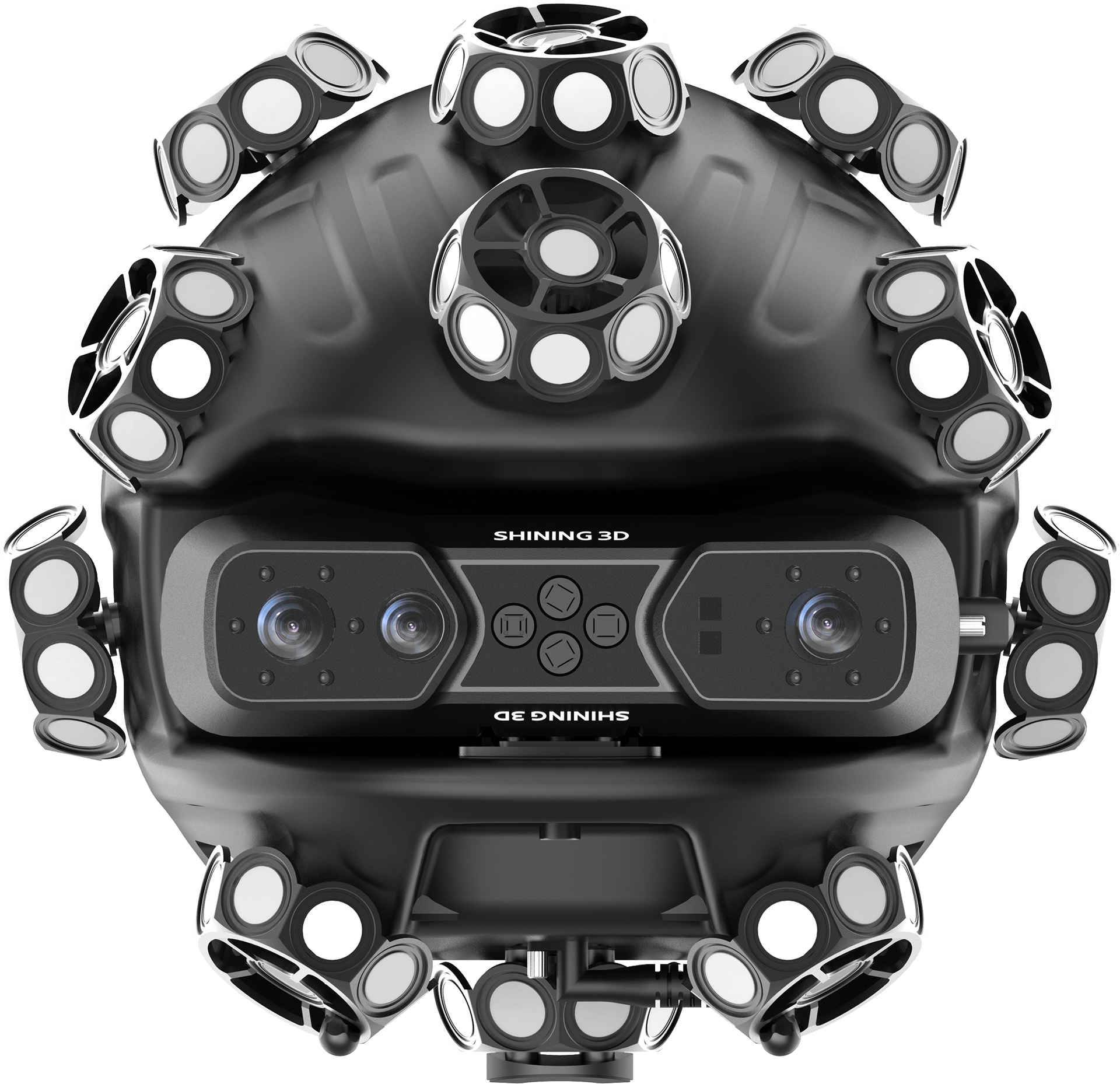

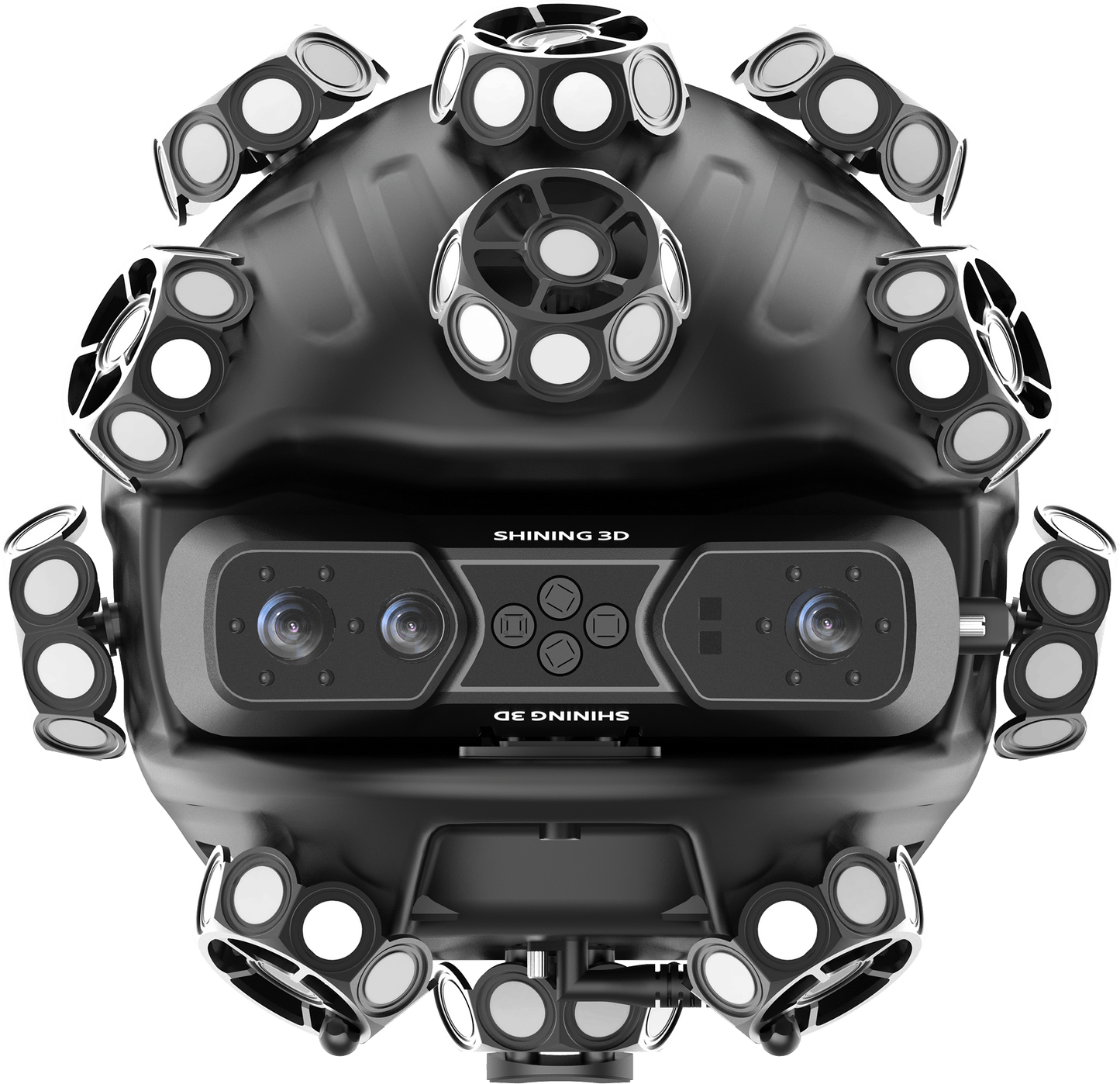

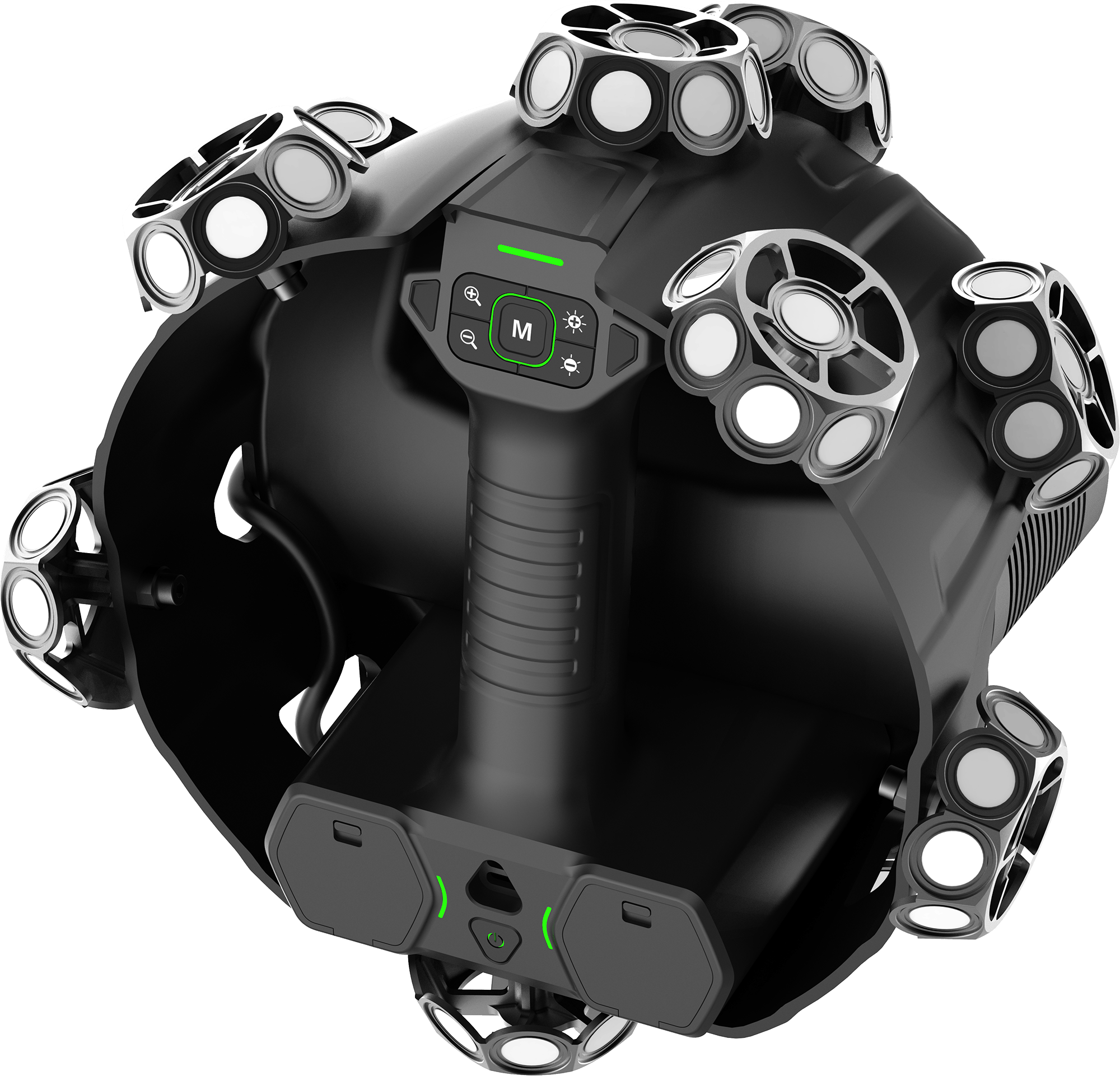

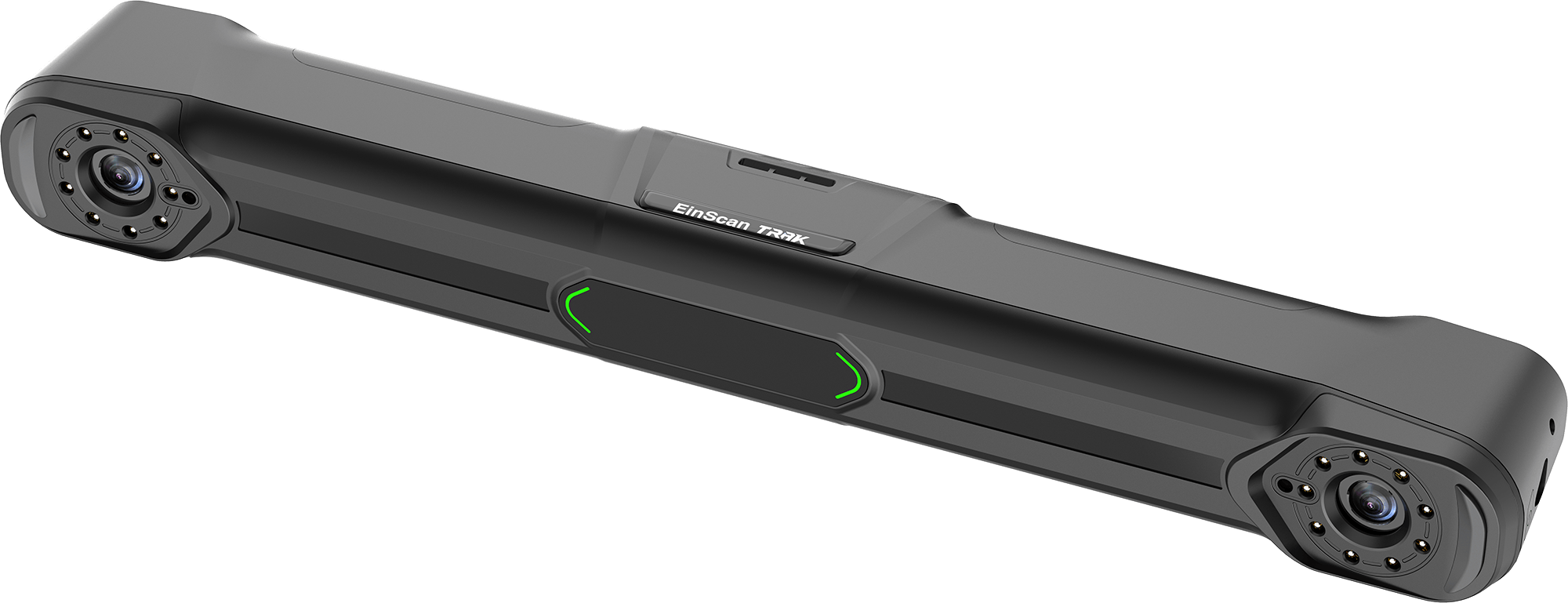

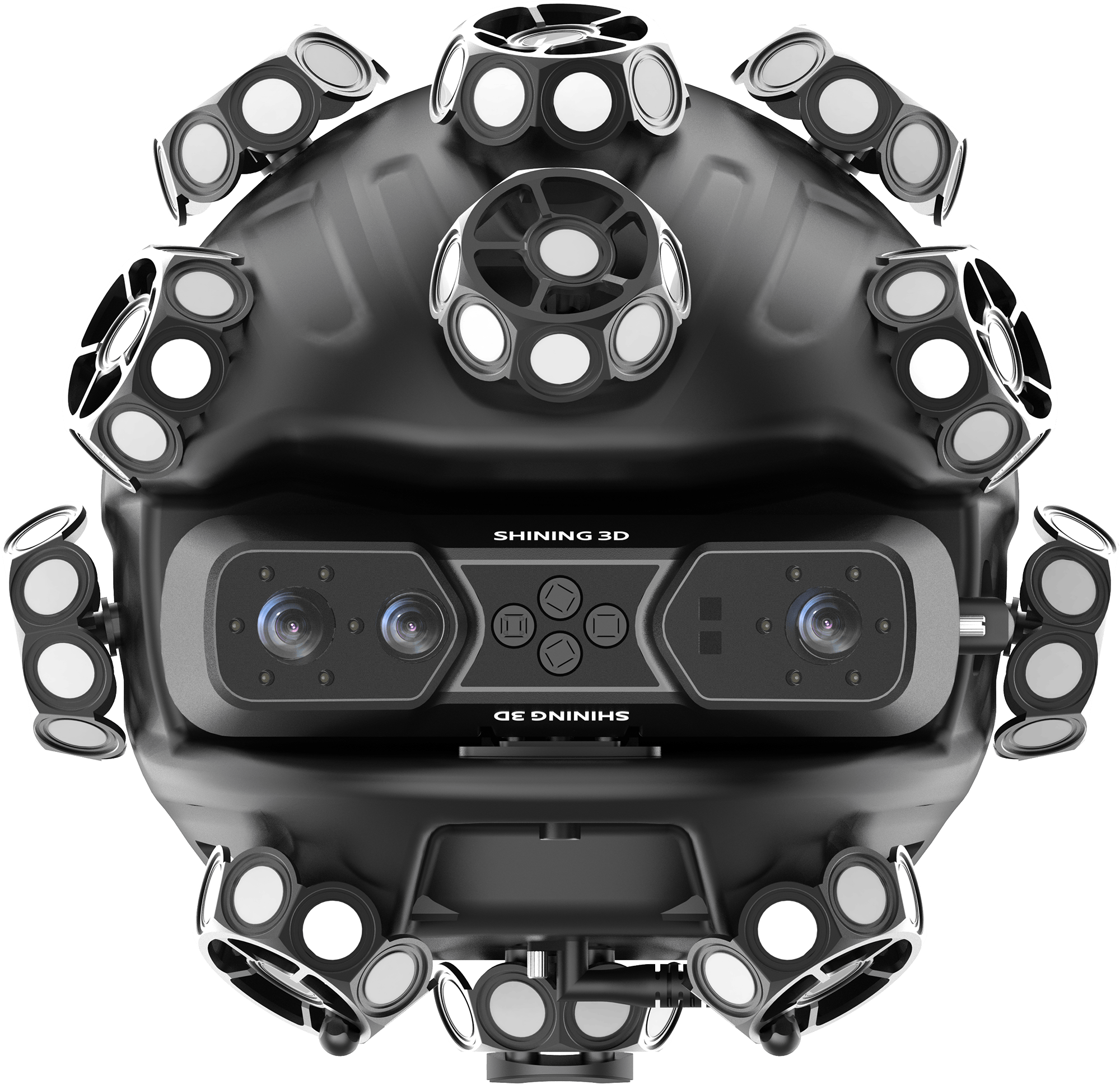

The spherical scanner carries its own retroreflective targets. The wireless tracker watches it from 0.8 to 4m away and knows exactly where it is, so big smooth panels scan without a single sticker. Castings, body panels and weldments scan as they are.

15m³ tracking volume: a whole vehicle

Bigger than that? Leapfrog: move the tracker and keep scanning

No stickers to place, peel or clean up after

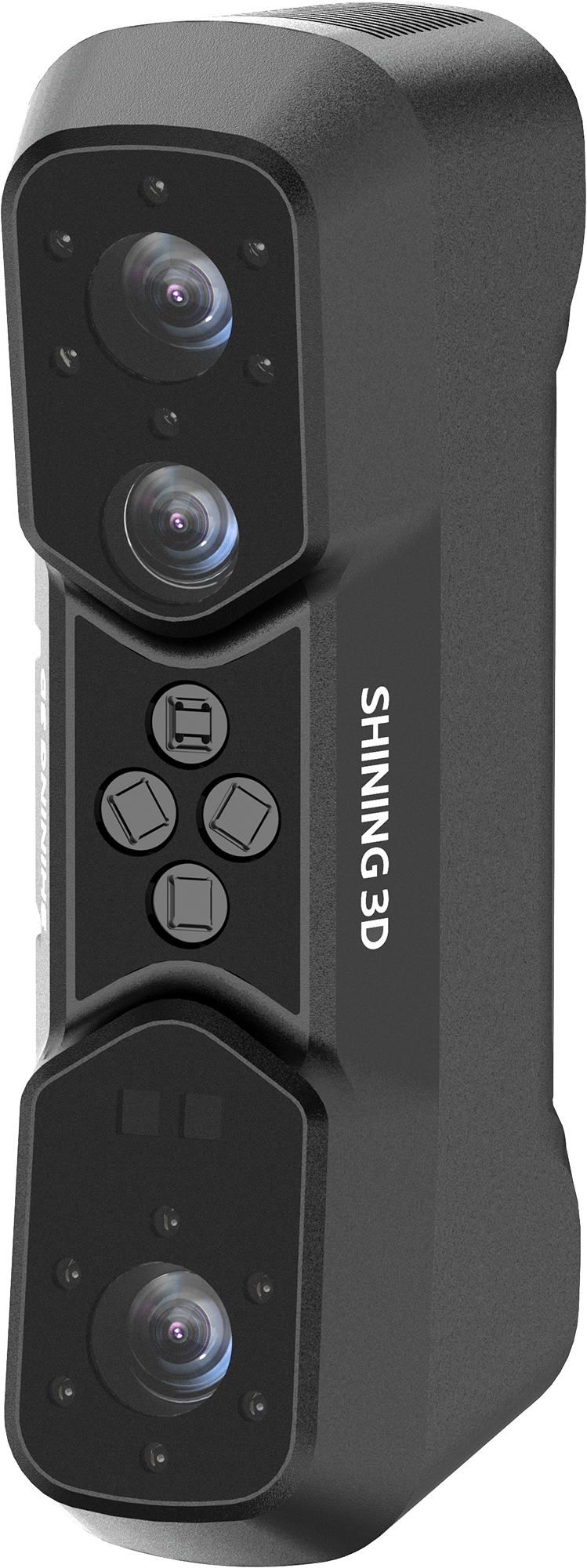

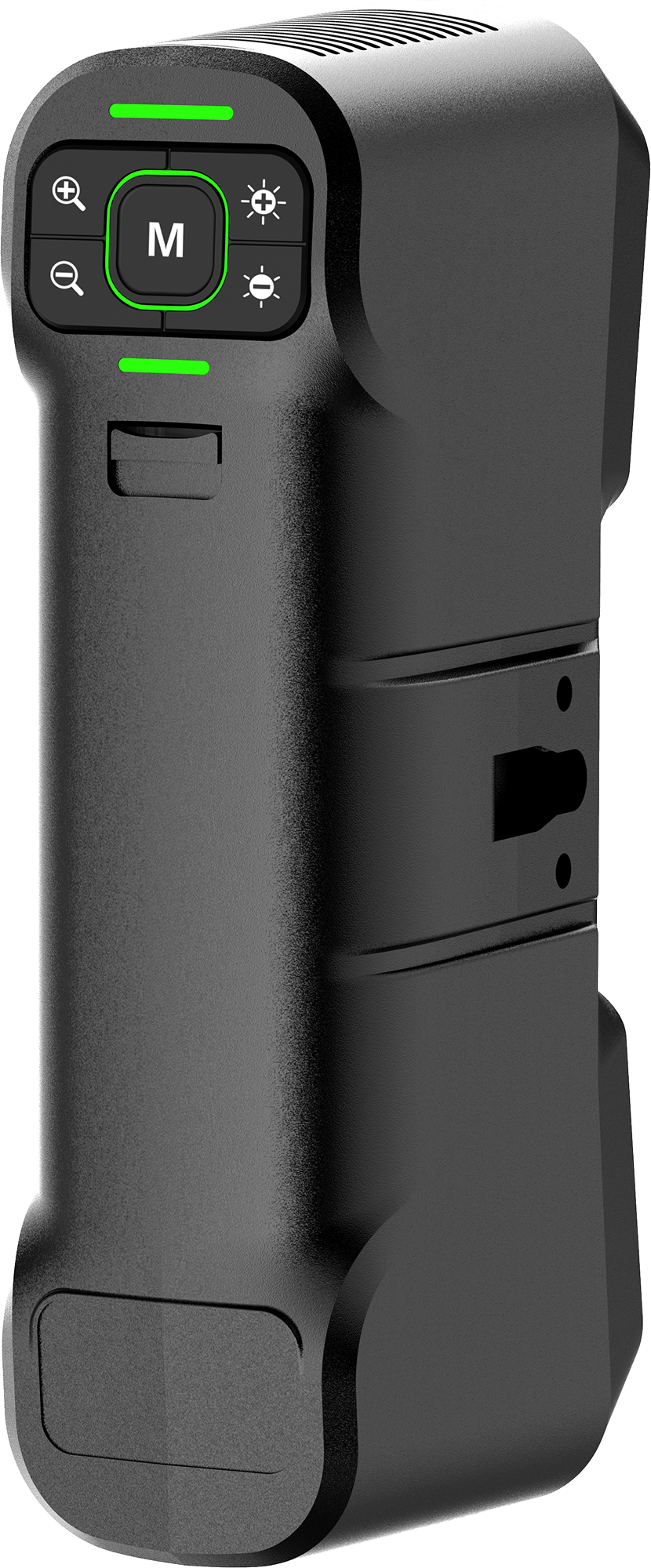

Detachable handheld

Pop it off for the tight stuff

Big surfaces on the tracker, fine features in your hand. The handheld detaches from the sphere, reaches spots the tracker can't see, and still scans marker-free on feature-rich parts. Tracker and handheld data align into one project, even at different resolutions.

19+19 crossed lasers for fast coverage

7 parallel lasers for edges and fine detail, down to 0.05mm

Single line for deep holes (1:4 diameter to depth)

Bump the resolution on just the area that needs it, mid-scan

Wireless · No spray · Sunlight-ready

No cables. Black, shiny, metal. Outdoors.

A dedicated router links the tracker and scanner to your PC, and both run on batteries, so there's nothing to trip over walking around a car. Blue laser captures dark, reflective and machined surfaces directly, and it keeps working in direct sunlight up to 110,000 lux.

Up to 5.5 hours on hot-swappable batteries, about 3.5 hours handheld

Full-system calibration in 5–10 minutes, stable from -10 to 40ºC

Carbon fiber body, built to ride in a truck

5MP texture camera for true-color models

By the numbers

PROFESSIONAL-GRADE SPECS

15m³

Tracking volume

No markers on the part

2.63M

Points / second

19+19 crossed lasers

0.1mm

Volumetric accuracy

Up to · ISO 10360-13

0.05mm

Resolution

Adjustable 0.05-10mm

4m

Max tracking distance

4796 x 4174mm field of view

110K

Lux

Scans in direct sunlight

5.5hr

Battery life

Hot-swappable

5-10min

Calibration

Full system, on site

In the box, not on a bill

Scan, measure and report on day one

Every Trak comes with EXScan Trak for scanning and a full year of ExMeasure for measurement and GD&T. Nothing else to buy before the first job. Add CAD or full inspection software when the work calls for it.

01 · Scan

EXScan Trak

Capture, merge tracker and handheld data, clean up, export STL, OBJ, PLY, 3MF or ASC.

02 · Measure

ExMeasure

Dimensions, coordinate-system alignment, GD&T and visual reports.

03 · Model

ExModel / Design X

Turn the mesh into a solid CAD model you can edit.

04 · Inspect

Control X

Scan vs. CAD deviation maps and reports QA can sign off on.

Need editable CAD or scan-to-CAD inspection reports?

See software options ›

See it scan

Watch it work

Real scans and setup. The fastest way to know if Trak fits your work.
Alt image
Alt image
Alt image
Alt image
Alt image

Which one?

Trak vs. Rigil

Both scan black and shiny parts without spray, and both work in sunlight. Trak is built for big parts without markers. Rigil is the all-in-one wireless handheld with the computer built in.



EinScan Trak

Big parts, no markers

EinScan Rigil

All-in-one handheld

Price

$6,999

$4,999

How it tracks

Wireless optical tracker, 15m³

Markers, features or IR

Markers on the part

Not needed in most cases

For best accuracy on big parts

Scan speed

2.63M pts/sec

4.8M pts/sec

Volumetric accuracy

Up to 0.1mm

Up to 0.04mm

Laser modes

Crossed, parallel, single line

Crossed, parallel + infrared

Computer

Runs from a Windows 11 PC

Built into the handle

GD&T software

ExMeasure, 1 year included

Add-on



See Rigil ›

REQUIRES NVIDIA GPU

RTX 3060 laptop GPU or better. Specs below.

See full EinScan Trak specifications

Light source

19+19 crossed laser lines · 7 parallel lines · single line

Volumetric accuracy*

Up to 0.1mm

Resolution

0.05 ~ 10mm

Scanning speed

2,630,000 pts/s

Working distance

Tracking: 800 ~ 4000mm

Handheld: 100 ~ 500mm

Max field of view

Tracking: 4796 x 4174mm @ 4000mm

Handheld: 547 x 463mm @ 500mm

Tracking volume

15m³

Alignment modes

Tracking: tracking, global marker

Handheld: marker, global marker, feature

Cameras

Tracker: 5MP x2

Handheld: depth 2MP x2 · texture 5MP x1

Output formats

STL, OBJ, PLY, 3MF, ASC

Laser class

Class 2

Power

Tracking: 5.5 hours continuous (tracker 5400mAh x2, scanner 5400mAh x2)

Handheld: 3.5 hours (5400mAh x1)

Interface

Tracking: USB Type-C x2

Handheld: USB Type-C x1

Dimensions

Tracker: 462 x 68 x 54mm · Spherical scanner: 244 x 186 x 238mm

Handheld: 199 x 193 x 172mm

Net weight

Tracker: 1.02kg · Spherical scanner: 1.46kg

Handheld: 0.48kg

Operating temp

-10ºC ~ 40ºC

Certifications

CE, FCC, RoHS, WEEE, FDA, SRRC, IP50

Recommended PC

Windows 11 64-bit · Intel i7-13650HX or better · NVIDIA RTX 4060 or better, 8GB+ VRAM · 64GB+ DDR5 dual-channel · USB 3.0, LAN

Minimum PC

Windows 11 64-bit · Intel i7-13650HX or better · NVIDIA RTX 3060 Laptop GPU, 6GB+ VRAM · 32GB+ DDR5 dual-channel · USB 3.0, LAN. macOS support is planned in a future update.

* Accuracy based on ISO 10360-13 and VDI/VDE 2634 part 3, tested at 20±0.5ºC and 40–60% humidity. Best accuracy at 20–25ºC.

Brochure (PDF)

User manual (PDF)

Warranty options

EXScan Trak software

ExMeasure software

Open it, scan it

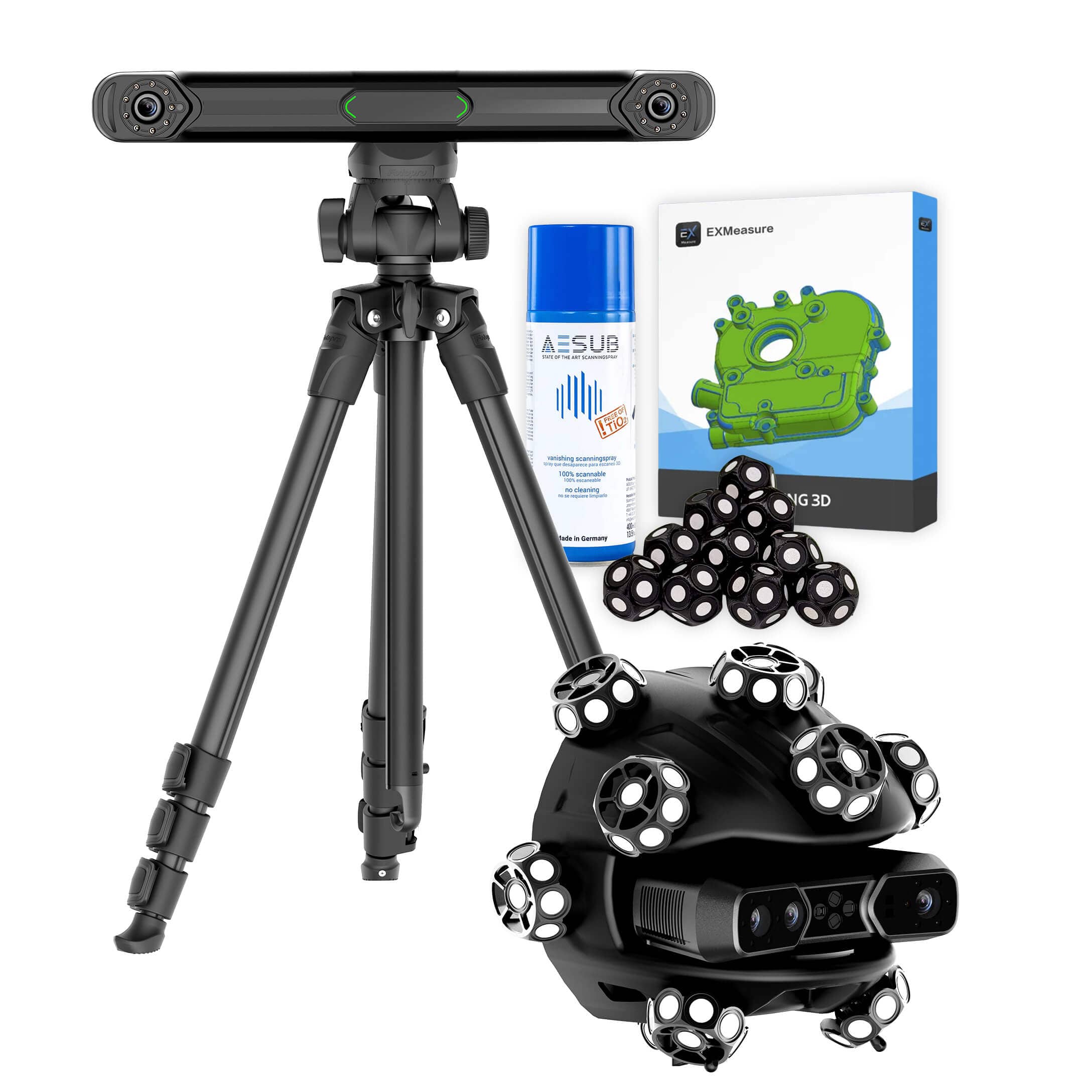

What shows up at your door

The tracker, the scanner, the router and everything you need to calibrate and start scanning, plus a year of measurement software.

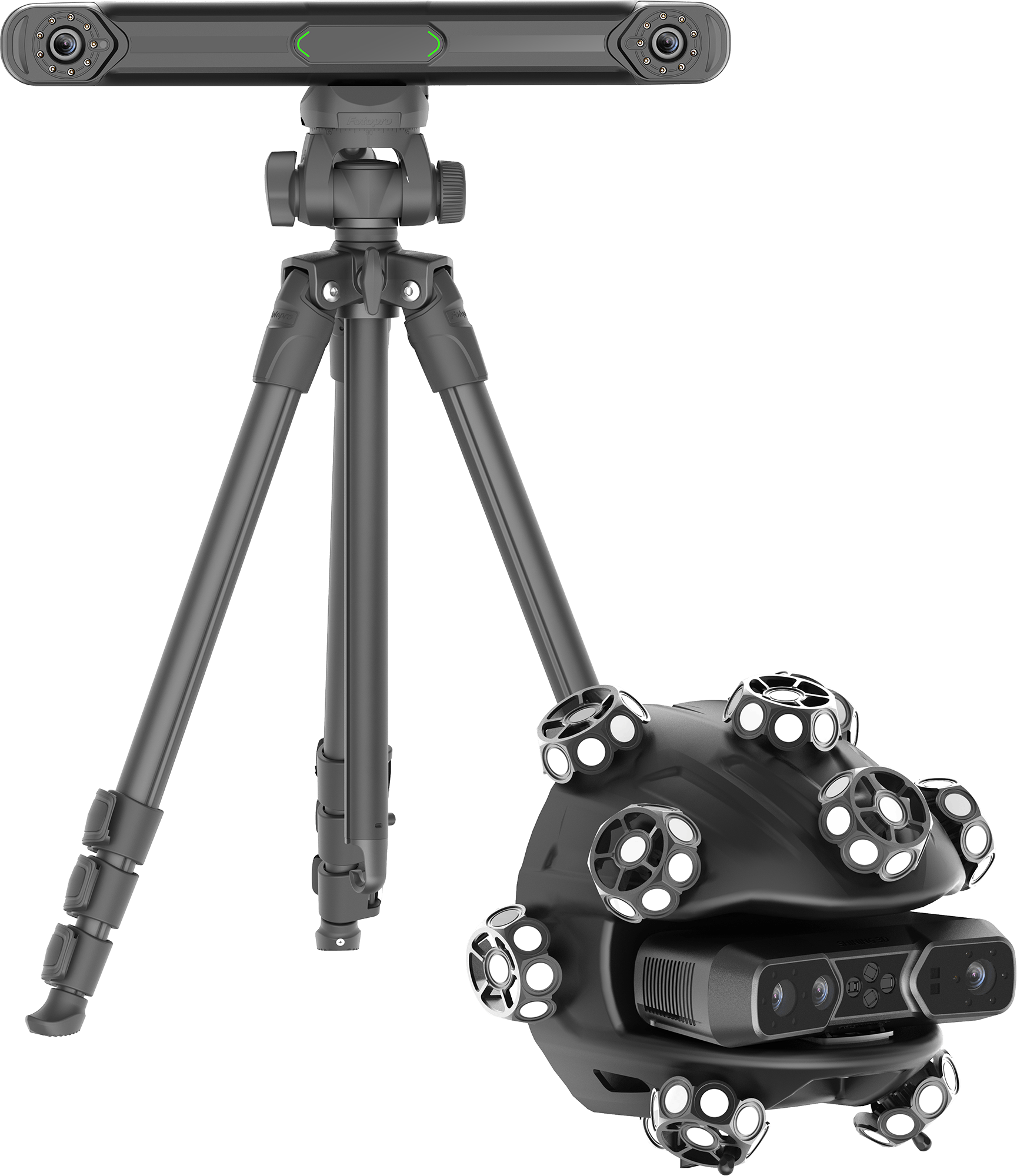

The system

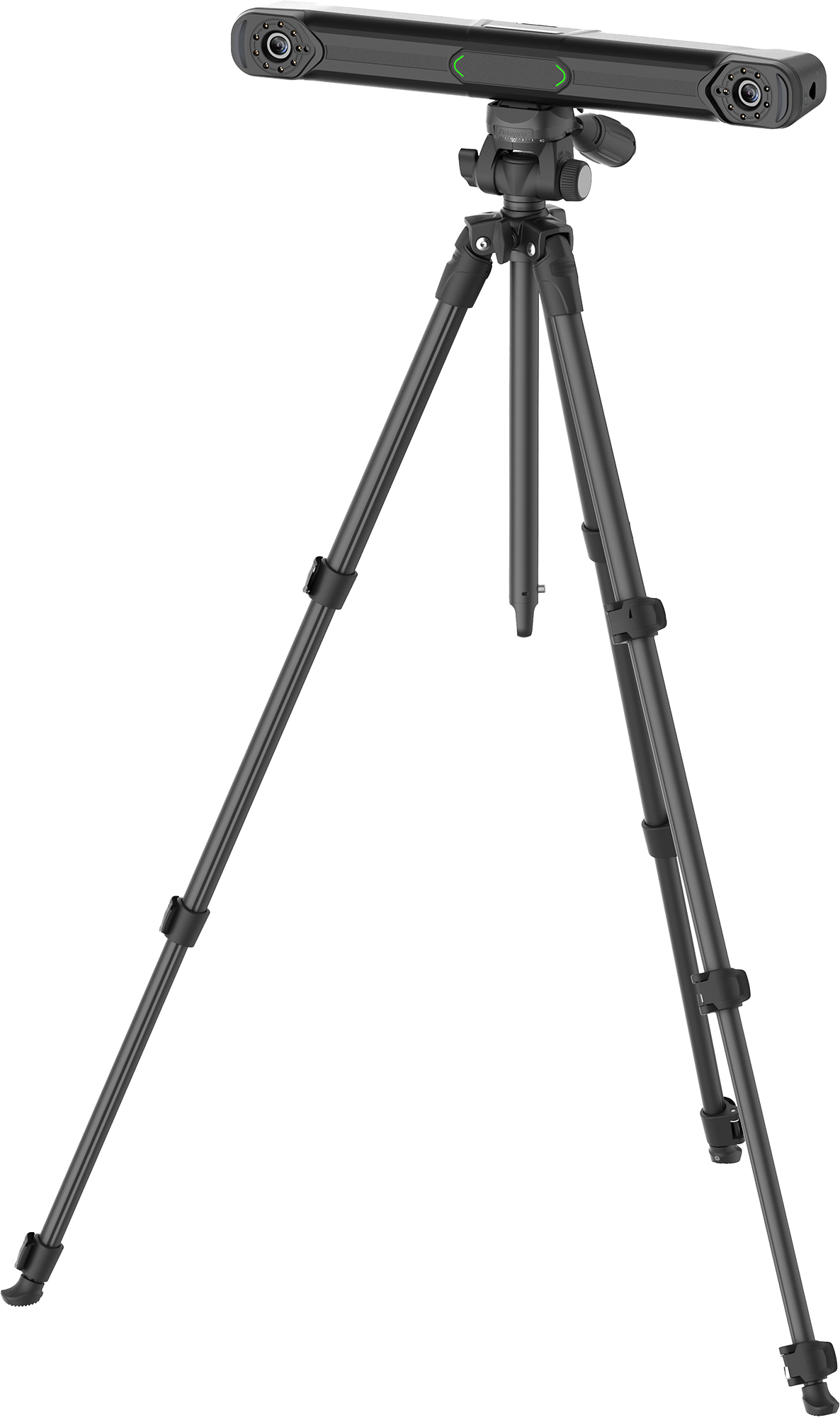

EinScan Trak tracker

1

Tripod

1

Spherical scanner with detachable handheld

1

Batteries + battery compartment

4

Wireless router + Ethernet cable

1

System calibrator

1

Calibration rod

1

Marker set + marker scraper

✓

Plus

4.5m power + data cable assembly

2

2m USB-C to USB-C power cable

1

Power adapter + multi-country plug kit

✓

USB Ethernet adapter

1

USB drive

1

Cleaning cloth

1

Quick guide + packing list

✓

ExMeasure, 1 year included

Measure straight off the scan, with no extra software to buy.

Dimensional measurement

✓

Coordinate-system alignment

✓

GD&T analysis

✓

Visual inspection reports

✓

License value

$699

Bring a Windows 11 laptop: an RTX 3060 laptop GPU and 32GB RAM at minimum, RTX 4060 and 64GB recommended for big scans. Not sure your machine will keep up? Call 833-774-6863 before you buy.

Buy it from people who scan

American service & support

01

Shining 3D partner since 2019

We sell and support the whole lineup, from hobby-grade to metrology-grade. Whoever picks up has scanned with one.

02

Real people, here in America

No scripted auto-attendant. 833-774-6863 · contact@visionminer.com

03

Financing, POs, warranty

60-second financing application, formal quotes for POs, and extended warranty options if the scanner lives on job sites.

Quick answers

Before you buy

Trak or Rigil?

If you scan big things (whole vehicles, body panels, large castings) and hate placing markers, get the Trak. The tracker does the positioning, so nothing goes on the part. If your parts are mostly smaller and you want a scanner with the computer built in, look at the Rigil.

Do I really not need markers?

Not in most cases. Tracking mode is marker-free even on big smooth surfaces, and handheld mode is marker-free on feature-rich parts. Markers help in two spots: very big objects where you want the tightest accuracy (global marker mode), and small featureless parts in handheld mode.

What's the biggest thing it can scan?

The tracking volume is 15m³, a whole vehicle. For boats or big sculptures, leapfrog: move the tracker and keep scanning. On the small end, the parallel lasers capture parts around 5cm.

Do I need a computer? (NVIDIA GPU required)

NVIDIA GPU REQUIRED

Yes, a Windows 11 PC with an NVIDIA RTX graphics card. EXScan Trak won't run on AMD or Intel graphics. Minimum is an RTX 3060 laptop GPU and 32GB RAM. For big scans we recommend an RTX 4060 and 64GB. Not sure your machine is enough? Call us.

What is ExMeasure?

Shining 3D's measurement software for dimensions, coordinate-system alignment and GD&T, with visual inspection reports. A 1-year license ($699 value) comes with every Trak.

What software comes with it?

EXScan Trak (scan, merge, clean up, export STL, OBJ, PLY, 3MF or ASC) plus a year of ExMeasure. CAD and full inspection software (ExModel, Design X Go, Control X) are add-ons. See software options.

Do I need spray?

Usually not. Blue laser handles black, shiny and machined surfaces. For the occasional really nasty part, AESUB spray sublimates away on its own, with no cleanup.

How long does setup take?

Full-system calibration takes 5–10 minutes, and it holds steady from -10 to 40ºC, so you're not recalibrating every time you move to a new spot.

Can I finance it or buy on a PO?

Yes. Email contact@visionminer.com and ask for the 60-second financing application. Need a formal quote for a PO? Request one here.

Stop placing markers

Scan the whole car. Skip the stickers.

Tracker, detachable handheld and a year of ExMeasure in the box. Buying on a PO? Request a quote and we'll turn it around for your purchasing team.

EinScan Trak

Ships from the USA

$6,999.00

Request a quote

Call 833-774-6863

Round out your setup

Software, training and supplies

Not needed to start scanning. Add them when the job calls for it.

Measurement + inspection

Scan to report

Control X Essentials

$7,249

All 3D software

›

Reverse engineering

Scan to CAD

ExModel

$1,900+

Design X Go

$3,992

Training

Learn it on your parts

Scanner training

$1,500

Geomagic training

$1,750+

Supplies

Markers & spray

Markers

$29+

AESUB sprays

$39.50+

Not sure what you need? Call 833-774-6863 and we'll tell you what's worth it for your parts, and what isn't.
