Funmat HT Upgrade Kit

Intamsys
SKU: 501-0230-E01
$454.00
This kit is designed to upgrade the extruder connectors, PCB, and motherboard wiring on the Funmat HT (for models shipped before June 2018).

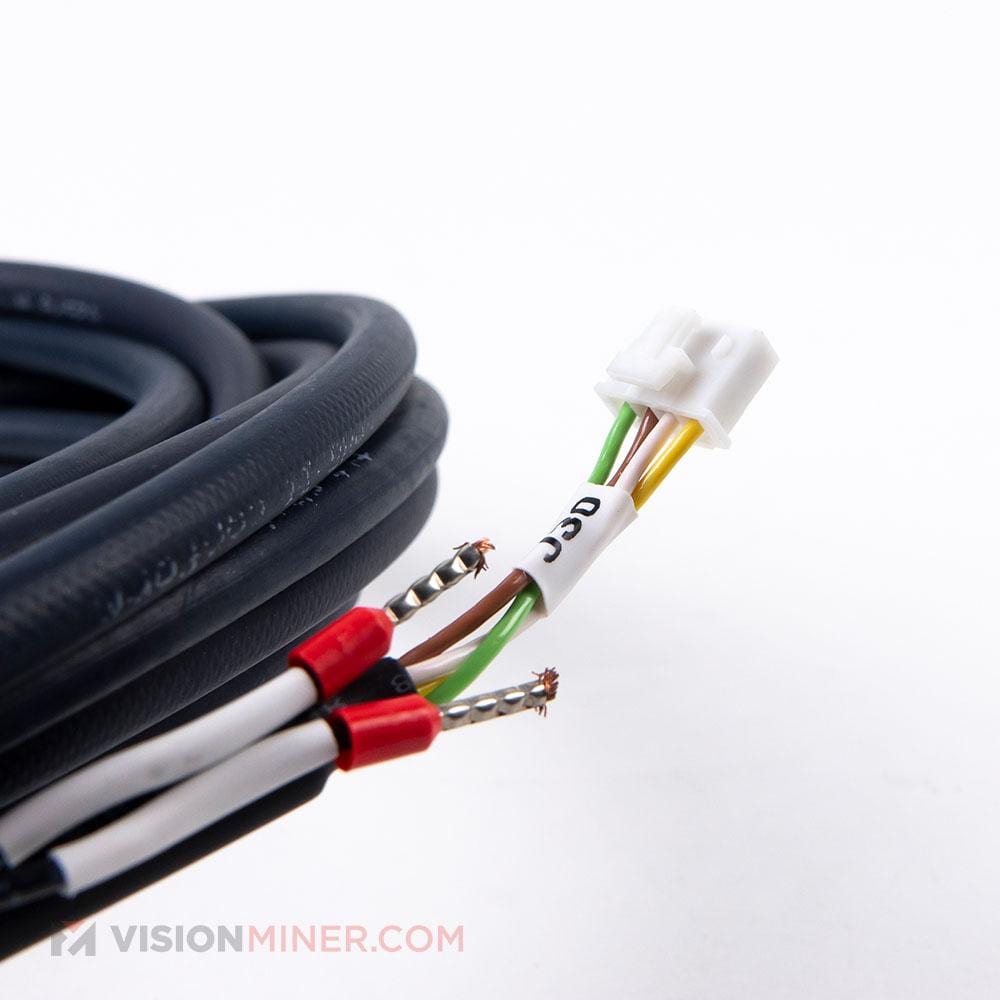

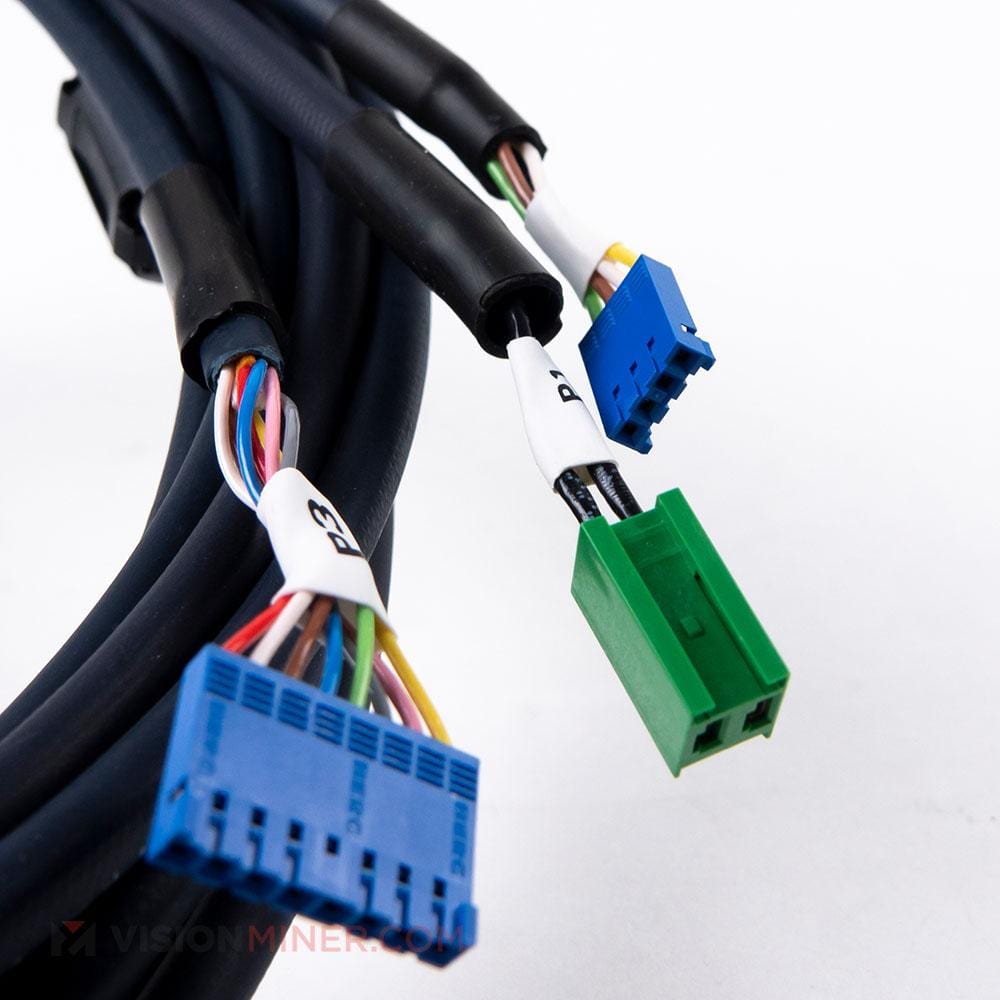

The kit includes all wiring harnesses needed to swap the extruder connection, and replace the extruder wires. Full upgrade takes about 2 hours. Instructions included.

This kit includes the wiring harness alone. Several other items are also required for upgrade, depending which version you're upgrading from:

  • Hotend PCB V2
  • Extruder Motor
  • Nozzle Cooling Fan
  • Thermistor plugs (or new thermistors)
  • Heater plugs (or new heaters)

QTY:



Kit Contents: 501-0230 Funmat HT
505-0822 Main board Ver. 5.0 x1
602-0263 Bracket of fan x1
602-1003 Bracket of fan x1
506-0304 Cable, Nozzle identification signal x1
506-0305 Cable, missing filament x1
506-0307 Cable, UPS board signal control x1
506-0041 Cable, J1 of power board x1
816-0942 Insulation Cylinder M4 x15mm+6mm x1
816-0943 Insulation cylinder M3 x15mm+6mm x1
505-0200 Temporary board x1
708-0304 Screw M3X4 x4
708-0306 Screw M3X6 x4
708-0312 Screw M3X12 x8
708-0320 Screw M3X20 x4


Kit Contents: 501-0231 Funmat HT with drivers in filament bay
505-0811 Main board Ver. 5.0 x1
602-0263 Bracket of fan x1
602-1003 Bracket of fan x1
506-0304 Cable, Nozzle identification signal x1
506-0305 Cable, missing filament x1
506-0307 Cable, UPS board signal control x1
506-0041 Cable, J1 of power board x1
816-0942 Insulation Cylinder M4 x15mm+6mm x1
816-0943 Insulation cylinder M3 x15mm+6mm x1
505-0200 Temporary board x1
708-0304 Screw M3X4 x4
708-0306 Screw M3X6 x4
708-0312 Screw M3X12 x8
708-0320 Screw M3X20 x4


Kit Contents: 501-0232 Funmat HT Enhanced
505-0811 Main board Ver. 5.0 x1
602-0263 Bracket of fan x1
602-1003 Bracket of fan x1
506-0304 Cable, Nozzle identification signal x1
506-0305 Cable, missing filament alert x1
506-0306 Cable, leveling sensor x1
506-0307 Cable, UPS board signal control x1
506-0041 Cable, J1 of power board x1
816-0942 Insulation Cylinder M4 x15mm+6mm x1
816-0943 Insulation cylinder M3 x15mm+6mm x1
505-0200 Temporary board x1
708-0304 Screw M3X4 x4
708-0306 Screw M3X6 x4
708-0312 Screw M3X12 x8
708-0320 Screw M3X20 x4
