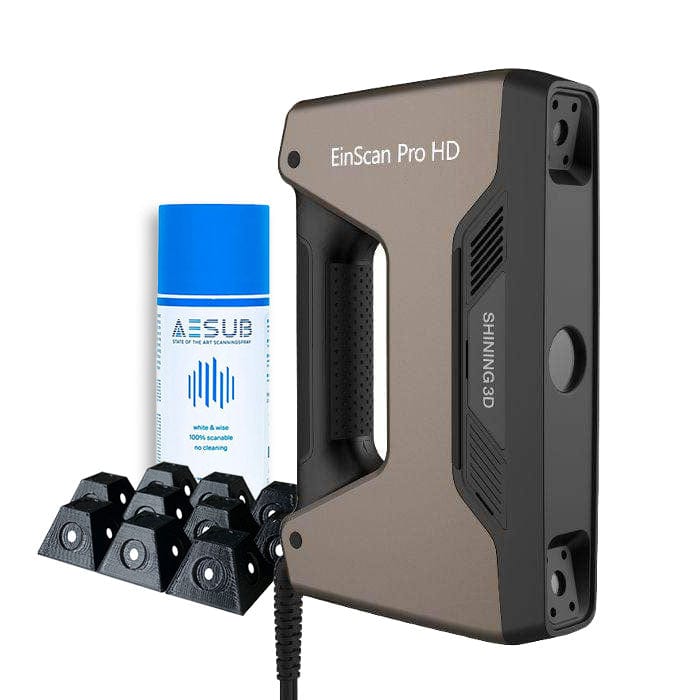

EinScan Pro HD

The EinScan Pro HD is the best all-around scanner -- with brighter lights than the previous version, it works well for darker and reflective parts -- excelling at large scans, like car bumpers, it also is the best scanner for small parts, due to the automated turntable workflow.

Key Features:

  • Handheld Structured Light 3D Scanner
  • Designed for all types and sizes of objects
  • Automated TurnTable = fast workflows of small parts
  • Full color available with the Color Pack
  • Extremely high-resolution - down to 0.2mm point distance

$7,699.00

BEST FOR AUTOMATION OF SMALL PARTS

AND HANDHELD SCANNING

The EinScan Pro HD gives you the best of both worlds -- highly detailed, fully-automated turntable scans for parts up to the size of a basketball, and high-resolution rapid-scanning of large objects, from full vehicles to industrial molds. Plus, you can enable full-color scanning and tracking with the color pack, making this the most versatile scanner of the bunch.
  • Multiple Scan Options

    Scan parts on the automated turntable, or use fixed scans using the tripod -- or, go hands-free and use the handheld scan mode on anything!

  • Powerful Software

    Includes EXSCAN PRO HD scanning software, which features a new and improved user interface and workflow, and Solid Edge SHINING 3D Edition CAD software, a design tool from SIEMENS PLM Software that allows reverse engineering and design from scan data with the ability to export to Solidworks or other CAD programs.

  • High Accuracy & Resolution

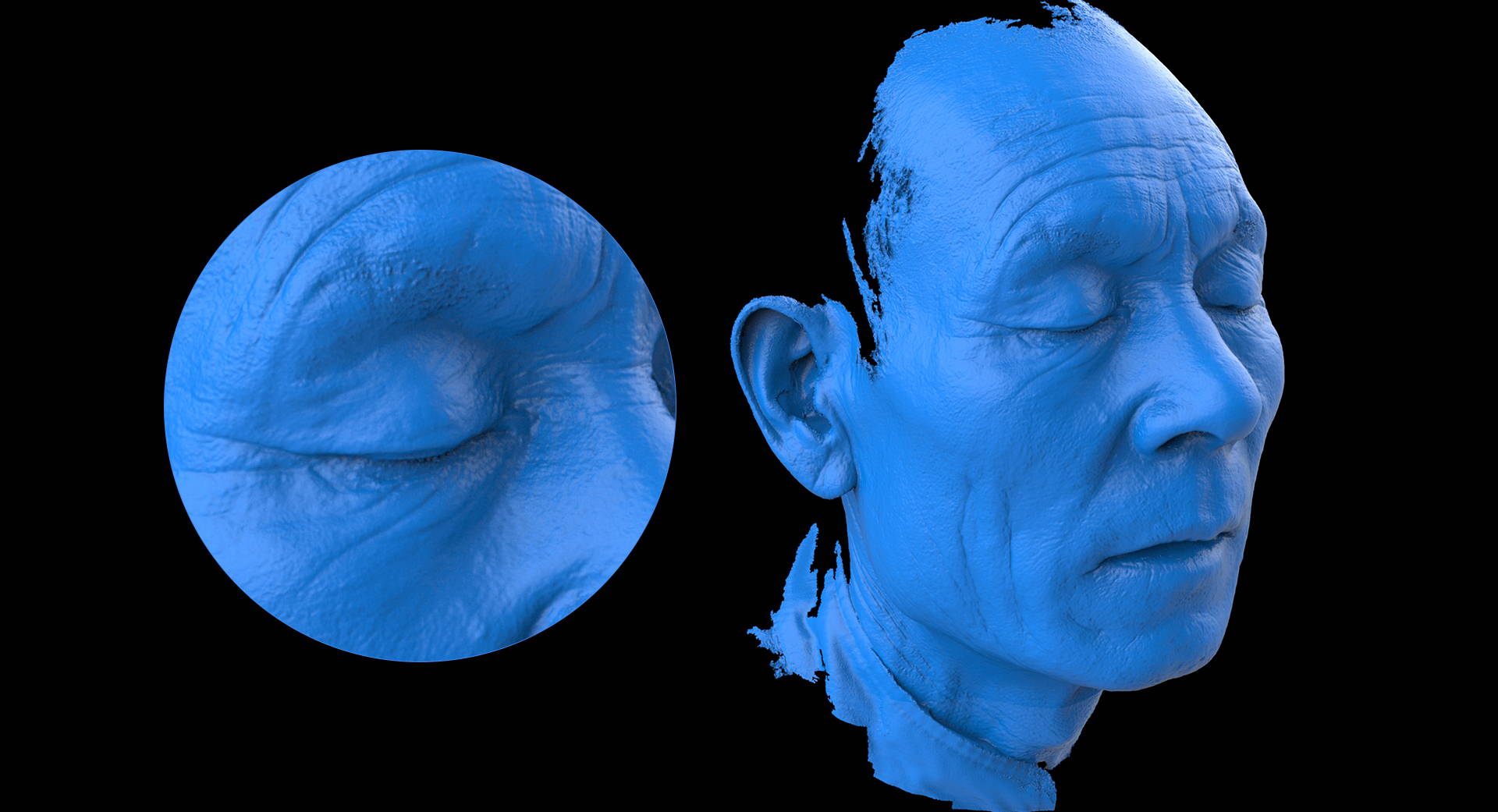

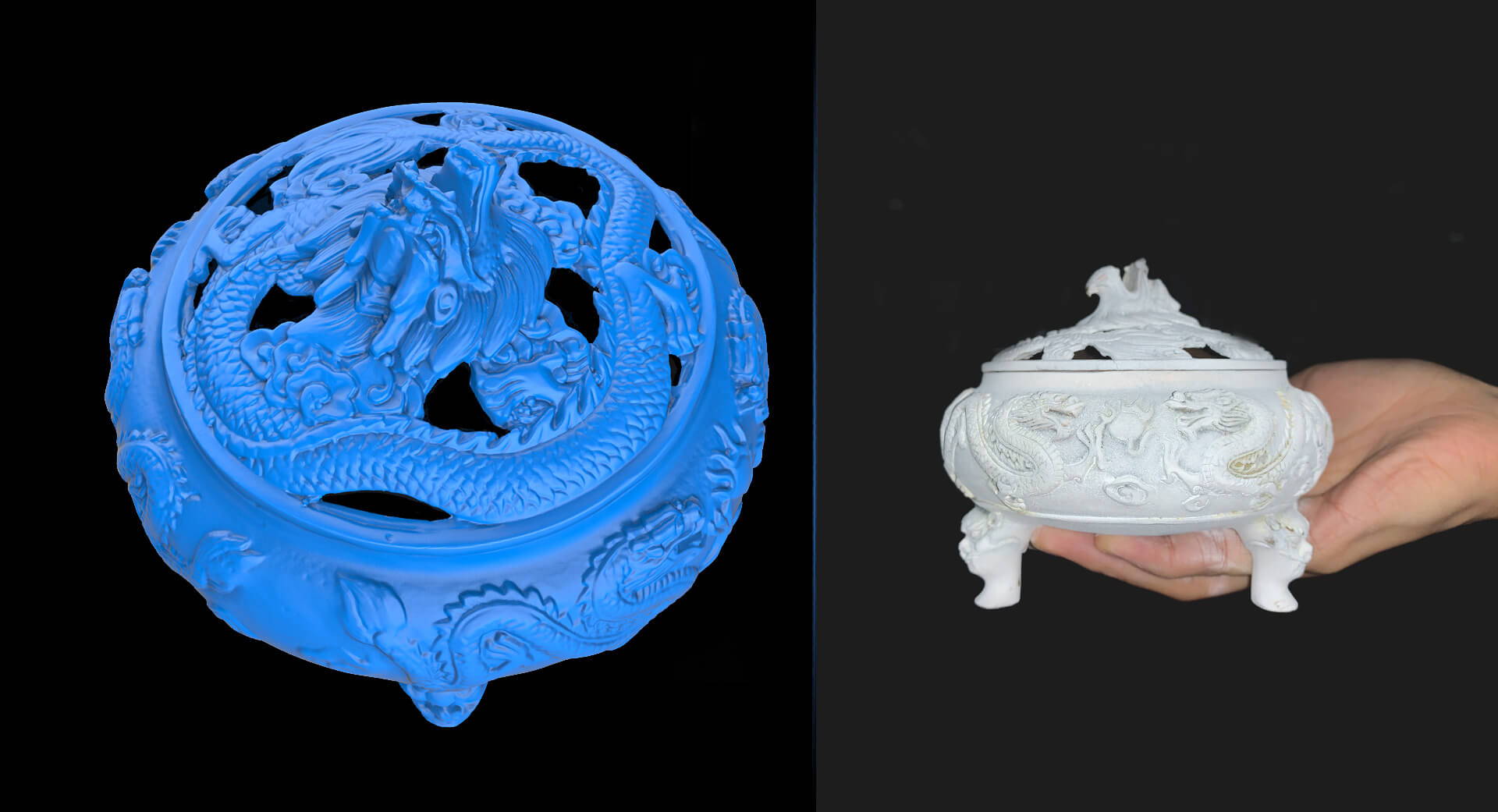

    0.045mm Accuracy -- with 0.24mm point distance. This is one of the best scanners for high-resolution scans, capturing great detail, whether you're reverse engineering or saving artifacts!

  • Scan Small to Large

    Designed with Automotive in mind, the Pro HD works great for LARGE scans, but also can include the automated turntable to make scanning lots of small parts a breeze.

  • High Speed 3D Scanning

    New algorithms have improved the scanning speed of the Pro HD over previous models, and you get real-time feedback of the scan data in the included software package.

  • Endless Applications

    Use the EinScan Pro HD for high-quality reverse engineering, manufacturing, 3D modeling, customized products, scanning industrial parts, sculptures, artifacts, human bodies, healthcare, research, education, virtual displays, and more.

VIDEOS

EXAMPLE SCAN FILES

Download these files to check out the resolutions possible on the Scanner!

Import them into your Mesh software, or CAD software, like Fusion 360 or Solidworks, and take a look!

Some files contain just an STL, others contain the full ASC data and other files.

BENCHY

(120mb)

MOUNTING PLATE

(15mb)

KNOB

(100mb)

SHIFTER PADDLE

(125mb)

GRIP HANDLE

(15mb)

MORE EXAMPLES COMING SOON!

BUILT FOR

REVERSE ENGINEERING

AND PART VALIDATION

RED BUNDLE

Reverse Engineering & Design Bundle includes:

- EinScan Pro HD Scanner

- Industrial Pack - Automatic TurnTable & Tripod

- Solid Edge Shining3D Edition

- Geomagic Essentials ($1000 Savings!)

$9,999.00

PRINTER BUNDLE

Reverse Engineering & Design Bundle includes:

Pick a scanner, and we'll make a bundle

with any of our printers!


Call 833-774-6863

or email contact@visionminer.com

and we will make you a great deal :)

Detailed Specifications (Pro HD)

Scan ModeHandheld HD ScanHandheld Rapid ScanFixed Scan with Turntable
Fixed Scan without Turntable
Scan Accuracyup to 0.04mmup to 0.1mmSingle Shot Accuracy: 0.04mm
Volumetric Accuracy0.3mm/m (Markers Alignment)//
Scan speed20 fps (100,000 points/s - 7 data capture lines)30 fps (1,500,000 points/s)Single scan: < 0.5s
Point distance0.2mm-3mm0.25mm-3mm0.24mm
Single scan range208*136mm - 312*204mm
Depth of Field±100mm
Working Distance510mm
Light sourceLED
Align mode
Markers Alignment
Feature Alignment[2],
Hybrid Alignment[3]
Markers Alignment
Feature Alignment[2],
Hybrid Alignment[3]
Markers Alignment,
Texture Alignment[4],
Feature Alignment,
Hybrid Alignment)
Turntable Coded Targets, Feature, Markers, Manual AlignmentMarkers, Feature, Manual Alignment
Texture ScanNoYes (Color Pack required - sold separately)
Outdoor operationSet up the shelter or cover to avoid direct sunlight
Special object scanningFor scanning transparent, highly reflective, or some dark objects, please spray powder before scanning
Printable data outputAble to export watertight 3D model directly to 3D printing
Output file formatOBJ , STL , ASC , PLY , P3 , 3MF
Scanner body weight
1.13kg (includes the USB3.0 cable)
System supportWin7, Win8, Win10, 64bit
System ConfigurationRecommended Configuration: Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0

Required Configuration: Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm.
The conclusion is obtained by measuring the center of sphere under marker alignment.
[2]. Select this alignment when scanning objects with rich geometrical features on the surface.
[3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.
[4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object.
SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more information.

Einscan Pro HD

$7,699.00

Pro HD RED Bundle

(includes scanner, Industrial Pack,
and GeoMagic Essentials software)
$9,999.00

Financing Options Available!

Email sales@visionminer.com and ask for a 60-second application :)

WARRANTY INFORMATION
