Shining 3D · Tri-mode wireless 3D scanner

Einscan Rigil

Blue laser speed, blue laser detail, and marker-free infrared -- in one wireless scanner with the computer built into the handle. 0.04mm accuracy on black, shiny and metal parts, indoors or out in the sun. No spray, no cables, no laptop.

CHOOSE YOUR SCANNER

EinScan Rigil

25+25 cross lasers · 4.8M pts/sec · 32GB RAM · 1TB -- the full-speed flagship.

$4,999.00

Rigil Complete Geomagic Bundle

EinScan Rigil + Geomagic Design X Go + Control X Essentials. The whole workflow in one box.

$15,499.00

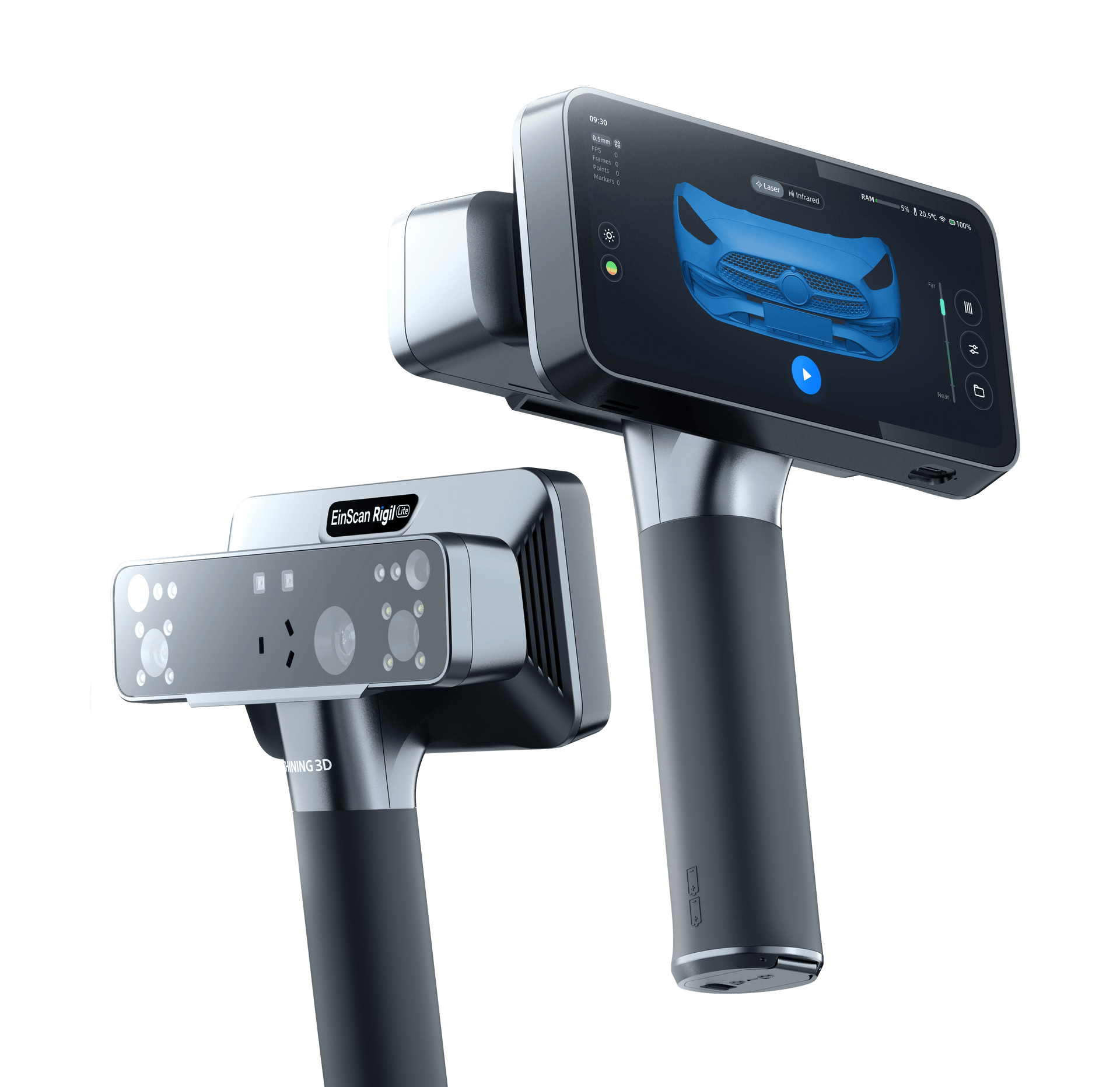

EinScan Rigil Lite

17+17 cross lasers · 2.9M pts/sec · 24GB RAM · 512GB -- the same wireless platform for less.

$3,099.00

+ FREE PRO ACCESSORY KIT + VISION MINER EXCLUSIVES

Every Rigil order · limited time

10x 6mm magnetic marker balls

4 sheets magnetic markers

10 sheets 6mm markers

AESUB scanning spray

300mm turntable

4 fixture columns

10 marker cards

Magnetic ball markers

Real people, in America: 833-774-6863

Financing -- email contact@visionminer.com for the 60-second application

Need a quote for a PO?

ADD SOFTWARE

Scan to CAD. Scan to report.

The scanner gets you a mesh. Software turns that mesh into a CAD model you can edit or an inspection report you can hand to QA. Add it to the cart with your scanner -- one order, nothing to chase down later.
EXModel Vision Miner

rEVERSE ENGINEERING

EXModel

Shining 3D's own scan-to-CAD tool. Pull planes, cylinders and sketches off the scan and build a model you can edit.

Title

LICENSE:
$540.00
Geomagic Design X Go 3D Systems Software

rEVERSE ENGINEERING

Geomagic Design X Go

Geomagic Design X Go scan-to-CAD. Turn a scanned part into parametric geometry you can send to SOLIDWORKS and friends.

Title

LICENSE:
$3,992.00
Geomagic Control X Essentials 3D Systems Software

rEVERSE ENGINEERING

Geomagic Control X Essentials

Compare a scan to CAD, get a color deviation map and a report you can hand to QA.

Title

LICENSE:
$7,249.00

TRAINING

Title

Virtual · per seat

Training For Geomagic

Shining 3D's own scan-to-CAD tool. Pull planes, cylinders and sketches off the scan and build a model you can edit.

Title

Training Type:
$3,000.00

Virtual or LIVE IN PERSON

Shining3D Scanner Training

Geomagic Design X Go scan-to-CAD. Turn a scanned part into parametric geometry you can send to SOLIDWORKS and friends.

Title
$1,500.00

COMPLETE YOUR SETUP

Markers run out. Mid-job.

The free kit gets you scanning. Big parts and full vehicles eat markers and spray -- add spares now so you're not waiting on a shipment with a car half-scanned.

SCANNING SPRAY

Title
AESUB Blue Single Can AESUB USA Scanning Spray

rEVERSE ENGINEERING

AESUB Blue

Shining 3D's own scan-to-CAD tool. Pull planes, cylinders and sketches off the scan and build a model you can edit.

Title

QUANTITY:
$39.50
AESUB Orange Single Can AESUB USA Scanning Spray

rEVERSE ENGINEERING

AESUB Orange

Geomagic Design X Go scan-to-CAD. Turn a scanned part into parametric geometry you can send to SOLIDWORKS and friends.

Title

QUANTITY:
$42.00

 MARKERS

Title
3D Scanning Pyramid Markers (Magnetic) Vision Miner 3D Scanner Accessories

rEVERSE ENGINEERING

Magnetic Pyramid Markers

Shining 3D's own scan-to-CAD tool. Pull planes, cylinders and sketches off the scan and build a model you can edit.

Title
$39.00
3D Scanning Reflective Adhesive Markers H/HX / 1000 Shining3D 3D Scanner

rEVERSE ENGINEERING

6mm Adhesive Markers

Geomagic Design X Go scan-to-CAD. Turn a scanned part into parametric geometry you can send to SOLIDWORKS and friends.

Title

QUANTITY:
$29.00

rEVERSE ENGINEERING

6mm Magnetic Markers

6mm Markers with magnetic non-adhesive backing

Title
$145.00

WHY RIGIL

Three scanners in one handle

Most handheld scanners make you pick: fast or detailed, lasers or infrared, tethered or a toy. Rigil switches between all three modes on the fly and merges the data in real time.
Title

Tri-mode hybrid scanning

Fast, fine, or marker-free. Switch mid-scan.

Crossed blue lasers cover big surfaces fast. Parallel blue lasers pull fine detail down to 0.05mm. Infrared VCSEL scans without markers for quick captures of large objects -- up to 1.5m away. Use whichever the part needs, without starting over.

Crossed laser: speed on big panels and assemblies

Parallel laser: edges, fillets, small features

Infrared: marker-free, longer working distance
Title

All-in-one wireless

The computer is in the handle

8-core processor, 32GB DDR5, 1TB SSD and a 6.4" 2K AMOLED touchscreen -- built in. Scan, check and export right at the part. No laptop balanced on a fender, no cable dragging across the shop floor.

Dual hot-swappable 6000mAh batteries -- swap without shutting down

Plug into a PC (cable or Wi-Fi) for bigger jobs and full editing

870g with batteries
Title

No spray · Sunlight-ready

Black, shiny, metal. Outdoors.

Blue laser handles dark and reflective surfaces that make structured-light scanners give up -- so you skip the spray and the cleanup after. And it works in direct sunlight, so the car doesn't have to come into the shop to get scanned.

Machined aluminum, chrome, black plastic trim

Driveways, job sites, race paddocks

5MP color camera for full-color texture when you need it

By the numbers

REVERSE ENGINEERING, handheld

Most handheld scanners make you pick: fast or detailed, lasers or infrared, tethered or a toy. Rigil switches between all three modes on the fly and merges the data in real time.

0.04mm

VOLUMETRIC ACCURACY

+ 0.06mm/m, laser mode

6.4"

2K AMOLED

Touchscreen on the scanner

0.05mm

RESOLUTION

Parallel laser detail mode

2x

6000mAh batteries

Hot-swappable

4.8M

Points / second

EinScan Rigil, crossed laser

870g

NET WEIGHT

Batteries included

1.5m

IR working distance

983 x 979mm max field of view

-10~40ºC

Operating temp

IP50 rated

See it scan

Watch it work

Operation tips and real scans -- the fastest way to know if Rigil fits your work.
Title
Alt image
Alt image
Alt image
Alt image
Alt image

Which one?

Rigil vs. Rigil Lite

Same wireless, all-in-one platform. The full Rigil has more laser lines -- which means more points per second and less time waving the scanner around on big parts.

RIGIL

Full Power

RIGIL LITE

Best Entry Price

Price

$4,999

$3,499

Cross laser lines

25+25

17+17

Scan speed

4.8M pts/sec

2.9M pts/sec

RAM

32GB LPDDR5

24GB LPDDR5

Storage

1TB

512GB

Free Pro Accessory Kit

✓

✓

FULL EINSCAN RIGIL SPECS

Scan Modes:

Laser HD Mode

IR Rapid Mode

Light Source

19+19 Crossed laser lines  |  7 blue laser parallel lines

IR VCSEL

Resolution

0.05 ~ 10 mm

0.2 ~ 10 mm

Scanning Speed

4,400,000 points/s | 940,000 points/s

CLASS I (eye-safe)

Working Distance

170 ~ 550 mm

160 ~ 1500 mm

Align Modes

Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment

Feature Alignment, Hybrid Alignment,

Texture Alignment, Global Markers

Volumetric Accuracy*

Up to 0.04 + 0.06 mm/ m

Up to 0.1 + 0.3 mm/m

Laser Class

Class II

Field of View (FOV)

380x300mm Maximum FOV

@ 400mm working distance

983x979mm Maximum FOV
@ 1500mm working distance & 3.0mm point resolution

(Note: FOV decreases with higher resolution scans)

Work Modes

All-in-One Wireless Scanner

Optional PC use via cable or Wi-Fi for demanding jobs

Output Formats

STL, OBJ, PLY, 3MF, ASC

Camera Resolution

3D: 2.3MP*2   1.3MP*2; Texture: 5MP

Hardware

CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM;
32GB DDR5 RAM;  6.4”2K AMOLED Touch Screen

Operation Conditions

Temperature -10°C ~ 40°C

Certifications

CE, FCC, ROHS, WEEE, FDA, SRRC, IP50

Recommended
Configurations for PC

Win10/11, 64 bit; Graphics card: NVIDIA GTX1060;
Video memory: ≥6GB; Processor: I7- 11800H; Memory: ≥32GB

nVidia graphics card REQUIRED to run PC software (not required to use scanner or export files)

Interface & Power Source

USB Type-C, Battery: 6000mAh*2; Supports 60W-PD 3.0 Charger

Dimension

(H*D*W) 233 × 180 × 72.8 mm

Net Weight

870 g (batteries included)

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.

Open it, scan it

What shows up at your door

Everything you need to scan on day one, plus the kit you'd normally buy separately.
Title

WHAT'S IN EVERY BOX

STANDARD ITEMS INCLUDED WITH THE EINSCAN RIGIL

EinScan Rigil scanner

✓

Protective travel case

✓

Calibration board

✓

Scanning markers

✓

AESUB Blue spray

Vision Miner Exclusive

Scanning pyramids

Vision Miner Exclusive

+ FREE PRO ACCESSORY KIT

Every Rigil order · limited time

6mm magnetic marker balls

10 pcs

Magnetic markers

4 sheets

6mm adhesive markers

10 sheets

Marker removal tool

1

300mm turntable

1

Fixture columns

4 pcs

AESUB scanning spray + magnetic ball markers

VM exclusive

Buy it from people who scan

American service & support

01

Real people, here in America

No scripted auto-attendant. Call 833-774-6863 or email contact@visionminer.com -- whoever picks up has used the scanner.

02

Financing in 60 seconds

Email contact@visionminer.com and ask for the 60-second application. Get the scanner working now, pay over time.

03

Warranty options

Standard warranty, plus extended coverage if the scanner lives on job sites. See warranty options.

FREQUENTLY ASKED QUESTIONS

Before you buy

BUY IT FROM PEOPLE WHO SCAN

The scanner gets you in the door. Reverse engineering, CAD, and inspection get you a finished project -- add them now so nothing holds up your first day.

01

Shining3D partner since 2019

We sell and support the whole lineup -- from Hobby-grade to Metrology-grade like the Freescan Combo or Optimscan lineup

02

Real people, here in America

No scripted AI auto-attendant. 833-774-6863 · contact@visionminer.com

03

Pro Service

Phone support and special contacts - when you buy from Vision Miner, you get our world-class service.

QUICK ANSWERS

Rigil or Rigil Lite?

If you scan big things -- vehicles, body panels, large assemblies -- get the Rigil. 25+25 laser lines and 4.8M pts/sec means fewer passes and less time per part. If you mostly scan smaller parts and want the wireless platform for less, the Lite does the job.

Does software come with the scanner?

The Rigil ships with Shining 3D scanning software -- scan, merge, clean up and export STL, OBJ, PLY, 3MF or ASC. CAD and inspection software (ExModel Pro, Design X Go, Control X) are add-ons in step 2.

Do I need a computer?

No. Scan, process and export on the scanner itself. Plug into a PC (cable or Wi-Fi) when you want faster processing on huge scans or the full editing tools -- that needs an NVIDIA graphics card.

Do I need spray?

Usually not. Blue laser mode handles black, shiny and metallic surfaces. For the occasional really nasty part, AESUB spray is in the box -- and it sublimates away on its own, no cleanup.

Do I need markers?

Not always. IR mode and feature alignment work marker-free. For the best accuracy on large or featureless parts, markers help -- and the free Pro Accessory Kit has plenty to start.

Does it really work outside?

Yes. Rigil is built to scan in direct sunlight -- no tent, no shade, no waiting until dusk.

Which software do I need for CAD?

The scanner gives you a mesh (STL, OBJ, PLY, 3MF, ASC). To turn it into editable CAD, add ExModel Pro or Design X Go. To compare a part against CAD for QA, add Control X Essentials. Not sure? Call us -- we'll tell you straight.

Can I finance it?

Yes. Email contact@visionminer.com and ask for the 60-second application. Need a formal quote for a PO? Request one here.
