BUDGET SCANNERS FOR EDUCATION

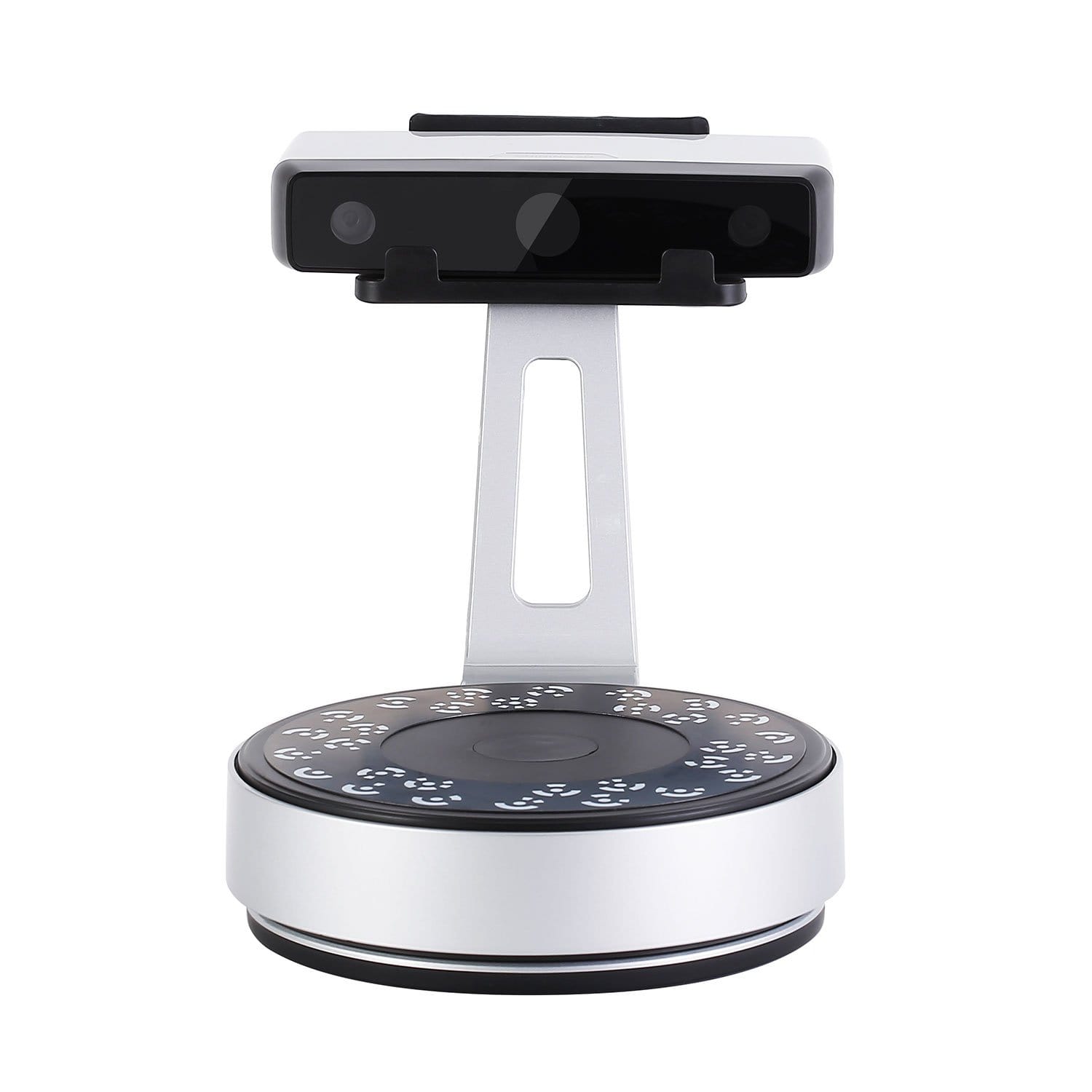

EinScan SP v2

$2,099.00

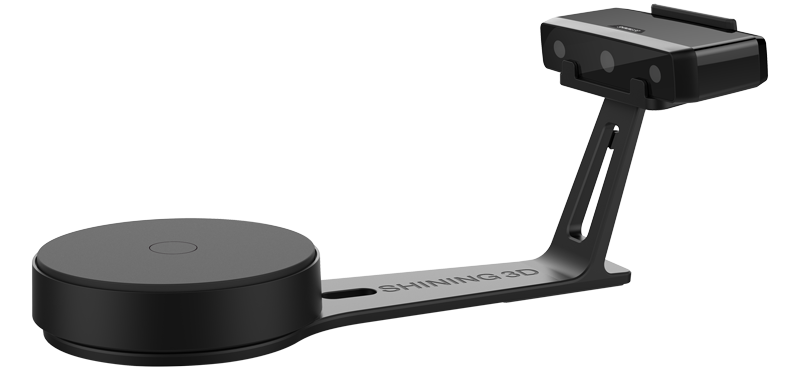

EinScan SE v2

$1,199.00

VIDEOS

Poster
Poster
Poster

GREAT FOR HANDHELD & TURNTABLE SCANS

With great resolution (0.16mm point distance, in fixed-scan mode), the EinScan SE & SP are a great option for automated turntable scans, with the option for full color.

Poster

Quick Links:

Product Brochure

Warranty Options

Software Download

Multiple Scan Options

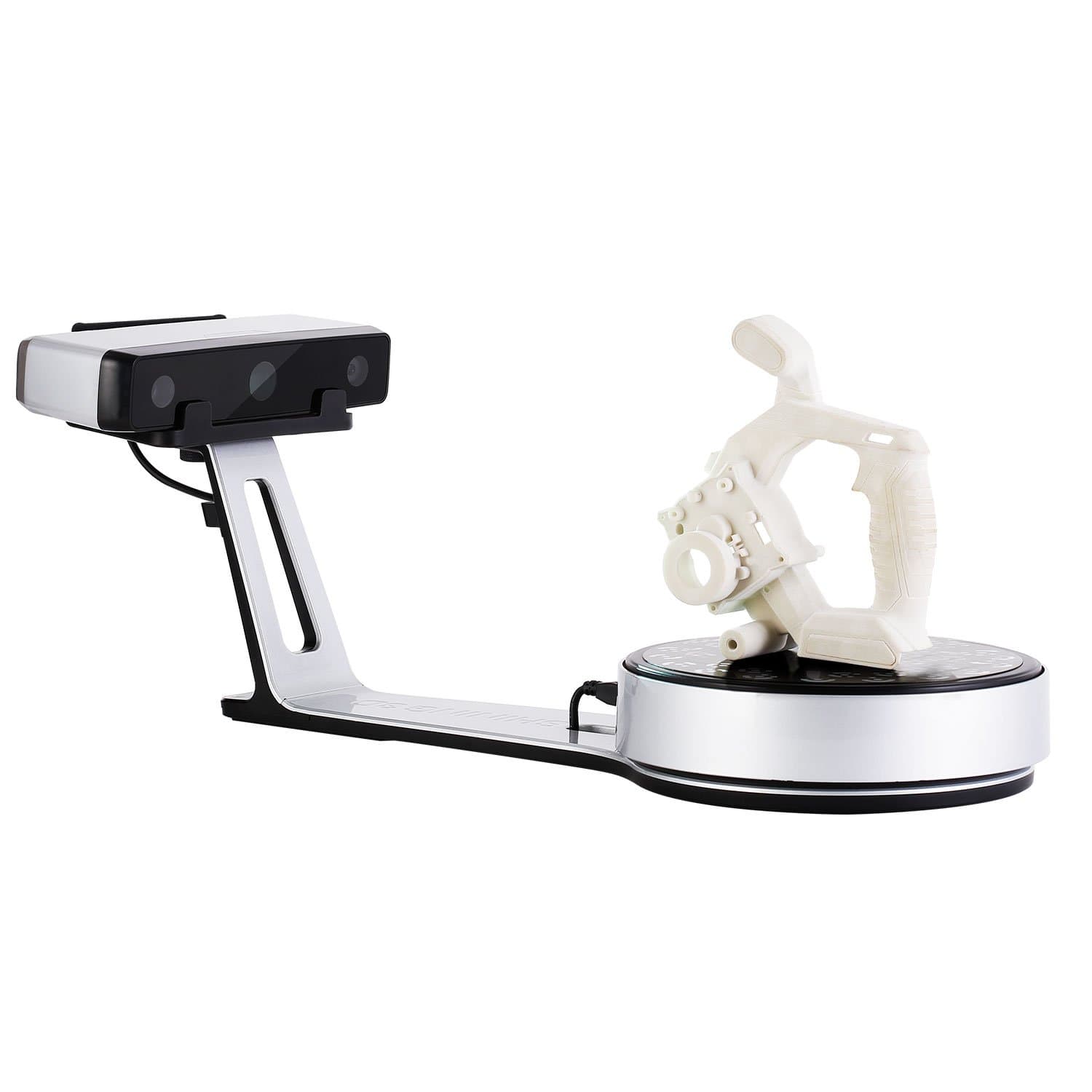

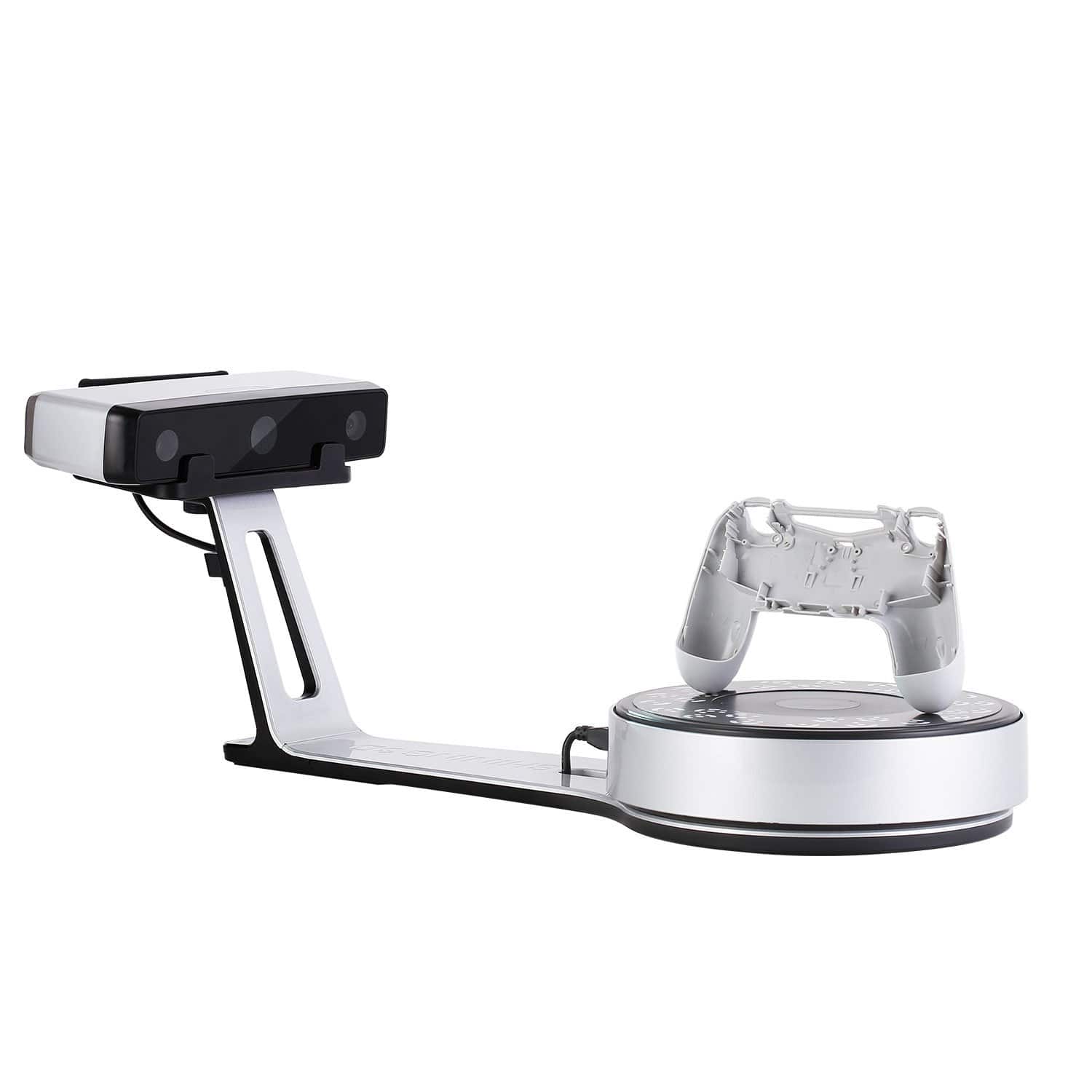

Fixed Scan with Turntable

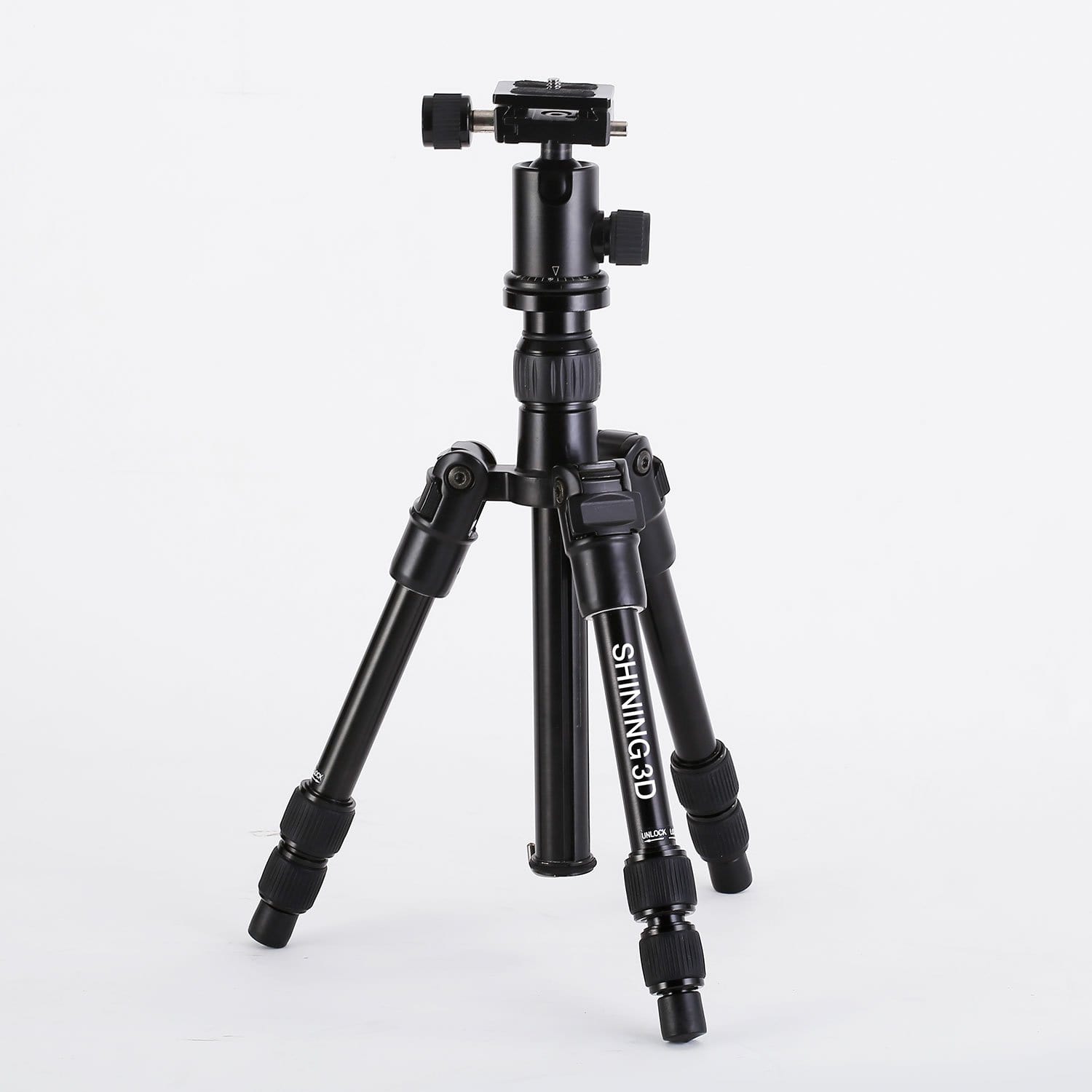

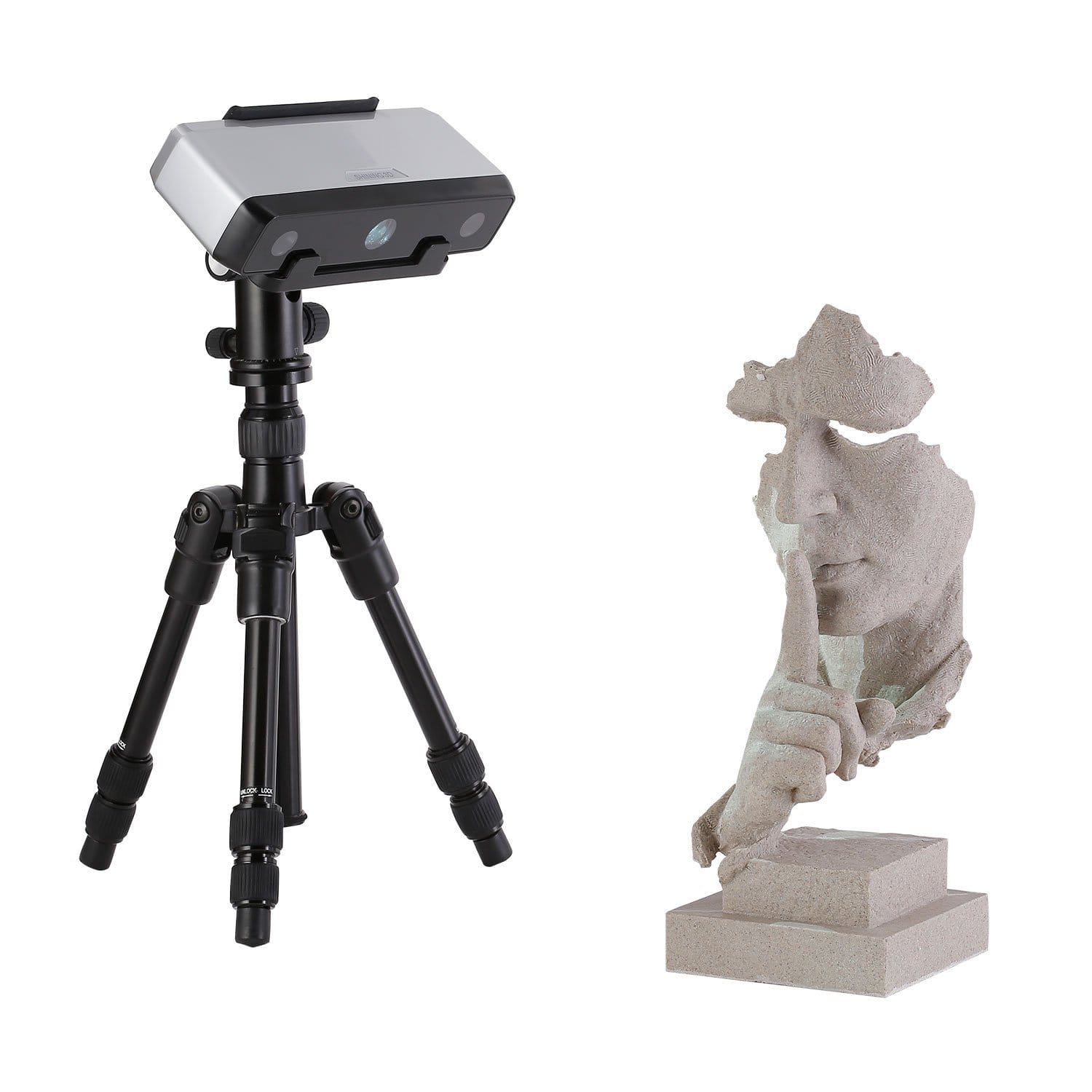

Fixed Scan without Turntable

Powerful Software

One-click scanning
Automatic calibration with no rigid set-up required
4 seconds for a single scan, on the SP
1 minute for a 360-degree scan under auto scan mode

High Accuracy

Higher accuracy, 0.05mm for a single scan
Multiple ways of alignment: markers, turntable markers, feature and manual

Great for 3D Printing Classes

Auto meshing to watertight 3D data
Seamlessly connect to 3D printers
Provide API access service for any brand 3D printers.

Endless Applications

Use the EinScan SE v2 or SP v2 for high-quality reverse engineering, manufacturing, 3D modeling, customized products, scanning industrial parts, sculptures, artifacts, healthcare parts, research, education, virtual displays, and more.

Detailed Comparison (EinScan SP vs SE)

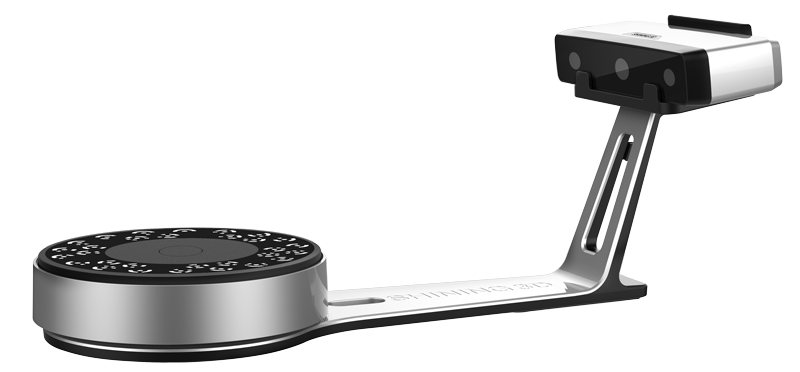

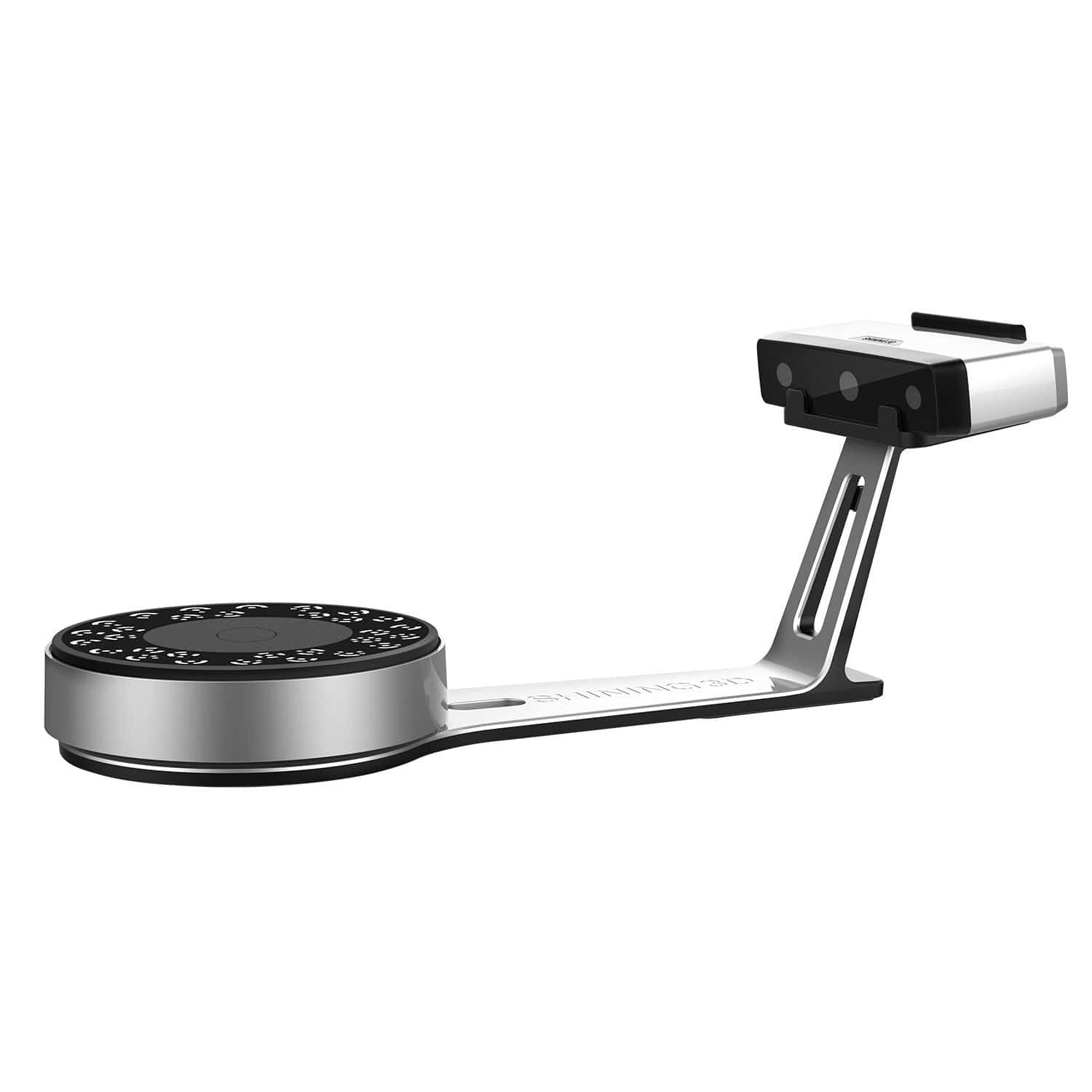

EINSCAN SP

EINSCAN SE

Scan Modes

Fixed Scan with Turntable
Fixed Scan without Turntable

Fixed Scan with Turntable
Fixed Scan without Turntable

Scan Accuracy

≤0.05mm (single shot accuracy)

≤0.1mm (single shot accuracy)

Point Distance

0.17mm~0.2mm

Scan Speed

Single scan, less than 1 second

Single scan, less than 1 second

Scan Speed for Full 360º

Less than 45 seconds

Less than 45 Seconds

Single Scan Range

200mm × 150mm

200mm × 150mm

Minimum Scan Volume

30mm × 30mm × 30mm

30mm × 30mm × 30mm

Maximum Scan Volume

Fixed Scan: 1200mm × 1200mm × 1200mm

Turntable: 200mm × 200mm × 200mm

Fixed Scan: 700mm × 700mm ×700mm

Turntable: 200mm × 200mm × 200mm

Align Modes

Manually Align; Feature Align; Turntable Align; Markers Align; Turntable Coded Target Align

Fixed Scan with Turntable; Fixed Scan without Turntable

Texture (Color) Scan

Yes

Light Source

White Light, visible LED

Working Distance

290 ~ 480 mm

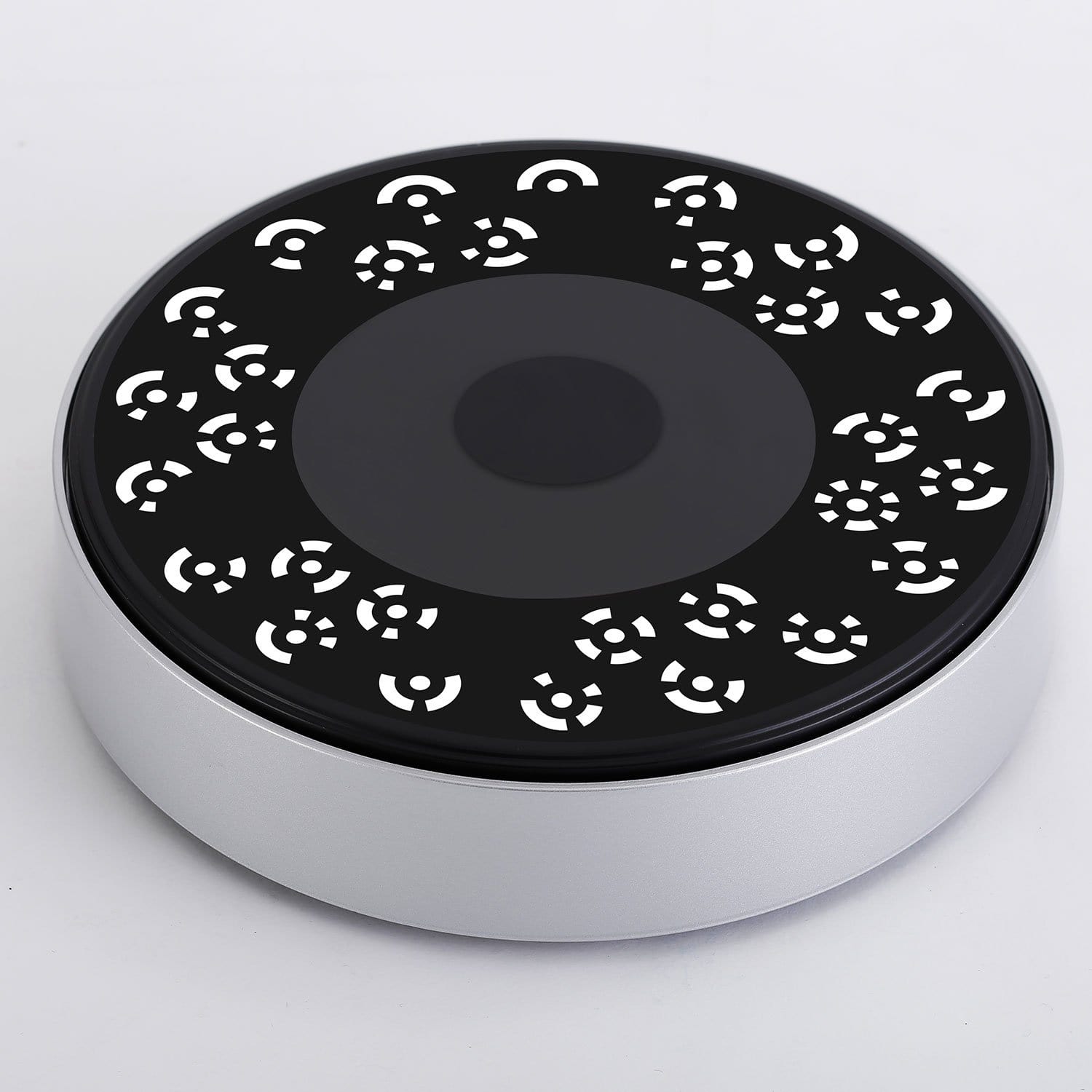

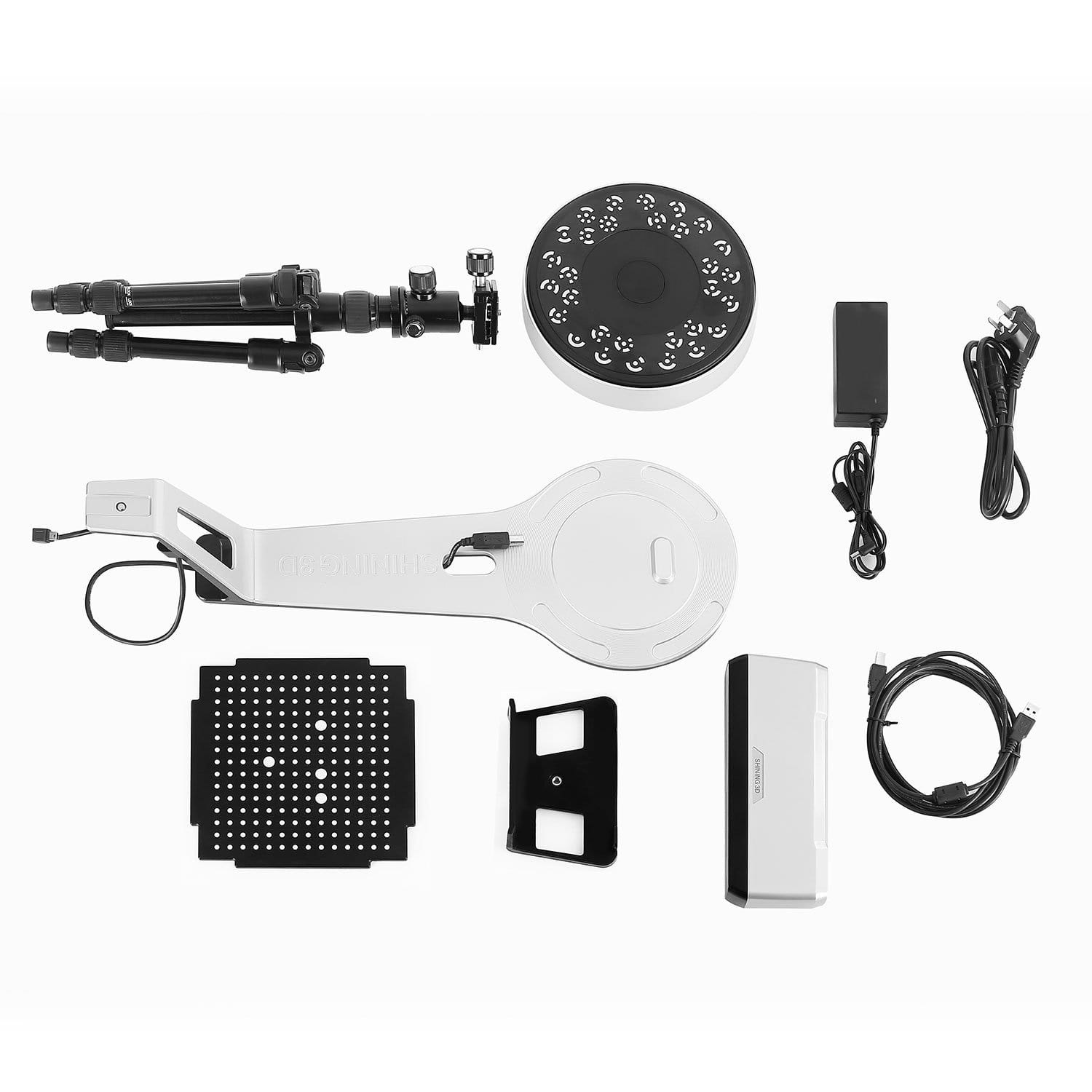

Turntable included

Yes

Turntable Loading Capacity

5KG

Output Formats

OBJ; STL; ASC; PLY; P3 ; 3MF

Outdoor Operation

Find a Shady Area

Supported OS

Windows 7, 8, 10, 11, 64bit / Mac (OS 10.10.9 to 10.12.3)

Recommended PC Specifications

nVidia  Graphics card (GTX660+) with over 1GB memory;
1 ×USB 2.0 or 3.0 port
Intel Core i5 or higher
8GB RAM or greater

Connection Standard

USB 3.0

Warranty

1 Year Manufacter Warranty

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
