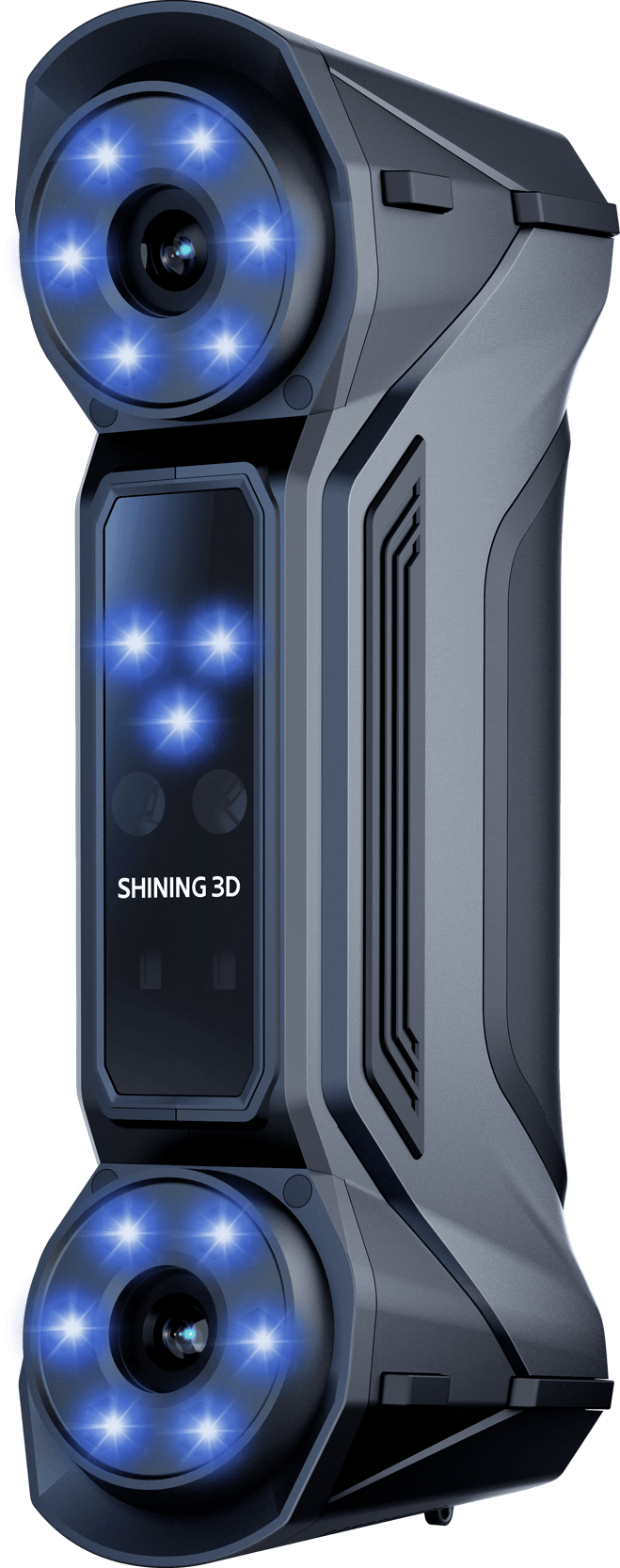

Freescan Combo Wireless

Inheriting the compact DNA of the FreeScan Combo series, the new Wireless line marks a complete transition to cord-free scanning. Powered by the next-generation Wi-Fi 7 protocol, it delivers fast, stable, and seamless performance across complex factory floors and challenging outdoor environments.

Key Features:

True Wireless Mobility: Enjoy cord-free operation with Wi-Fi 7 and a convenient built-in remote control.
Unmatched Endurance: Scan continuously using three swappable 2-hour batteries or universal power banks.
Work Weightless: Maneuver easily with an ergonomic, 550g compact design built for confined spaces.
Built-in VPG: Maintain global accuracy on large components without coded markers (Combo+ Wireless only).
Blazing Fast Speeds: Capture data at up to 9,106,000 points/s and 180 fps using an embedded computing module.
Certified Accuracy: Deliver metrology-grade precision up to 0.02 mm, verified by ISO 17025 accredited labs.
Intelligent Software: Streamline workflows with real-time meshing, AI feature recognition, and SHINING 3D Inspect integration.

Freescan Combo Wireless

Name: Freescan Combo Wireless
Brand: Vision Miner
SKU: FRSCNCMBOWR
Price: 13999.0 USD
Availability: InStock

$13,999.00

REQUEST A QUOTE

Up to 9,106,000 points/s

93 laser lines | VCSEL

Freescan Combo+ Wireless

$16,999.00

REQUEST A QUOTE

Up to 7,344,000 points/s

50 laser lines | VCSEL

THE NEW INSPECTION FLAGSHIP IS HERE

Ditch the cables without sacrificing an ounce of performance. The FreeScan Combo Wireless series fundamentally changes how you tackle complex reverse engineering and quality control tasks. By leveraging next-generation Wi-Fi 7, these scanners give you the ultimate freedom to navigate around massive assemblies or reach into the tightest corners without being tethered to a workstation.

Don't let the small footprint fool you. Even at a featherlight 550 g and measuring just 189 x 81 x 53 mm, this hardware houses powerful dual-light technology (blue laser and infrared) capable of capturing a blistering 9,106,000 points per second at up to 180 frames per second. It delivers heavy-duty metrology in a sleek, fatigue-free design, allowing you to digitize complex geometries faster and easier than ever before.

Quick Links:

Product Brochure

Warranty Options

Software Download

Metrology-Grade Accuracy

Achieve metrology-level scanning precision with an accuracy of up to 0.02mm (0.0007"), enabling you to not only reverse engineer, but inspect your parts. Combine with a license for Geomagic Design X or Control X, and automate your inspection process and reports for hundreds of parts, all in a single click.

Markerless Scanning Modes

Enjoy the efficiency of scanning complex objects without the need for markers, thanks to the FreeScan Combo Wireless' advanced scanning technology and Infrared VSCEL mode -- tracking features, instead of markers, it makes quick work of larger objects, people, and anything with a lot of geometric features. This means you won't have to spend time putting tons of markers all over your parts, every time, unlike some other scanners on the market.

Deep Hole Data Acquisition

Capture detailed information from deep holes effortlessly with optimized lens angles and scanning capabilities of the FreeScan Combo. One of the biggest challenges is getting down into holes, in something like an engine block, or casting mold -- the single laser line changes that, making it EASY to get data that was previously impossible to capture.

High Speed

Scanning at speeds up to 180 frames per second and capturing 7,344,000 points per second (a staggering 9,106,000 on the Combo+ Wireless), this scanner has the fastest data acquisition of our lineup—by far. That means you'll spend less time gathering points, and more time working with the data you wanted in the first place.

Large Parts Same Accuracy

Bbuilt-in Video Photogrammetry (VPG) guarantees metrology-grade global accuracy on large-scale parts without the hassle of applying coded markers. By providing real-time visual feedback during continuous capture, VPG minimizes cumulative errors to maintain precision up to 0.02 mm + 0.015 mm/m across your biggest projects.

Unlimited 3D Scanning Applications

Explore a wide range of scanning applications across various industries, including inspection, reverse engineering, and product design. Motorsports, Watersports, interior design & woodworking, reverse-engineering entire products, you name it -- the Freescan will do it.

REQUEST A QUOTE

Detailed Specifications (Freescan Combo/Combo+ Wireless)

Scan Mode

Freescan Combo+ Wireless

Freescan Combo Wireless

Accuracy

0.02 mm (0.0008 in)

Video Photogrammetry (VPG)

Included (no coded markers required)

Volumetric accuracy with VPG

0.02 + 0.015 mm/m (0.0008 in + 0.00018 in/ft)

Scan speed

Up to 9,106,00 points/s

Up to 7,344,000 points/s

Max. FOV

Laser: 580 x 650 mm; IR: 830 x 700 mm
(Laser: 22.8 x 25.6 in; IR: 32.7 x 27.6 in)

Working Distance

300 mm (11.81 in)

High-speed scan

Included (93 laser lines / VCSEL)

Included (50 laser lines / VCSEL)

Detailed scan

Included (93 laser lines / VCSEL)

Included (25 parallel laser lines)

Deep pockets scan

Included (1 laser line)

Connection standard

Wi-Fi 7/USB 3.0

Dimension

189 × 81 × 53 mm (7.44 × 3.18 × 2.08 in)

Net weight

550 g (1.212 lb)

Output Formats

OBJ; STL; ASC; PLY; P3 ; 3MF

Working temperature

-10 ~ 40 °C (14 ~ 104 °F)

Working humidity

10 ~ 90 %

Certifications

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50,TELEC, TiSAX

Acceptance test

ISO 10360 Certified (Tested in the ISO/IEC 17025 Accredited Accuracy Lab)

Recommended Configuration

OS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit);
Processor: Intel® Core™ Ultra 9 Processor 275HX or above
Graphics Card: NVIDIA GeForce RTX 5080 Laptop GPU
or above Video Memory: 12G or above;
RAM: 64G or above,
DDR5 dual-channel; Interface USB 3.0

Recommended Minimum Specs

OS: Windows 10 Pro (64-bit) /
Windows 11 Pro (64-bit);
Processor: Intel® Core™ Ultra 9 Processor 275HX
or above; Graphics Card: NVIDIA GeForce RTX 4070
Laptop GPU or above
Video Memory: 12G or above;
RAM: 64G or above, DDR5 dual-channel;
Interface USB 3.0

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
