Shining 3D · Marker-free metrology laser scanner

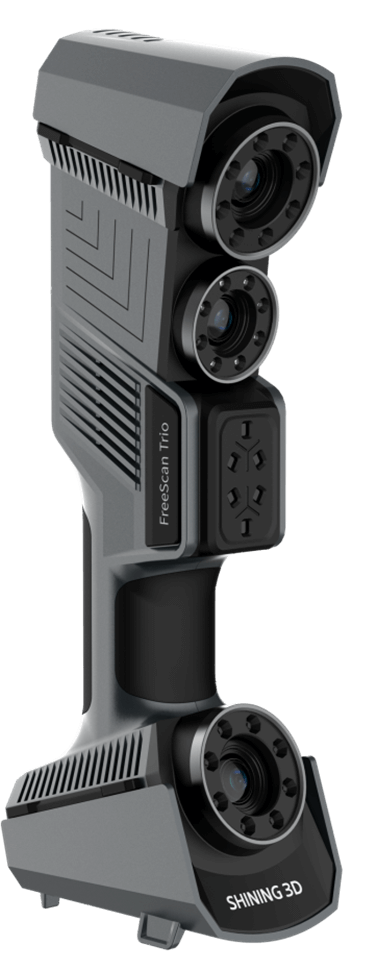

FreeScan Trio

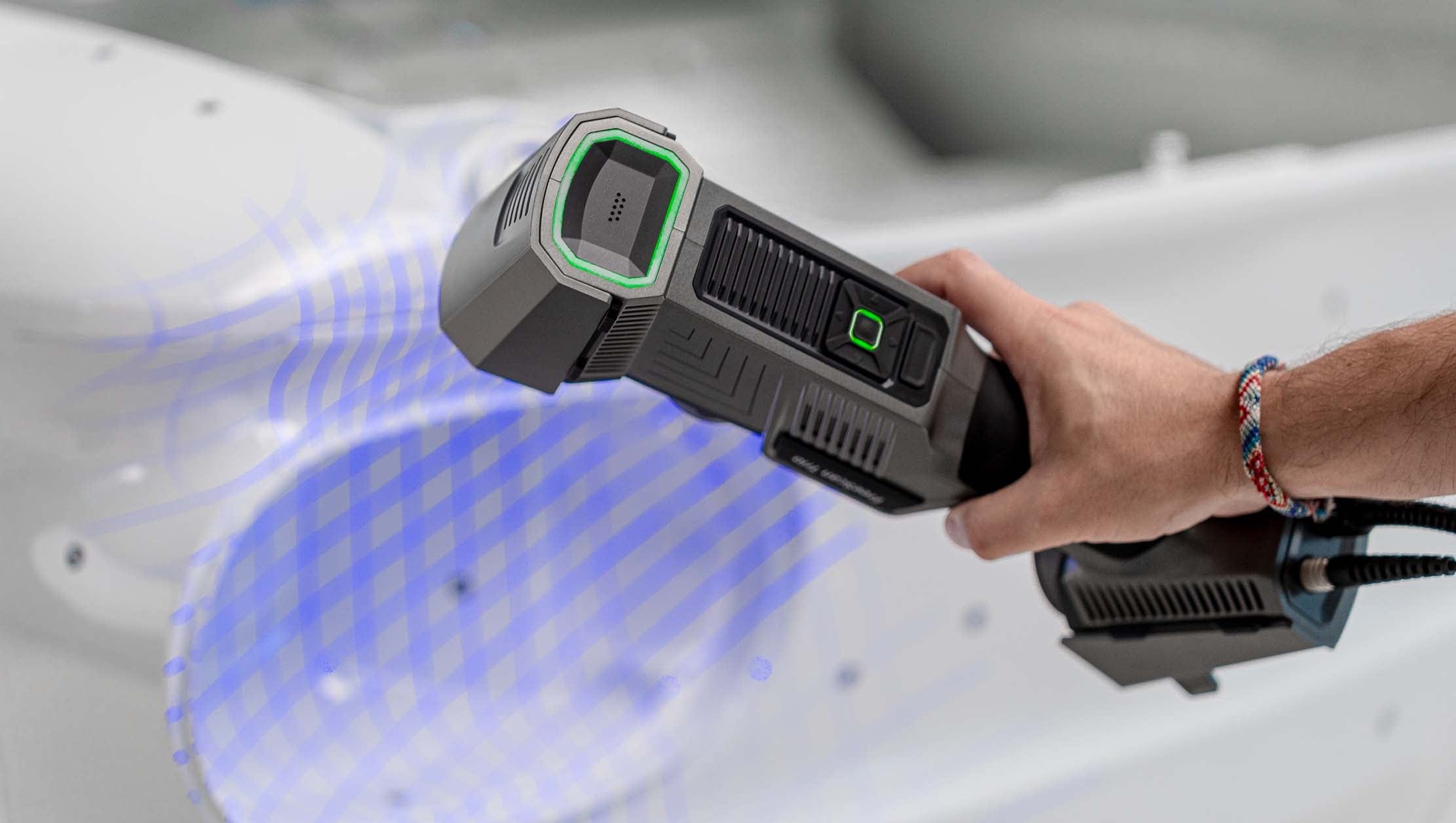

The first handheld laser scanner that tracks without markers. 98 blue laser lines scan feature-rich parts with no prep at up to 3.01 million points a second, three 5MP industrial cameras pull fine detail, and built-in photogrammetry holds 0.02 + 0.015 mm/m across big parts.

0.02mm with markers, ISO 10360 verified

98-line marker-free mode

Built-in photogrammetry (VPG)

Three 5MP industrial cameras

Get it configured

FreeScan Trio

98 / 26 / 7 / 1 laser line modes · 3.01M pts/s · VPG.

Custom quote

Configured to your parts

Get a quote

Book a demo

We have an extra FreeScan Trio demo unit available, at a significant discount

We keep demo units in-house for live demos and our videos (the unboxings, how-tos and scanning walkthroughs), and we have an extra one we can let go. It's basically perfect condition, with the same support from us.

Ask about the demo unit

Call 833-774-6863

US support from people who scan · 833-774-6863  ·  Quotes usually within one business day  ·  POs, financing and leasing  ·  Trio or UE Pro2?

Not ready to buy yet?

Book a live demo ›

Trio brochure ›

Trio vs. UE Pro2 ›

Send this page to your team ›

0.02mm

Accuracy

With markers · VDI/VDE 2634 + ISO 10360

98

Marker-free laser lines

Aligns off the part's own geometry

3.01M

Points / second

In 98-line mode

0.015mm/m

With VPG

0.02 + 0.015 mm/m on big parts

Why Trio

Metrology accuracy without the sticker job.

Placing and pulling hundreds of markers is the slowest part of most metrology scans. Trio's 98-line mode tracks off the part's own geometry, so feature-rich parts go straight to scanning. When you need the full 0.02mm, switch to a marker mode.

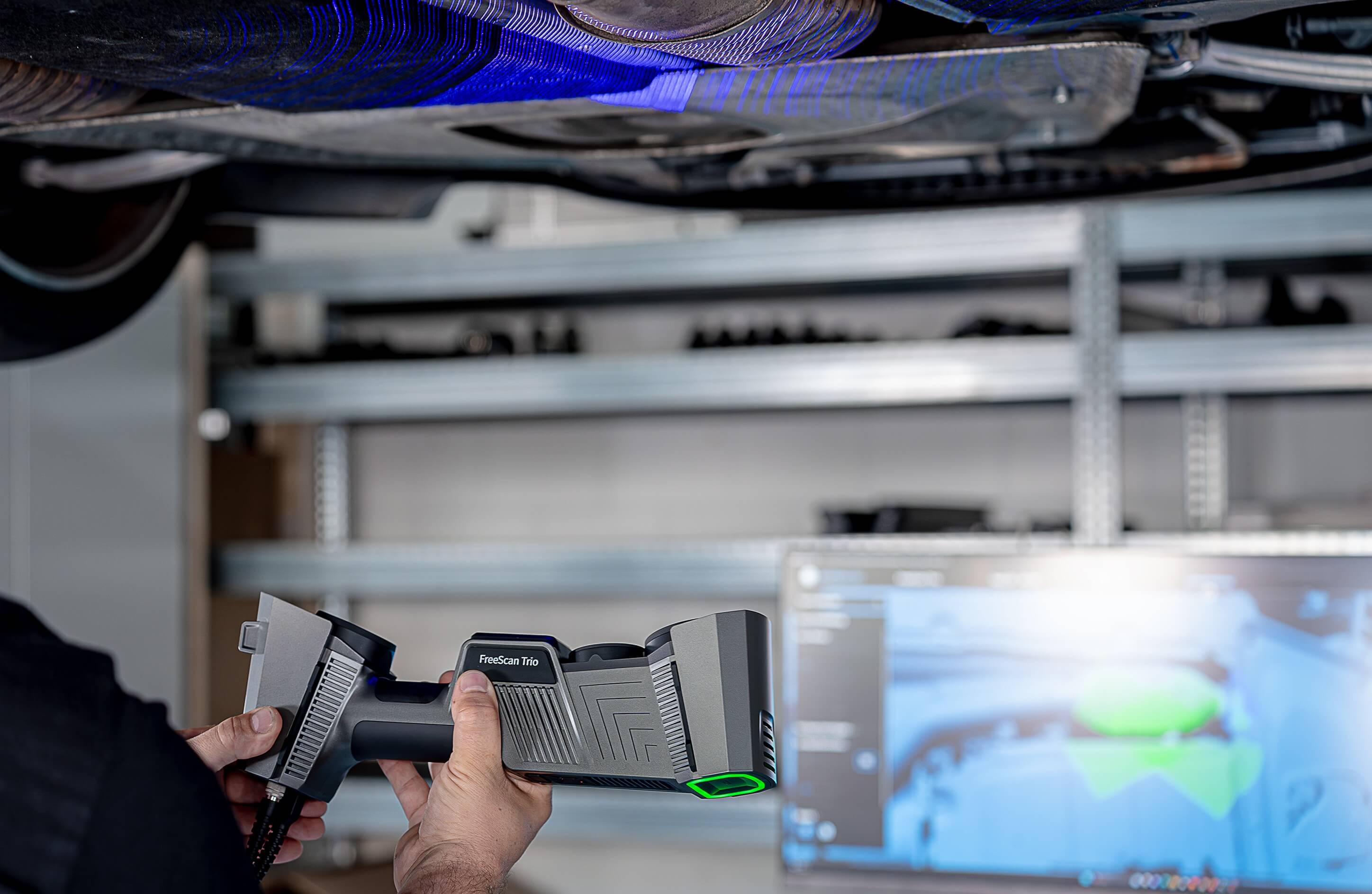

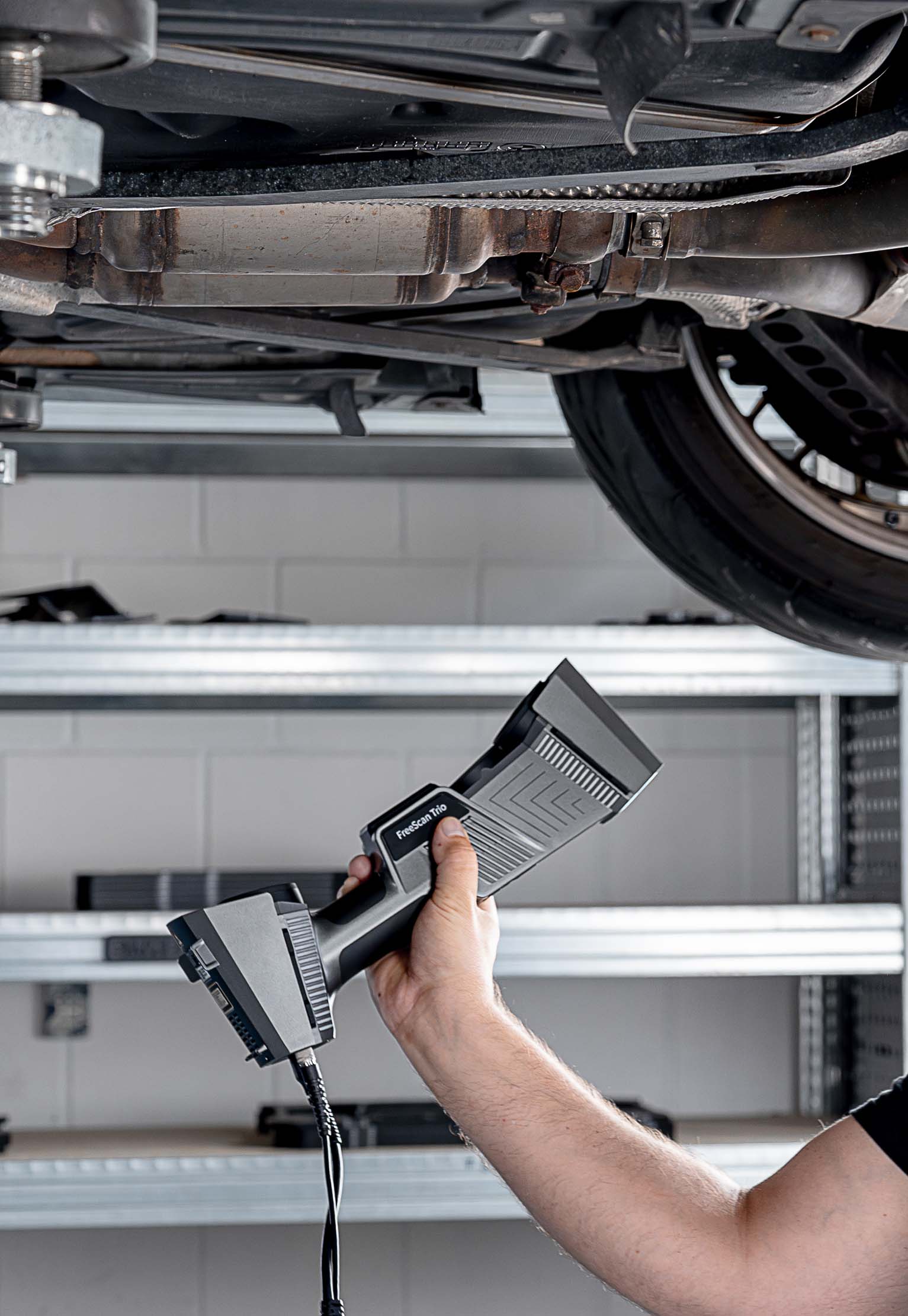

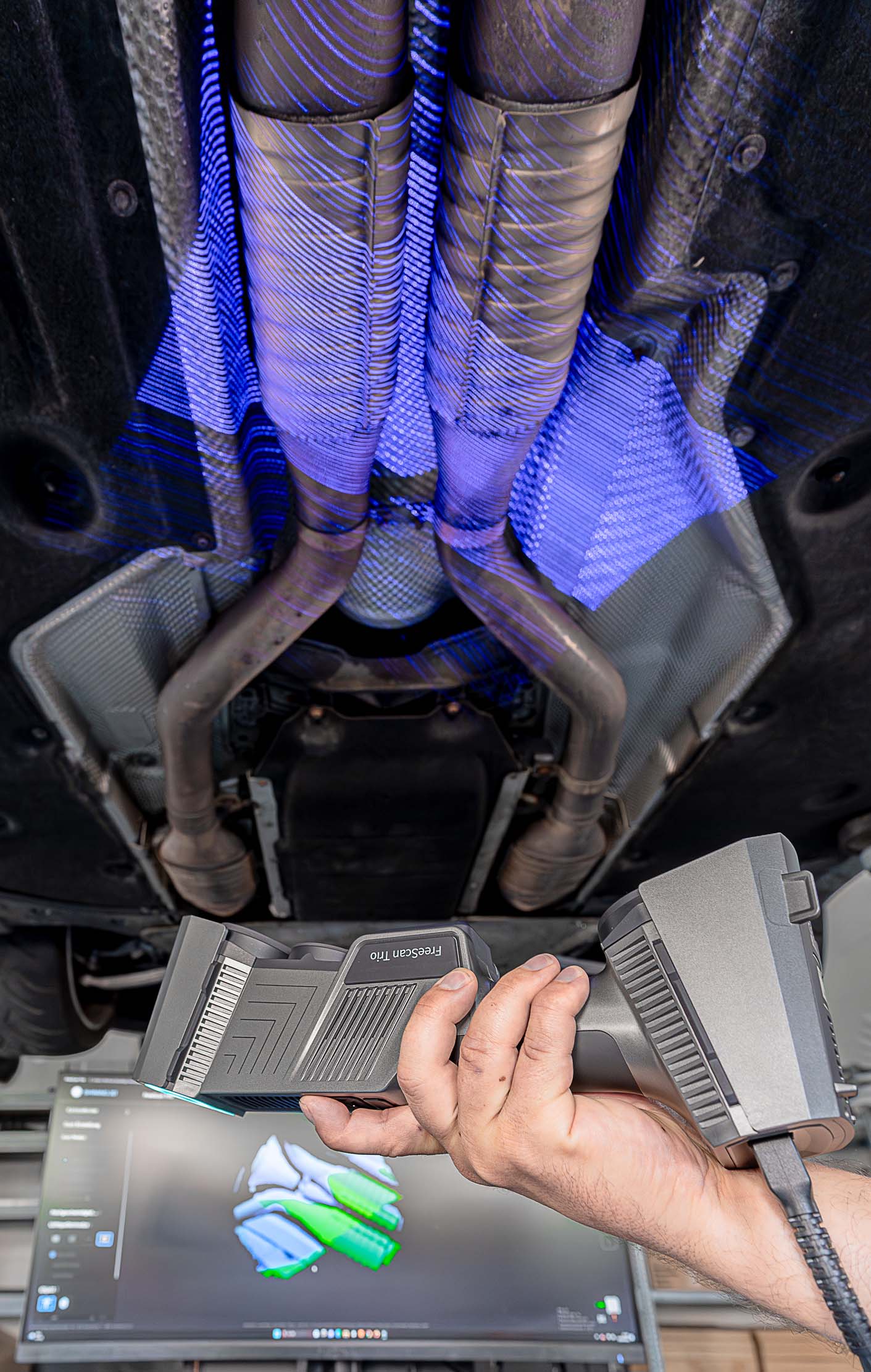

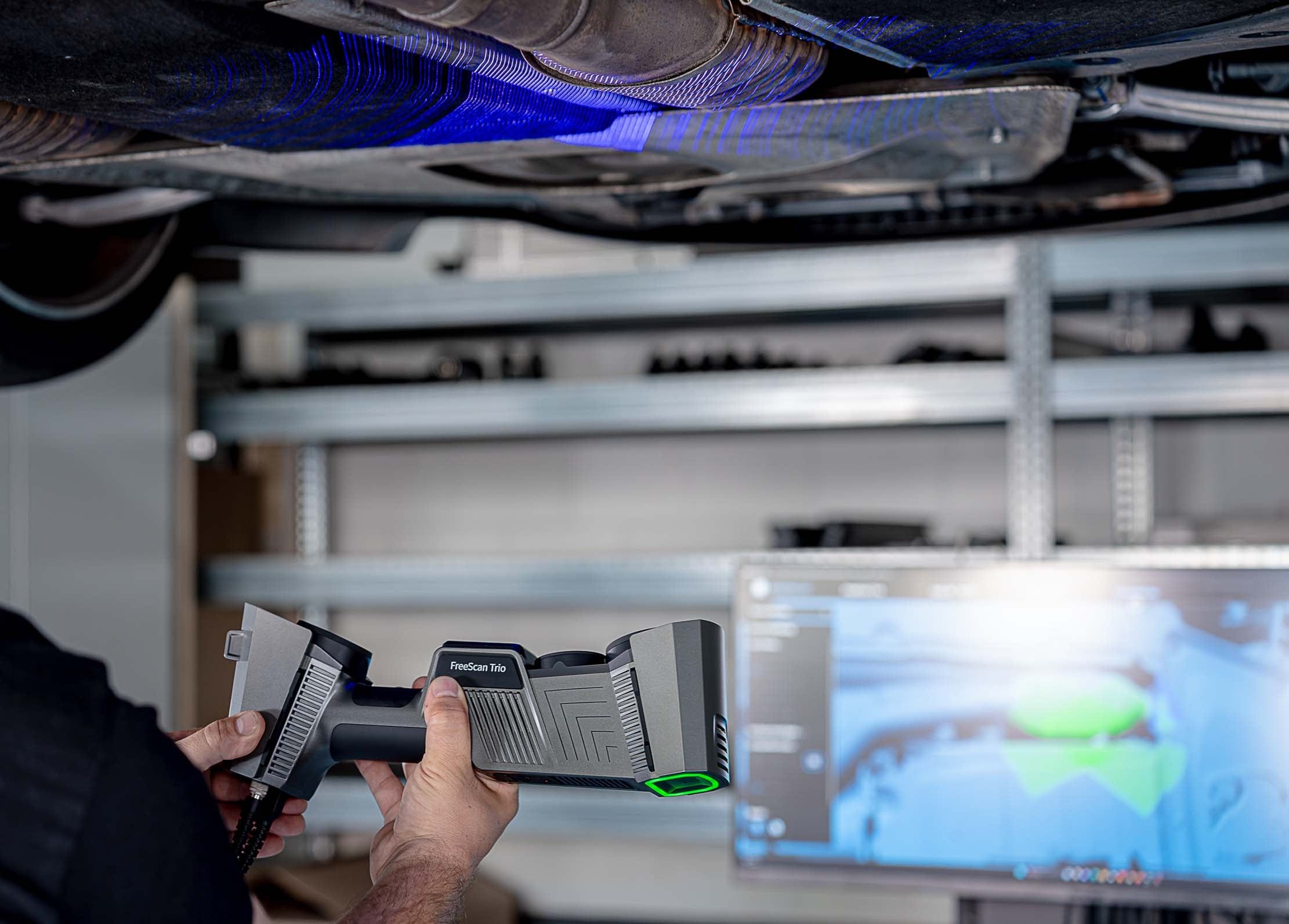

98 lines · no markers

Skip the markers on feature-rich parts.

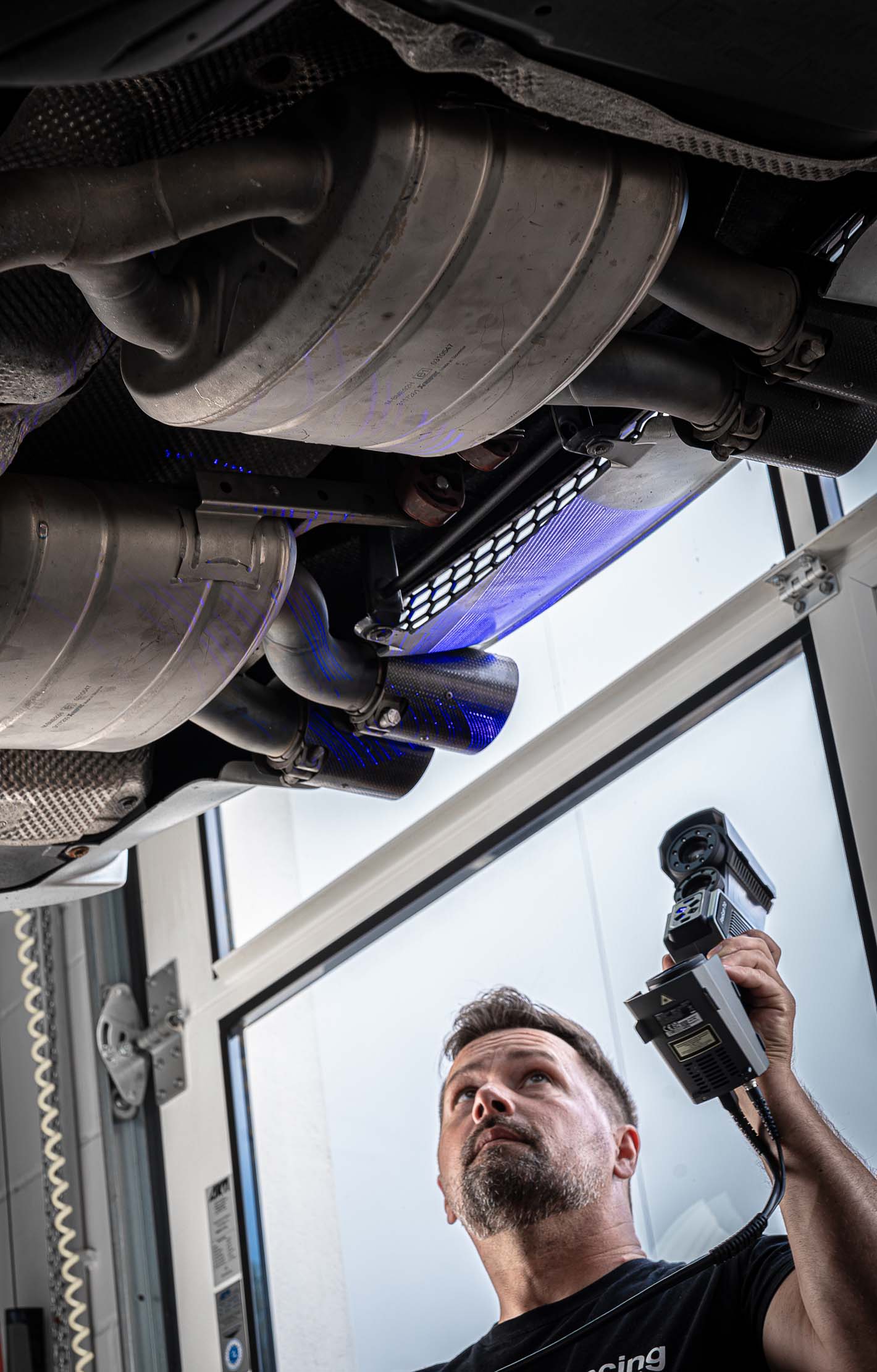

Intelligent self-positioning lets the 98-line mode align off the part's geometry, at up to 3.01 million points a second. Engine blocks, castings and car underbodies scan with no prep.

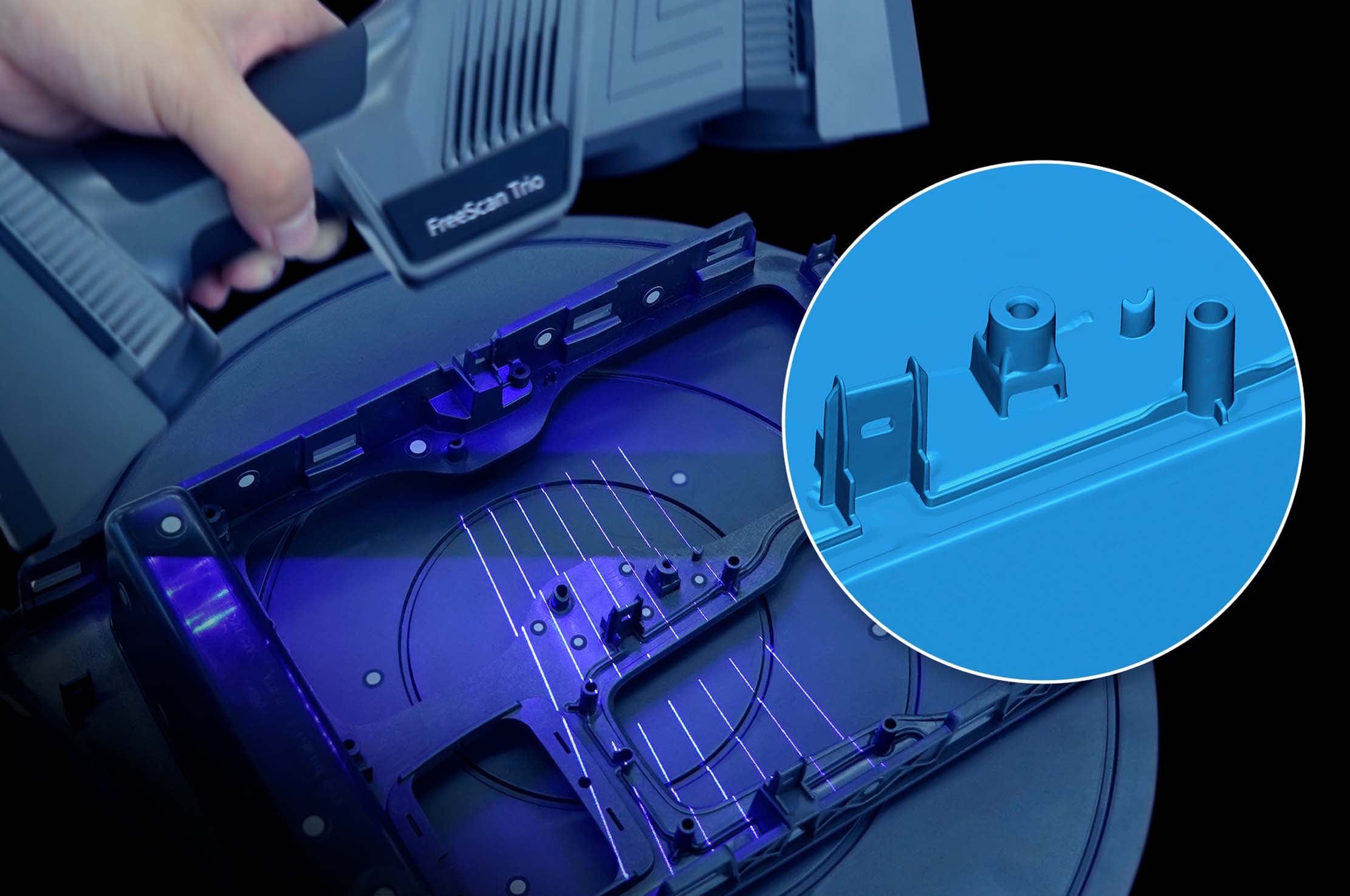

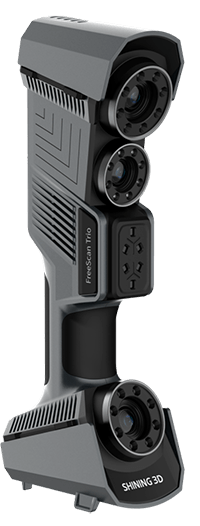

Three 5MP cameras

A third camera for finer detail.

Three 5MP industrial cameras capture elaborate detail and high-quality data, with or without markers.

Four scan modes

Fast, fine and deep.

Optimized camera angles let both the 26-line and single-line modes reach into holes, deep pockets and between fins.

No markers: 98 lines

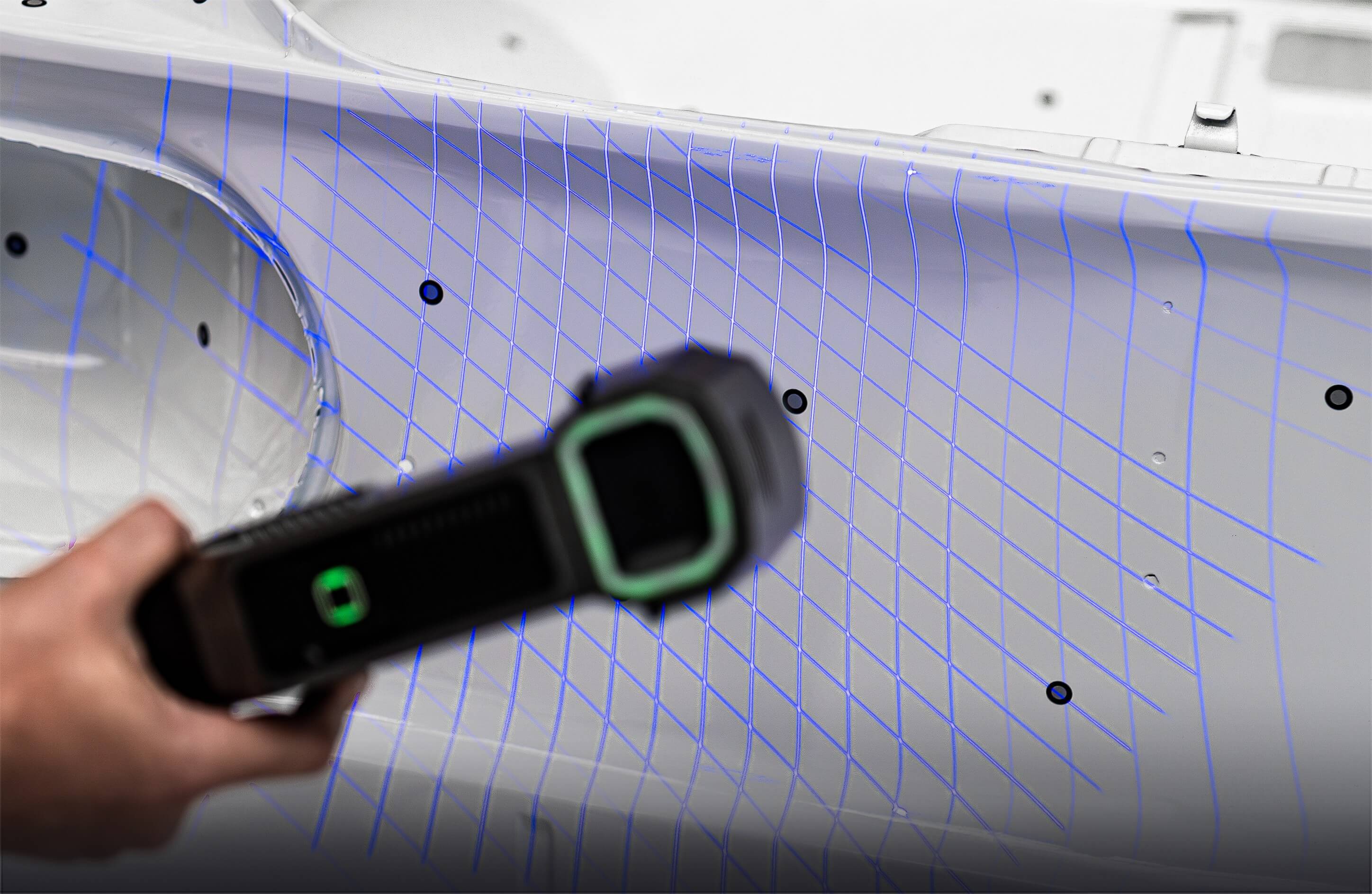

High speed: 26 lines, 650 × 580mm FOV

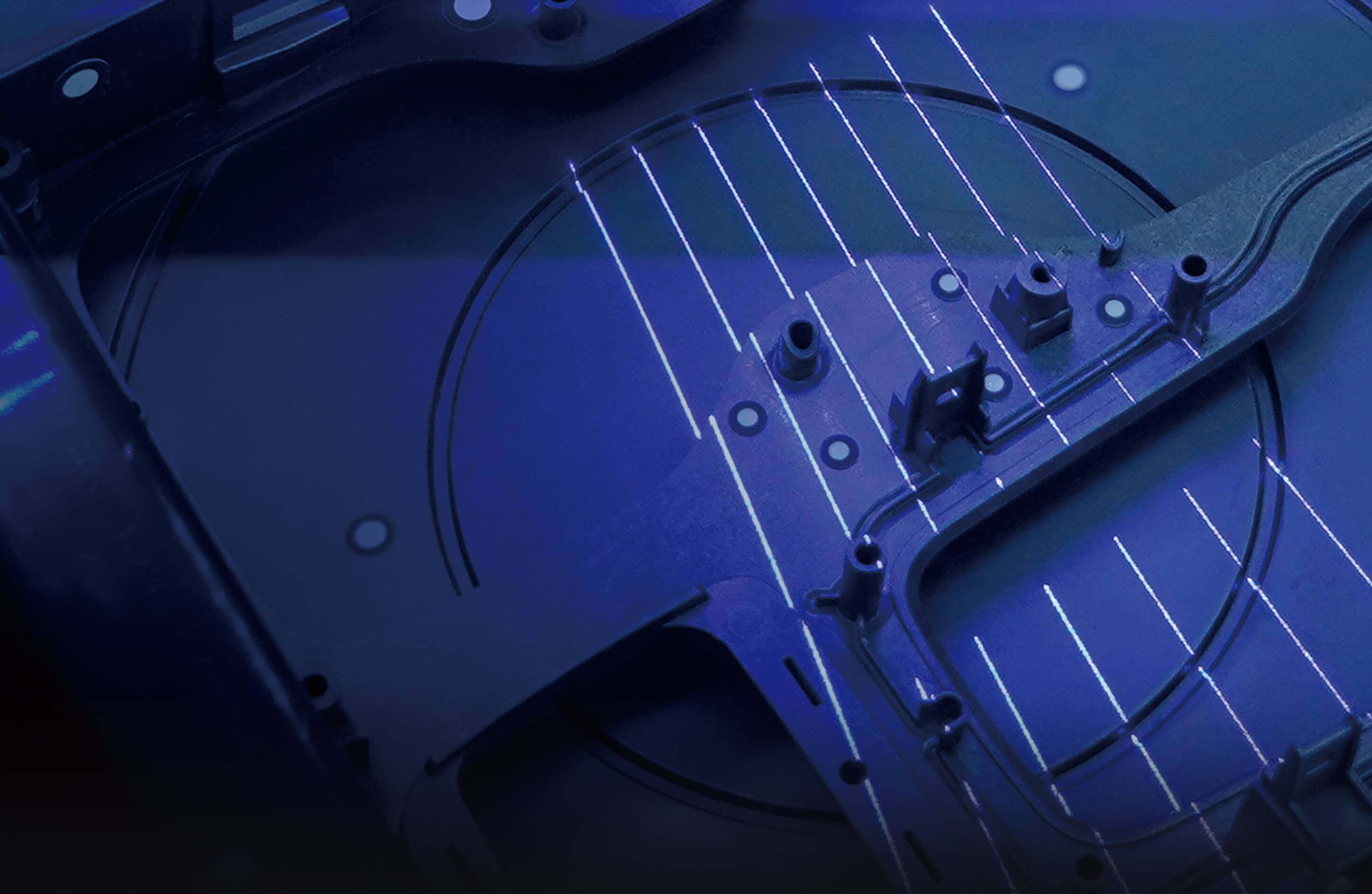

Detail: 7 parallel lines, 0.01mm

Deep hole: 26 or 1 line

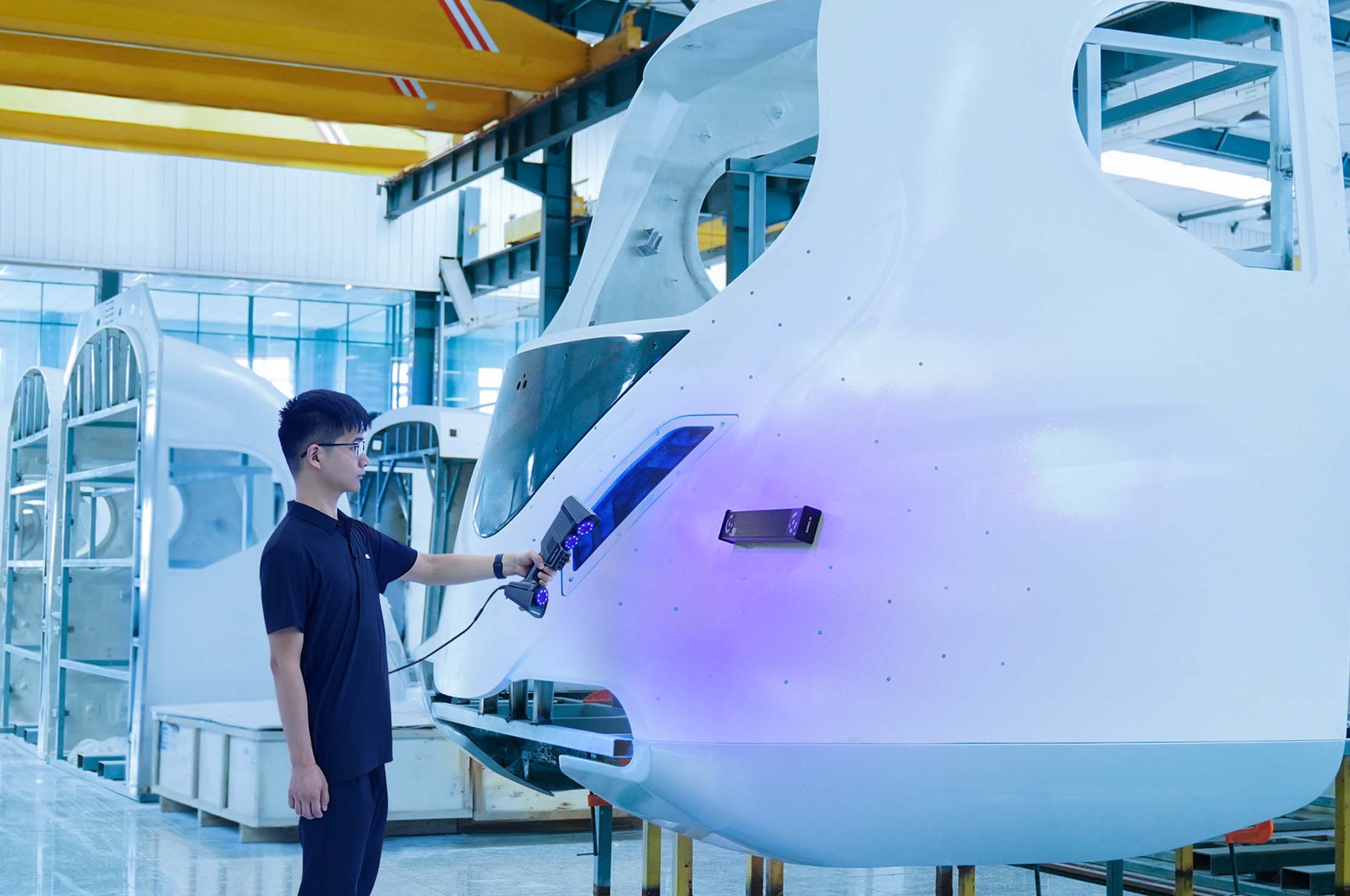

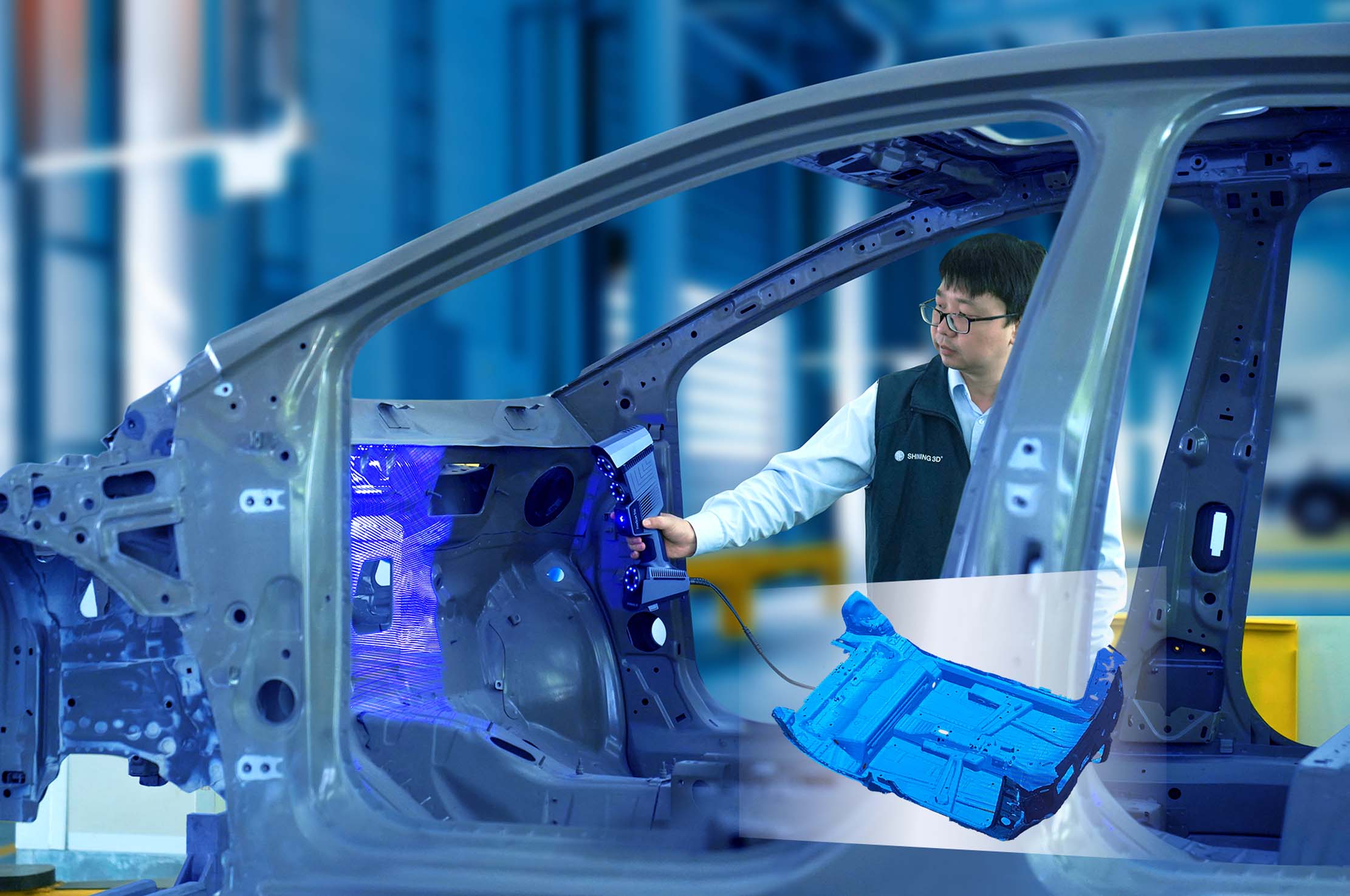

Built-in photogrammetry (VPG)

Big parts, held to 0.015mm/m.

VPG verifies marker positions with video, with no coded targets and no separate photogrammetry system, holding 0.02 + 0.015 mm/m across turbines, aircraft sections and vehicle bodies.

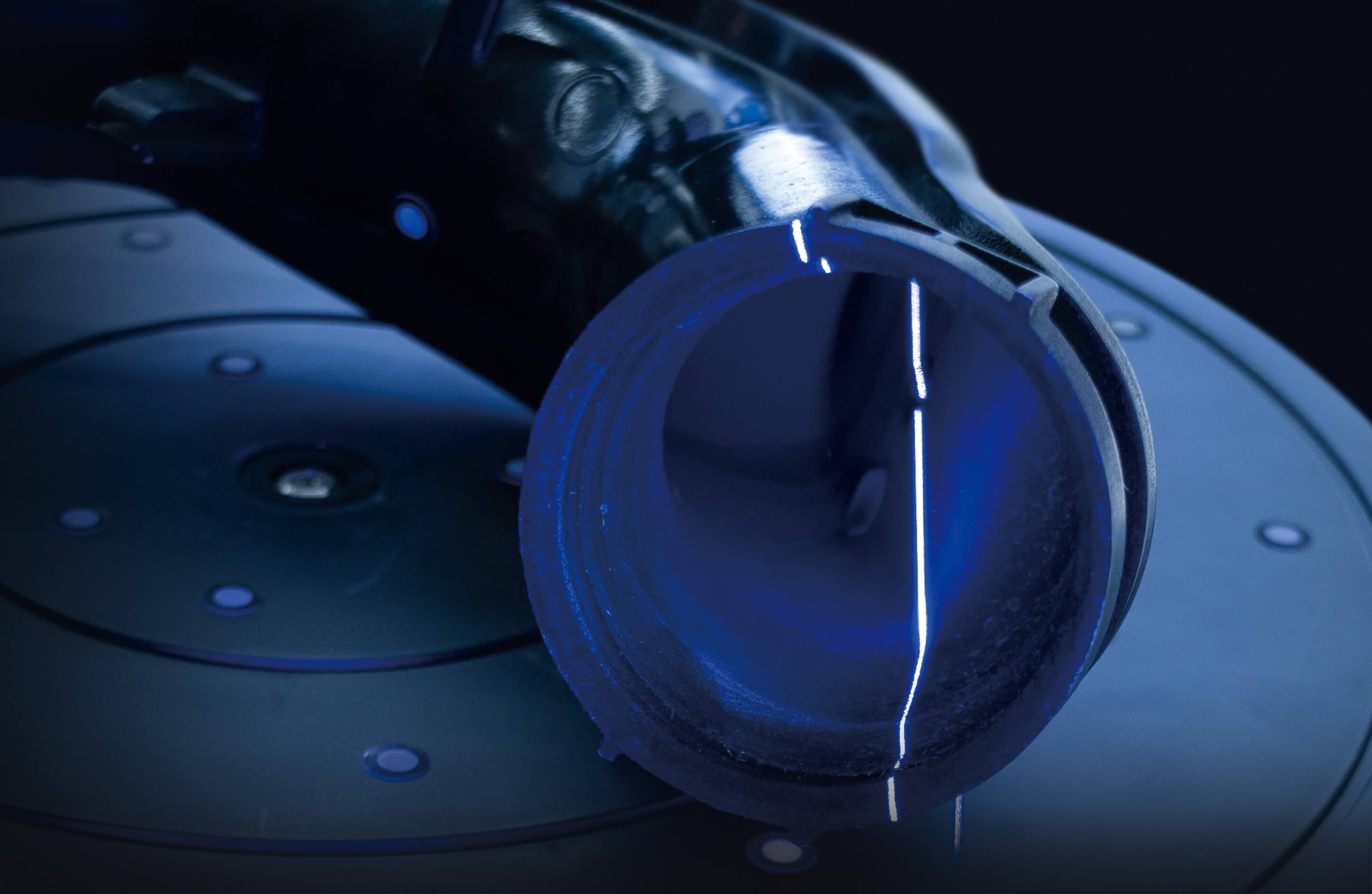

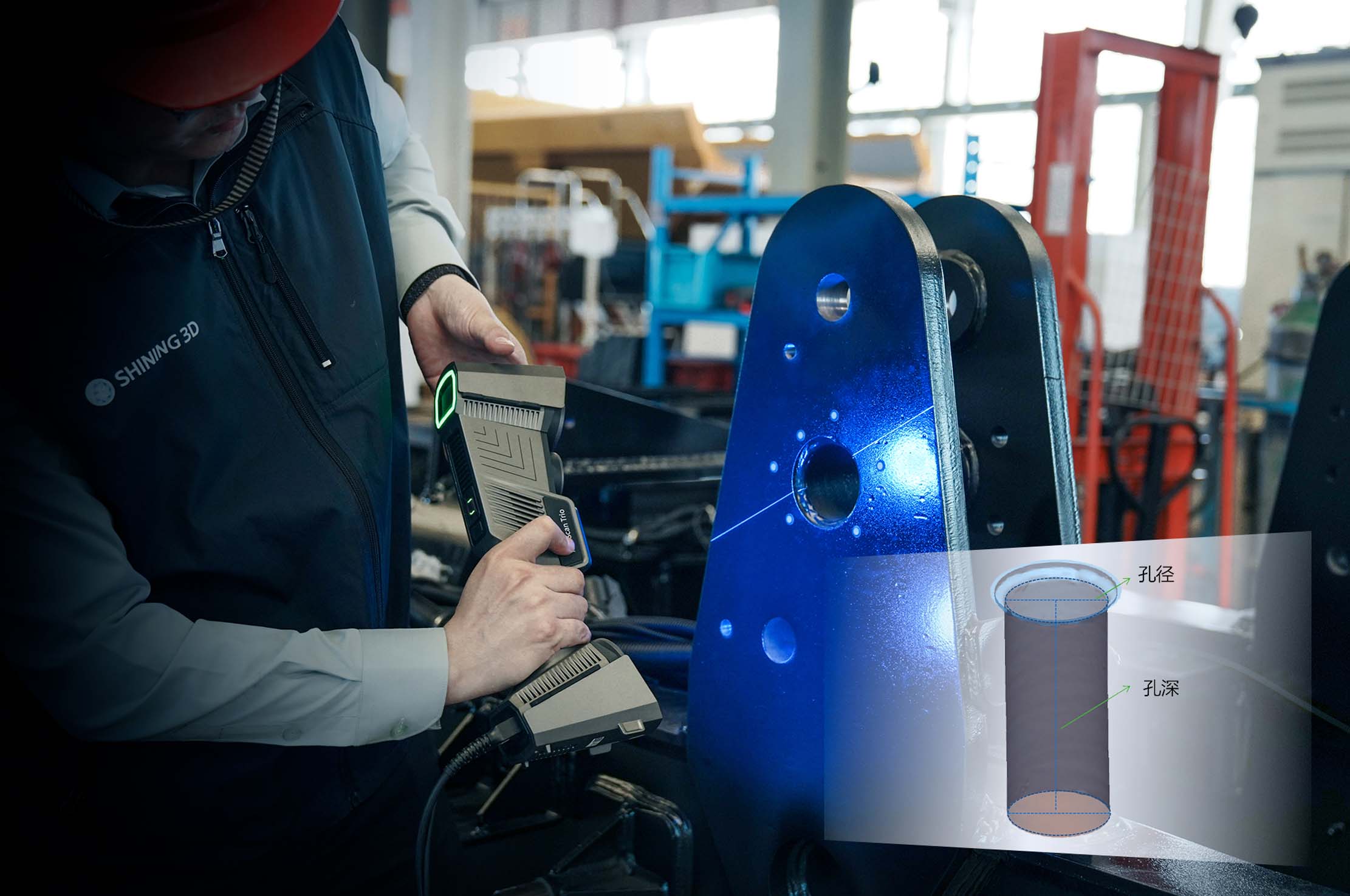

Single line

Down the bore

One laser line reaches into holes and pockets other modes can't see.

ISO/IEC 17025 lab

Traceable accuracy

Calibrated and verified to VDI/VDE 2634 and ISO 10360.

Metrology Kit

Faster marker setup

Magnetic marker balls and fixtures for when you do want markers.

In the box, not on a bill

FreeScan software, included.

Trio comes with Shining 3D's FreeScan software, with no subscription. Scan, watch the mesh build, measure features and export ASC, OBJ, STL or PLY.

Included · FreeScan software

No subscription. No per-scan fees.

Real-time mesh, flexible resolution and scan templates, so the scan's right before you leave the part.

AI feature recognition

Finds and measures round holes, slots and rectangular holes.

Flexible resolution

Change resolution later without restarting the project.

Real-time mesh

The mesh builds while you scan, so there's less to process later.

Scan templates

Save settings per part for consistent measurements.

WORKS WITH:  SHINING3D Inspect · Geomagic Control X · PolyWorks · Geomagic Design X · EXModel

Need inspection reports or editable CAD?

See software options ›

See it scan

Watch it work

Our first look and unboxing, plus our software walkthrough, Geomagic guide and scanning spray guide.

Alt image

FreeScan Trio first look: marker-free laser, 98 lines, photogrammetry

Alt image

Unboxing the FreeScan Trio

Alt image

Shining 3D software: setup, scanning and post-processing

Alt image

The Geomagic software suite, explained

Alt image

AESUB scanning spray for shiny and dark parts

Spin a real scan

Casting part, scanned with the FreeScan Trio
Engine, scanned with the FreeScan Trio

More scanner reviews and workflows on

Vision Miner 3D Scanning ›

Which one?

Trio vs. UE Pro2

Both are 0.02mm metrology handhelds with built-in VPG. Trio's 98-line mode scans feature-rich parts with no markers and has a third camera. UE Pro2 is wireless and a little faster in its high-speed mode.



Trio

Marker-free

UE Pro2

Wireless

Accuracy

0.02mm (with markers)

0.02mm

Marker-free laser mode

✓ 98 lines

—

High-speed laser lines

26

50

Max. scan speed

3.01M pts/s

3.46M pts/s

Cameras

3 × 5MP

2

VPG (volumetric)

0.02 + 0.015 mm/m

0.02 + 0.015 mm/m

Wireless

—

✓



Get a quote

See UE Pro2 ›

FreeScan software runs on a Windows workstation with an NVIDIA GPU. We'll spec the PC with your quote.

Full specifications · FreeScan Trio

No-markers scan

98 laser lines

High-speed scan

26 laser lines

Detailed scan

7 parallel laser lines

Deep hole scan

26 or 1 laser line

Large parts

Photogrammetry mode, no coded markers required

Accuracy

0.02 mm (marker modes)

Volumetric accuracy

0.02 + 0.015 mm/m (with photogrammetry)

Scan speed

Up to 3,010,000 points/s

Max. field of view

650 × 580 mm

Point distance

0.01 – 3 mm

Cameras

3 × 5MP industrial cameras

Output formats

ASC, OBJ, STL, PLY

Certifications

CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TISAX

Acceptance test

VDI/VDE 2634 Part 3 & ISO 10360, in an ISO/IEC 17025 accredited lab

Full specs are in the Trio brochure.

Trio brochure (PDF)

Software download

Warranty options

Open it, scan it

What shows up at your door

What's in the box

FreeScan Trio system

FreeScan Trio scanner

✓

Rolling Pelican-style case (carry-on size)

✓

Carbon-fiber magnetic scale bars (photogrammetry)

2

Calibration board

✓

3mm and 6mm reflective markers

~3,000

Data cable with locking quick-release power

✓

Power adapter + power cord

✓

Adhesive cable clips

✓

License dongle + USB drive

✓

Quick start guide + calibration certificate

✓

FreeScan software

No subscription

Configured for your parts

Quoted, set up and trained

Trio streams to a Windows workstation running FreeScan. We'll quote the scanner and a PC that keeps up, scan your part in a demo first, then set it up and train your team.

Quotes usually go out within one business day, on letterhead for POs.

Magnetic scanning pyramids + a can of AESUB Blue, on us

Every scanner we ship includes a set of our magnetic scanning pyramids (stick markers on them and set them around the part for tracking, no stickers on the part itself) and a can of AESUB Blue, the spray that disappears on its own. It's our little bundle, and you only get it here.

Pyramids ›

AESUB Blue ›

Frequently asked questions

Before you buy

Buy it from people who scan

We've sold and supported Shining 3D scanners since 2019. When you call, the person who picks up has scanned with one.

01

Shining 3D partner since 2019

We sell, set up and support the whole FreeScan and OptimScan line, not just the handhelds.

02

Real people, here in America

No scripted AI auto-attendant. 833-774-6863 · contact@visionminer.com

03

Setup, training, POs

Install, calibration and Geomagic training from our team. Formal quotes for POs, plus financing and leasing.

Quick answers

Can it really scan without markers?

Yes, on parts with enough geometry. The 98-line mode aligns off the part's features. Flat or featureless parts, and jobs that need the full 0.02mm, use the marker modes.

Can it scan black and reflective parts?

Yes. Its laser modes are less sensitive to ambient light and handle dark and reflective surfaces well. Chrome and mirror finishes may still want a light coat of AESUB spray.

How accurate is it on big parts?

With built-in photogrammetry, Trio holds 0.02 + 0.015 mm/m across large objects, with no coded targets.

What formats does it export?

ASC, OBJ, STL and PLY.

Trio or UE Pro2?

Trio if marker prep is eating your day: its 98-line mode skips markers on feature-rich parts. UE Pro2 if you need to work wireless. Book a demo and we'll run both on your part.

Is the accuracy certified and traceable?

Yes. Every unit is calibrated in Shining 3D's ISO/IEC 17025 accredited accuracy lab and verified to VDI/VDE 2634 and ISO 10360, with an inspection report and calibration certificate traceable to those standards.

Can I see it scan my part first?

Yes. Book a live video demo and we'll scan your part (ship it to us or show it on camera), or bring it to our shop in Santa Ana, CA. You walk away with the scan data and a straight answer, even if that answer is a cheaper scanner.

Can I finance it or buy on a PO?

Yes. We quote on company letterhead for POs, and we can set up financing or leasing. Request a quote and tell us how you want to buy.

Marker-free metrology

Let's quote it on your parts.

FreeScan Trio is configured to your parts and your PC. We'll demo it on yours first.

Get a quote

Book a demo

Call 833-774-6863

Round out your setup

Software, training and supplies

Not needed to start scanning. Add them when the job calls for it.

Geomagic software

Turn scans into CAD and inspection reports.

The scanner gives you a mesh. Geomagic turns it into a parametric model you can edit, or a color map and report QA can sign. We sell it, set it up and train your team on it.

Control X Essentials

Compare scan to CAD: color maps, GD&T and reports.

$2,390/yr or $7,249 ›

Geomagic Design X Go

Scan to editable CAD for SOLIDWORKS, Fusion or Inventor.

$1,900/yr or $3,992 ›

Geomagic for SOLIDWORKS

Reverse engineer right inside SOLIDWORKS.

$2,739/yr or $8,301 ›

Inspection

Scan to report

Geomagic Control X (full)

$16,727

All 3D software

›

Reverse engineering

Scan to CAD

Geomagic Design X Plus

$12,710

EXModel

from $1,900

Training

Learn it on your parts

Shining 3D scanner training

$1,500

Geomagic training

from $1,750

Supplies

Markers & spray

Markers & accessories

from $29

AESUB scanning sprays

from $39.50

Not sure what you need? Call 833-774-6863 and we'll tell you what's worth it for your parts, and what isn't.
