Description

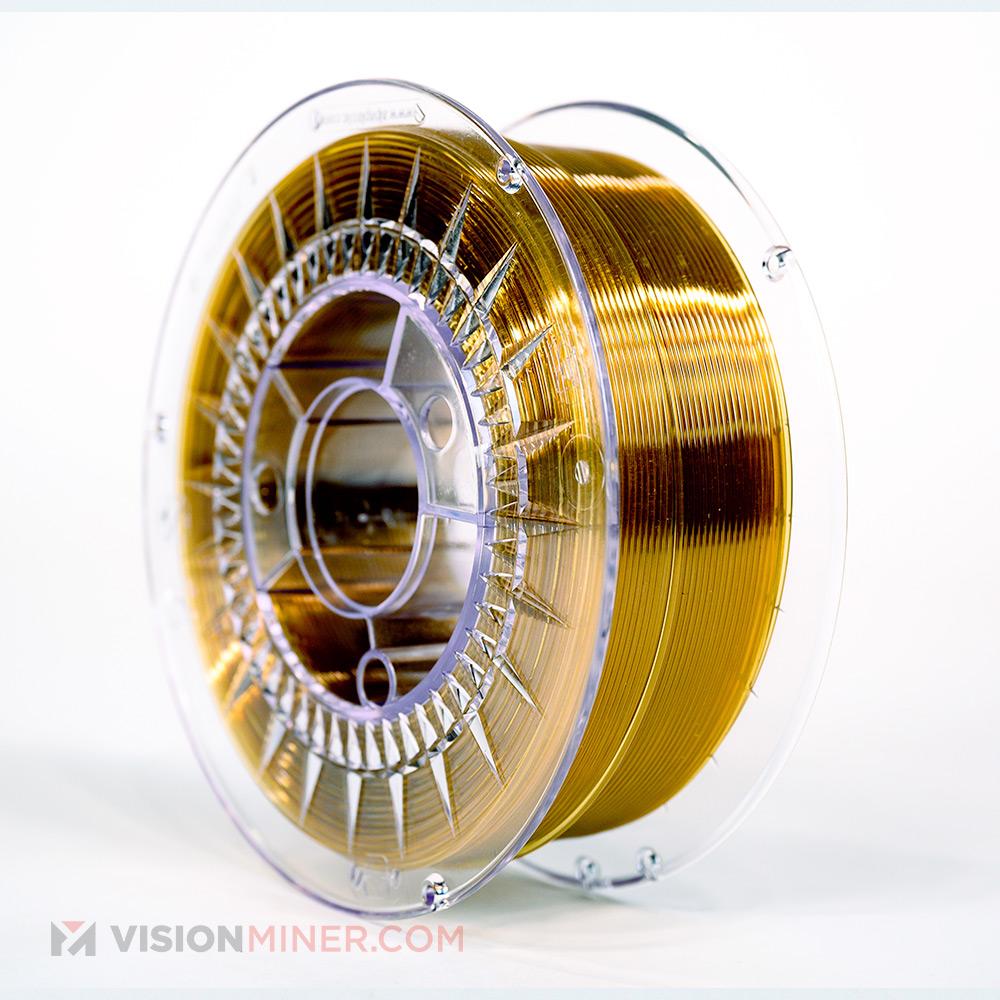

[custom_html]ULTEM™ AM1010F filament is a polyetherimide product for 3D printing applications manufactured from ULTEM™ 1010 resin. The filament provides high heat resistance and mechanical strength, is UL94 V-0 compliant at 1.5 mm and 5VA compliant at 3.0 mm.[/custom_html]
| Revision: 17/07/2019 | ||||
|---|---|---|---|---|
| PROPERTIES | TYPICAL VALUES | UNITS | TEST METHODS | |
| MECHANICAL | ||||
| Tensile Modulus | ||||
| XY ORIENTATION | 2750 | MPa | ASTM D638 | |
| XZ ORIENTATION | 2865 | MPa | ASTM D638 | |
| ZX ORIENTATION | 2840 | MPa | ASTM D638 | |
| Tensile Stress, brk, Type I, 5 mm/min | ||||
| XY ORIENTATION | 73 | MPa | ASTM D638 | |
| XZ ORIENTATION | 80 | MPa | ASTM D638 | |
| ZX ORIENTATION | 34 | MPa | ASTM D638 | |
| Tensile Strain, brk, Type I, 5 mm/min | ||||
| XY ORIENTATION | 4.0 | % | ASTM D638 | |
| XZ ORIENTATION | 3.8 | % | ASTM D638 | |
| ZX ORIENTATION | 1.3 | % | ASTM D638 | |
| Flexural Modulus, 1.3 mm/min | ||||
| XY ORIENTATION | 2520 | MPa | ASTM D 790 | |
| XZ ORIENTATION | 2840 | MPa | ASTM D 790 | |
| ZX ORIENTATION | 2380 | MPa | ASTM D 790 | |
| Izod Impact, notched, 23°C | ||||
| XY ORIENTATION | 31 | J/m | ASTM D 256 | |
| XZ ORIENTATION | 37 | J/m | ASTM D 256 | |
| ZX ORIENTATION | 30 | J/m | ASTM D 256 | |
| Izod Impact, un-notched, 23°C | ||||
| XY ORIENTATION | 273 | J/m | ASTM D 256 | |
| XZ ORIENTATION | 240 | J/m | ASTM D 256 | |
| ZX ORIENTATION | 128 | J/m | ASTM D 256 | |
| THERMAL | ||||
| HDT, 1.82 MPa, 3.2 mm, unannealed | ||||
| XY ORIENTATION | 211 | °C | ASTM D648 | |
| XZ ORIENTATION | 210 | °C | ASTM D648 | |
| ZX ORIENTATION | 208 | °C | ASTM D648 | |
| Coefficient of Thermal Expansion - flow | ||||
| XY ORIENTATION | 51 | µm/(m-°C) | ASTM E 831 | |
| XZ ORIENTATION | 53 | µm/(m-°C) | ASTM E 831 | |
| ZX ORIENTATION | 53 | µm/(m-°C) | ASTM E 831 | |
| Coefficient of Thermal Expansion - x-flow | ||||
| XY ORIENTATION | 53 | µm/(m-°C) | ASTM E 831 | |
| XZ ORIENTATION | 52 | µm/(m-°C) | ASTM E 831 | |
| ZX ORIENTATION | 53 | µm/(m-°C) | ASTM E 831 | |
| PHYSICAL | ||||
| Density | 1.275 | g/cm³ | ASTM D 792 | |
| ELECTRICAL | ||||
| Volume Resistivity | ||||
| XY ORIENTATION | 6.24E+14 | Ohm-cm | ASTM D 257 | |
| XZ ORIENTATION | 1.26E+15 | Ohm-cm | ASTM D 257 | |
| FLAME CHARACTERISTICS | ||||
| FAA Flammability | ||||
| XY ORIENTATION, 1.5mm | Passed | - | FAR 25.853 | |
| OSU total heat release (2 minute test) | ||||
| XY ORIENTATION, 1.5mm | 5 | kW-min/m² | FAR 25.853 | |
| OSU peak heat release rate (5 minute test) | ||||
| XY ORIENTATION, 1.5mm | 23 | kW/m² | FAR 25.853 | |
| Vertical Burn (60s) passes at | ||||
| XY ORIENTATION, 1.5mm | 2 | sec | FAR 25.853 | |
| Vertical Burn (12s) passes at | ||||
| XY ORIENTATION, 1.5mm | 0 | sec | FAR 25.853 | |
| UL94 Flame Class Rating | 1) | |||
| XY ORIENTATION, 1.5mm | V0 | - | UL 94 | |
| XZ ORIENTATION, 1.5mm | V0 | - | UL 94 | |
| ZX ORIENTATION, 1.5mm | V0 | - | UL 94 | |
| XY ORIENTATION, 3.0mm | 5VA | - | UL 94 | |
| Thermal properties | ||||
| Vicat Softening Temperature | ||||
| XY ORIENTATION, Rate B/50 | 220 | °C | ASTM D 1525 | |
| XZ ORIENTATION, Rate B/50 | 220 | °C | ASTM D 1525 | |
| ZX ORIENTATION, Rate B/50 | 220 | °C | ASTM D 1525 | |
| Electrical properties | ||||
| Dielectric Constant | ||||
| XY ORIENTATION at 1.9 GHz | 2.9 | - | ASTM D 150 | |
| XZ ORIENTATION at 1.9 GHz | 2.9 | - | ASTM D150 | |
| Dissipation Factor | ||||
| XY ORIENTATION at 1.9 GHz | 0.003 | - | ASTM D150 | |
| XZ ORIENTATION, 1.9 GHz | 0.003 | - | ASTM D150 | |
