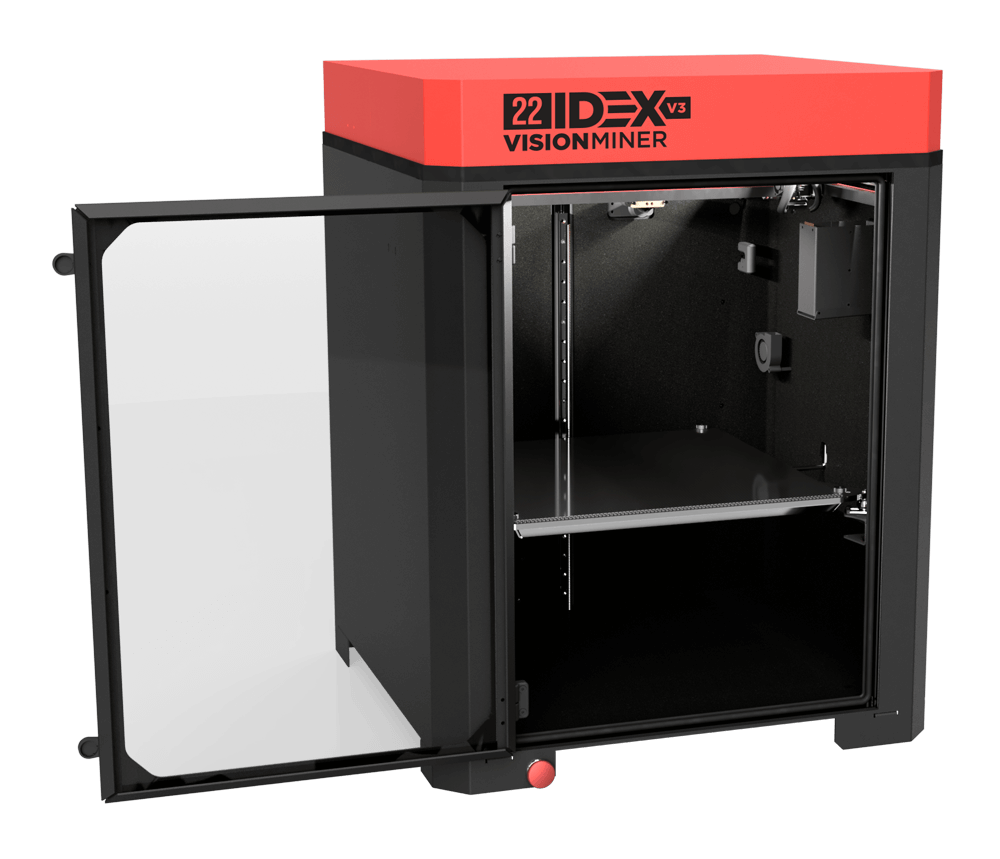

22 IDEX: Production-Ready 3D Printer for High-Temperature Materials

PEEK • PEKK • ULTEM™ • PEI • NYLON • PC • ABS • +MORE

With dual independent extruders capable of 500ºC, an actively-heated chamber reaching 100ºC, and a triple-motor, true-self-leveling 200ºC bed, coupled with the fully open material system, the 22 IDEX v3 unlocks another level of automation, ease-of-use, and affordability for high-temp additive manufacturing.

$14,900.00

Questions? Give us a call!
833-774-6863

9am-5pm PST

DOCUMENTATION

PDF BROCHURE

REQUEST A QUOTE

Video Training, Documentation, and Tutorials

Explore our video library—setup guides, maintenance tips, advanced tuning, and real-world material tests—so you can see the 22 IDEX in action. We’re always trying new polymers and sharing every discovery on YouTube, giving you real-time, transparent guidance. Dive in and get up and running faster than ever.

Prefer to read? Visit our full text docs at wiki.visionminer.com for printable guides, in-depth articles, and all the linked videos.

Don't just take our word for it - see what others have to say!

WHAT'S NEW?

Internal. External. Mechanical. Software. Firmware.

We've gathered all the input from the last several years - from our shop, our customers, the field, all over the world, and made a series of upgrades to the v3:

Duet 3 Mainboards

Upgraded RAM, more processing power, better girmware & vode

Auto Calibration

Completely automated XYZ calibration, one-touch, out of the box

Improved Useability

100+ micro-adjustments to improve the overall user experience.

Improved Thermals

Higher temperatures for reliable 3D printing of ultrapolymers

We use our own machinery in our service bureau every day -- taking our own experiences, along with that of our customers, ranging from Fortune 500 companies to independent fabrication shops, and made the 22 IDEX better than ever before.

HIGH-PERFORMANCE MATERIALS,
STRAIGHT OUT OF THE BOX

Title

STRONG parts. Functional Polymers.

Parts you can sell, materials you can print jigs and fixtures from, vacuum molds, press brake tooling - if it can be 3D printed, there's a good chance you can do all that and more, on the 22 IDEX v3.

Aerospace-grade replacement parts, tooling, fixtures

Autoclavable, sterilizable tools for medical applications

Rigid, chemical & radiation resistant polymer composites

High-temp, metal-replacement thermoplastics

Under-the-hood in race cars, to satellites in space - whether you're a one-man operation, or a 20,000+ employee aerospace company, this machine can get your job done.

Click here for full specs

FULLY AUTOMATED CALIBRATION

Title

SELF-LEVELING BUILD PLATFORM

DYNAMIC MESH LEVELING

AUTOMATIC CALIBRATION

HARDWARE FOR ADVANCED USERS

Title

500ºC Nozzles

Independent Dual-Extruder Hotends

Maximum temperatures give you the ability to print any Performance Thermoplastic on the market, from PLA to PEEK, PEKK, ULTEM™ , PPSU, and more.



Unlike other machines, BOTH hotends reach the full 500ºC, enabling multi-material, duplication mode, mirror mode, and full use of supports - soluble and otherwise.

200ºC Build Platform

True Self-Leveling Build Platform

Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface.



On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.

100ºC+ Chamber

Actively Heated Chamber

Performance thermoplastics are next to impossible without a heated build environment - the 22 IDEX heats up to 100ºC+, enabling functional high-temp materials with solid mechanical properties. Dual chamber thermistors monitor the temperature, with auxiliary convection fans ensuring an evenly-heated build volume.

Unlimited Materials

1.75mm Open-Filament FFF/FDM System

Not locked into proprietary materials, limited nozzle temperatures, or overly-expensive branded filaments... we carry the best materials we can find, at Vision Miner, from several sources -- but you're ALWAYS welcome to use your own. FAR 25.853, UL94 V0 rated materials, and more.

Unlocked Firmware

Up-to-date RepRap firmware on Duet 3

The latest and greatest firmware comes installed on your 22 IDEX, and there are always up-to-date links to the latest versions available in our documentation.

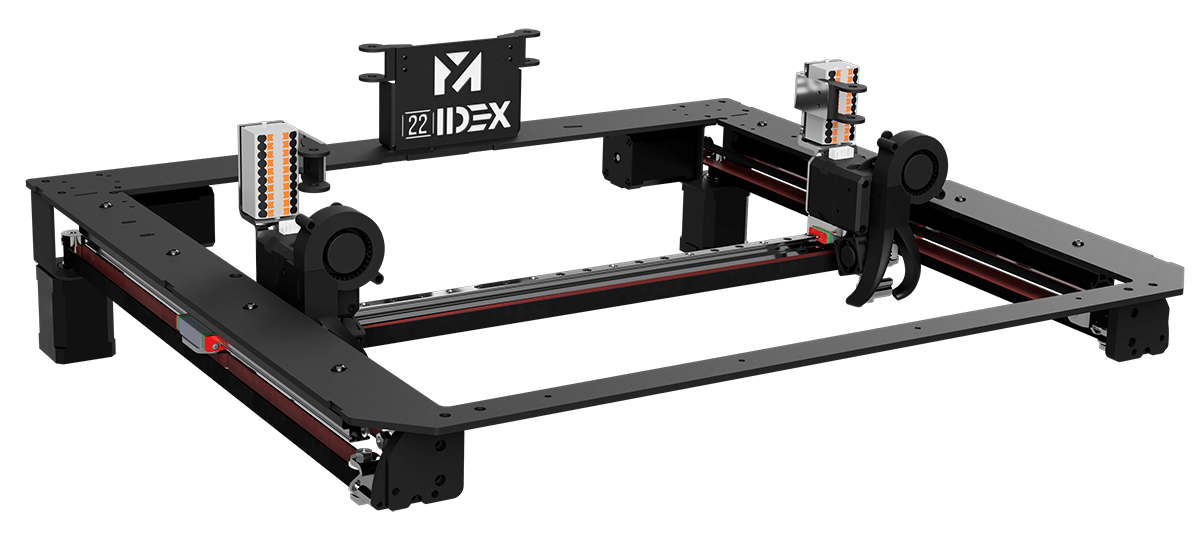

CUTTING-EDGE MOTION SYSTEM

A TOTALLY UNIQUE, QUAD-MOTOR X/Y-AXIS, TRIPLE-MOTOR Z-AXIS

Title

Solid Steel Frame

Stable and dependable, it won't shift as it soaks heat -- critical at high temperatures

Terminal Block Connections

No need to hunt down specialized connectors -- easily swap, replace, or modify components

4-Point Build Plate Mounts

No matter which build plate material you're using, rest assured that it's not going to warp up with your ultra-performance parts.

Kinematic Z-Axis Mounts

Self-centering, kinematically-coupled build platform -- always true, always solid, automatically self-leveling

Easy-Access Belt Adjustment

The belt adjustment pulleys are easily accessed at the front, making it quick work to adjust them as-needed. Did we mention the ultra-stable 12mm Kevlar belts?
$14,900.00

REQUEST A QUOTE

MADE FOR ENGINEERING MATERIALS

USE THE WIDEST RANGE OF PERFORMANCE THERMOPLASTICS

Title

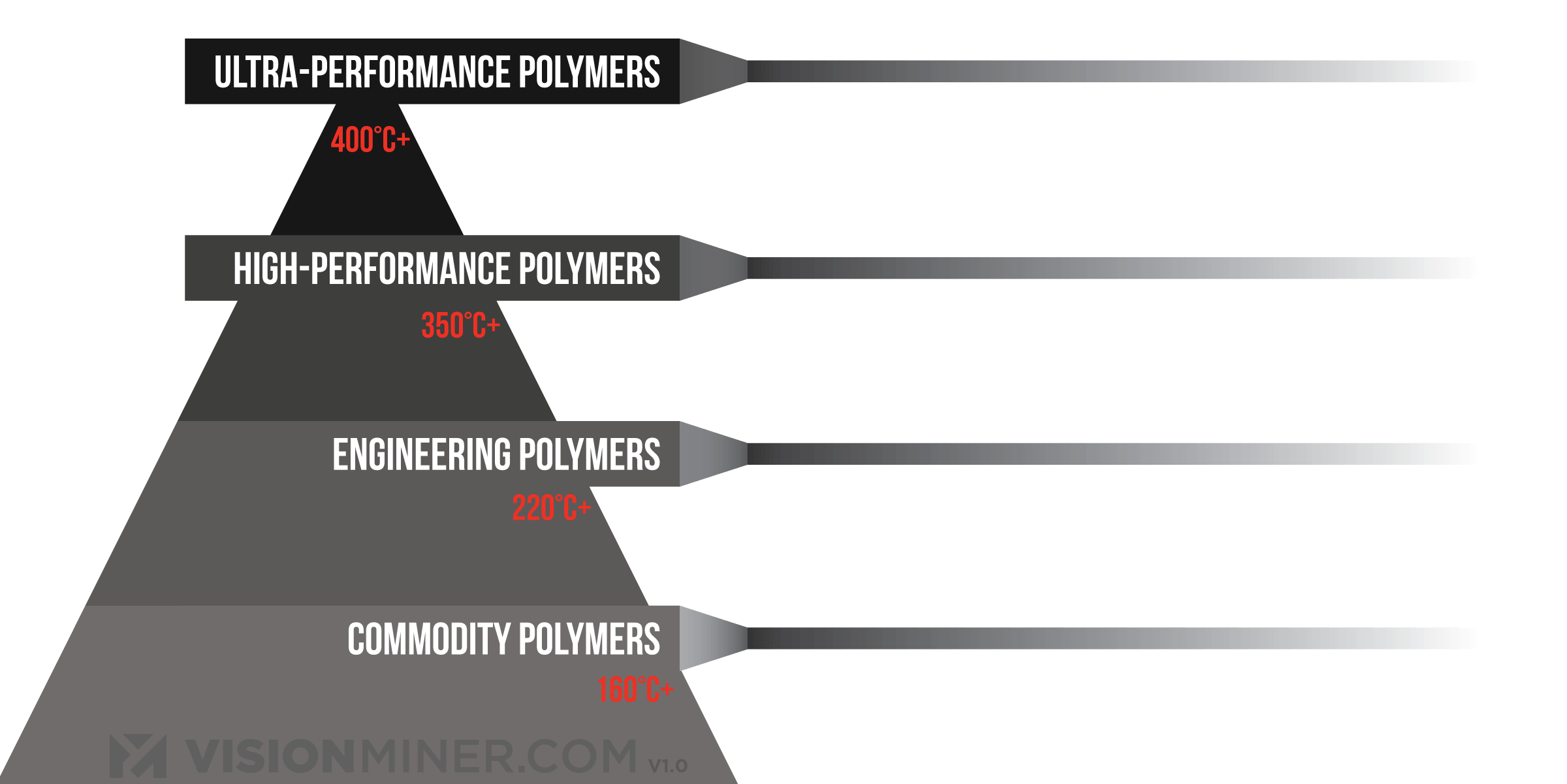

WHAT FILAMENTS CAN YOU PRINT ON THE 22 IDEX?

Basically all of them. We're talking about functional polymers -- whether you're focused on Carbon Fiber Nylons, ULTEM™ 9085, or Glass fiber PEEK, the 22 IDEX v3 has you covered, with virtually unlimited material options:

POLYMER CLASS

AMORPHOUS

SEMI-CRYSTALLINE

ULTRA-PERFORMANCE POLYMERS

400ºC+
  • PEKK-A
  • PEI (ULTEM™) 1010 & 9085
  • TPI
  • PEKK-A
  • PEI (ULTEM™) 1010 & 9085
  • TPI

HIGH-PERFORMANCE POLYMERS

330ºC+

  • PEI
  • PES
  • PSU
  • PESU
  • PVDF
  • PPS
  • PA9T

ENGINEERING-GRADE POLYMERS

220ºC+

  • PC (Polycarbonate)
  • TPU
  • PPE/PS
  • PC/ABS
  • Nylons
  • PA12
  • PA6
  • POM

COMMODITY-GRADE POLYMERS

180ºC+

  • ABS
  • ASA
  • HIPS
  • PETG
  • OBC
  • PP
  • PLA
  • PCTG

INDUSTRY-LEADING FEATURES

Title

FUME EXTRACTION - CLEAN AIR

Many 3D printers include air filters, which are usually HEPA filters and a thin sheet of activated carbon. This simply isn't enough for a production environment, barely passing as filtration at all -- the 22 IDEX comes standard with hookups for 2" hoses, for connecting to industrial fume extraction systems.

XY TOOLHEAD - AUTO ALIGNMENT

Our automated XY toolhead alignment eliminates the older style of having to do multiple alignment prints. Pulling from proven, precision practices of the CNC Industry, our Auto Alignment probe takes the guesswork out of the picture with one easy, automated process.

BUILT-IN AUTOMATIC FILAMENT DRYING SYSTEM

The filament on the 22 IDEX is stored inside the chamber while printing -- this means that when using the heated chamber with hygroscopic filaments (read: most filaments), the filament is kept dry, eliminating much of the oozing, blobbing, and poor surface finishes due to moisture.

AUTO SHUTDOWN AND SAFETY SYSTEMS

Safety is paramount, in the workplace and workshop - the printer will automatically shut down if it senses overheating, thermal runaways, or electrical errors. Solid State Relays and quality wires are just a fraction of the safety features designed into the machine, from the ground up.

AMERICAN SERVICE & SUPPORT

We're here to help you -- that's our promise, if you succeed, we succeed.

Title

We cross-train our team to use everything we sell -- there's a good chance that whoever answers your phone call, can also solve your technical problems, should any occur. In the rare event you need an expert, we staff passionate additive manufacturing techs to help you.

No more total-lack-of-communication-for-months-at-a-time only to be sent to a new rep in another country. Nope, none of that. You'll be speaking with a real person, someone who knows the industry and can help solve real-world problems.

The guys working in the shop are the ones taking your call, to help you figure out your challenge. Not some trainee with step-by-step FAQ's you could find online (did we mention our extensive documentation and video tutorials? Most situations are easily resolved with a quick search, before you even pick up the phone)



No scripted auto-attendant generic answers, just real people with real problem-solving skills. We work via phone, email, and video conferencing to ensure whatever your problem is, we get you back up and into production time as quickly as possible. We don't spoon-feed basic fundamentals (that's what our video training and docs are for), but we are always here to help.

BUILT FROM STEEL

MADE USING TOP-OF-THE-LINE COMPONENTS

Title

LINEAR RAILS

Linear-Rail Motion System

When building the 22 IDEX, we wanted to use only the highest quality components, giving you the precision of an industrial machine on your desk.



Robust high-temp stepper motors, linear rails, quality wiring and industry-leading electronics means you get consistent print quality and accuracy, while minimizing overall system maintenance. Using extra-wide 12mm  Kevlar belts, the 22 IDEX stays in-spec with ease.

TRIPLE MOTOR Z-AXIS

True Self-Leveling Build Platform

Most printers require manual leveling, in addition to planar-offset or mesh-leveling.



Not so, with the 22 IDEX - we've integrated three Z-Axis motors to physically level the build platform before each print, combined with a customizable mesh leveling process to eliminate all guesswork.



This means that your prints will start at the perfect height, every single time. It's a game-changer for the user experience.

NON-PLANAR READY

6 Independent Axis and 5 Degrees of Freedom

The self-leveling bed and auto-squaring XY gantry not only makes great prints, but enables non-planar printing to an entirely new level -- you're not just buying any other 3D Printer, the 22 IDEX is prepared to take on a whole new world of multi-axis 3D Printing.



All 6 axis are independent, giving you a full 5 degrees of freedom, meaning your machine is already prepared for the next generation of non-planar printing and slicing software, once it becomes available.

INDUSTRY-PROVEN TECH

MADE USING CUTTING-EDGE PARTS

Title

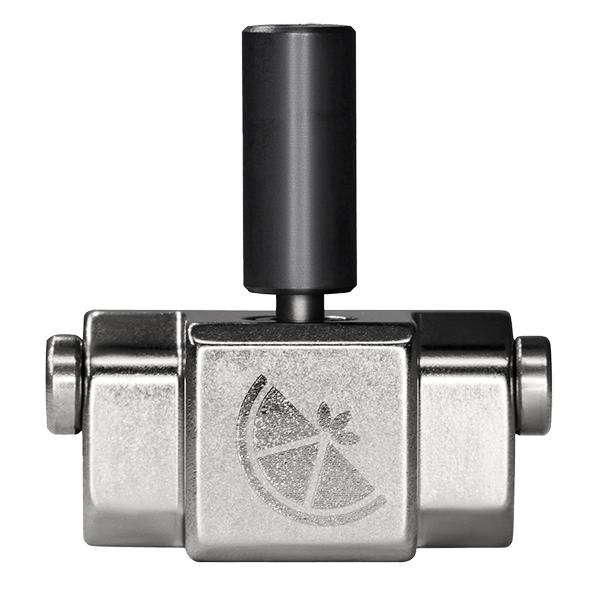

SLICE ENGINEERING COPPERHEAD

Thermally Consistent Heat Blocks and Bimetallic Heat Breaks

Crank out more parts in less time, with one of the most consistently-flowing hotend designs available. We absolutely love the quality -- incredible fine, beautiful CNC finish, and made right here in the USA.

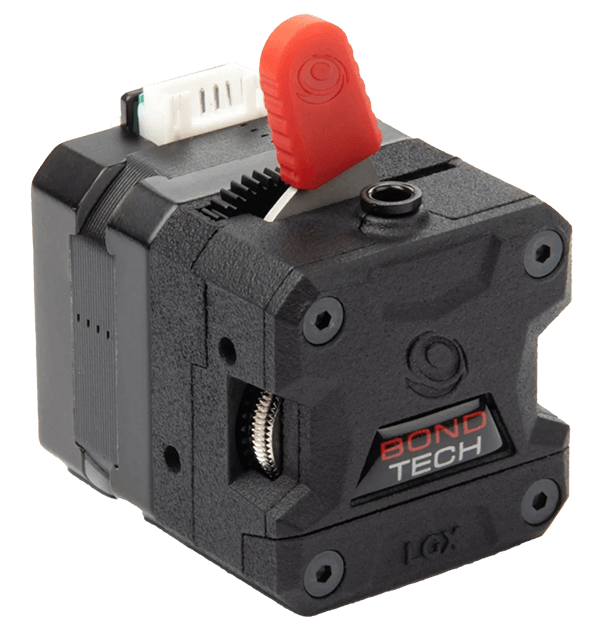

BONDTECH LGX PRO EXTRUDER

Industry proven, tested, and loved Bondtech is at the top for a reason

Crank out more parts in less time, with one of the most consistently-flowing hotend designs available. We absolutely love the quality -- incredible fine, beautiful CNC finish, and made right here in the USA.

SLICE ENGINEERING COPPERHEAD

Thermally Consistent Heat Blocks and Bimetallic Heat Breaks

Crank out more parts in less time, with one of the most consistently-flowing hotend designs available. We absolutely love the quality -- incredible fine, beautiful CNC finish, and made right here in the USA.

PRE-CONFIGURED SLICER, OR USE YOUR OWN

PrusaSlicer, along with the Duet 3 web interface means: your computer will work, as-is.

The Integrated Ethernet, and modular wifi (included) web interface and standard RepRap firmware makes the machine easy to control, from anywhere in the shop. Use your workstation, laptop, tablet or phone to control the printer -- using macros, or custom configurations you develop for your own needs. Plus, we offer pre-configured profiles for PrusaSlicer, including materials like PEEK, CF-Nylon, PCTG, etc, and you're always able to use whichever slicer you prefer.

DUAL-GEARED BONDTECH LGX PRO EXTRUDERS ON BOTH HOTENDS

The Integrated Ethernet, and modular wifi (included) web interface and standard RepRap firmware makes the machine easy to control, from anywhere in the shop. Use your workstation, laptop, tablet or phone to control the printer -- using macros, or custom configurations you develop for your own needs. Plus, we offer pre-configured profiles for PrusaSlicer, including materials like PEEK, CF-Nylon, PCTG, etc, and you're always able to use whichever slicer you prefer.

PARTNERED WITH THE BEST IN THE INDUSTRY

EVERYTHING YOU NEED IN A 3D PRINTER

Title

500ºC

NOZZLE

200ºC

BUILD PLATE

100ºC+

HEATED CHAMBER

TRIPLE Z-MOTOR
TRUE SELF-LEVELING
DRYS FILAMENT INSIDE
AUTOMATIC X/Y ALIGNMENT
$14,900.00

350 x 350 x 450mm

BUILD VOLUME

ALL MATERIALS

PEEK, ULTEM, CF NYLON, +MORE

AMERICAN
SUPPORT

FROM VISION MINER

DUAL INDEPENDENT EXTRUDER
+ BONDTECH LGX EXTRUDERS
+ SLICE ENGINEERING HOTENDS
LINEAR RAILS

DOCUMENTATION

PDF BROCHURE

SPECIFICATIONS

REQUEST A QUOTE

Bundles

22 IDEX Maintenance Bundle v3 Vision Miner 3D Printer Parts

22 IDEX Maintenance Bundle v3

$15,584.99

What's Included?

1 x 22 IDEX V3
4 x Copperhead Heat Break
2 x (0.4mm) Hardened Steel Nozzle
2 x Copperhead Hot Block
4 x Heatsink Fan
2 x Part Cooling Blower Fan
1 x Chamber Circulation Fan
2 x Industrial Heater (50W 24V)
4 x PT1000 Thermocouple
1 x Build Plate Thermistor
2 x Nano Polymer Adhesive
1 x Z-Probe Wire

Includes all essential replacement parts and consumables needed for the first year of operation, ensuring minimal downtime. Perfect for users who want to stay ahead of regular wear and tear.

Title

REQUEST A QUOTE
22 IDEX Essentials Bundle v3 Vision Miner 3D Printer Parts

22 IDEX Essentials Bundle v3

$17,399.00

What's Included?

1 x 22 IDEX V3
1 x Carbon Fiber Build Plate
1 x Vacuum Chamber + Pump
1 x Complete Nozzle Pack (32x)
10 x Copperhead Heat Break
4 x Copperhead Hot Block
4 x Heatsink Fan
2 x Part Cooling Blower Fan
1 x Chamber Circulation Fan
2 x Industrial Heater (50W 24V)
6 x PT1000 Thermocouple
1 x Build Plate Thermistor
5 x Nano Polymer Adhesive
1 x Z-Probe Wire

Includes everything in the Maintenance Bundle, plus additional spare components and consumables for users who want to stock up on critical parts and be fully prepared for extended use.

Title

REQUEST A QUOTE
22 IDEX Starter Bundle v3 Vision Miner 3D Printer Parts

22 IDEX Starter Bundle v3

$19,899.00

What's Included?

1 x 22 IDEX V3
1 x Carbon Fiber Build Plate
1 x Vacuum Chamber + Pump
1 x Complete Nozzle Pack (32x)

10 x Copperhead Heat Break

4 x Copperhead Hot Block
4 x Heatsink Fan
2 x Part Cooling Blower Fan
1 x Chamber Circulation Fan
2 x Industrial Heater (50W 24V)
6 x PT1000 Thermocouple
1 x Build Plate Thermistor
5 x Nano Polymer Adhesive
1 x Z-Probe Wire

2 x Spare Copperhead Hotends (Full Assembly)
1 x (1yr) Extended Warranty
1 x (3 Months) Tier 1 Support

The Starter Bundle includes an extended warranty, full nozzle pack, and priority support, giving you expert guidance to optimize your projects and workflow while ensuring long-term reliability.

Title

REQUEST A QUOTE

DETAILED SPECIFICATIONS

Title

Printing Technology

Fused Filament Fabrication, or Fused Deposition Modeling (FFF, FDM)

Build Volume

• 350 x 350 x 450 mm
• 13.7 x 13.7 x 17.7 in
• 55,000 cm^3
• 3,356 in^3

Build Platform Material

• High-Temperature Carbon Fiber Build Plate (Included)
•  Borosilicate Glass
• Optional PEEK+CF Composite

Motion System

• Linear Rails
• Ultra Wide 12mm Belts
• High-Temp Stepper Motors
• 6 Independent Axis and 5 DoF
• Silent Trinamic Stepper Drivers
• Quad X/Y-Axis Motors
• Triple Z-Axis Motors
• Self-Squaring X/Y Gantry

Build Platform Leveling

• True Automatic Mechanical Bed Leveling with 3 Z-axis Motors
• Adaptive Multi-Point Mesh Leveling - Customizable to hundreds of points

• Servo-docked leveling sensor

Tool Heads

• LGX Pro High-Temp Dual-Gear Extruders
• Slice Engineering Copperhead Hotends
• Hardened Steel Nozzles, standard
• Filament Runout Sensors

Layer Resolution

• 0.005” (125 micron, all Axis, real-world application - remember, you are using a round nozzle orifice - higher accuracy is achievable)
• 40-500 Micron Standard Layers

Speeds

• Maximum Travel Speed: 500mm/s

•Printing speeds depend on material.

•High Temp: 30-200mm/s

Filament Diameter

Standard 1.75mm Filament

Fully Open Material System

Nozzles

Standard E3Dv6 style M6x1 threaded nozzles (Copperhead)



Included:

• Hardened Steel 0.4mm

Available Options:

Vision Miner Nozzles

Position Accuracy

Hardware Maximums:

• X/Y: 10 μm
• Z: 7 μm

Safety

• CE Certification (link)
• Auto Shutoff Option
• Overheat & Thermal Runaway Protection
• German-manufactured Wiring
• High-Quality Components

Warranty

• Standard 1-year Limited Warranty
• Premium and Extended Warranties Available

Operating Temperatures

• Operating: +64 - 86ºF (+18 - 30ºC)
• Storage: +50 - 113ºC (+10 - 45ºC)

Fume Extraction / Filtration

• Optional Integrated 2" inlet/outlet for external fume extraction  (purchased separately)

• Optional HEPA + Active Carbon Filter System (sold separately)

Extruder Temperature

500°C

Build Plate Temperature

250°C

Chamber Temperature

100°C

Active Convection Heating

Mainboard Controllers

Duet 3, 3HC Expansion Board

Input File Type

Standard G-code, RepRap based

Compatible Slicers

Any RepRap-Compatible  slicer:
PrusaSlicer
Simplify3D
Slic3r
OrcaSlicer

Operator Interface

• Complete Web Interface
(Duet 3 Web Control)
• Modular, removable Wifi
• Integrated Ethernet
• USB Terminal Connection

Internal Storage

16GB (expandable, micro SD card)

Supported Computer OS

Windows, MacOS, Linux, Android,  iOS - Control Panel uses standard internet browsers

Power Consumption

• 110V AC, 50/60Hz,

• Standard USA Plug



For converting to 240V AC, heaters must be swapped for 240V versions, and power supplies can be switched to 240V AC.

Machine Dimensions

Machine Dimensions:

535 x 568 x 739 mm

21.6" x 22.36" x 29.09"



Recommended Footprint:

1000 x 600 x 1000 mm

40"x 24" x 40"



Machine Weight:

200 lbs

90.7 kg

Shipping Weight & Dimensions

Export-Compliant Crate

220lbs / 100kg



27"x26"x37" on Pallet

27"x26"x33" Corrugated Cardboard Box

Materials

Any 1.75mm Filament:

PEEK, PEKK, CFPEEK, AM200 PAEK, PEI, ULTEM™ 9085, ULTEM™ 1010, PEI Blends, PPSU, PA/CF, Nylon (PA66, PA6, PA12, etc), PC, PC Alloys, PA, ABS, ASA, Carbon Fiber-Filled, Metal-Filled, Glass-Filled, Nylon, PETG, ESD Materials, HIPS, TPU, PLA, PVA, and more


Carbon fiber and glass-filled variants of the above + Various soluble and break-away support materials, 100% Open Material System

Materials / Filament Storage

Integrated Heated Storage:
Filament rests inside the heated chamber while printing, preventing moisture uptake, enabling ultra-long print times with hygroscopic polymers.

Filament can be fed from outside machines, for larger spools

LEXAN™ and ULTEM™ are registered trademarks of SABIC Innovative Plastics
$14,900.00

REQUEST A QUOTE

Related Products

My Wishlist

View wishlist

Wishlist is empty.

Compare

Shopping cart

Your cart is empty.

Return to shop
close
