3D PRINTER NOZZLES

Our nozzles are universally M6x1 Threaded,

E3Dv6 compatible, for use with Creality, Slice Engineering,

 and many other common hotends

HARDENED STEEL

$20.00

STEEL

$13.00

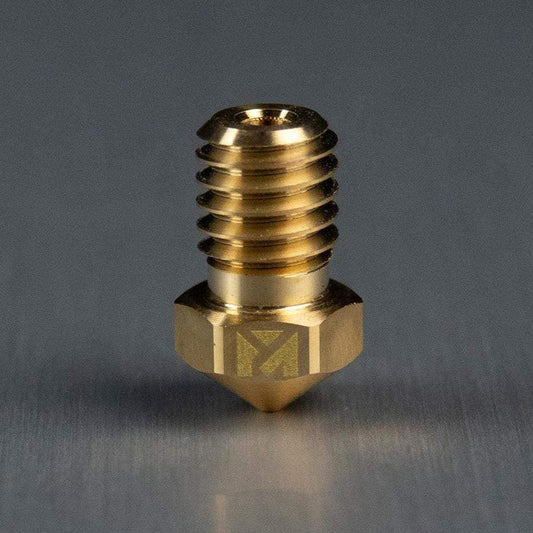

BRASS

$11.00

BRASS

Best thermal transfer -- used for PEEK, PPSU, ULTEM™ and most un-filled, non-abrasive materials

$11.00

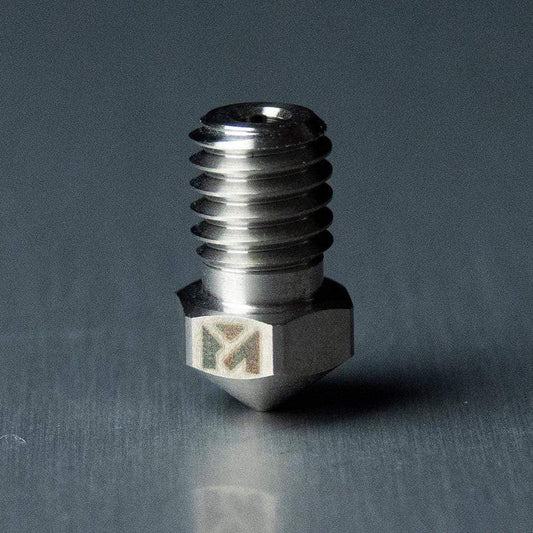

STEEL

Self-Sterilizing at higher temperatures, used for medical and food-grade parts

$13.00

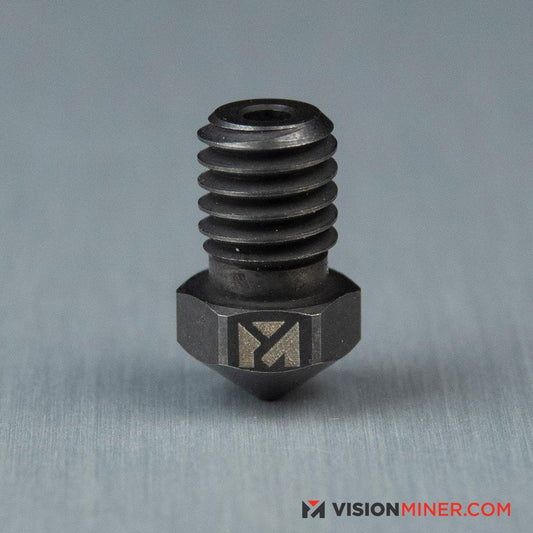

HARDENED STEEL

Essential for abrasive materials, like Carbon-Fiber Filled, Glass-filled, Metal-filled, Glow-in-the-dark, and more

Hardness (Mohs): 7.8

Maximum Printing Temperature: 500°C

Thermal Conductivity: 220 W/m.k

Expansion Coefficient: 8.0μm/m•°C

$20.00

VOLCANO SIZE NOZZLES

PLATED COPPER

$20.00

Plated Copper is best used when thermal conductivity is paramount, for materials like PEEK and ULTEM.

Hardness (Mohs): 6.0
Max Recommended Temp: 500ºC
Thermal Conductivity: 330 W/m.k
CTE: 16.7μm/m

HARDENED STEEL

$20.00

Hardened Steel is great for abrasive composites like Carbon Fiber, Glass fiber, Boron Carbide, Tungsten and others

Hardness (Mohs): 7.8
Max Recommended Temp: 450ºC
Thermal Conductivity: 220 W/m.k
CTE: 8.0μm/m

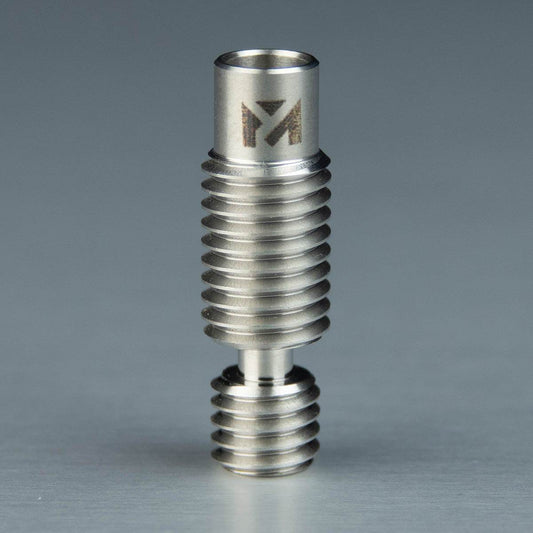

HEAT BREAKS

Always remember to check your heat breaks!

We supply our own premium-quality Titanium heat breaks, and Copperhead® Bimetallic heat breaks for the 22 IDEX V2 & V3

Titanium E3Dv6 Style

$20.00

Copperhead® Bimetallic

$189.99

Stratasys® Compatible Tips

Always remember to check your heat breaks!

We supply our own premium-quality Titanium heat breaks, and Copperhead® Bimetallic heat breaks for the 22 IDEX V2 & V3

CLICK HERE FOR COMPATABILITY CHART

Compatible with many of the Stratasys Build Tips and work in printers such as the Fortus 360, 380, 400, 450, and 900.

GBX Nozzle Assemblies are compatible with our Gearbox HT2.

Precision manufactured in the USA!

Designed with a hardness meant to last longer while printing with our vast selection of filled materials.

GBX Nozzle Assembly

$90.00

HIGH-QUALITY
MACHINING

M6x1 Threads

Direct E3Dv6 Replacement

Want Quality Prints?
Always check your nozzle.

  • Orifice Width Tolerance

    The extrusion hole can get out of spec with

    as little as 100g of material - always check it!

  • Tip Wear

    Your tip may be worn down, which

    will cause poor surface quality and banding

  • Cleanliness & Goop

    Jams and Clogs? Revitalize your nozzle

    with a blowtorch -- or swap it with a new one!

NO MORE CONFUSION

Well-marked nozzle sizes mean you won't be guessing what size your nozzle is, each time you need to swap out for a new job

Why is Quality so important?

QUALITY GUARANTEE

We stand behind our products -- all of them.



If for any reason you're not satisfied, just give us a call and we'll make it right.



That's our promise.
