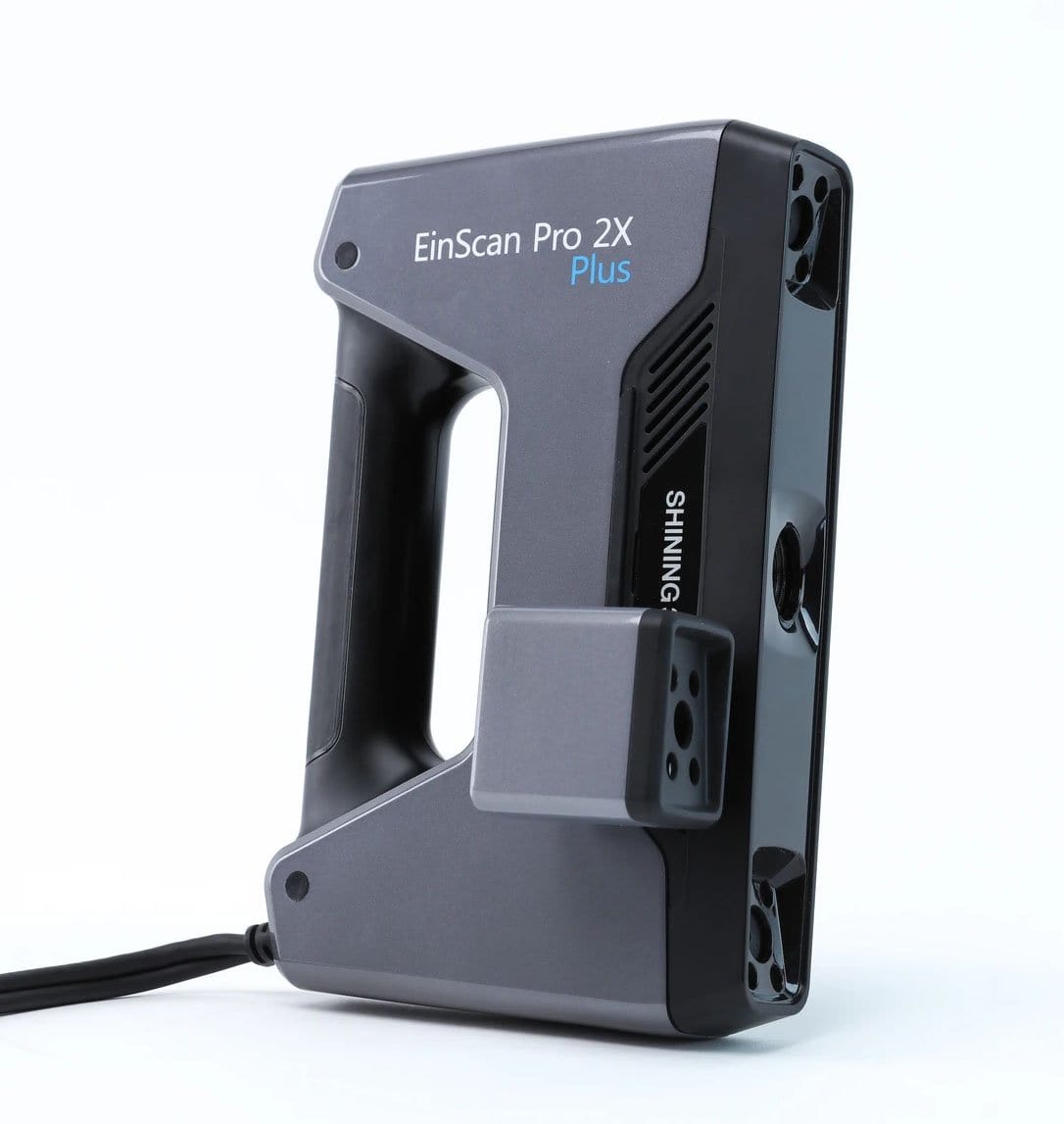

EinScan Pro 2x Plus

Metrology - 3D Scanning - Part Validation - CAD Creation

The EinScan Pro 2X Plus 3D scanner is fast, accurate, and portable, making it a versatile and reliable 3D scanning solution.


The Pro 2X Plus rapidly captures and delivers watertight 3D data of real objects for 3D printing, or non-watertight data for reverse engineering applications.


With its ergonomic design, and weighing under 3lbs, the multi-functional 3D scanner is portable and fit for any duration of handheld scan.


 With four versatile scan options, the EinScan Pro 2X Plus is equipped for portable and high-accuracy scans, perfect for educators, designers, and home hobbyists who want to explore the capabilities of 3D design and printing.

Lease for as low as $250/month!

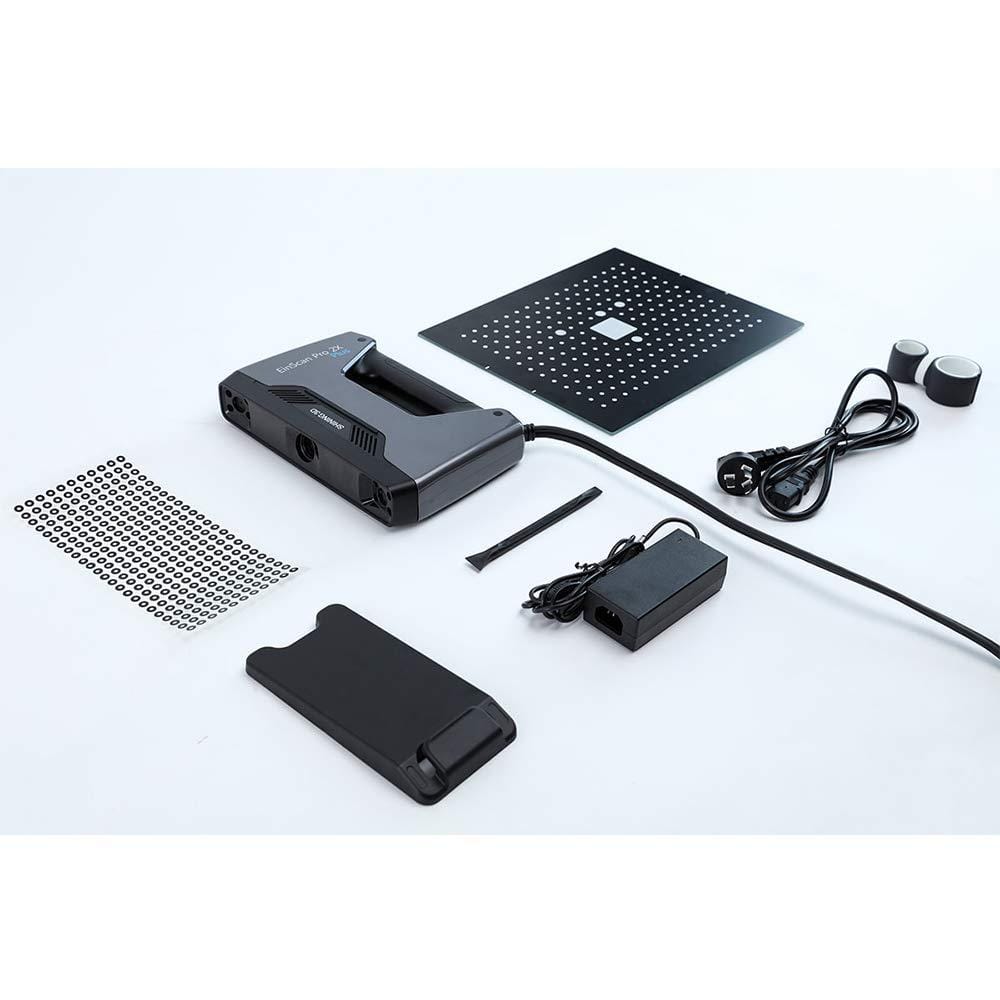

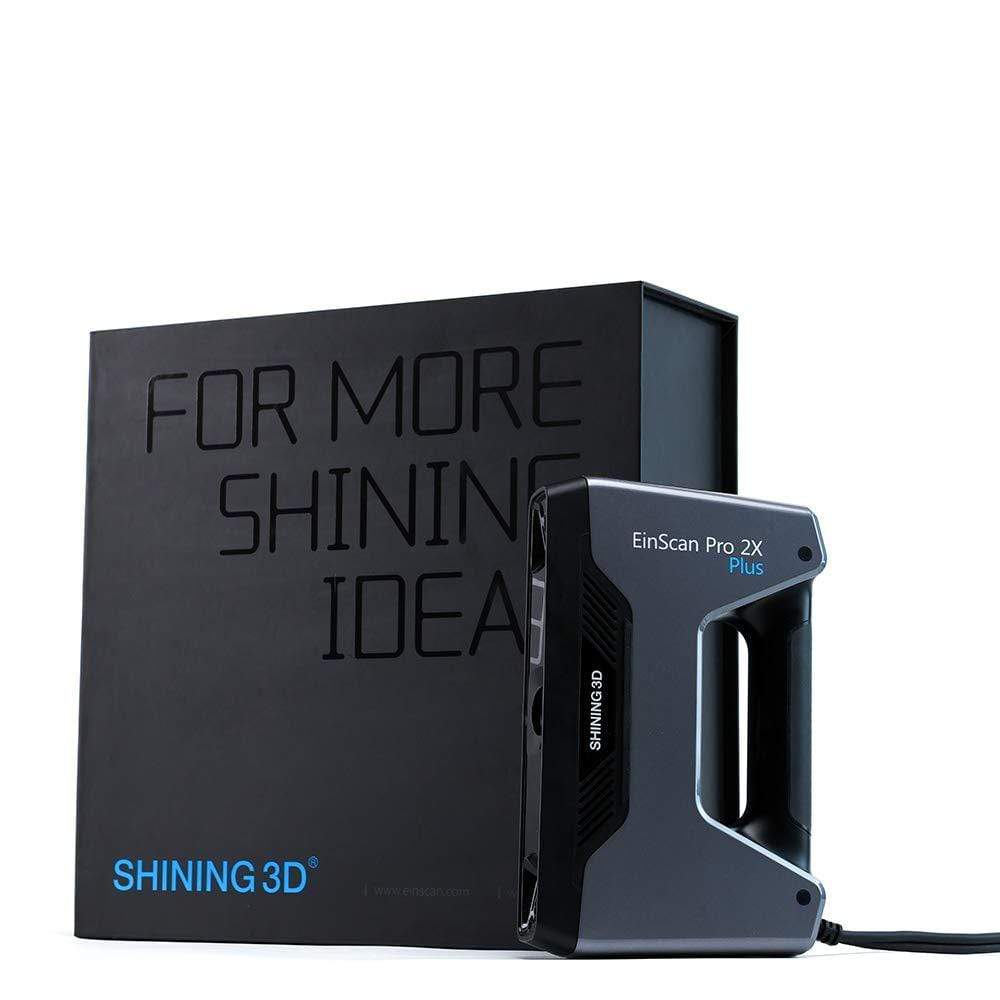

RED BUNDLE UNBOXING

HOW IT WORKS - FULL GUIDE

  • 50 Micron Accuracy
  • BIG or SMALL
  • VERY Easy to Use

DESIGNED FOR
REVERSE ENGINEERING

AND PART VALIDATION

YEARS OF

EXPERIENCE

PACKAGE OPTIONS

SET UP YOUR SCANNER WITH A PACK

1. JUST THE SCANNER

$6,899.00

2. +TRIPOD +TURNTABLE

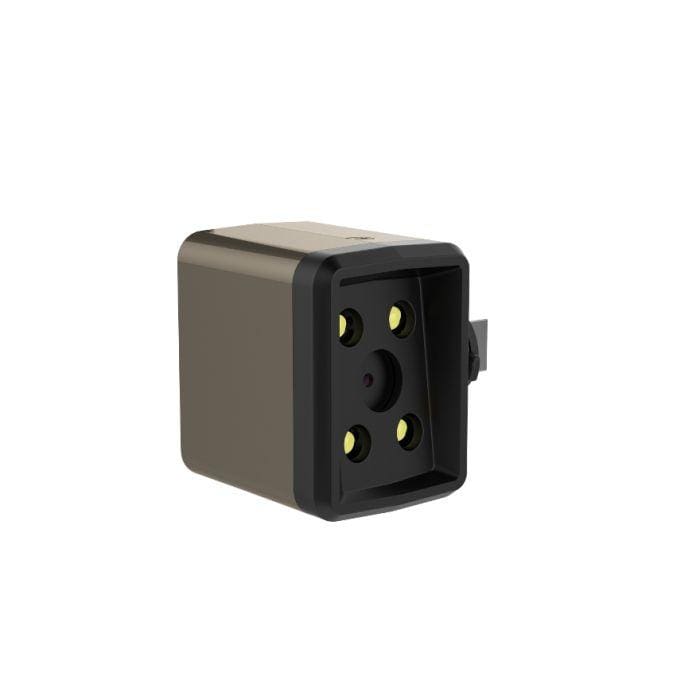

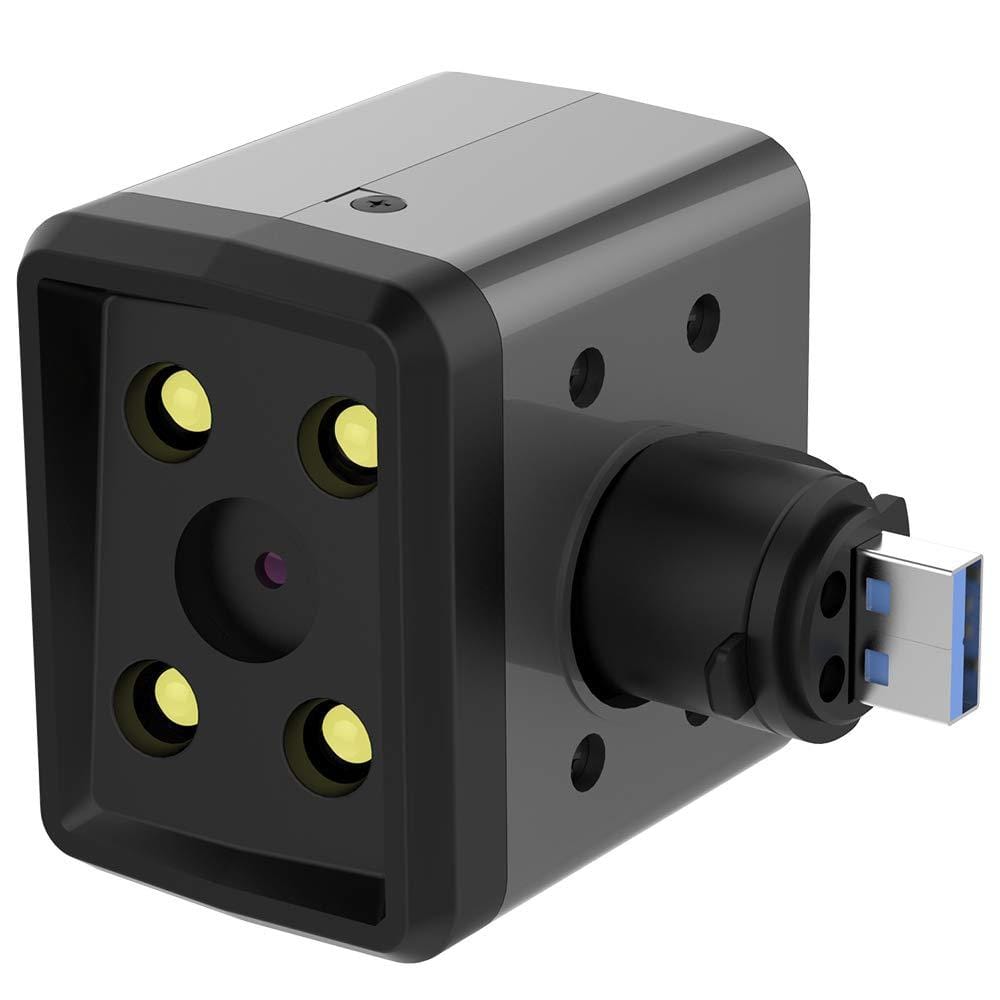

3. FULL COLOR SCANNING

$769.00

4. PRO SOFTWARE + INDUSTRIAL PACK

REVERSE ENGINEERING AND DESIGN

  • Four Scan Options

    Handheld Rapid Scan for portable, rapid scanning

    Handheld HD Scan for capturing objects with high accuracy (50 microns)

    Fixed Scan with Turntable (Optional Industrial Pack - Tripod/Turntable required)

    Fixed Scan without Turntable (Optional Industrial Pack - Tripod/Turntable required)

  • Powerful Software

    Includes EXSCAN PRO scanning software, which features a new and improved user interface and workflow, and Solid Edge SHINING 3D Edition CAD software, a design tool from SIEMENS PLM Software that allows reverse engineering and design from scan data with the ability to export to Solidworks or other CAD programs.

  • Endless Applications

    Use the EinScan Pro 2X Plus for high-quality reverse engineering, manufacturing, 3D modeling, customized products, scanning industrial parts, sculptures, artifacts, human bodies, healthcare, research, education, virtual displays, and more.

  • High Accuracy

    Triangulation and structured light projection ensure high accuracy. The accuracy in fixed scan mode is 0.04mm,

  • Scan Small to Large

    With handheld and fixed scan modes, and optional full-color texture scanning (Color Pack required), possibilities are practically endless.

  • High Speed

    In handheld rapid scan mode, scan speed is 1,500,000 points per second (30 fps).

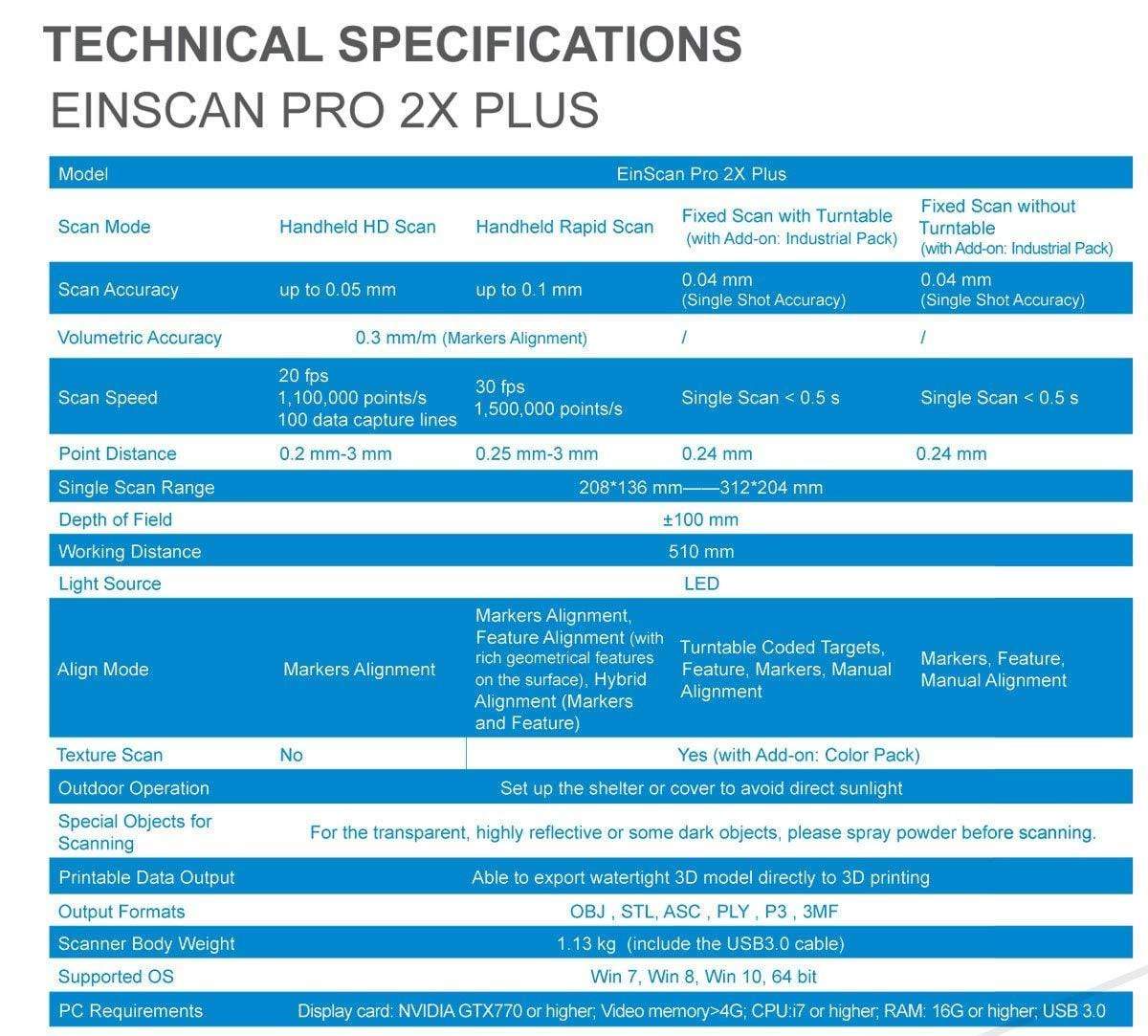

Detailed Specifications

Scan ModeHandheld HD ScanHandheld Rapid ScanFixed Scan with Turntable
Fixed Scan without Turntable
Scan Accuracyup to 0.05mmup to 0.1mmSingle Shot Accuracy: 0.04mm
Volumetric Accuracy0.3mm/m (Markers Alignment)//
Scan speed20 fps (100,000 points/s - 7 data capture lines)30 fps (1,500,000 points/s)Single scan: < 0.5s
Point distance0.2mm-3mm0.25mm-3mm0.24mm
Single scan range208*136mm - 312*204mm
Depth of Field±100mm
Working Distance510mm
Light sourceLED
Align modeMarkers alignmentMarkers Alignment, Feature Alignment (with rich geometrical features on the surface), Hybrid Alignment (Markers and Feature)Turntable Coded Targets, Feature, Markers, Manual AlignmentMarkers, Feature, Manual Alignment
Texture ScanNoYes (Color Pack required - sold separately)
Outdoor operationSet up the shelter or cover to avoid direct sunlight
Special object scanningFor scanning transparent, highly reflective, or some dark objects, please spray powder before scanning
Printable data outputAble to export watertight 3D model directly to 3D printing
Output file formatOBJ , STL , ASC , PLY , P3 , 3MF
Scanner body weight
1.13kg (includes the USB3.0 cable)
System supportWin7, Win8, Win10, 64bit
Display cardDisplay card: NVIDIA GTX770 or higher; Video memory>4G; CPU: i7 or higher; RAM: 16G or higher; USB 3.0
