These EinScan Scanners are fast, accurate, and portable, making them a versatile and reliable 3D scanning solution. Rapid captures and watertight 3D data of real objects for 3D printing, or non-watertight data for reverse engineering applications, they meet the demand for accurate 3D scans.
With ergonomic designs and light weight, the multi-functional 3D scanners are portable and fit for any duration of handheld scan -- a small object, or a large vehicle, they can do it all. With many versatile scan options, the EinScan Scanners are equipped for portable and high-accuracy scans, perfect for educators, designers, and home hobbyists who want to explore the capabilities of 3D design and printing.
YEARS OF
EXPERIENCE
Best for basic scans, medical devices, small parts & fixed scanning
Best for automotive, larger area scans, fixed & handheld scans
Best for Body Scanning, uses infrared light for dark colored objects, medical models
Best for all reflective & dark surfaces, uses blue laser, excellent for automotive & manufacturing

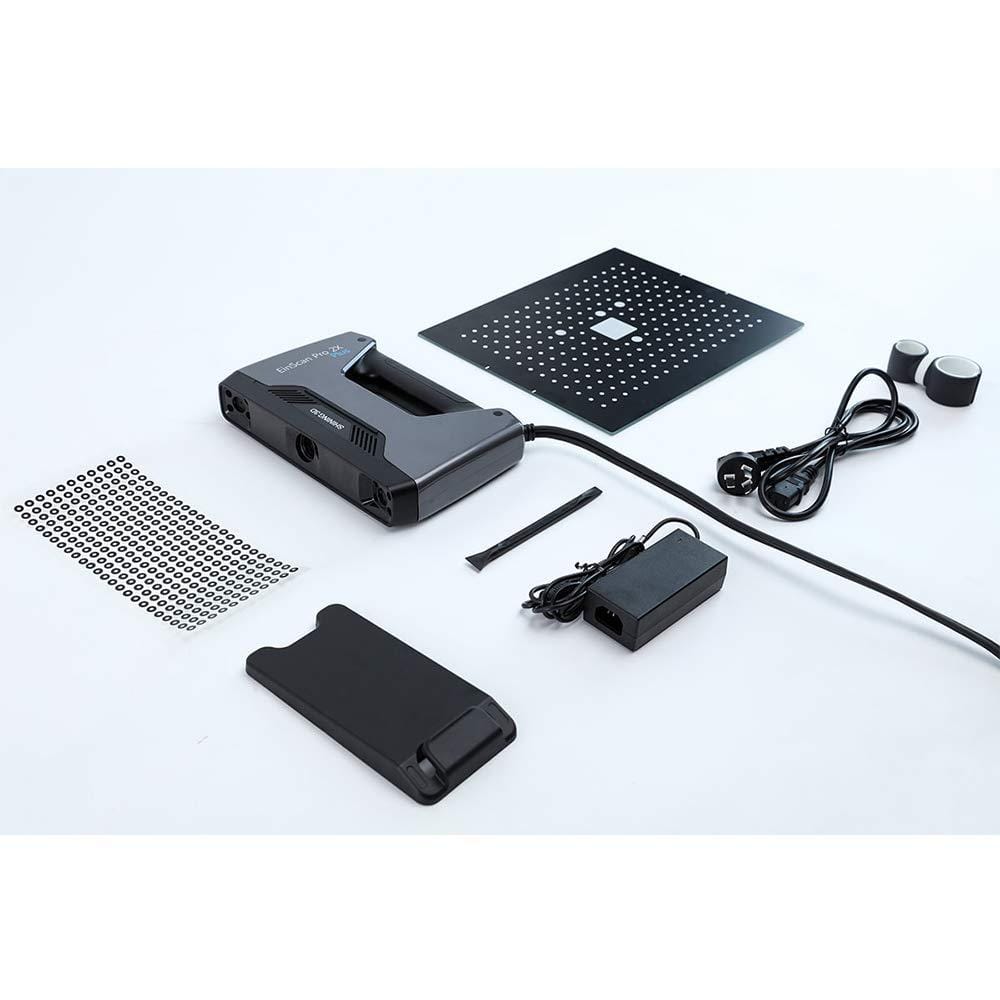

Packages include software like GeoMagic Essentials, for processing scan data, and the 2X and HD scanners include a tripod + turntable and other tools.
Multiple Scan Options
Handheld Rapid Scan for portable, rapid scanning
Handheld HD Scan for capturing objects with high accuracy (50 microns)

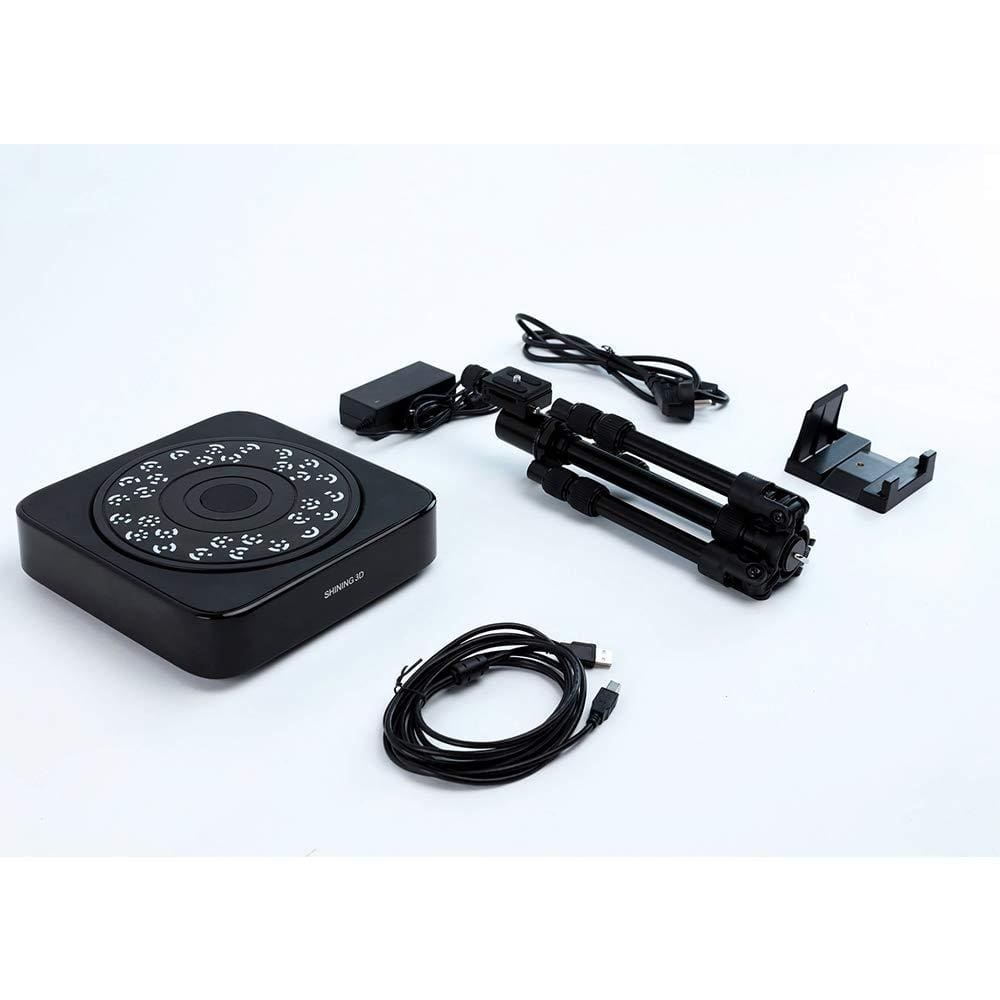

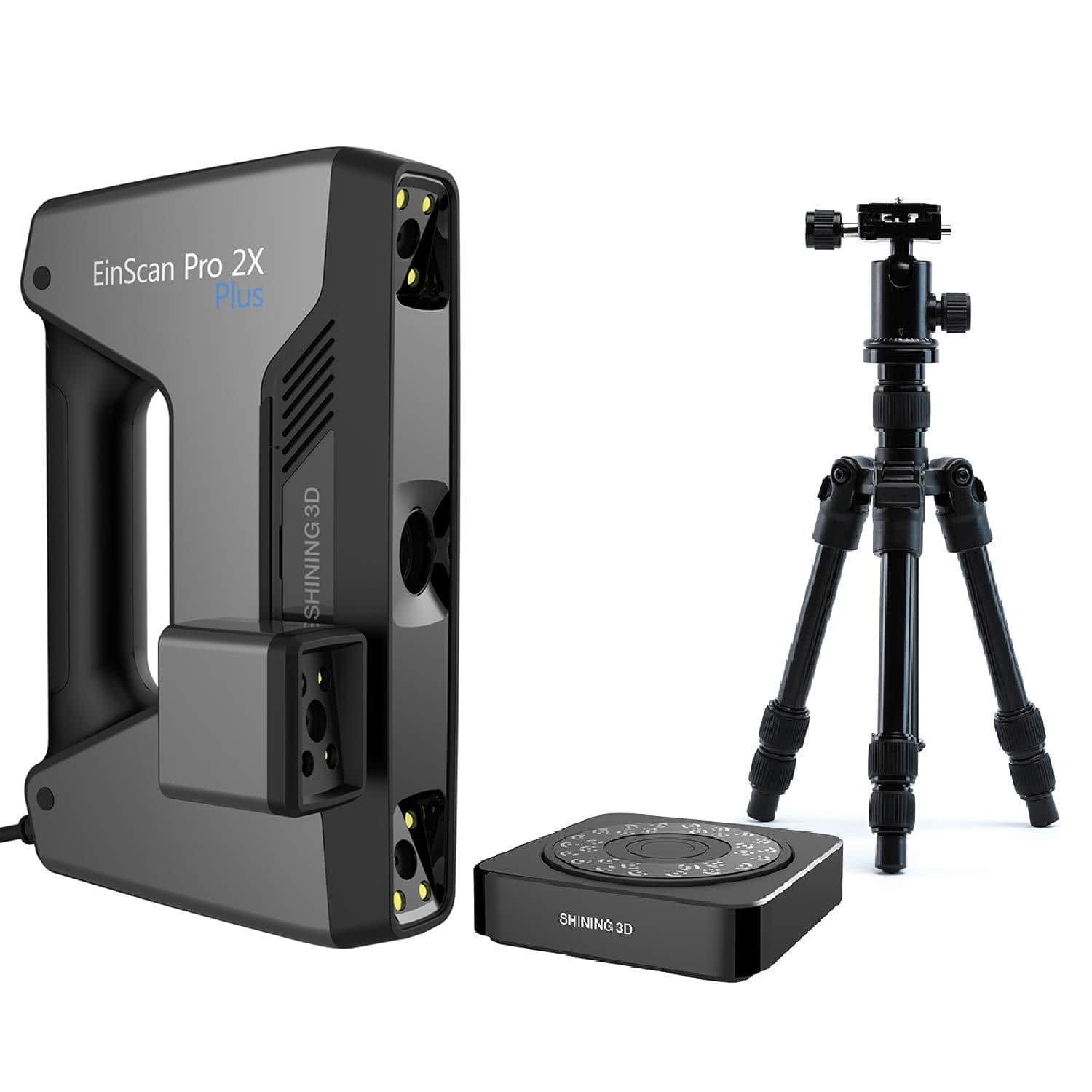

Fixed Scan with Turntable (Optional Industrial Pack - Tripod/Turntable required)
Fixed Scan without Turntable (Optional Industrial Pack - Tripod/Turntable required)
Powerful Software
Includes EXSCAN PRO scanning software, which features a new and improved user interface and workflow, and Solid Edge SHINING 3D Edition CAD software, a design tool from SIEMENS PLM Software that allows reverse engineering and design from scan data with the ability to export to Solidworks or other CAD programs.
Endless Applications

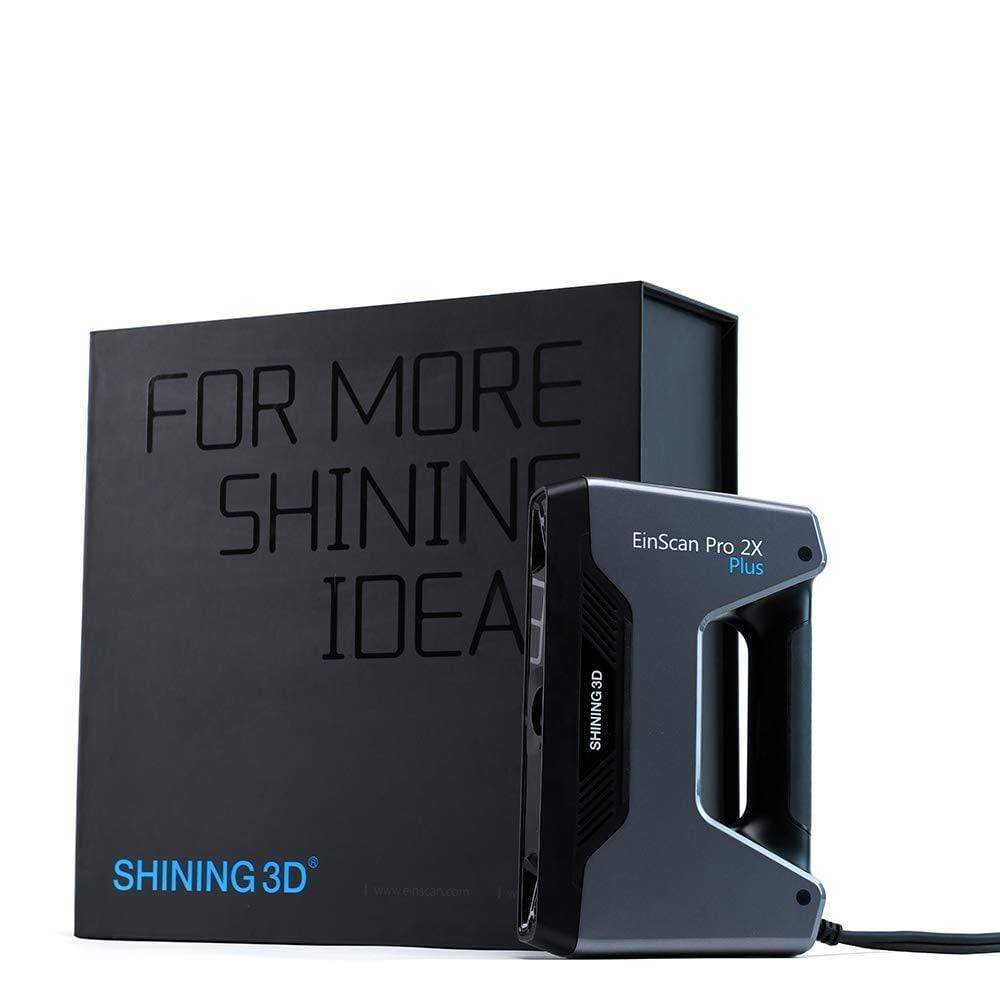

Use the EinScan Pro 2X Plus for high-quality reverse engineering, manufacturing, 3D modeling, customized products, scanning industrial parts, sculptures, artifacts, human bodies, healthcare, research, education, virtual displays, and more.
High Accuracy
Triangulation and structured light projection ensure high accuracy. The accuracy in fixed scan mode is 0.04mm,
Scan Small to Large
With handheld and fixed scan modes, and optional full-color texture scanning (Color Pack required), possibilities are practically endless.
High Speed
In handheld rapid scan mode, scan speed is 1,500,000 points per second (30 fps).

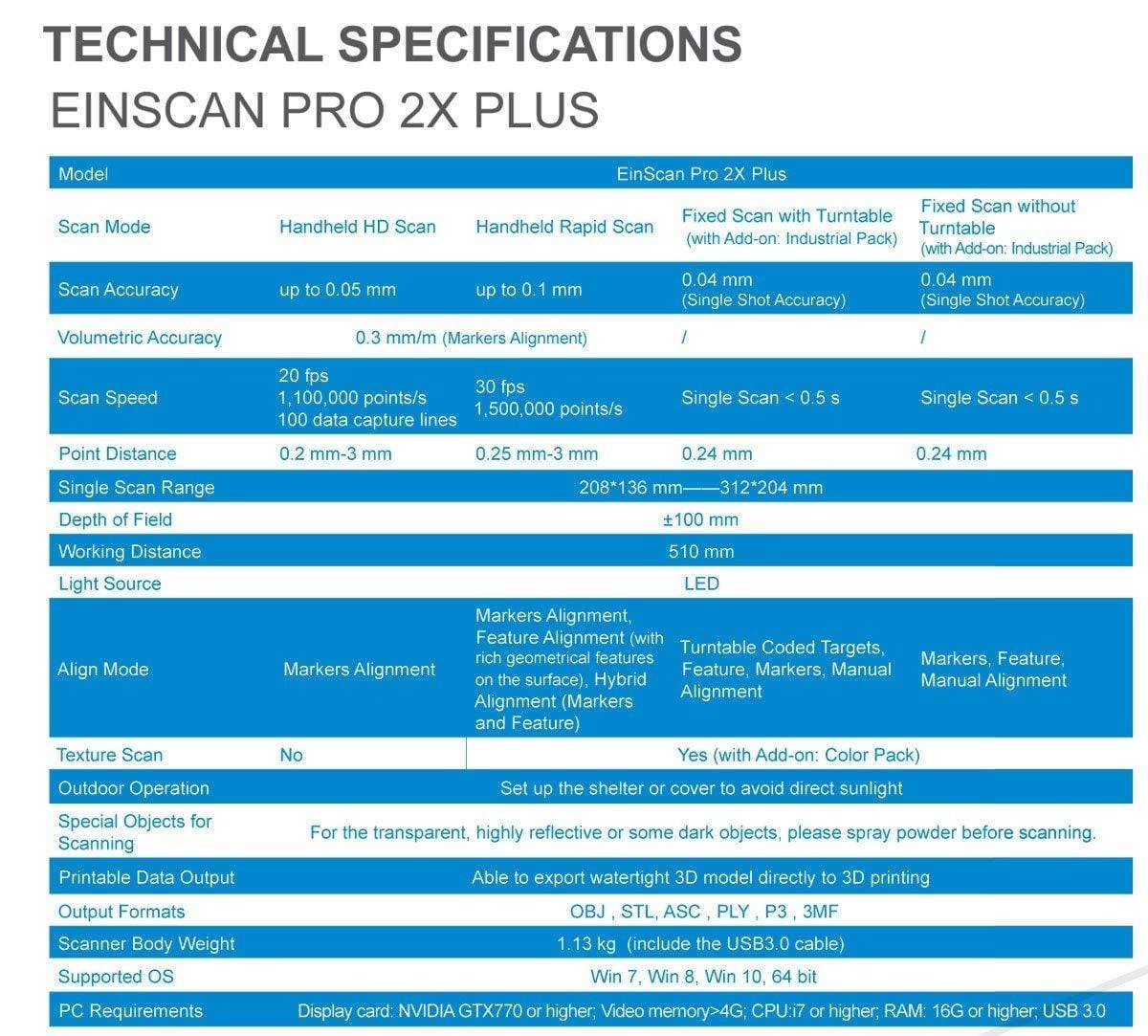

| Scan Mode | Handheld HD Scan | Handheld Rapid Scan | Fixed Scan with Turntable | Fixed Scan without Turntable |
| Scan Accuracy | up to 0.04mm | up to 0.1mm | Single Shot Accuracy: 0.04mm | |
| Volumetric Accuracy | 0.3mm/m (Markers Alignment) | / | / | |
| Scan speed | 20 fps (100,000 points/s - 7 data capture lines) | 30 fps (1,500,000 points/s) | Single scan: < 0.5s | |
| Point distance | 0.2mm-3mm | 0.25mm-3mm | 0.24mm | |
| Single scan range | 208*136mm - 312*204mm | |||
| Depth of Field | ±100mm | |||
| Working Distance | 510mm | |||
| Light source | LED | |||
| Align mode | Markers alignment | Markers Alignment, Feature Alignment (with rich geometrical features on the surface), Hybrid Alignment (Markers and Feature) | Turntable Coded Targets, Feature, Markers, Manual Alignment | Markers, Feature, Manual Alignment |
| Texture Scan | No | Yes (Color Pack required - sold separately) | ||
| Outdoor operation | Set up the shelter or cover to avoid direct sunlight | |||
| Special object scanning | For scanning transparent, highly reflective, or some dark objects, please spray powder before scanning | |||
| Printable data output | Able to export watertight 3D model directly to 3D printing | |||
| Output file format | OBJ , STL , ASC , PLY , P3 , 3MF | |||
| Scanner body weight | 1.13kg (includes the USB3.0 cable) | |||
| System support | Win7, Win8, Win10, 64bit | |||
| Display card | Display card: NVIDIA GTX770 or higher; Video memory>4G; CPU: i7 or higher; RAM: 16G or higher; USB 3.0 | |||
