Description

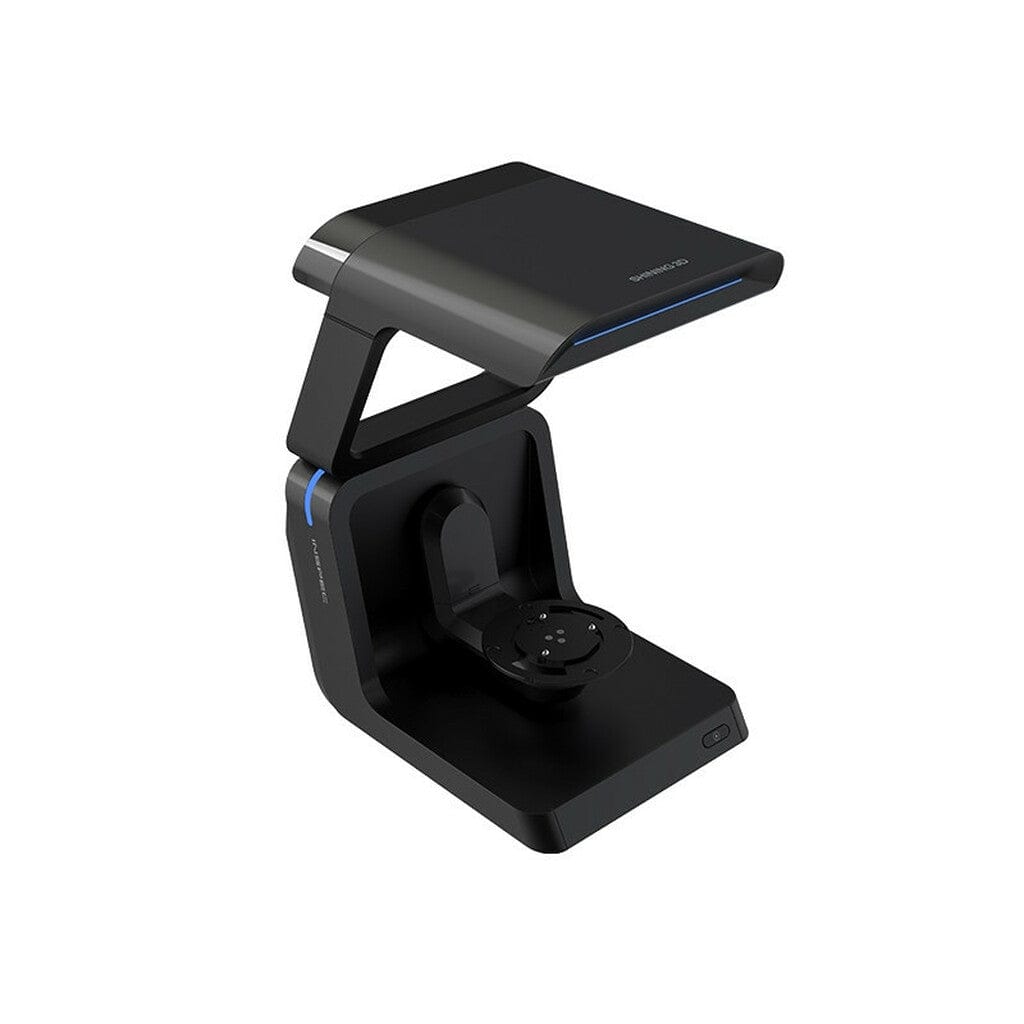

[custom_html]AutoScan Inspec is a fully automatic desktop 3D inspection scanner that innovates and integrates high-accuracy 3D scanning and 3D inspection. Featuring intuitive user interface, easy operation and AI intelligent scanning algorithm, AutoScan Inspec offers fully automatic scanning experience with metrology-grade accuracy and fine detail. Designed for scanning small and complex parts, AutoScan Inspec can be applied in inspection and quality control, reverse engineering, product design and more.
[/custom_html]
Features

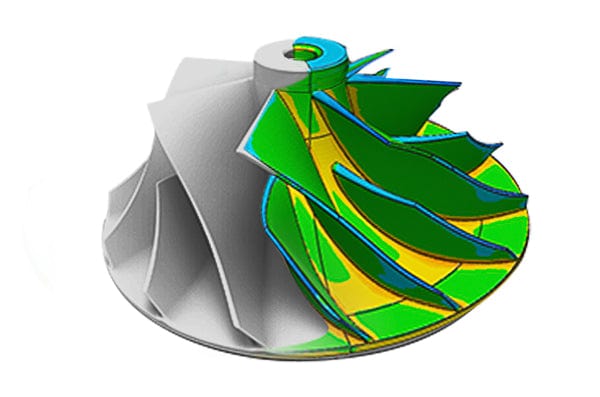

Metrology-grade Accuracy
Advanced blue-light 3D scanning technology brings users the scan accuracy within 10μm to ensure high level of accuracy required by quality inspection.

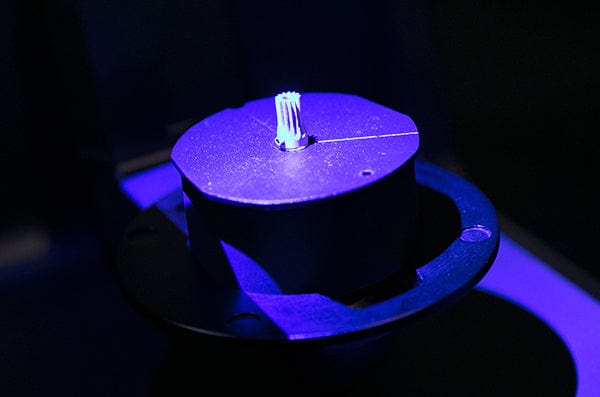

Automatic Scanning
As a fully automated desktop 3D scanner for 1-click scan, AutoScan Inspec features 3-axis for multi-angle scanning, enabling users to obtain 3D scans easily and rapidly.

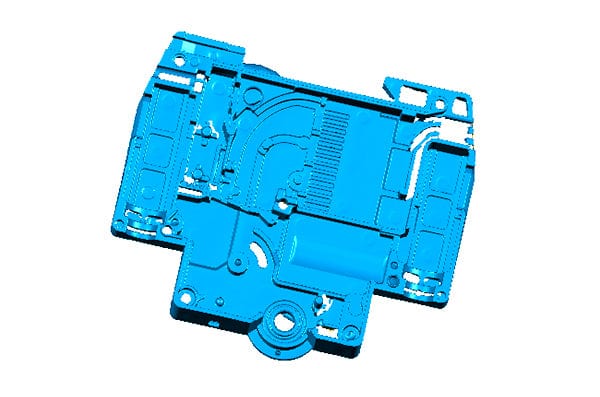

Fine Detail
Provides precisely detailed 3D scan for small and complex objects using dual-camera of 5 mega pixels.

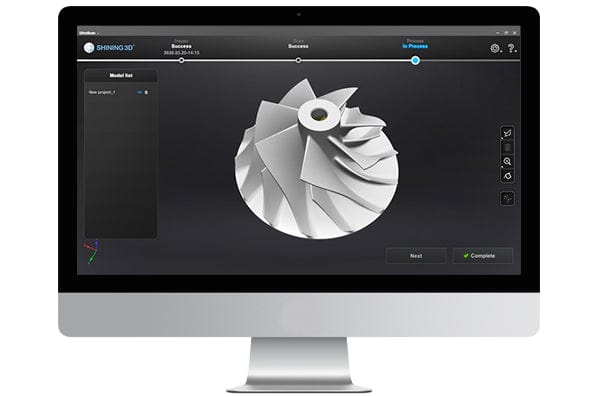

Powerful Software
The software Ultrascan is specially created by SHINING 3D for industrial application, featuring user-friendly interface and easy operation, which allows user to effortlessly. Export 3D data to CAD/CAM system such as Geomagic Control X, Design X, Zbrush, Polyworks and more.
Applications
- Non-Contact Measurement
- Inspection and Quality Control
- Reverse Engineering
- Product Design
Specifications
Scanning Area: 100*100*75mm
3D Scanning Style: Structured light 3D scanning
Accuracy: ≤10μm
Rotation Axis: 3 Axis
Camera Resolution: 2*5.0MP
Weight: 7.5kg
Working Temperature: 10°C~30°C
Power: DC24V
Output Format: STL
O/S: Windows 10, 64 bits
Light Source: Blue Light
