Autoscan Inspec

Shining3D
SKU: 6970163083698
$9,999.00 $11,999.00

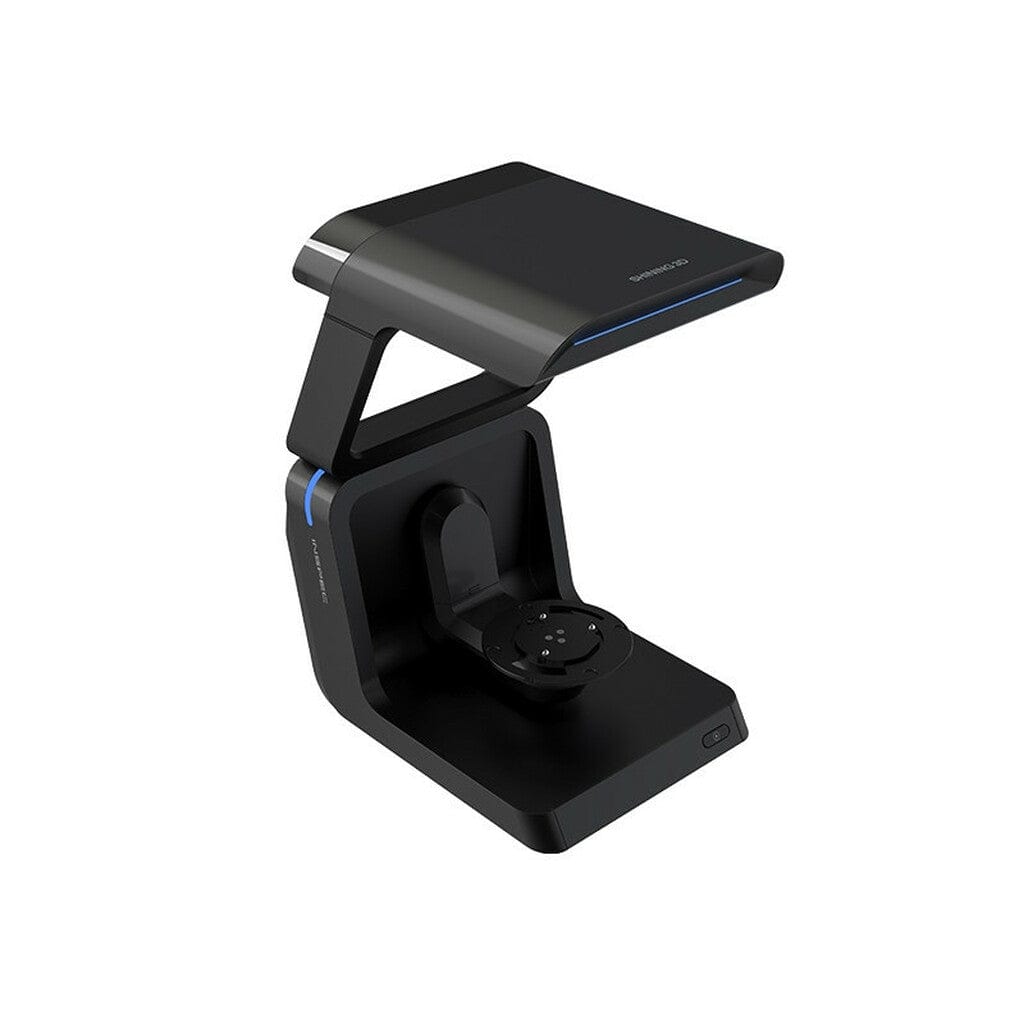

AutoScan Inspec is a fully automatic desktop 3D inspection scanner that innovates and integrates high-accuracy 3D scanning and 3D inspection. Featuring intuitive user interface, easy operation and AI intelligent scanning algorithm, AutoScan Inspec offers fully automatic scanning experience with metrology-grade accuracy and fine detail. Designed for scanning small and complex parts, AutoScan Inspec can be applied in inspection and quality control, reverse engineering, product design and more.

Download Brochure

QTY:

Features

Metrology-grade Accuracy

Advanced blue-light 3D scanning technology brings users the scan accuracy within 10μm to ensure high level of accuracy required by quality inspection.

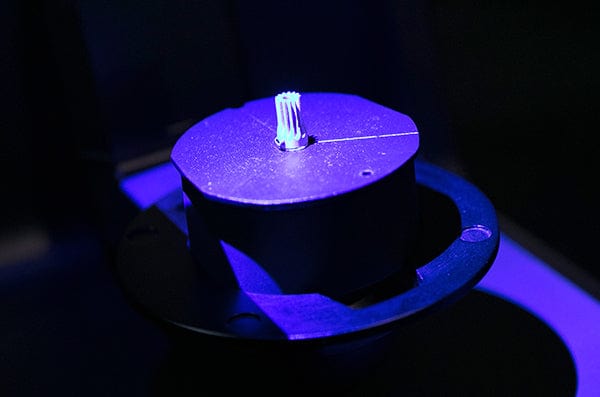

Automatic Scanning

As a fully automated desktop 3D scanner for 1-click scan, AutoScan Inspec features 3-axis for multi-angle scanning, enabling users to obtain 3D scans easily and rapidly.

Fine Detail

Provides precisely detailed 3D scan for small and complex objects using dual-camera of 5 mega pixels.

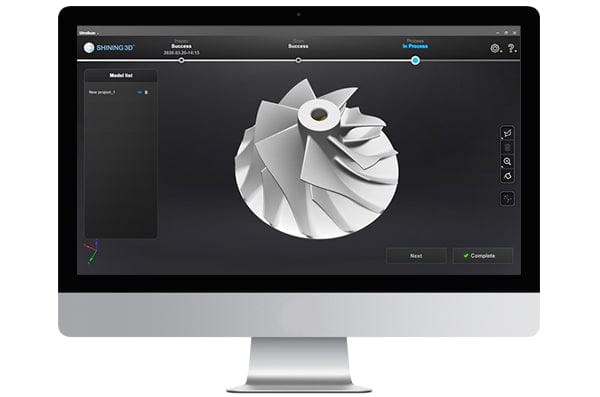

Powerful Software

The software Ultrascan is specially created by SHINING 3D for industrial application, featuring user-friendly interface and easy operation, which allows user to effortlessly. Export 3D data to CAD/CAM system such as Geomagic Control X, Design X, Zbrush, Polyworks and more.

Applications

  • Non-Contact Measurement
  • Inspection and Quality Control
  • Reverse Engineering
  • Product Design

Specifications

Scanning Area: 100*100*75mm

3D Scanning Style: Structured light 3D scanning

Accuracy: ≤10μm

Rotation Axis: 3 Axis

Camera Resolution: 2*5.0MP

Weight: 7.5kg

Working Temperature: 10°C~30°C

Power: DC24V

Output Format: STL

O/S: Windows 10, 64 bits

Light Source: Blue Light
