2. FreeScan Combo

Experience the cutting-edge capabilities of the FreeScan Combo and Combo+, handheld 3D scanners that bring together the best of both worlds. These compact powerhouses combines dual light sources, including blue laser and infrared VCSEL, all packed into an ultra-compact all-metal shell.

Key Features:

• Handheld Hybrid Blue Laser / Infrared VCSEL 3D Scanner

• Laser Lines: 26 (Combo), 50 (Combo+)
• Designed for Reflective and Black objects
• Easy to Scan Large Objects, small objects, and down holes
• Metrology-grade accuracy up to 0.02mm (0.0007")
• 0.01mm (0.00039") Maximum Resolution Point distance (details)

FreeScan Combo

$16,499.00

REQUEST A QUOTE

Standalone Scanner Includes:

- Freescan Combo Scanner

- Pelican-style Travel Case

- Freescan Scanning Software

Freescan Combo ExModel Bundle

$20,099.00

REQUEST A QUOTE

Everything with the scanner, plus:

ExModel PRO: Reverse Engineering Software for converting Scans to CAD files

FreeScan Combo+

$18,499.00

REQUEST A QUOTE

Standalone Scanner Includes:

- Freescan Combo+ Scanner

- Pelican-style Travel Case

- Freescan Scanning Software

Freescan Combo+ ExModel Bundle

$22,099.00

REQUEST A QUOTE

Everything with the scanner, plus:

ExModel PRO: Reverse Engineering Software for converting Scans to CAD files

Financing Options Available!

Email contact@visionminer.com and ask for a 60-second application :)


Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster

BEST FOR INSPECTION, REVERSE ENGINEERING

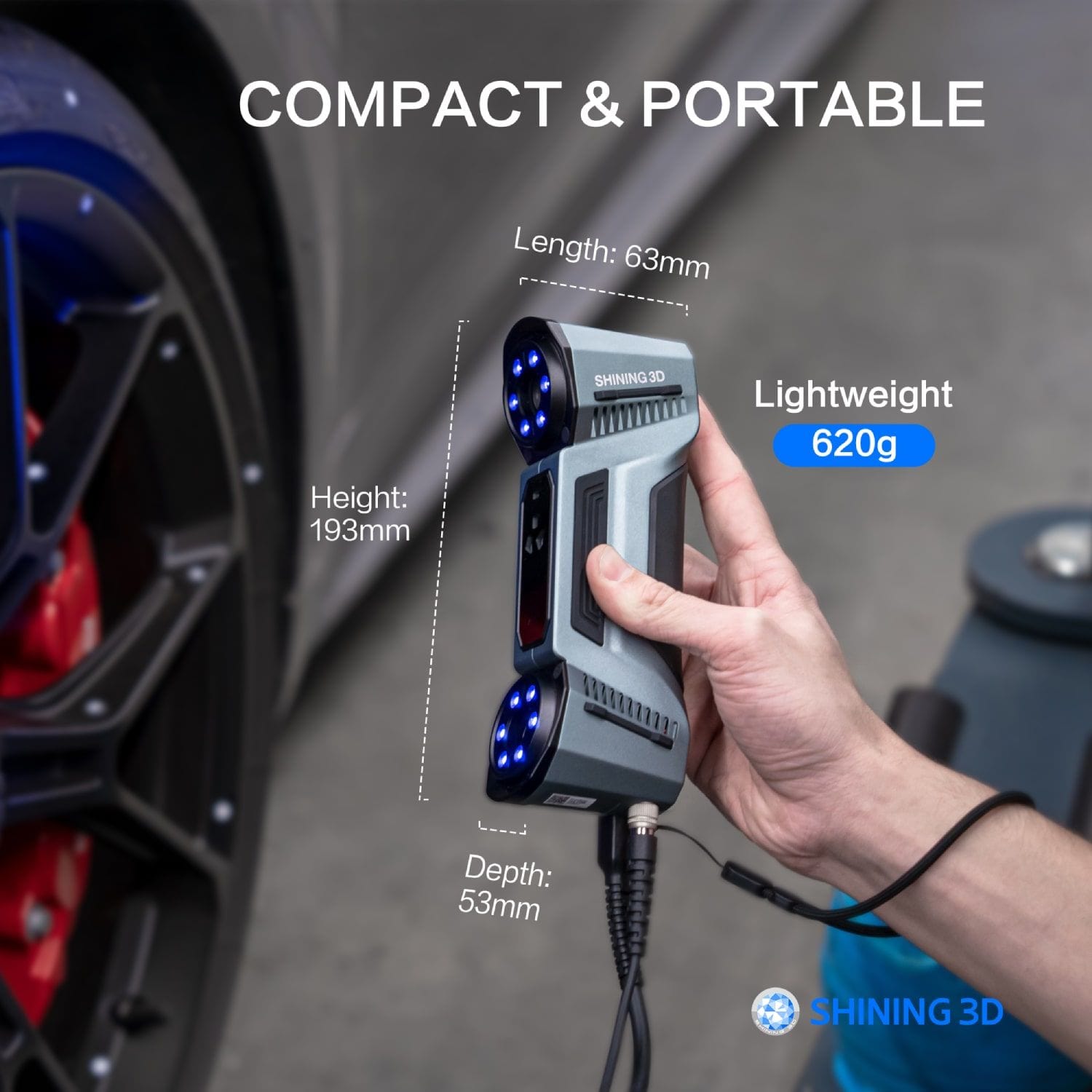

Experience the cutting-edge capabilities of the FreeScan Combo and Combo+,  handheld 3D scanners that bring together the best of both worlds. Our favorite scanners of the bunch, they combine dual light sources, including blue laser and infrared VCSEL, all packed into an ultra-compact shell measuring just 7.6" x 2.5" x 2" (193x63x53mm). Weighing in at a mere 1.3lbs (620g), it's a true lightweight champion.
Poster

Quick Links:

Quick Start Guide

Product Brochure

User Manual

Warranty Options

Software Download

Scan File Download

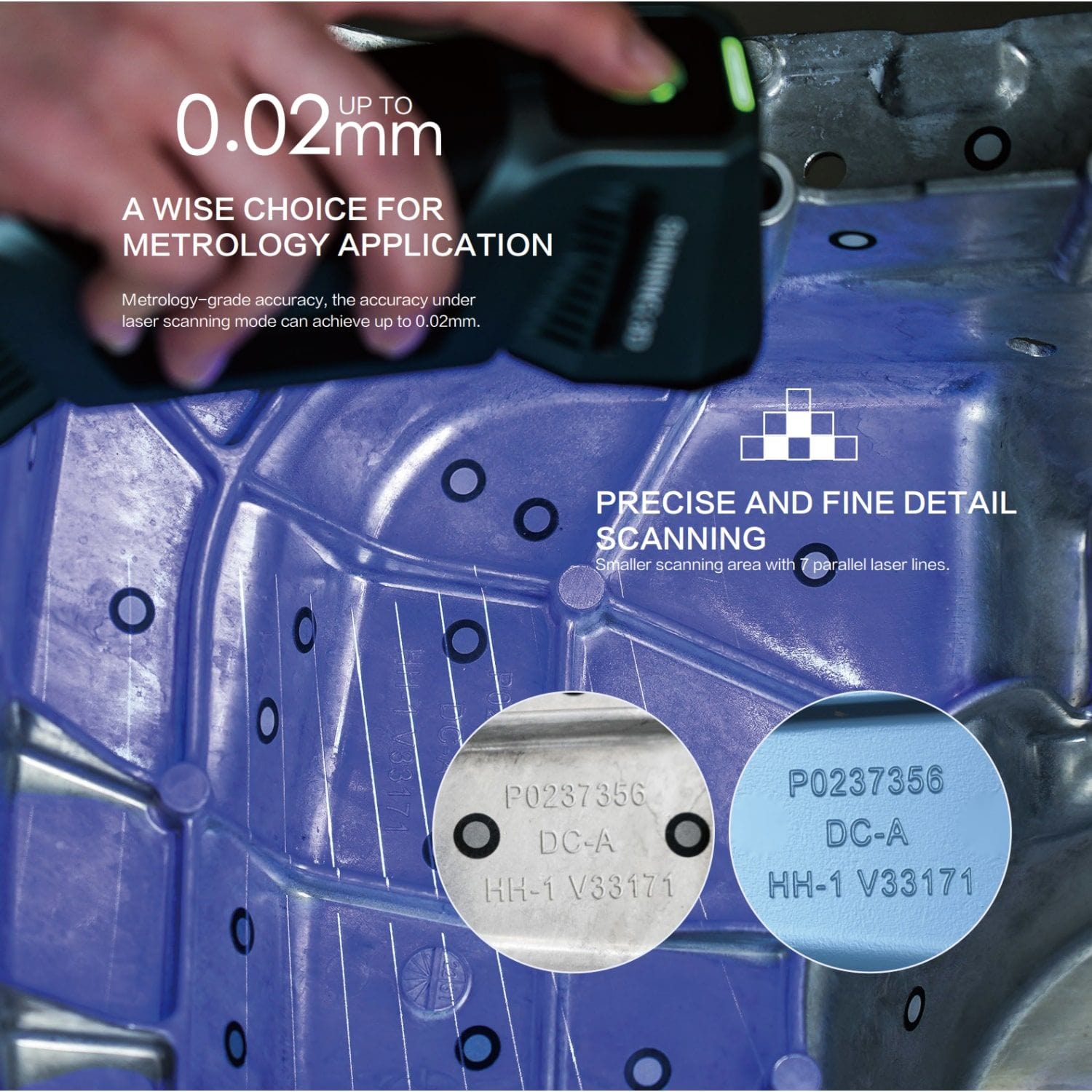

Metrology-Grade Accuracy

Achieve metrology-level scanning precision with an accuracy of up to 0.02mm (0.0007"), enabling you to not only reverse engineer, but inspect your parts. Combine with a license for Geomagic Design X or Control X, and automate your inspection process and reports for hundreds of parts, all in a single click.

Markerless Scanning Modes

Enjoy the efficiency of scanning complex objects without the need for markers, thanks to the FreeScan Combo's advanced scanning technology and Infrared VSCEL mode -- tracking features, instead of markers, it makes quick work of larger objects, people, and anything with a lot of geometric features. This means you won't have to spend time putting tons of markers all over your parts, every time, unlike some other scanners on the market.

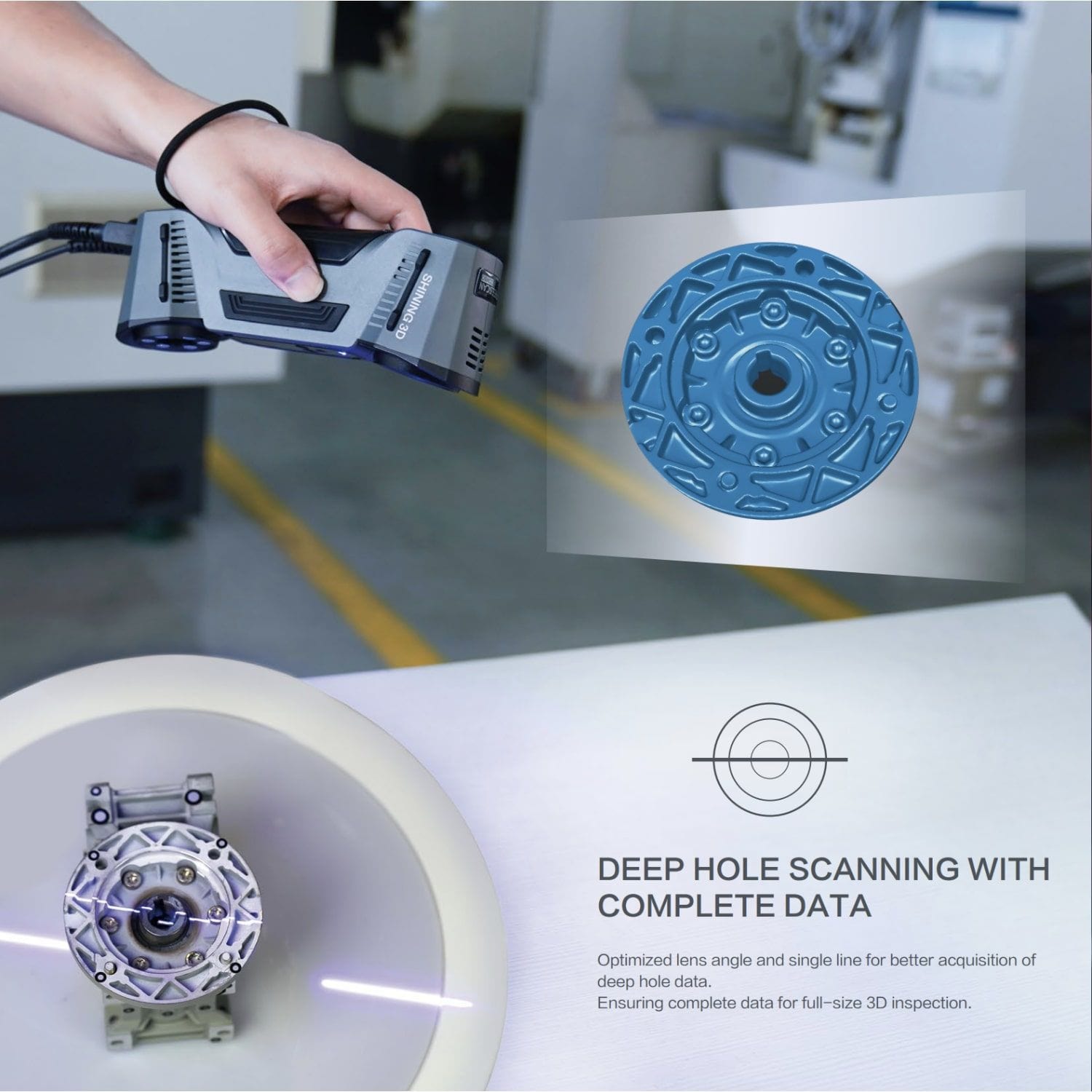

Deep Hole Data Acquisition

Capture detailed information from deep holes effortlessly with optimized lens angles and scanning capabilities of the FreeScan Combo. One of the biggest challenges is getting down into holes, in something like an engine block, or casting mold -- the single laser line changes that, making it EASY to get data that was previously impossible to capture.

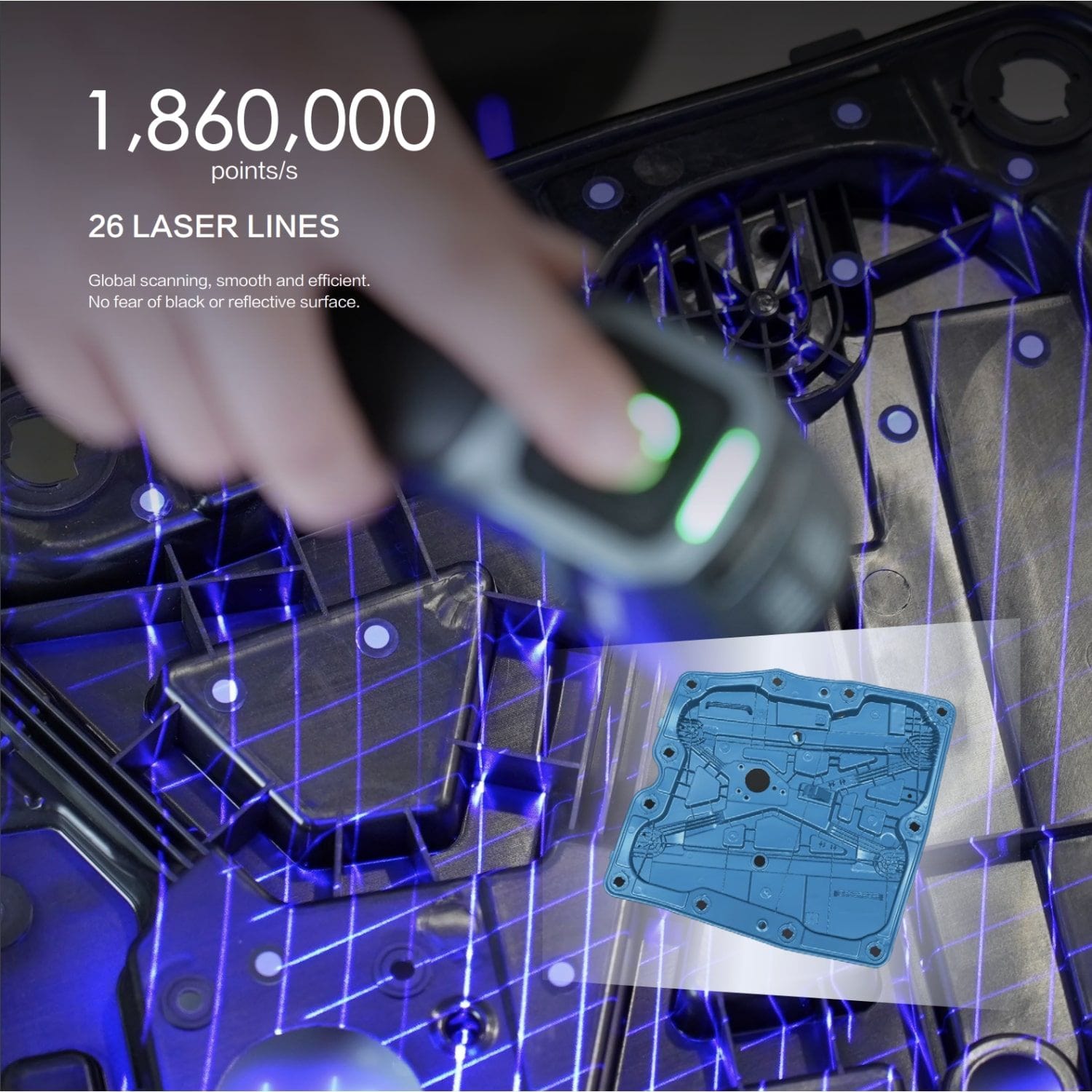

High Speed

Scanning at over 55 fps+ (we've seen 120fps), 1,860,000 (3,600,000 on Combo+) points per second, this scanner has the fastest data acquisition of all our scanners - by far. That means you'll spend less time gathering points, and more time working with the data you wanted in the first place.

Reliable and Durable

Trust in the FreeScan Combo's robust construction, built to withstand rigorous scanning tasks while maintaining accuracy and longevity.

Unlimited 3D Scanning Applications

Explore a wide range of scanning applications across various industries, including inspection, reverse engineering, and product design. Motorsports, Watersports, interior design & woodworking, reverse-engineering entire products, you name it -- the Freescan will do it.

EXAMPLE SCAN FILES

Download these files to check out the resolutions possible on the Scanner!

Import them into your Mesh software, or CAD software, like Fusion 360 or Solidworks, and take a look!

Some files contain just an STL, others contain the full ASC data and other files.

SEE MORE SCAN FILES (Google Drive)

Body Scan (Alonso)

Download Files

Tesla Cybertruck

Download Files

High Detail Valve Cover 0.05mm resolution

Download Files

Body Scan (Cole)

Download Files

High Detail Valve Cover (section)

Download Files

Helicopter Oxygen Key

Download Files
FreeScan Combo Shining3D 3D Scanner
FreeScan Combo Shining3D 3D Scanner
FreeScan Combo Shining3D 3D Scanner
FreeScan Combo Shining3D 3D Scanner
FreeScan Combo Shining3D 3D Scanner
FreeScan Combo Shining3D 3D Scanner
FreeScan Combo Shining3D 3D Scanner

REQUEST A QUOTE

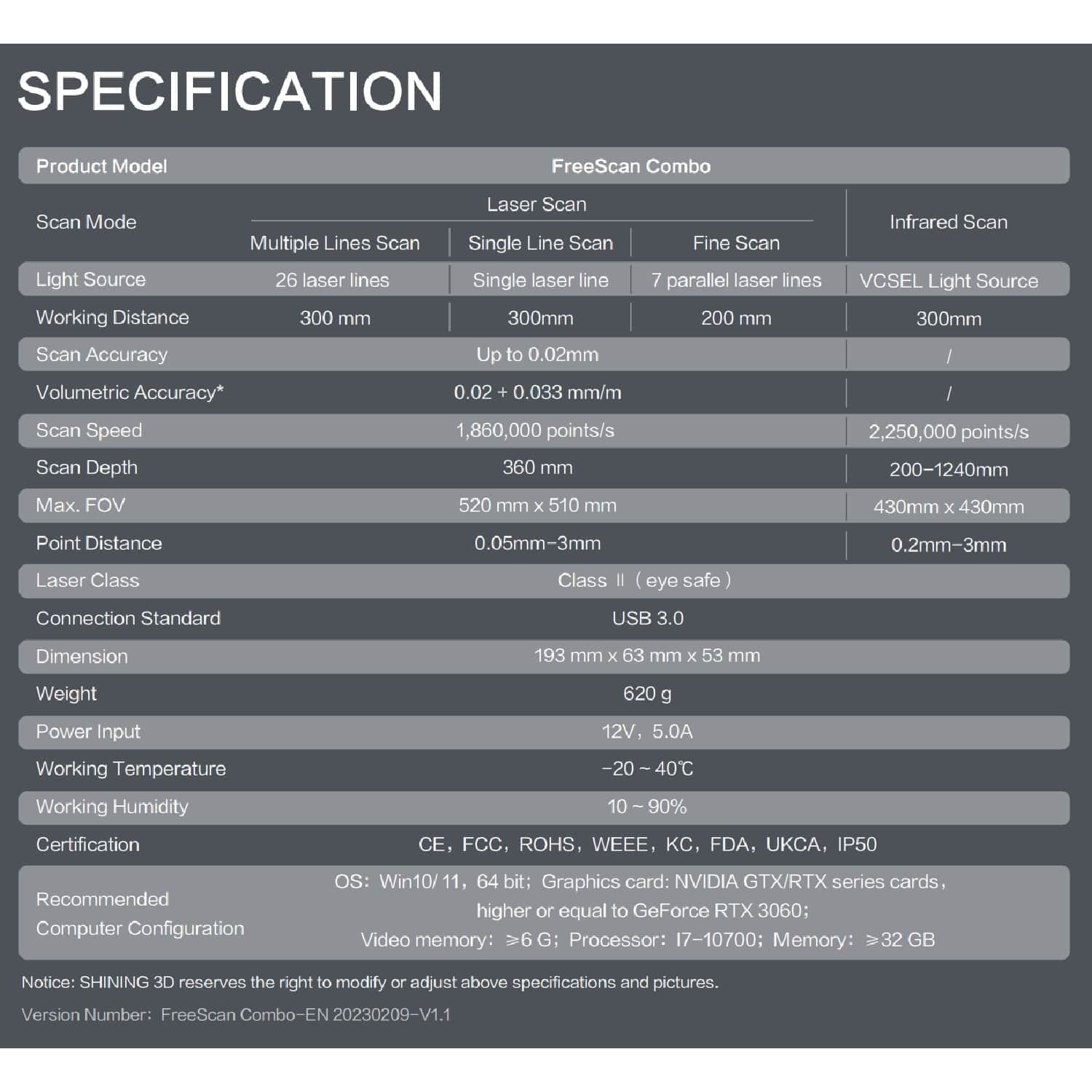

Detailed Specifications (Freescan Combo/Combo+)

Scan Mode

VCSEL Infrared Scan

Laser Scan

Scan Accuracy

Up to 0.05 mm

Up to 0.02 mm

Volumetric Accuracy*

0.05+0.1mm/m

0.02 + 0.033 mm/m

Point Distance

0.1 mm - 3 mm

0.05 mm - 3 mm
0.01-0.04mm partial-HD mode

Light Source

Infrared Light, Invisible

Blue Lasers
13 (26) cross blue laser lines for global smooth scanning;

25 (50) cross blue laser lines on Combo+;

7 parallel blue laser lines for fine scanning details;

1 single blue laser line to obtain deep hole data;

Scan & Align Speed

120FPS+

120FPS+ (this thing is incredibly fast)
1,860,000 points/s
3,600,600 points/s (Combo+)

Align Modes

Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment

Markers Alignment

Scan Depth

Maximum 1240 mm

360 mm

Maximum FOV

520 mm x 510 mm

600mm x 600 mm

Texture Scan

No

No

Safety

Infrared light (eye-safe)

Class Ⅱ (eye safe) Laser

Output Formats

OBJ; STL; ASC; PLY; P3 ; 3MF

Built-in Color Camera

No

Dimensions

193x63x53mm (7.6" x 2.5" x 2")

Scanner Body Weight

620g

Operating Temperature Range

-20 ~ 40ºC

Operating Humidity Range

10-90%

Supported OS

Windows 10/11 (64bit)

Recommended Configuration

OS: Win10/11, 64bit;

Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060;

Video memory : ≥ 6G;

Proccesor: I7-10700;

Memory: ≥ 32GB

Recommended Minimum Specs

Intel Core i7-8700 or higher processor

NVIDIA GTX/RTX series cards, higher or equal to GTX 1080

4 GB minimum VRAM and 32 GB minimum RAM

USB 3.0 connection

Power Input

12V , 5.0A

Warranty

1 Year Manufacturer Warranty

Certification

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
