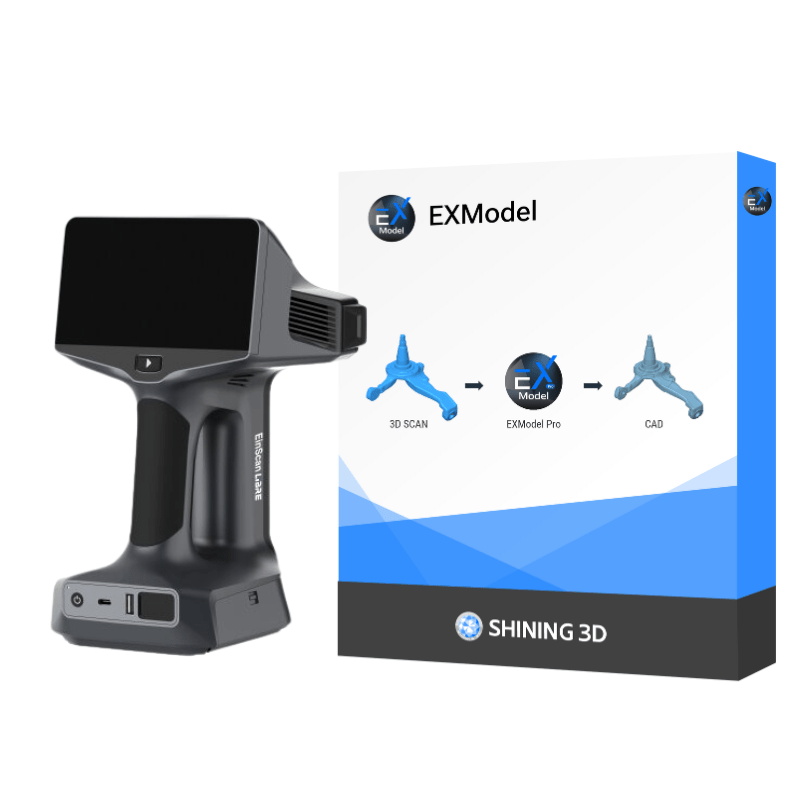

  • Einscan Libre ExModel Bundle

Shining 3D · All-in-one laser 3D scanner

EinScan Libre

Wireless, markerless and full color, with an NVIDIA Jetson computer and a touchscreen built in. 101 blue laser lines for detail, two infrared modes for big objects and shiny surfaces, and a 48MP camera for color. Scan and mesh on the device, indoors or out in direct sun.

0.04 + 0.06 mm/m volumetric accuracy

101 blue laser lines, no markers

NVIDIA Jetson Orin NX + 1TB on board

48MP color camera

Order your scanner

EinScan Libre

101 laser lines · 38 IR lines · 4.5M pts/s · 48MP color.

$28,999

$25,999.00

As low as $581/mo with APPROVE ›

Finance it

Libre + EXModel

The scanner plus EXModel reverse-engineering software. Pick your license:
$26,539.00

As low as $593/mo with APPROVE ›

Finance it

See it scan your part first. We'll run it on your part over live video, or hands-on at our shop in Santa Ana, CA.

Book a demo

US support from people who scan · 833-774-6863  ·  Financing available  ·  POs accepted  ·  Libre or Rigil?

Not ready to buy yet?

Book a live demo ›

Libre brochure ›

Sample scan files ›

Send this page to your team ›

0.04mm

Volumetric accuracy

+ 0.06 mm/m, laser mode

4.5M

Points / second

Laser HD mode

101

Blue laser lines

Markerless, with texture alignment

48MP

Color camera

Lifelike texture, captured with the scan

Why Libre

Everything in one hand. Nothing on a cable.

Libre is for the jobs where a laptop and cables get in the way: boat fly bridges, job sites, museums, heavy equipment. The computer, screen and batteries are in the scanner, the laser doesn't need markers, and the color is good enough for heritage work.

Standalone

No laptop. No cable. No cart.

A 5.5-inch touchscreen, an NVIDIA Jetson Orin NX (8-core CPU, 1024 CUDA cores) and a 1TB SSD are built into the scanner. Scan, mesh and export STL, OBJ, ASC or LAS on the device. Batteries slide into a charging dock, so a fresh one is always ready.

5.5" touchscreen

NVIDIA Jetson Orin NX 16GB

1TB SSD

Hot-swap batteries

Laser HD · 101 lines

Markerless laser detail, in color.

101 blue laser lines scan down to 0.05mm and track off the part's geometry and texture, so most parts need no markers. That's where the 0.04 + 0.06 mm/m volumetric accuracy comes from.

IR Rapid

Big objects, out in the sun.

Invisible, eye-safe infrared covers objects from 0.1m to over 10m, with up to 1.5m of working distance and a 983 × 979mm field of view. It doesn't mind direct sunlight.

IR Adaptive · 38 IR lines

Black and shiny, handled.

38 infrared laser lines are tuned for reflective and black surfaces that trip up other scanners. This mode tracks with markers.

48MP color

Color that holds up

Lifelike texture for heritage, art and visualization.

Optional

Field backpack

Shining 3D's backpack carries the scanner, batteries and calibration boards. Ask us about it.

Scale bar + photogrammetry

Accuracy on big parts

The validated scale bar verifies markers in real time to hold accuracy on large scans.

In the box, not on a bill

Scan to mesh, on the scanner.

Libre's software runs on the device with no subscription. Generate a mesh with one tap, clean it up on screen and export. Connect to a PC when you want to fuse scans or edit on a big screen.

Included · on-device + PC software

No subscription. No per-scan fees.

On-device scanning and meshing, plus PC software for fusing scans and measuring.

Data quality indicator

Blue means enough data, yellow means scan it again.

Range indicator

A projected green box shows exactly what's being scanned.

Change resolution mid-project

Adjust resolution without starting a new scan.

Multi-resolution fusion

Combine scans from different modes on the PC.

WORKS WITH:  EXModel · Geomagic Design X · BlueStar Mapping · Geomagic Control X

Need inspection reports or editable CAD?

See software options ›

See it scan

Watch it work

Our Libre reviews and real jobs: a full workflow, a Toyota 4Runner and the unboxing.

Alt image

EinScan Libre: everything you need to know
Alt image

First look and hands-on review

Alt image

Scanning a Toyota 4Runner

Alt image

Full scanning workflow on complex parts

Alt image

Unboxing: what you get

Spin a real scan

Download sample scan files ›
EinScan Libre · sculpture, full color
EinScan Libre · porcelain painting, full color

More scanner reviews and workflows on

Vision Miner 3D Scanning ›

Which one?

Libre vs. Rigil

Both are all-in-one and wireless, with the same 0.04mm volumetric accuracy. Rigil is the value pick for reverse engineering. Libre adds 101 laser lines, an IR mode for shiny surfaces, an NVIDIA computer, a 48MP color camera and hot-swap field kit for full-color work, big objects and all-day use away from the shop.



Libre

Standalone · full color

Rigil

Reverse engineering

Price

$25,999

$4,999

Volumetric accuracy

0.04 + 0.06 mm/m

0.04 + 0.06 mm/m

Blue laser lines

101

25+25 crossed + 7 parallel

IR modes

IR Rapid + IR Adaptive (38 lines)

IR

Laser scan speed

4.5M pts/s

4.8M pts/s

Color camera

48MP

5MP

On-board computer

NVIDIA Jetson Orin NX · 1TB

8-core · 32GB · 1TB

Screen

5.5" touchscreen

6.4" 2K touchscreen



$25,999.00

See Rigil ›

Full specifications · EinScan Libre

Spec

Laser HD

IR Rapid / IR Adaptive

Volumetric accuracy

Up to 0.04 + 0.06 mm/m

Light source

101 blue laser lines

IR VCSEL (Rapid) · 38 IR laser lines (Adaptive)

Resolution (point distance)

0.05 – 3.0 mm

0.5 – 10 mm

Scan speed

Up to 4,500,000 points/s

—

Max. field of view

—

Up to 983 × 979 mm (IR Rapid)

Working distance

—

Up to 1.5 m

Object size

From ~5 cm

Up to 10 m+ (more with scan alignment)

Alignment

Features, texture, hybrid, markers, global markers

Color camera

48MP

Computer

NVIDIA Jetson Orin NX 16GB · 8-core CPU · Ampere GPU, 1024 CUDA cores · 1TB SSD

Screen

5.5" touchscreen

Power

Rechargeable, hot-swap batteries with charging dock

Output formats

STL, OBJ, ASC, LAS

Full specs are in the Libre brochure.

Libre brochure (PDF)

Sample scan files

Warranty options

Open it, scan it

What shows up at your door

What's in the box

Standard with every EinScan Libre

EinScan Libre scanner

✓

Pelican-style rolling travel case

✓

Hot-swap batteries

2

Smart battery charger

✓

100W USB-C wall charger + cable

✓

Calibration bar + 6 calibration marker boards

✓

Cat 7 network cable (PC transfer)

✓

USB-C cable

✓

Reflective markers

Thousands

Velcro straps

✓

USB drive (software + manual)

✓

Quick start guide + calibration certificate

✓

No laptop needed

The computer is in the scanner

Scan, mesh and export on the Libre itself. Plug into a PC when you want to fuse scans from different modes, measure or edit on a big screen.

It ships in a rolling Pelican-style case that fits in an overhead bin, so it travels to the job with you.

Magnetic scanning pyramids + a can of AESUB Blue, on us

Every scanner we ship includes a set of our magnetic scanning pyramids (stick markers on them and set them around the part for tracking, no stickers on the part itself) and a can of AESUB Blue, the spray that disappears on its own. It's our little bundle, and you only get it here.

Pyramids ›

AESUB Blue ›

Frequently asked questions

Before you buy

Buy it from people who scan

We've sold and supported Shining 3D scanners since 2019. When you call, the person who picks up has scanned with one.

01

Shining 3D partner since 2019

We sell and support the whole Shining 3D and Einstar lineup, from hobby scanners to metrology systems.

02

Real people, here in America

No scripted AI auto-attendant. 833-774-6863 · contact@visionminer.com

03

Financing, POs, warranty

60-second financing application, formal quotes for POs, and extended warranty options.

Quick answers

Libre or Rigil?

Rigil if you're reverse engineering parts in the shop and want the best value. Libre if you need 48MP color, big objects in the field, a dedicated mode for shiny surfaces, or all-day scanning away from a power outlet.

What's the smallest and largest part it can scan?

Laser HD handles parts down to about 5cm. IR mode covers objects up to 10m, and more if you align multiple scans.

Which scan mode should I use?

Under a meter or so: Laser HD for detail, with no markers. Bigger objects: IR Rapid. Black or reflective surfaces: IR Adaptive, which tracks with markers.

Do I need a computer?

No. Scanning, meshing and export happen on the scanner. A PC is optional for fusing scans and editing.

Does it work outdoors?

Yes. IR Rapid is designed to cope with direct sunlight, and there's no laptop to keep out of the dust.

Can I turn a scan into a CAD model?

Yes. EXModel and Geomagic Design X both take Libre data. See software options.

Can I see it scan my part first?

Yes. Book a live video demo and we'll scan your part (ship it to us or show it on camera), or bring it to our shop in Santa Ana, CA. You walk away with the scan data and a straight answer, even if that answer is a cheaper scanner.

Can I finance it or buy on a PO?

Yes. Click Finance it for a 60-second application, or email contact@visionminer.com. Need a formal quote for a PO? Request one here.

Standalone, full color

Take the whole scanner to the job.

EinScan Libre, $25,999 (was $28,999).

Book a demo

Finance it

Round out your setup

Software, training and supplies

Not needed to start scanning. Add them when the job calls for it.

Geomagic software

Turn scans into CAD and inspection reports.

The scanner gives you a mesh. Geomagic turns it into a parametric model you can edit, or a color map and report QA can sign. We sell it, set it up and train your team on it.

Geomagic Design X Go

Scan to editable CAD for SOLIDWORKS, Fusion or Inventor.

$1,900/yr or $3,992 ›

Geomagic for SOLIDWORKS

Reverse engineer right inside SOLIDWORKS.

$2,739/yr or $8,301 ›

Control X Essentials

Compare scan to CAD: color maps, GD&T and reports.

$2,390/yr or $7,249 ›

Inspection

Scan to report

Geomagic Control X (full)

$16,727

All 3D software

›

Reverse engineering

Scan to CAD

Geomagic Design X Plus

$12,710

EXModel

from $1,900

Training

Learn it on your parts

Shining 3D scanner training

$1,500

Geomagic training

from $1,750

Supplies

Markers & spray

Markers & accessories

from $29

AESUB scanning sprays

from $39.50

Not sure what you need? Call 833-774-6863 and we'll tell you what's worth it for your parts, and what isn't.
