Experience the cutting-edge capabilities of the FreeScan Combo and Combo+, handheld 3D scanners that bring together the best of both worlds. These compact powerhouses combines dual light sources, including blue laser and infrared VCSEL, all packed into an ultra-compact all-metal shell.
Standalone Scanner Includes:
- Freescan Combo Scanner
- Pelican-style Travel Case
- Freescan Scanning Software
Everything with the scanner, plus:
ExModel PRO: Reverse Engineering Software for converting Scans to CAD files
Standalone Scanner Includes:
- Freescan Combo+ Scanner
- Pelican-style Travel Case
- Freescan Scanning Software

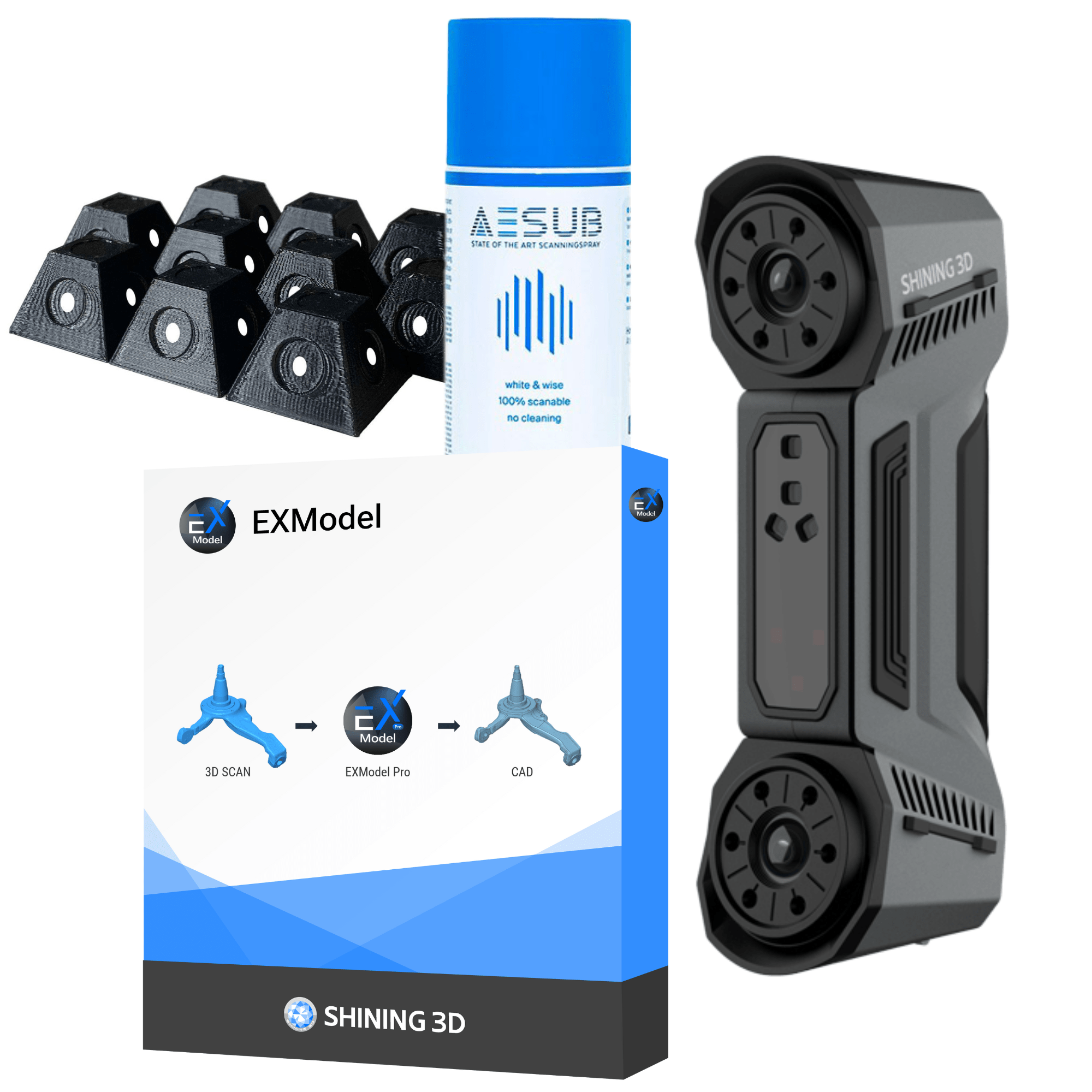

RED Bundle Includes
- Everything from the Combo+
- ExModel Reverse engineering software
Experience the cutting-edge capabilities of the FreeScan Combo and Combo+, handheld 3D scanners that bring together the best of both worlds. Our favorite scanners of the bunch, they combine dual light sources, including blue laser and infrared VCSEL, all packed into an ultra-compact shell measuring just 7.6" x 2.5" x 2" (193x63x53mm). Weighing in at a mere 1.3lbs (620g), it's a true lightweight champion.
Metrology-Grade Accuracy
Achieve metrology-level scanning precision with an accuracy of up to 0.02mm (0.0007"), enabling you to not only reverse engineer, but inspect your parts. Combine with a license for Geomagic Design X or Control X, and automate your inspection process and reports for hundreds of parts, all in a single click.
Markerless Scanning Modes
Enjoy the efficiency of scanning complex objects without the need for markers, thanks to the FreeScan Combo's advanced scanning technology and Infrared VSCEL mode -- tracking features, instead of markers, it makes quick work of larger objects, people, and anything with a lot of geometric features. This means you won't have to spend time putting tons of markers all over your parts, every time, unlike some other scanners on the market.
Deep Hole Data Acquisition
Capture detailed information from deep holes effortlessly with optimized lens angles and scanning capabilities of the FreeScan Combo. One of the biggest challenges is getting down into holes, in something like an engine block, or casting mold -- the single laser line changes that, making it EASY to get data that was previously impossible to capture.
Unlimited 3D Scanning Applications
Explore a wide range of scanning applications across various industries, including inspection, reverse engineering, and product design. Motorsports, Watersports, interior design & woodworking, reverse-engineering entire products, you name it -- the Freescan will do it.
High Speed
Scanning at over 55 fps+ (we've seen 120fps), 1,860,000 (3,600,000 on Combo+) points per second, this scanner has the fastest data acquisition of all our scanners - by far. That means you'll spend less time gathering points, and more time working with the data you wanted in the first place.
Reliable and Durable
Trust in the FreeScan Combo's robust construction, built to withstand rigorous scanning tasks while maintaining accuracy and longevity.
Body Scan (Alonso)
Body Scan (Cole)
Tesla Cybertruck
High Detail Valve Cover (section)
High Detail Valve Cover 0.05mm resolution (2)
Helicopter Oxygen Key
Special Request?
Standalone Scanner Includes:
- Freescan Combo Scanner
- Pelican-style Travel Case
- Freescan Scanning Software
Everything with the scanner, plus:
ExModel PRO: Reverse Engineering Software for converting Scans to CAD files
Standalone Scanner Includes:
- Freescan Combo+ Scanner
- Pelican-style Travel Case
- Freescan Scanning Software
Software Bundle Includes
- Everything from the Combo+
- ExModel Reverse engineering software
Scan Mode
VCSEL Infrared Scan
Laser Scan
Scan Accuracy
Up to 0.05 mm
Up to 0.02 mm
Volumetric Accuracy*
0.05+0.1mm/m
0.02 + 0.033 mm/m
Point Distance
0.1 mm - 3 mm
0.05 mm - 3 mm
0.01-0.04mm partial-HD mode
Light Source
Infrared Light, Invisible
Blue Lasers
13 (26) cross blue laser lines for global smooth scanning;
25 (50) cross blue laser lines on Combo+;
7 parallel blue laser lines for fine scanning details;
1 single blue laser line to obtain deep hole data;
Scan & Align Speed
120FPS+
120FPS+ (this thing is incredibly fast)
1,860,000 points/s
3,600,600 points/s (Combo+)
Align Modes
Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment
Markers Alignment
Scan Depth
Maximum 1240 mm
360 mm
Maximum FOV
520 mm x 510 mm
600mm x 600 mm
Texture Scan
No
No
Output Formats
OBJ; STL; ASC; PLY; P3 ; 3MF
Safety
Infrared light (eye-safe)
Class Ⅱ (eye safe) Laser
Built-in Color Camera
No
Dimensions
193x63x53mm (7.6" x 2.5" x 2")
Scanner Body Weight
Operating Temperature Range
-20 ~ 40℃
Operating Humidity Range
10-90%
Supported OS
Windows 10/11 (64bit)
Recommended Configuration
OS: Win10/11, 64bit;
Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060;
Video memory : ≥ 6G;
Proccesor: I7-10700;
Memory: ≥ 32GB
Recommended minimum specs:
- Intel Core i7-8700 or higher processor
- NVIDIA GTX/RTX series cards, higher or equal to GTX 1080
- 4 GB minimum VRAM and 32 GB minimum RAM
- USB 3.0 connection
Power Input
12V , 5.0A
Warranty
1 Year Manufacter Warranty
Certification
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
