Shining 3D · Standalone inspection scanner

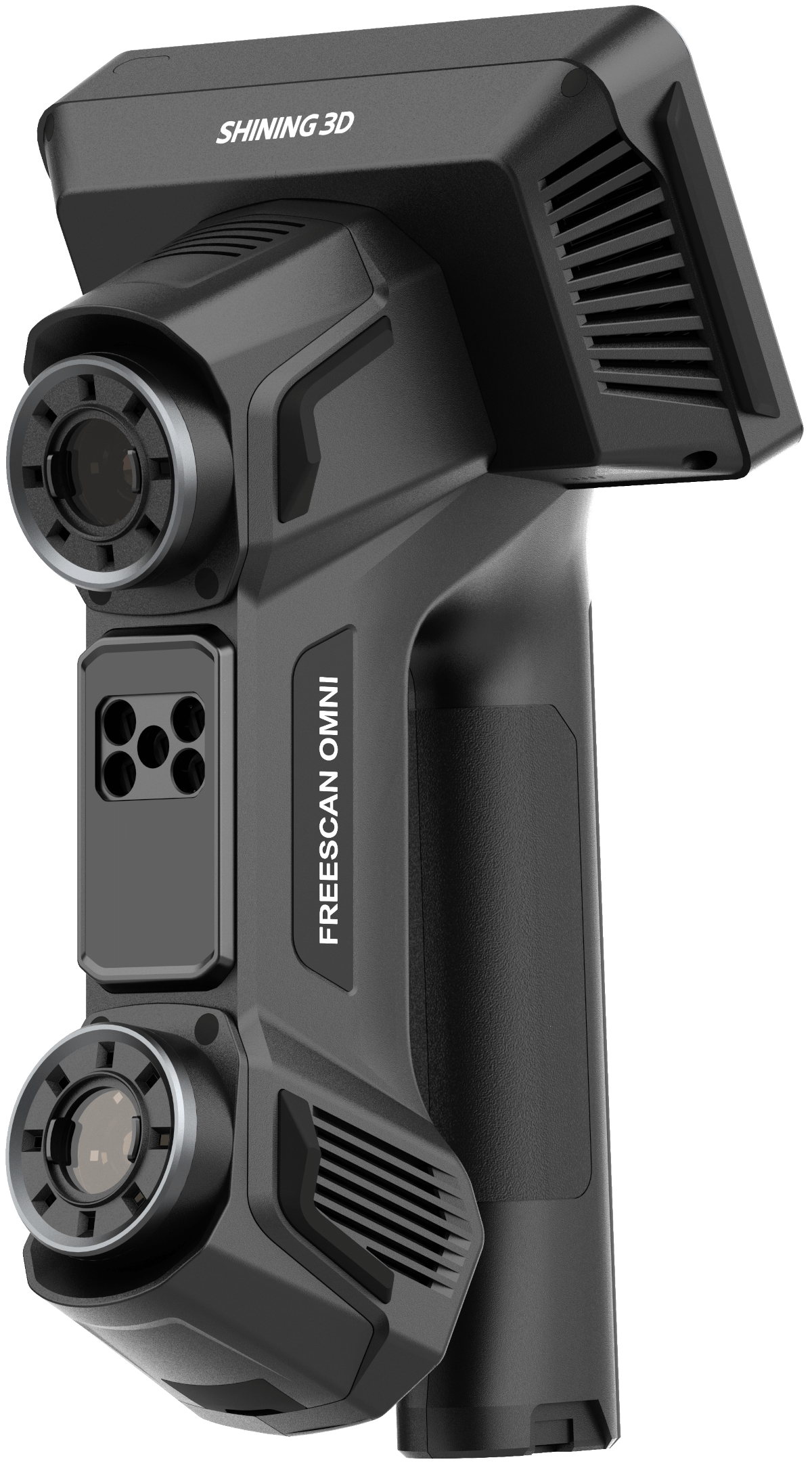

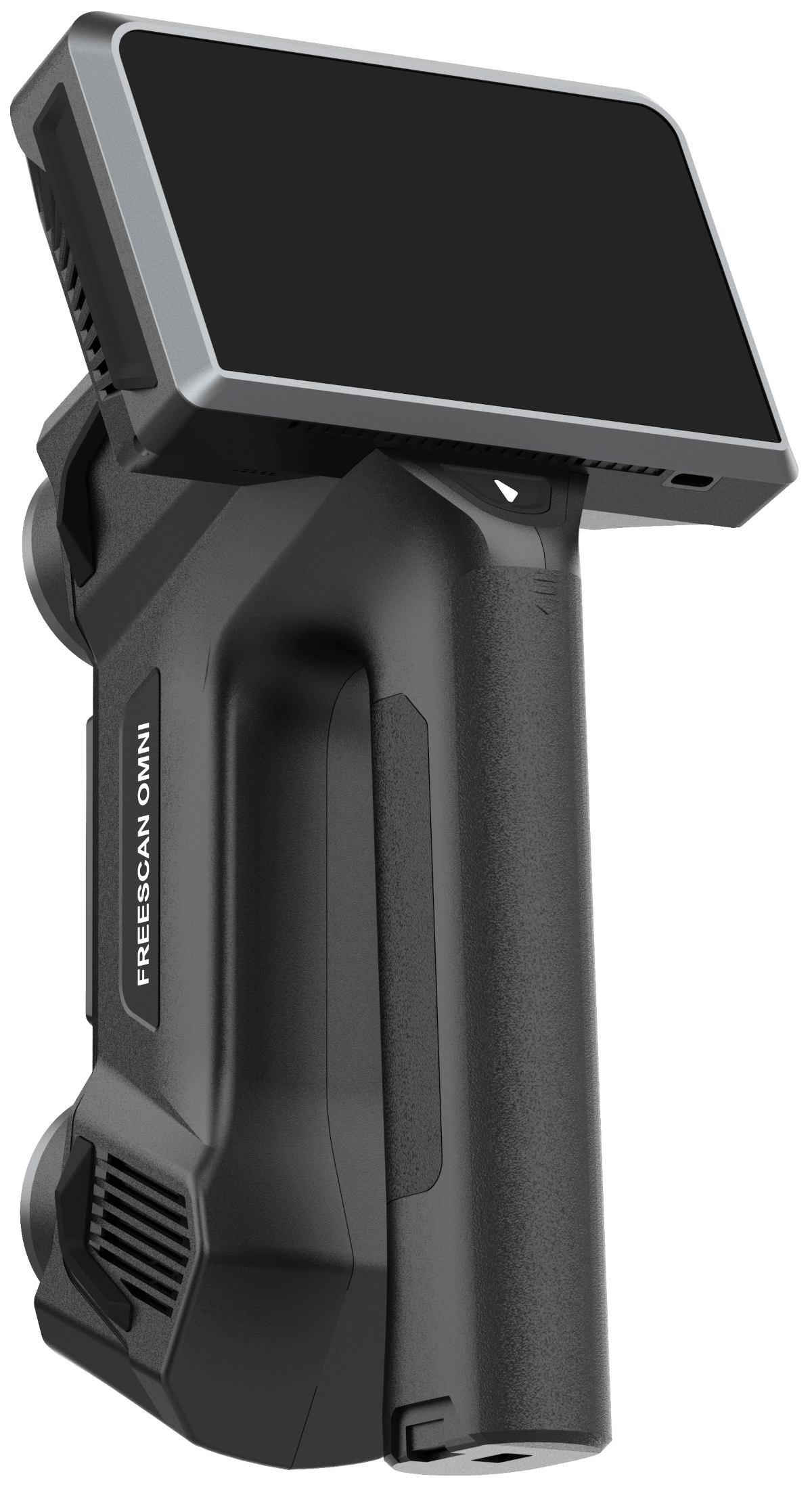

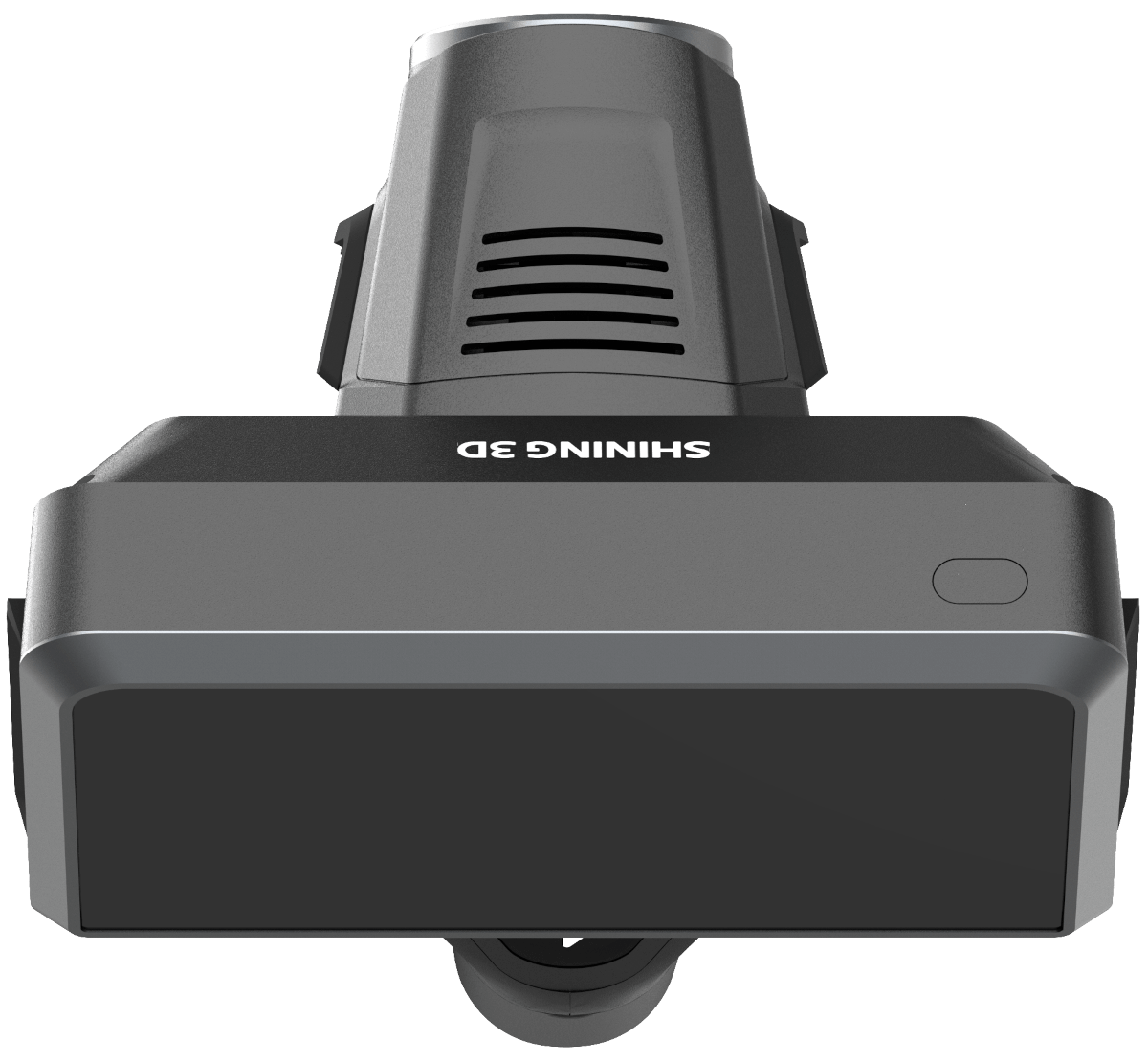

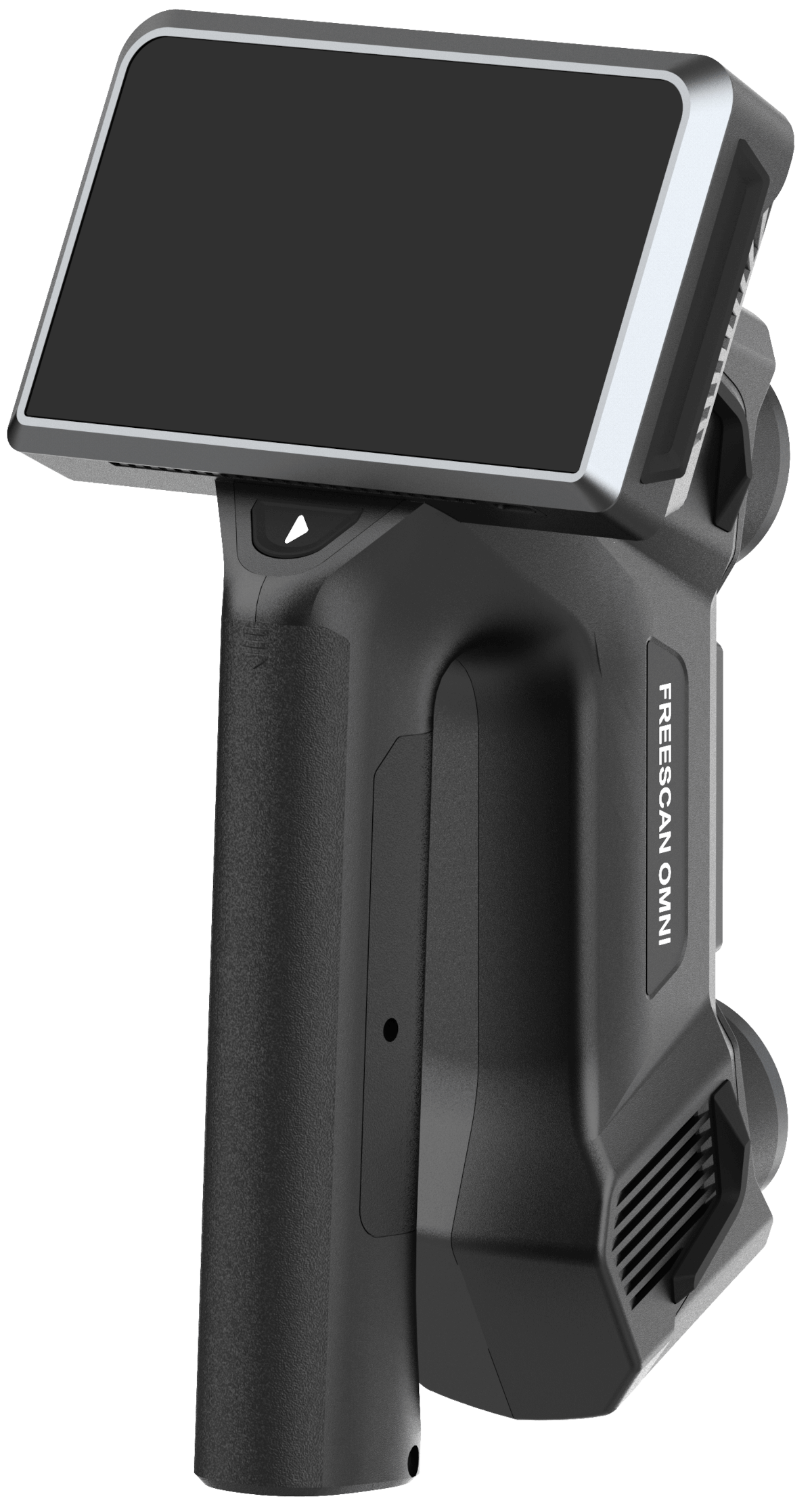

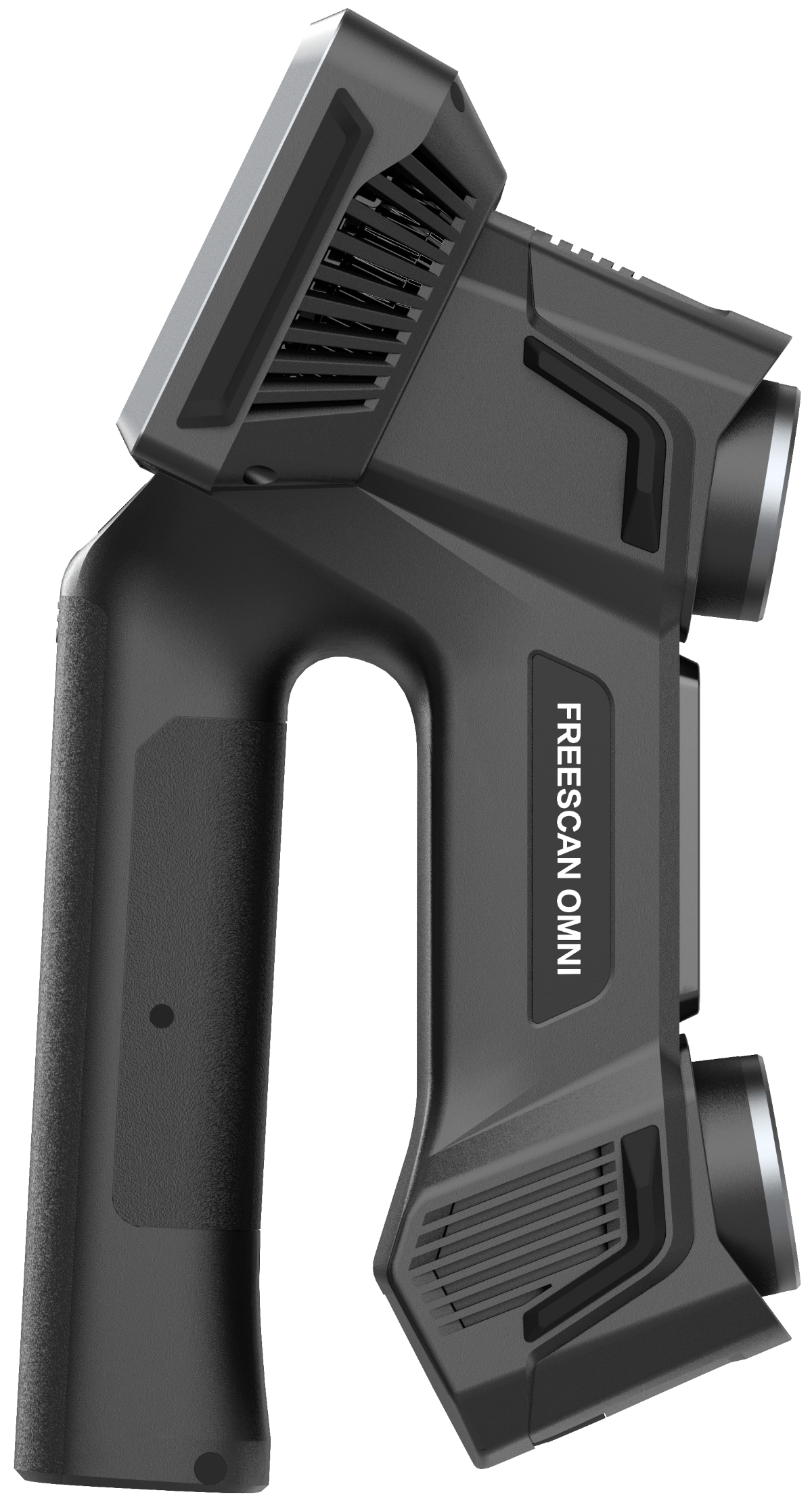

FreeScan Omni

Scan, inspect and write the report on the scanner itself. 0.02mm certified accuracy, 93 blue laser lines, built-in video photogrammetry, and PTB-certified inspection software running on board. No PC, no cables.

0.02mm, VDI/VDE 2634 & ISO 10360

Inspection and reports on the scanner

VPG built in, no coded markers

93 laser lines, 7.6M pts/s

Pick your configuration

FreeScan Omni

Everything on board: inspection, VPG and AI feature recognition.

Custom quote

Configured to your parts

Get a quote

Book a demo

FreeScan Omni Lite

Same hardware and accuracy. Add inspection, VPG or analysis modules as you need them.

Custom quote

Configured to your parts

Get a quote

Book a demo

We have an extra FreeScan Omni demo unit available, at a significant discount

We keep demo units in-house for live demos and our videos (the unboxings, how-tos and scanning walkthroughs), and we have an extra one we can let go. It's basically perfect condition, with the same support from us.

Ask about the demo unit

Call 833-774-6863

US support from people who scan · 833-774-6863  ·  Quotes usually within one business day  ·  POs, financing and leasing  ·  Omni or Omni Lite?

Not ready to buy yet?

Book a live demo ›

Omni brochure ›

Omni vs. Omni Lite ›

Send this page to your team ›

0.02mm

Accuracy

VDI/VDE 2634 + ISO 10360 certified

7.6M

Points / second

93 blue laser lines

0.015mm/m

With VPG

0.02 + 0.015 mm/m on big parts

On board

Scan to report

Inspection runs on the scanner

Why Omni

Inspect at the part, not back at the CMM.

Most inspection means scanning, walking back to a workstation, running the comparison and printing a report. Omni does the whole thing in your hand, so the person on the shop floor scans the part and gets a pass/fail report on the spot.

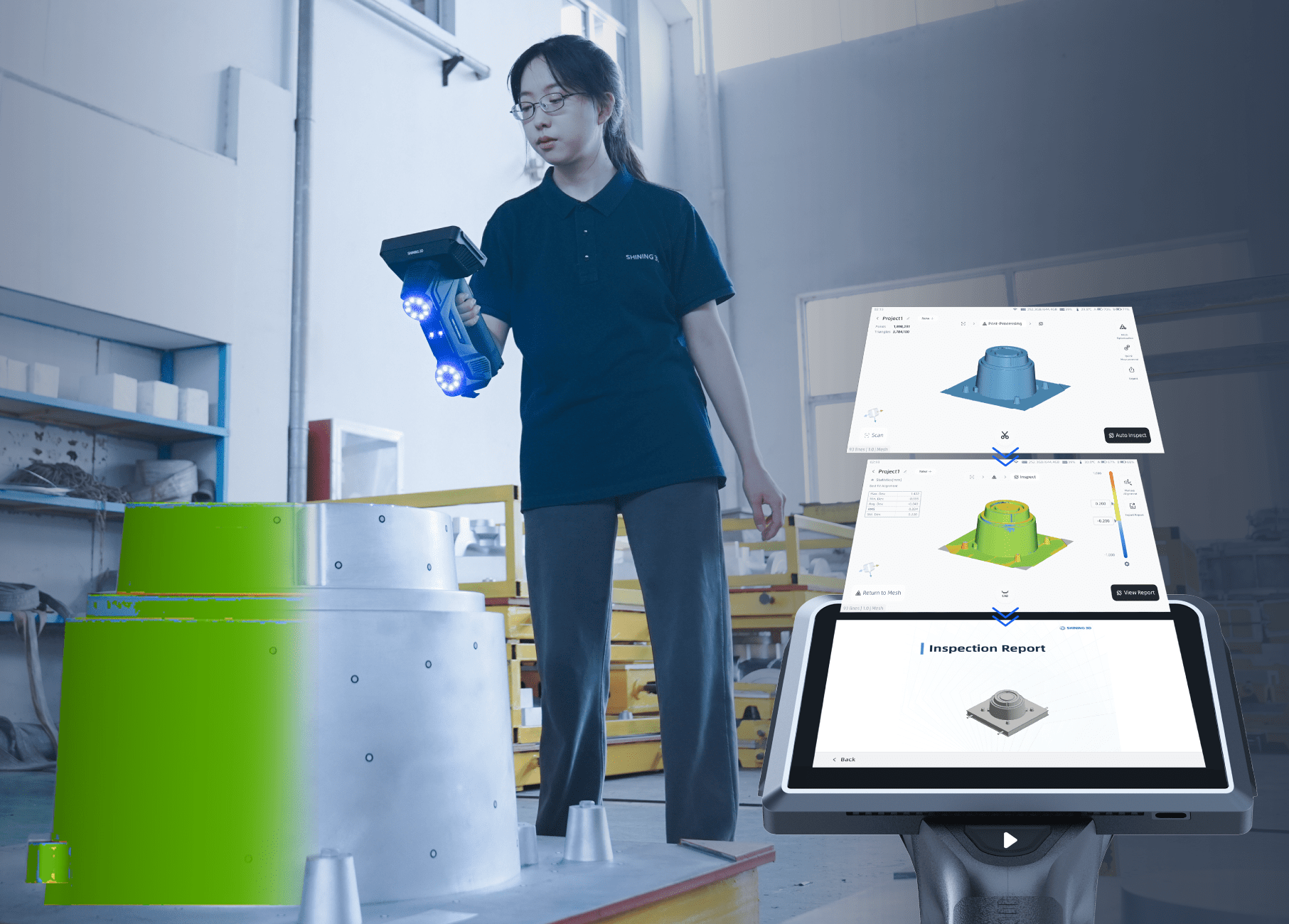

On-scanner inspection

Scan it. Check it. Report it.

Scanning, meshing, inspection and reporting all happen on the scanner. Preset templates and a simple interface mean frontline staff get consistent reports without a metrology specialist standing over them.

PTB-certified inspection software

Preset inspection templates

Color maps on screen

Export reports on the spot

Video photogrammetry (VPG)

Big parts, same accuracy.

VPG verifies marker positions in real time with a calibration rod, with no coded targets and no separate photogrammetry system. Volumetric accuracy holds at 0.02 + 0.015 mm/m across large parts.

Four scan modes

Fast, fine, deep and marker-free.

93 laser lines for big surfaces, 25 parallel lines for detail, a single line for deep pockets, and IR for quick scans without markers.

High-speed: 93 lines

Detail: 25 parallel lines

Deep pocket: 1 line

IR rapid: no markers

Wireless · hot-swap

No cords. No downtime.

No power cord and no data cable. Battery packs hot-swap without shutting down, and the dock charges the scanner and sets up Wi-Fi the first time you drop it in.

AI feature recognition

Holes and slots, measured

Finds round holes, slots and rectangular holes and measures their edges.

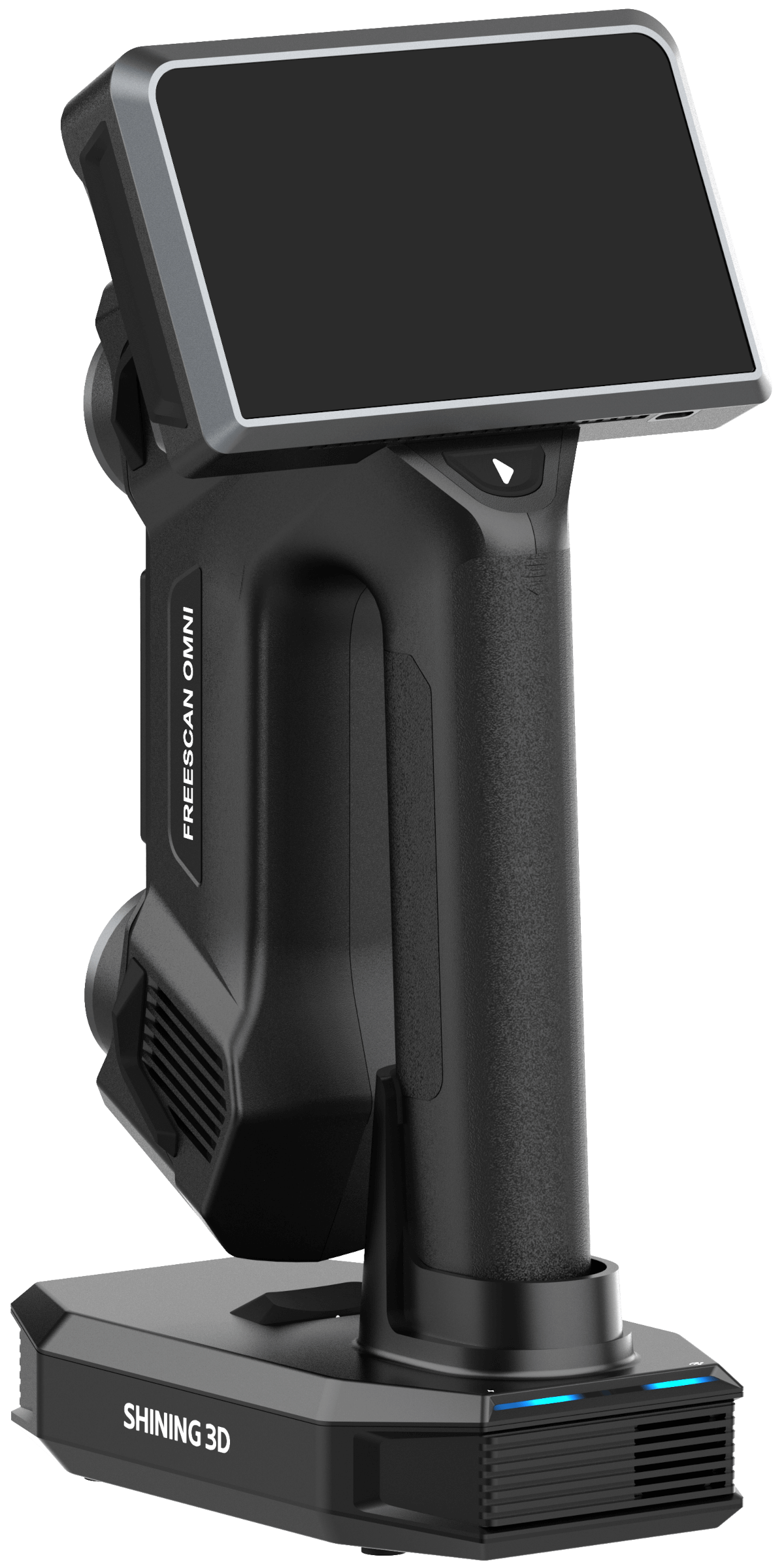

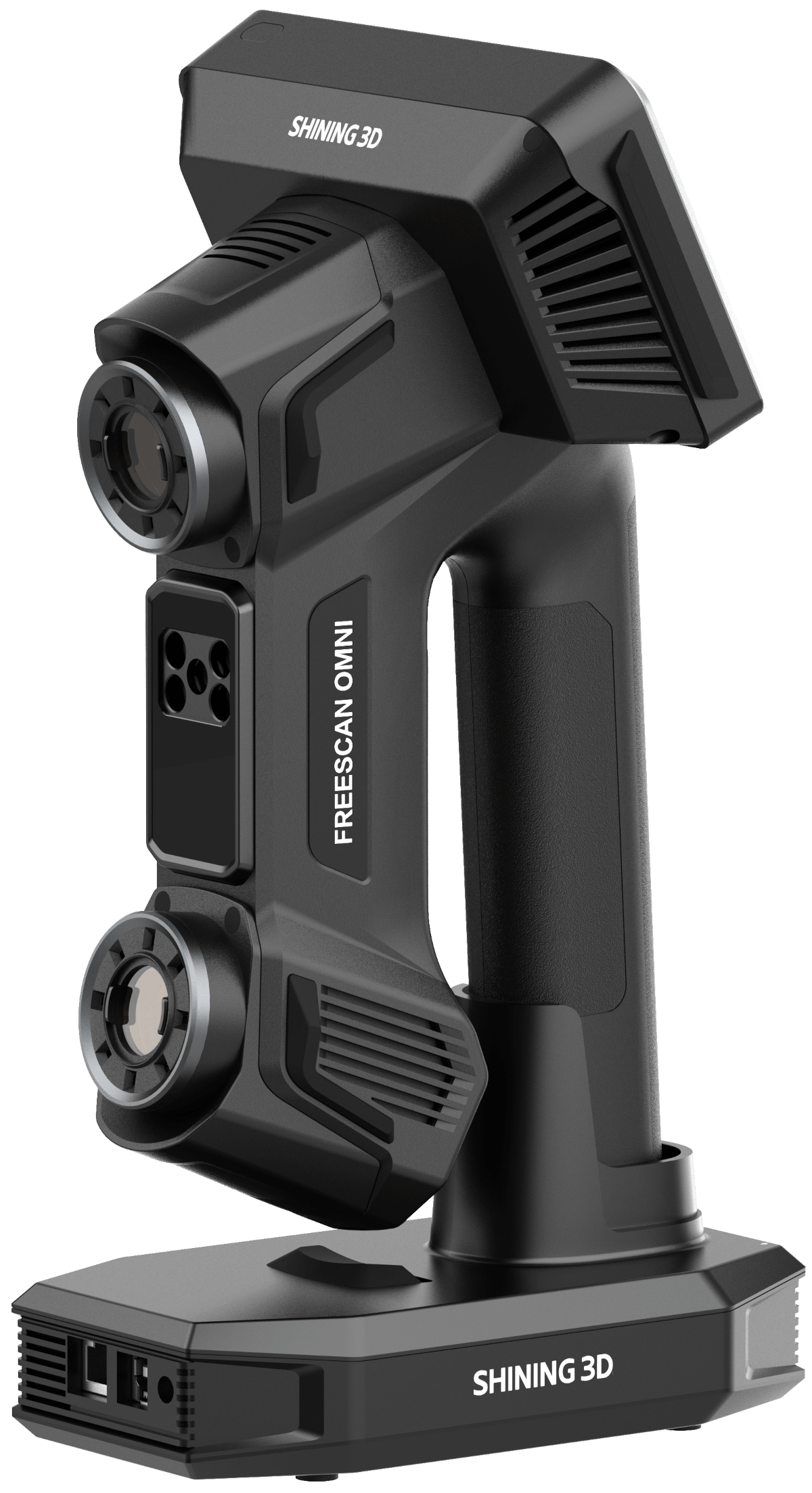

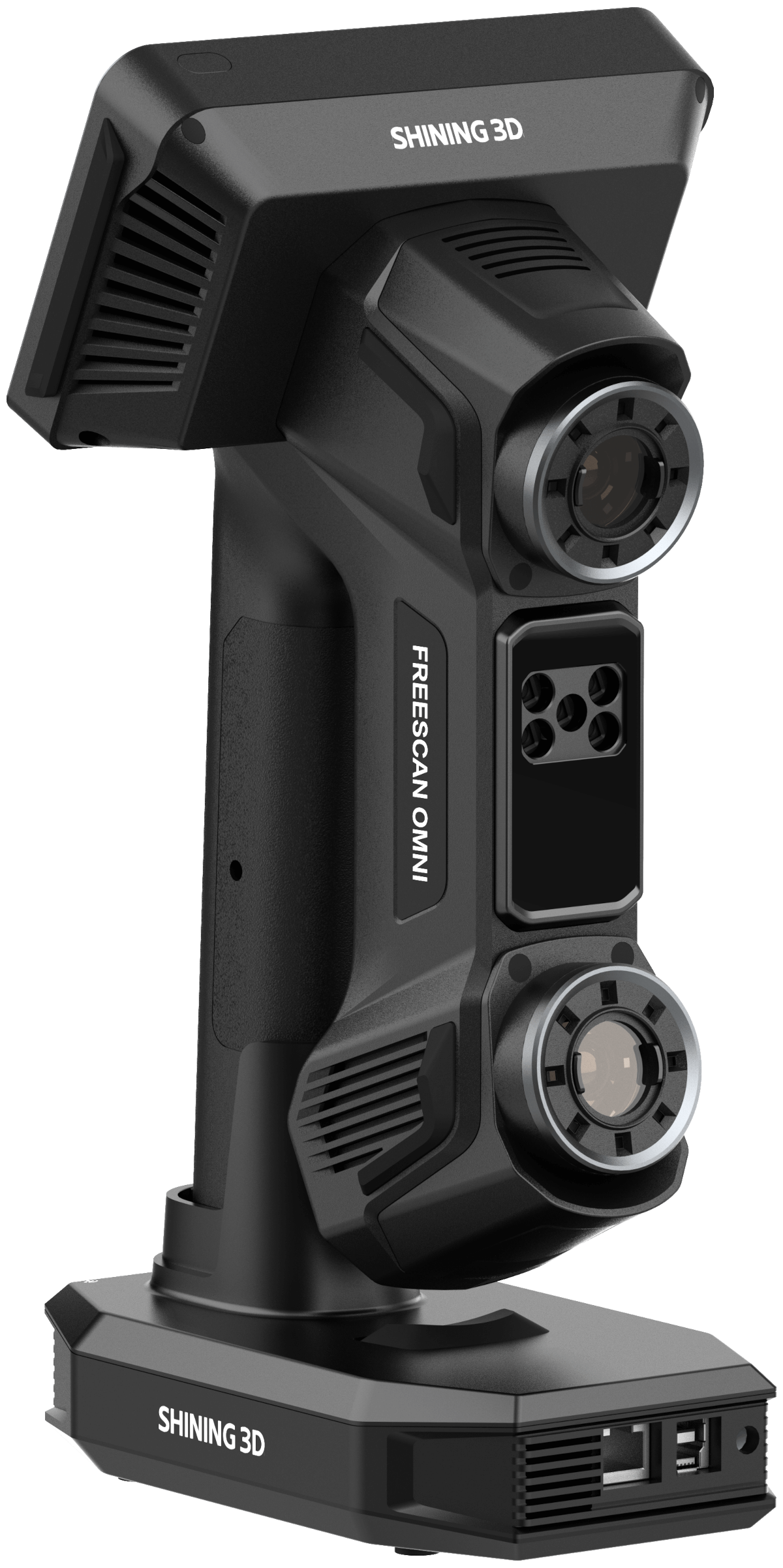

Smart dock

Power + Wi-Fi in one

Dock once to charge and connect to your network automatically.

Edge computing

Workstation speed

An on-board computing module scans and processes as fast as a tethered unit.

Inspection on board

SHINING3D Inspect, on the scanner.

Omni ships with SHINING3D Inspect running on the device, and Shining 3D keeps updating it for every Omni owner. Prefer a big screen? It also runs in PC mode.

Included with Omni · module on Omni Lite

Scan-to-report, no workstation.

Load the CAD, scan the part and get a color deviation map and a report you can hand to QA.

PTB-certified

Inspection algorithms certified by PTB, Germany's national metrology institute.

Templates

Set up a part once, and the next person just scans.

Two work modes

Standalone on the scanner, or connected to a PC.

Continuous updates

New Inspect features ship to every Omni owner.

WORKS WITH:  SHINING3D Inspect · Geomagic Control X · PolyWorks · Geomagic Design X · EXModel

Need inspection reports or editable CAD?

See software options ›

See it scan

Watch it work

Our Omni Lite overview, and a walk through everything in the Omni box.

Alt image

Vision Miner: Shining 3D FreeScan Omni Lite overview

Alt image

Vision Miner: FreeScan Omni, what you get

Spin a real scan

Mold, scanned with the FreeScan Omni
Damping strut, scanned with the FreeScan Omni

More scanner reviews and workflows on

Vision Miner 3D Scanning ›

Which one?

Omni vs. Omni Lite

Same hardware, same accuracy, same scan modes. Omni comes fully loaded. Omni Lite starts lean, and you add modules as your inspection work grows.



Omni

Fully loaded

Omni Lite

Add modules later

Hardware + 0.02mm accuracy

✓

✓

4 scan modes

✓

✓

Standalone + PC work modes

✓

✓

On-device inspection

✓

Optional module

SHINING3D Inspect for PC

✓

Optional module

Video photogrammetry (VPG)

✓

Optional module

AI feature recognition

✓

Optional module



Get a quote

Get a quote

Full specifications · FreeScan Omni series

High-speed scan

93 blue laser lines · IR VCSEL

Detailed scan

25 parallel laser lines

Deep pocket scan

1 laser line

VPG

Supported, no coded markers required

Accuracy

0.02 mm

Volumetric accuracy

0.02 + 0.03 mm/m

Volumetric accuracy with VPG

0.02 + 0.015 mm/m

Scan speed

7,619,000 points/s

Resolution

0.01 – 10 mm

Max. field of view

Laser: 580 × 650 mm · IR: 1205 × 1104 mm

Depth of field

830 mm (170 – 1000 mm)

Connection

Wireless and wired

Power

4 hot-swap batteries in use, 8 included · about 1 hr per set

Net weight

≤ 1.1 kg

Laser class

Class II, eye-safe

Certifications

CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX

Acceptance test

VDI/VDE 2634 Part 3 & ISO 10360, in an ISO/IEC 17025 accredited lab

Full specs are in the Omni brochure.

Omni brochure (PDF)

Software download

Warranty options

Open it, scan it

What shows up at your door

What's in the box

FreeScan Omni system

FreeScan Omni or Omni Lite scanner

✓

Hot-swap batteries (4 run the scanner)

8

Smart dock: charges + sets up Wi-Fi

✓

Carbon-fiber magnetic scale bars (VPG)

Omni / VPG module

Pelican-style case

✓

Calibration certificate

✓

SHINING3D Inspect on the scanner

Omni / Inspect module

Configured for your parts

Quoted, set up and trained

Omni is quoted to your parts and the modules you need. We'll scan your part in a demo first, then set up the scanner and the inspection templates with your team.

Quotes usually go out within one business day, on letterhead for POs.

Magnetic scanning pyramids + a can of AESUB Blue, on us

Every scanner we ship includes a set of our magnetic scanning pyramids (stick markers on them and set them around the part for tracking, no stickers on the part itself) and a can of AESUB Blue, the spray that disappears on its own. It's our little bundle, and you only get it here.

Pyramids ›

AESUB Blue ›

Frequently asked questions

Before you buy

Buy it from people who scan

We've sold and supported Shining 3D scanners since 2019. When you call, the person who picks up has scanned with one.

01

Shining 3D partner since 2019

We sell, set up and support the whole FreeScan and OptimScan line, not just the handhelds.

02

Real people, here in America

No scripted AI auto-attendant. 833-774-6863 · contact@visionminer.com

03

Setup, training, POs

Install, calibration and Geomagic training from our team. Formal quotes for POs, plus financing and leasing.

"If you're out in the field, let's say you're scanning an oil rig to check the pipes, you can check those files against a reference file, basically the straight-up CAD, and see any deviations between the real-life object and its initial design."

Matt Masamori, Vision Miner

As featured on shining3d.com

Quick answers

Omni or Omni Lite?

If you'll inspect on the scanner from day one, get Omni. If you mostly need a metrology scanner now and inspection later, start with Omni Lite and add the Inspect, VPG or analysis modules when you need them.

Does it need a computer?

No. Scanning, inspection and reporting run on the scanner. You can also run it in PC mode with SHINING3D Inspect on a workstation.

How long do the batteries last?

Omni runs on 4 batteries at a time and ships with 8, about 1 hour per set. They hot-swap without shutting down.

Is the inspection software updated?

Yes. Shining 3D keeps maintaining and updating SHINING3D Inspect for every Omni owner.

Do I need coded markers for big parts?

No. VPG uses video and a calibration rod to verify marker positions in real time, with no coded targets.

Is the accuracy certified and traceable?

Yes. Every unit is calibrated in Shining 3D's ISO/IEC 17025 accredited accuracy lab and verified to VDI/VDE 2634 and ISO 10360, with an inspection report and calibration certificate traceable to those standards.

Will it scan black or shiny parts?

Blue laser handles dark plastic and machined metal well. For chrome, mirror finishes or clear plastic, a light coat of AESUB spray does the job, and it disappears on its own.

Can I see it scan my part first?

Yes. Book a live video demo and we'll scan your part (ship it to us or show it on camera), or bring it to our shop in Santa Ana, CA. You walk away with the scan data and a straight answer, even if that answer is a cheaper scanner.

Can I finance it or buy on a PO?

Yes. We quote on company letterhead for POs, and we can set up financing or leasing. Request a quote and tell us how you want to buy.

Scan to report, in one hand

Let's quote it on your parts.

Omni is configured to your parts. We'll demo it on yours first.

Get a quote

Book a demo

Call 833-774-6863

Round out your setup

Software, training and supplies

Not needed to start scanning. Add them when the job calls for it.

Geomagic software

Turn scans into CAD and inspection reports.

The scanner gives you a mesh. Geomagic turns it into a parametric model you can edit, or a color map and report QA can sign. We sell it, set it up and train your team on it.

Control X Essentials

Compare scan to CAD: color maps, GD&T and reports.

$2,390/yr or $7,249 ›

Geomagic Design X Go

Scan to editable CAD for SOLIDWORKS, Fusion or Inventor.

$1,900/yr or $3,992 ›

Geomagic for SOLIDWORKS

Reverse engineer right inside SOLIDWORKS.

$2,739/yr or $8,301 ›

Inspection

Scan to report

Geomagic Control X (full)

$16,727

All 3D software

›

Reverse engineering

Scan to CAD

Geomagic Design X Plus

$12,710

EXModel

from $1,900

Training

Learn it on your parts

Shining 3D scanner training

$1,500

Geomagic training

from $1,750

Supplies

Markers & spray

Markers & accessories

from $29

AESUB scanning sprays

from $39.50

Not sure what you need? Call 833-774-6863 and we'll tell you what's worth it for your parts, and what isn't.
