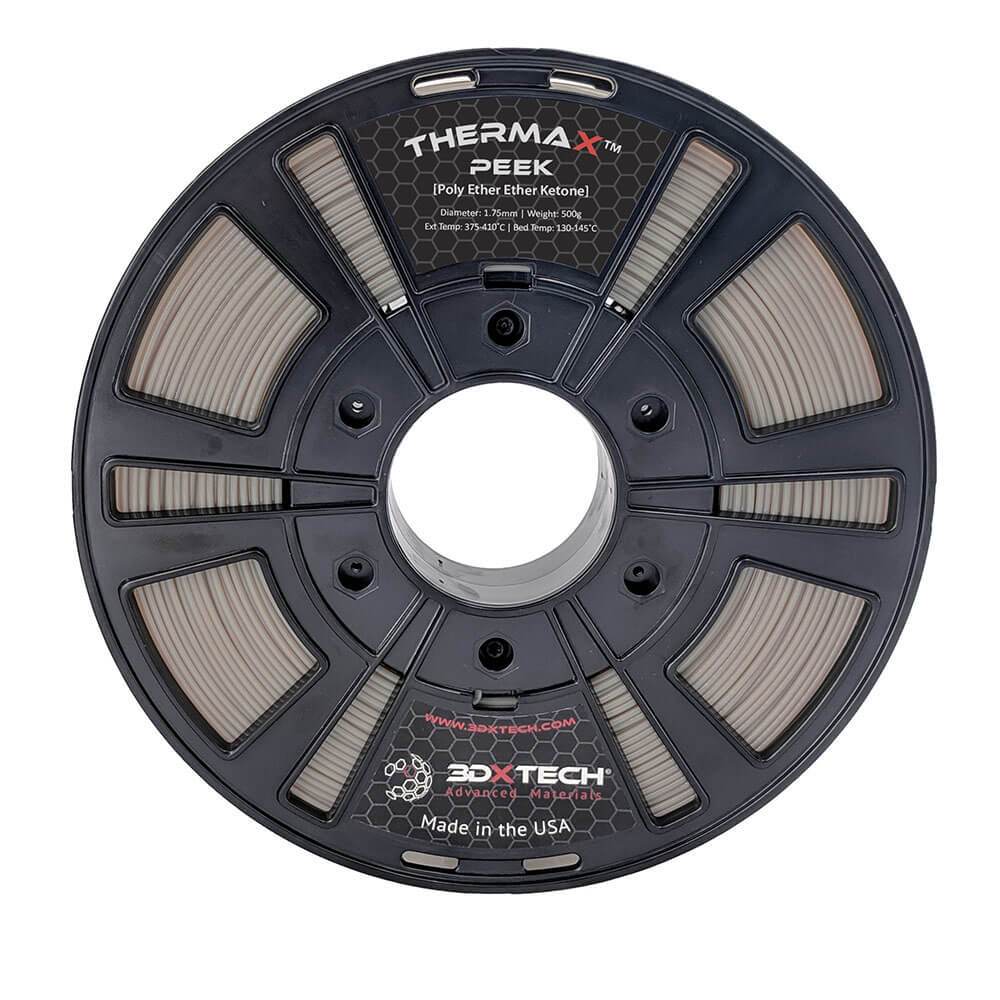

ThermaX™ PEEK

[custom_html]

ThermaX™ PEEK (PolyEtherEtherKetone) is one of the highest-performance polymers in world. PEEK filament is made using a proprietary processing technique that allows for lower extrusion temperatures than other PEEK filaments on the market and is therefore easier to print with.

PEEK Attributes Include:

• Glass Transition Temp (Tg) of 143°C
• Melt Temp (Tm) of 343°C
• Inherent flame resistance (UL94 V-0)
• Outstanding mechanical, thermal, and chemical resistance
• Continuous Use Temperature (CUT) of 260°C, higher for short duration
• Excellent resistance to a broad range of chemicals, such as those used in the oil/gas, automotive, aerospace, industrial, and chemical processing industries

[/custom_html]

PEEK has exceptional mechanical, thermal, and chemical resistance properties making it a go-to material in some of the most demanding applications.  The Polyaryletherketone (PAEK) family of thermoplastics exhibit exceptional thermal, chemical, and mechanical properties.

Filament Specifications:

• Diameter:  1.75mm (+/- 0.05mm)
• Colors:  Natural/Tan
• Larger reel quantities available upon request

Recommended Print Conditions:

• Extruder Temp:  375 - 410°C
• Bed Temp: 130 - 145°C
• Bed Prep: Nano Polymer Adhesive
• Enclosure temp (if your printer is equipped):  70 - 140°C [hotter is better, up to 140°C]
• Print Speed:  10-50 mm/s for 0.2mm layer height, fast as results dictate

Download MSDS & Technical Data
