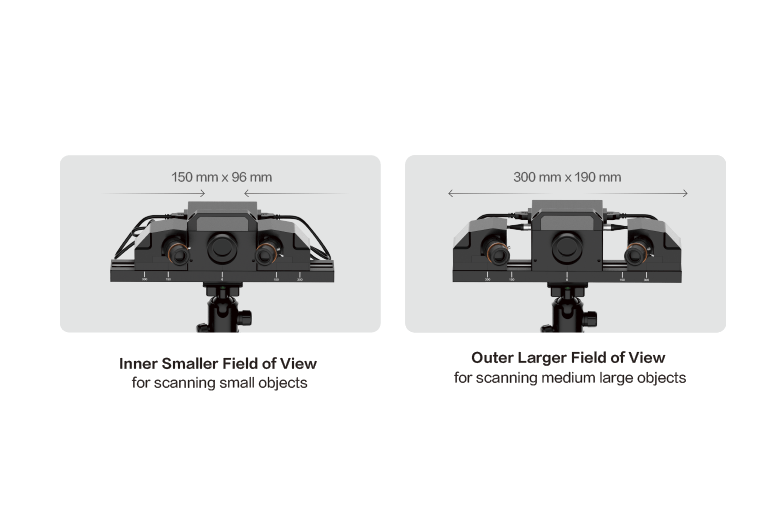

Ready-to-Use Dual Scan Range
The slide-rail design enables an easy switch of the scanning range between 150 mm x 96 mm and 300 mm x 190 mm meeting the needs of scanning objects of different sizes effectively.

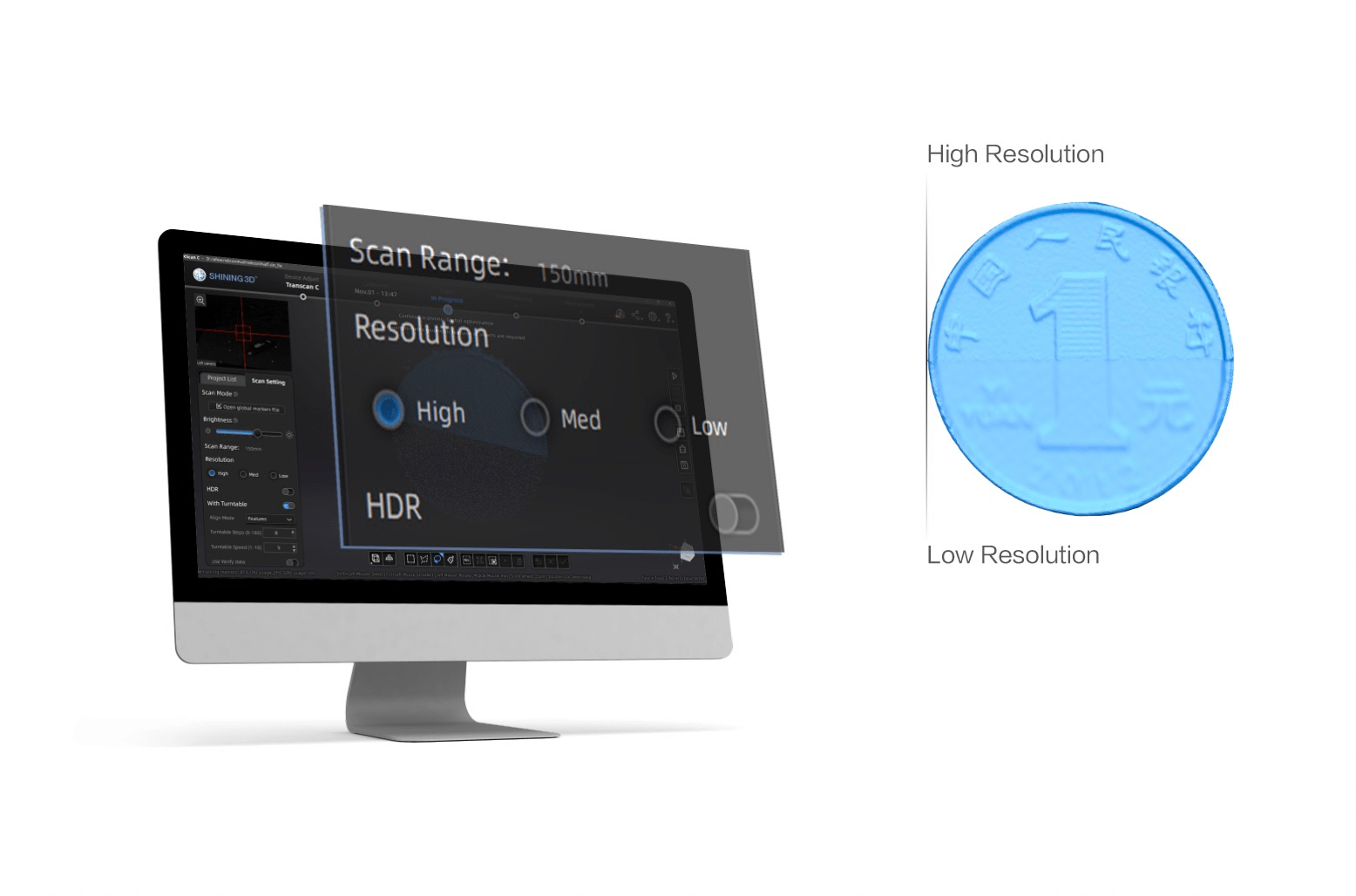

The Multi-Resolution Fusion Algorithm allows a mixture of 3 levels of resolution of high, medium or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.

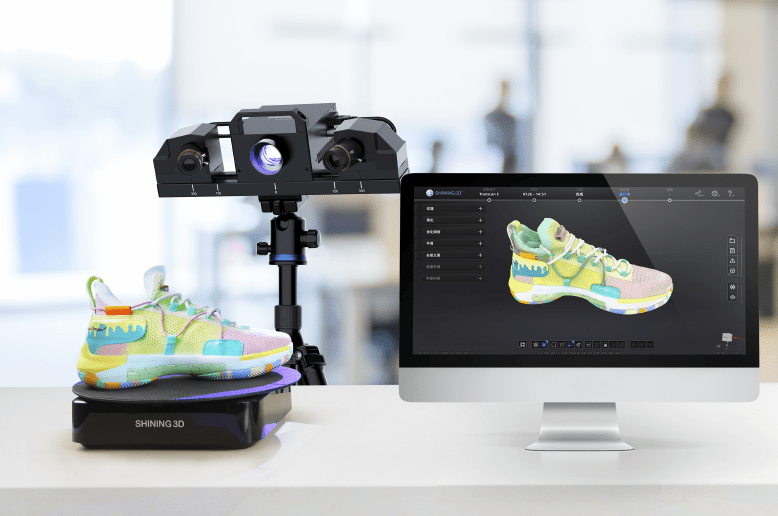

High Color Fidelity
Two 12 MP color cameras are installed to capture a detailed 24-bit color map, replicating the authentic color of the physical object. Transcan C is the ideal solution to capture color 3D data for virtual display.
High-Accuracy Scan Data
The compact design scanner produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position. These results are valuable for many applications for measurement.

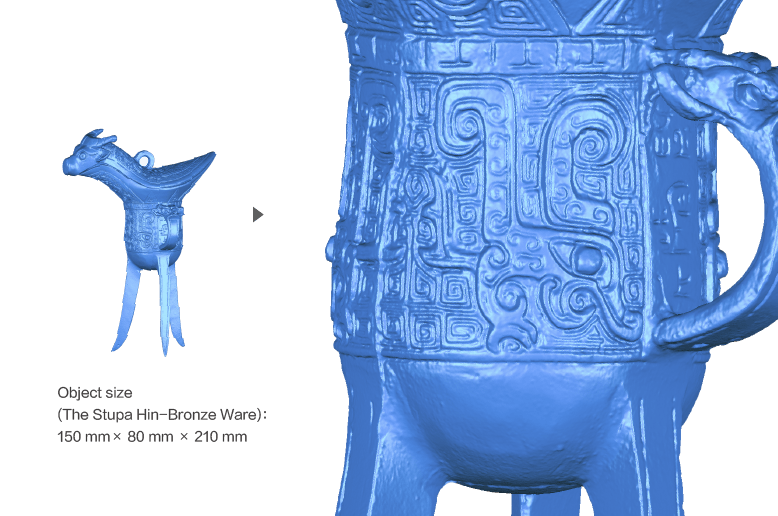

Micro Details Reproduction
The minimum point distance can reach 0.0375 mm (resolution) to reproduce fine details on the surface in its inner position of 150 mm x 96 mm.

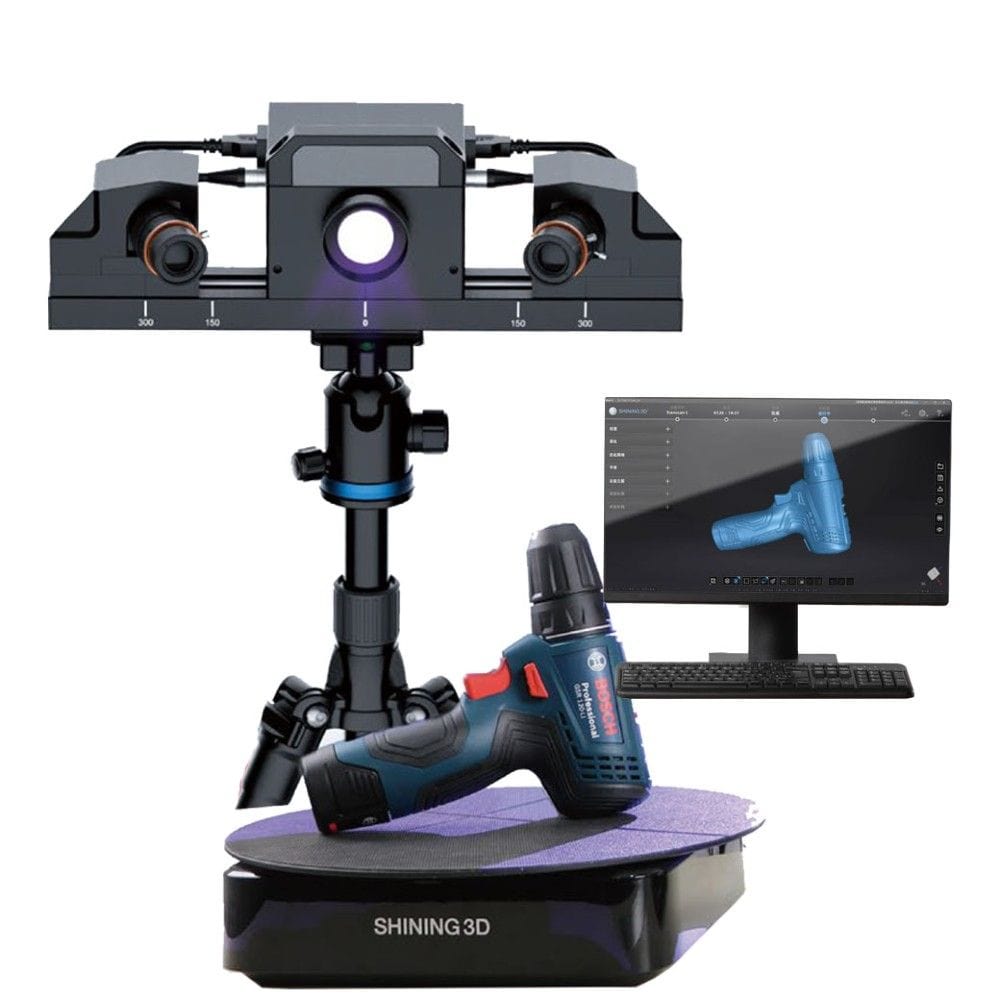

The scanning process is fully automatic with the turntable. Combined with the scanning software's stitching algorithm, this ensures the efficient acquisition of 3D data without manual intervention.

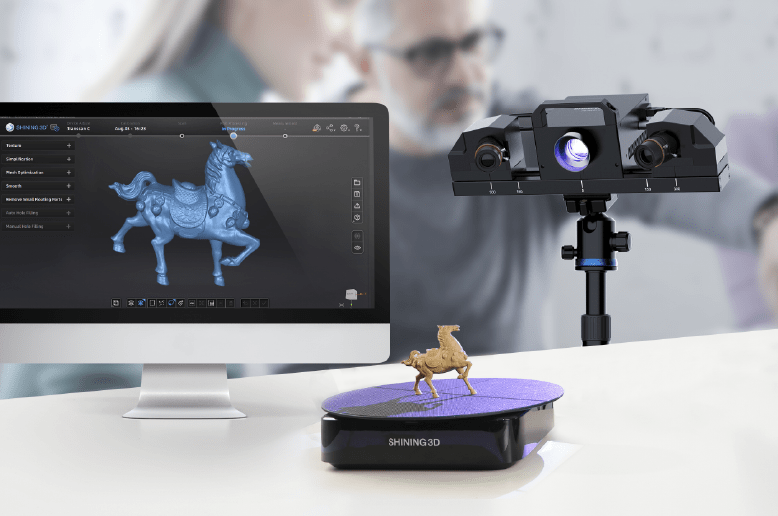

The software interface guides the user through a simple operation process while providing powerful tools for the hustle-free optimization of the scan results.
- Windows 7 (64bit) or Windows 8 (64bit) or Windows 10 (64bit)
- Processor: i7-8700 or higher (Please Note: Not compatible with AMD processors)
- 32 GB RAM (Minimum 16GB RAM or more)
- NVidia Graphics Card NVIDIA GeForce GTX 1060 or higher
- Interface: high-speed USB 3.0
- 1 x Transcan C 3D Scanner
- 1 x Turntable & Tripod
- 1 x Scanning Software
- 1 x SolidEdge Shining 3D Edition
