CarbonX ABS+CF

3DXTech
SKU: ABS3010750BK0
$48.00




CarbonX™ ABS+CF is made using our high-flow ABS and premium high-modulus carbon fiber. This material offers ease of printing, strength & stiffness, excellent dimensional stability, and an amazing surface finish.

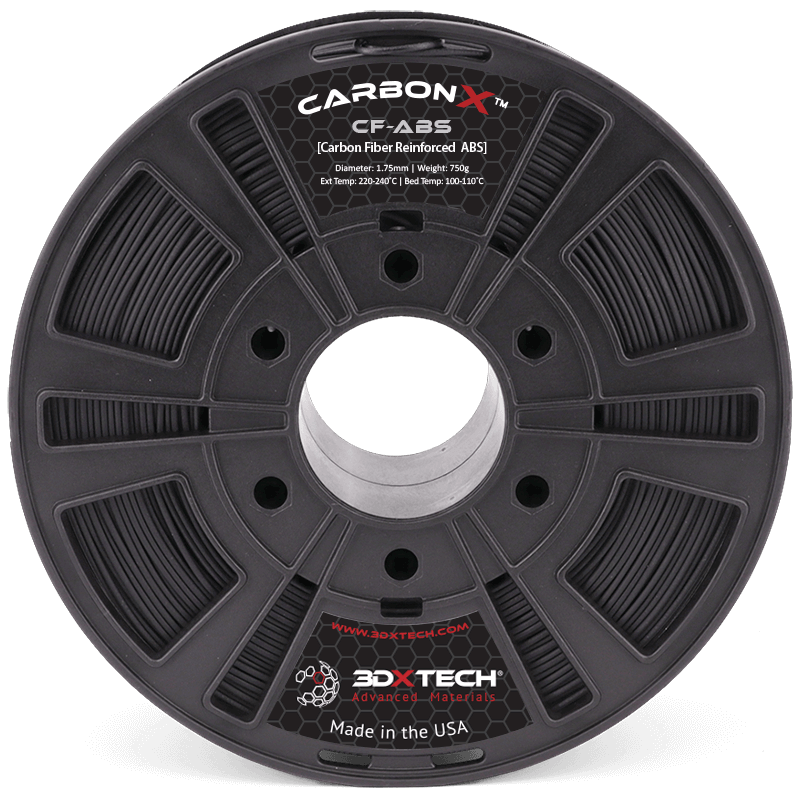

CarbonX™ ABS+CF Carbon Fiber Reinforced ABS

CarbonX™ ABS+CF is a high-performance carbon fiber reinforced ABS filament ideal for anyone that desires a structural component with high modulus, excellent surface quality, dimensional stability, light weight, and ease of printing. Made using 10% High-Modulus Carbon Fiber. Made in the USA using premium Sabic MG-94 ABS and premium high modulus carbon fiber.

Benefits of CarbonX™ ABS+CF Include:

  • Stiff, high-modulus, industrial-grade parts off many 3D printers available on the market today
  • Greatly improved stiffness, modulus, and dimensional stability thanks to the addition of carbon fiber reinforcement
  • Easier to print than most industrial-grade materials
  • Parts can be smoothed with acetone vapors
  • Higher melting point than PLA or PETG

Filament Specifications:

1.75mm and 2.85mm +/- 0.05mm in diameter

Recommended Print Settings:

  • Extruder: 220-240°C
  • Bed Temp: 100-110°C
  • Nozzle: We currently recommend a hardened steel nozzle with a minimum diameter of 0.4mm.
  • Other: Ideal layer height is 60% of nozzle diameter. We do not recommend printing layers smaller than 0.2mm with carbon fiber reinforced filaments.
  • Bed Prep: Nano Polymer Adhesive gives us the best results
  • Heated Chamber: Recommended, a chamber helps reduce warping.
  • Supports: Water soluble AquaTek X1 USM works great for complex parts.
  • Drying Instructions: 80°C for 4 hours.
