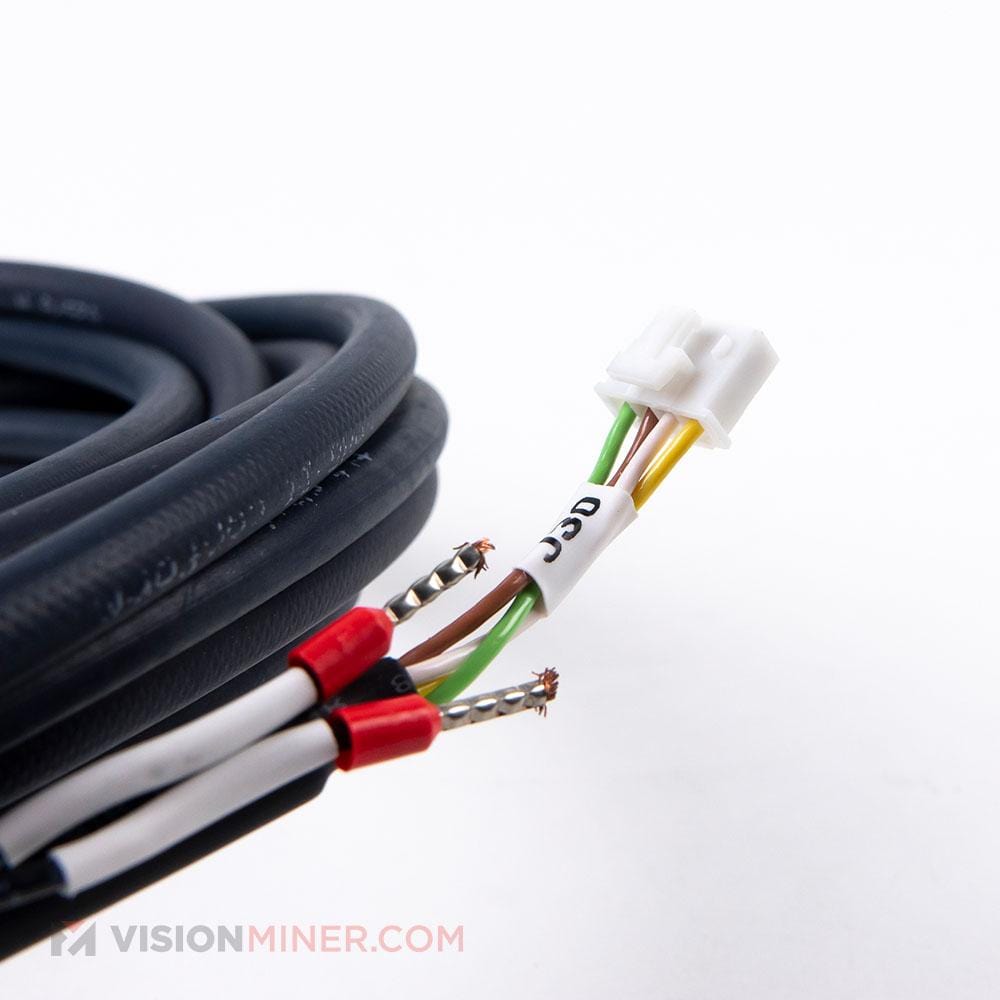

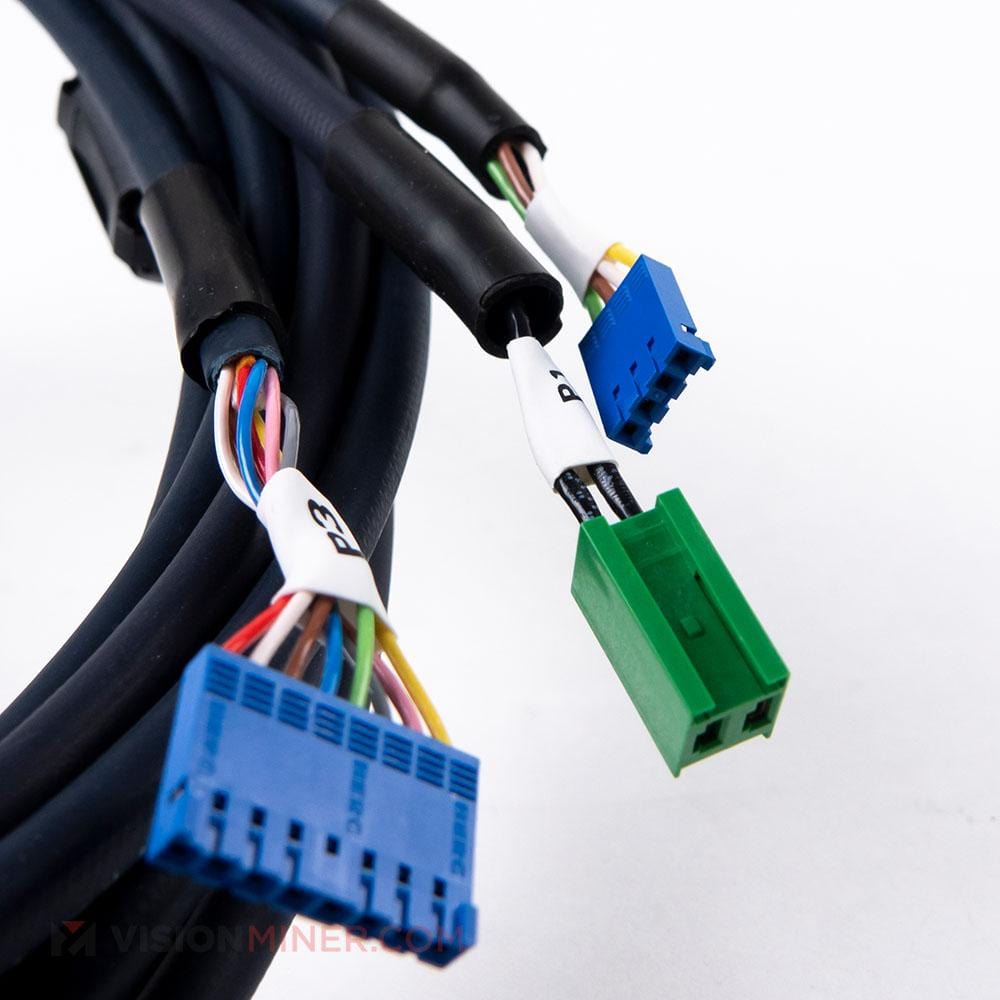

The kit includes all wiring harnesses needed to swap the extruder connection, and replace the extruder wires. Full upgrade takes about 2 hours. Instructions included.
This kit includes the wiring harness alone. Several other items are also required for upgrade, depending which version you're upgrading from:
Kit Contents: 501-0230 Funmat HT
505-0822 Main board Ver. 5.0 x1
602-0263 Bracket of fan x1
602-1003 Bracket of fan x1
506-0304 Cable, Nozzle identification signal x1
506-0305 Cable, missing filament x1
506-0307 Cable, UPS board signal control x1
506-0041 Cable, J1 of power board x1
816-0942 Insulation Cylinder M4 x15mm+6mm x1
816-0943 Insulation cylinder M3 x15mm+6mm x1
505-0200 Temporary board x1
708-0304 Screw M3X4 x4
708-0306 Screw M3X6 x4
708-0312 Screw M3X12 x8
708-0320 Screw M3X20 x4
Kit Contents: 501-0231 Funmat HT with drivers in filament bay
505-0811 Main board Ver. 5.0 x1
602-0263 Bracket of fan x1
602-1003 Bracket of fan x1
506-0304 Cable, Nozzle identification signal x1
506-0305 Cable, missing filament x1
506-0307 Cable, UPS board signal control x1
506-0041 Cable, J1 of power board x1
816-0942 Insulation Cylinder M4 x15mm+6mm x1
816-0943 Insulation cylinder M3 x15mm+6mm x1
505-0200 Temporary board x1
708-0304 Screw M3X4 x4
708-0306 Screw M3X6 x4
708-0312 Screw M3X12 x8
708-0320 Screw M3X20 x4
Kit Contents: 501-0232 Funmat HT Enhanced
505-0811 Main board Ver. 5.0 x1
602-0263 Bracket of fan x1
602-1003 Bracket of fan x1
506-0304 Cable, Nozzle identification signal x1
506-0305 Cable, missing filament alert x1
506-0306 Cable, leveling sensor x1
506-0307 Cable, UPS board signal control x1
506-0041 Cable, J1 of power board x1
816-0942 Insulation Cylinder M4 x15mm+6mm x1
816-0943 Insulation cylinder M3 x15mm+6mm x1
505-0200 Temporary board x1
708-0304 Screw M3X4 x4
708-0306 Screw M3X6 x4
708-0312 Screw M3X12 x8
708-0320 Screw M3X20 x4
